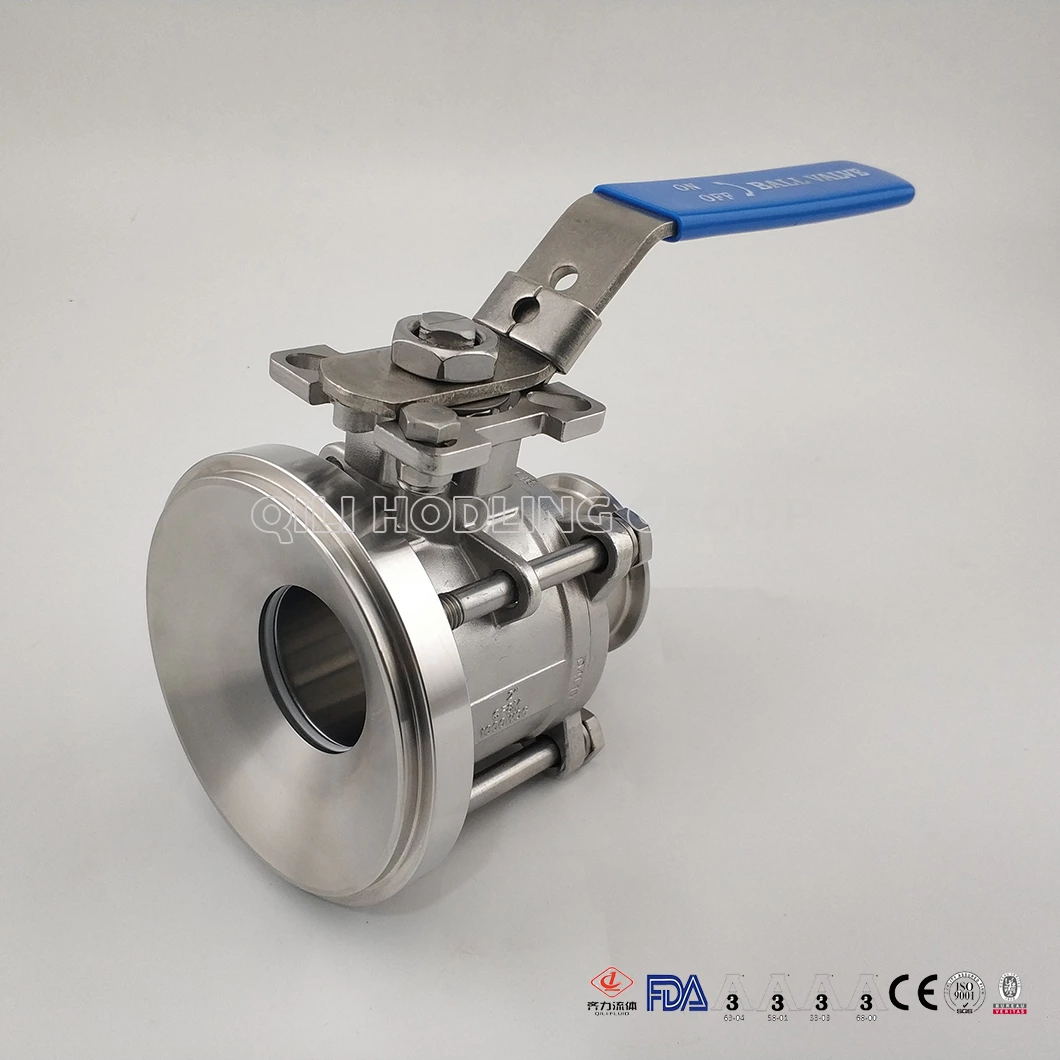

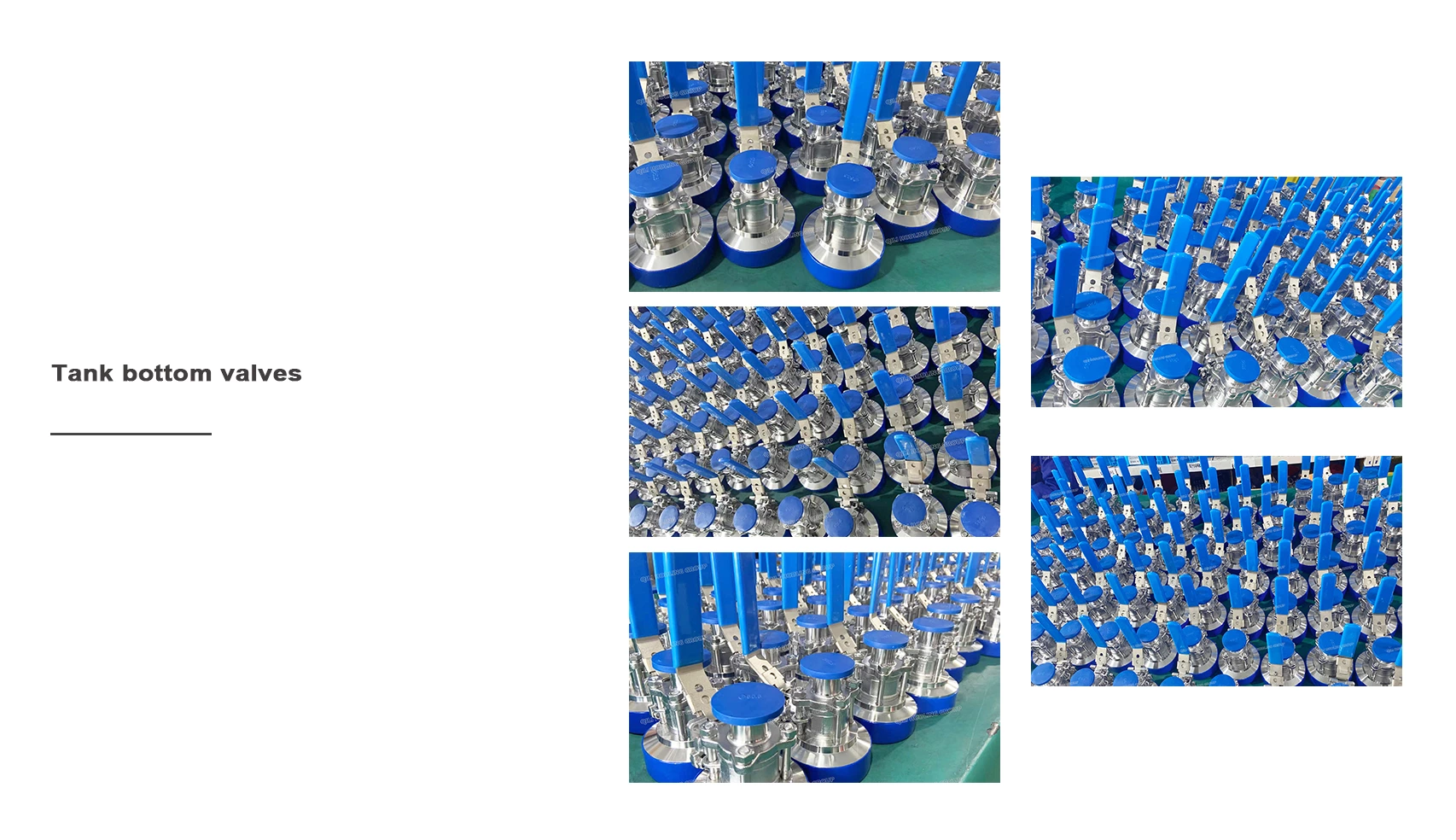

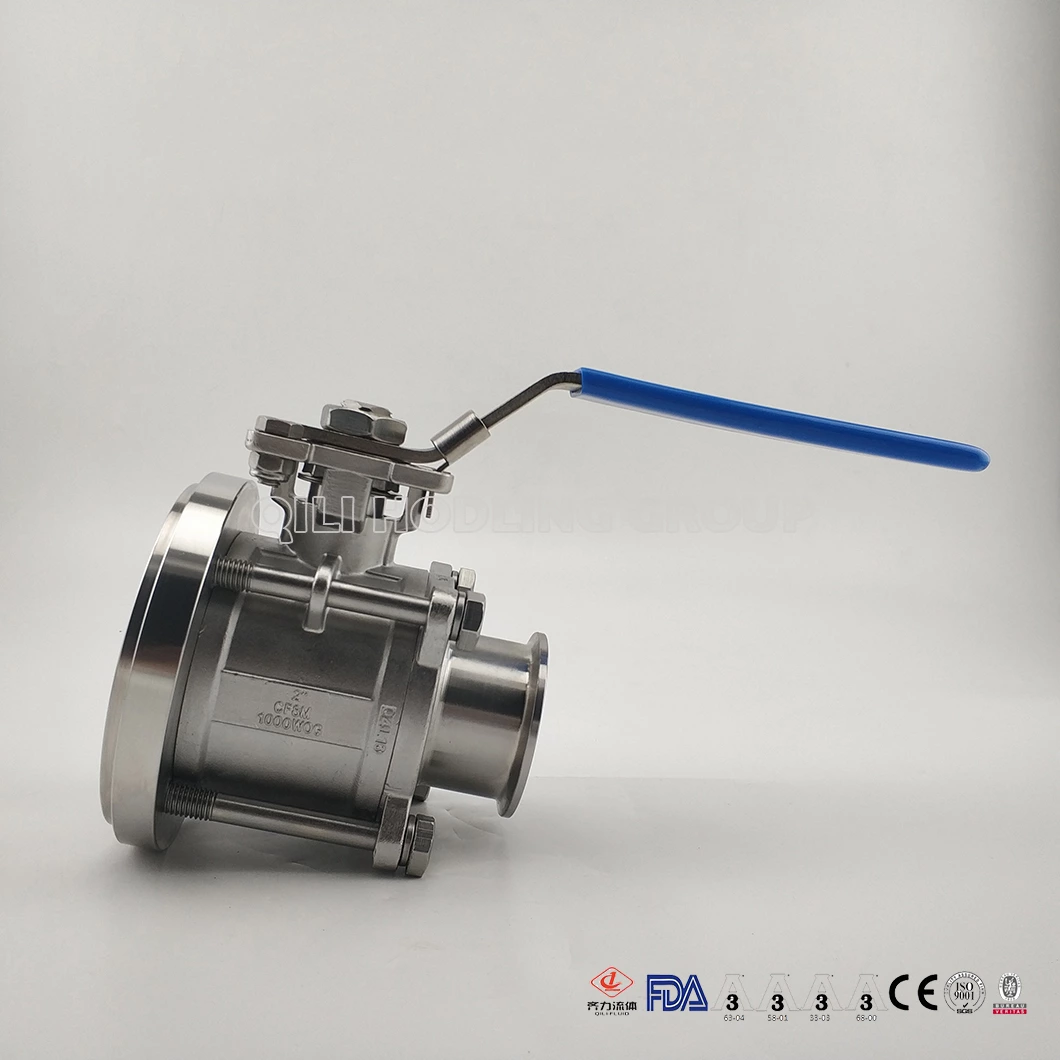

1/2inch to 4 inch sanitary tank bottom valves
- Material:
- 304/316L
- Standard:
- DIN,SMS,ISO,IDF,BSE,RJT
- Working Temperature:
- -20 to 150℃
- Connection ways:
- clamp,threaded,weld
- Size:
- 1-4"
- Type:
- tank bottom valve
- Sales Models:
- wholesale or retail
- Pressure Value:
- 8-30bar
- MOQ:
- 1pcs
- Seal Material:
- PTFE, TFM 1600, UHMWPE
- Transport Package:
- cartons

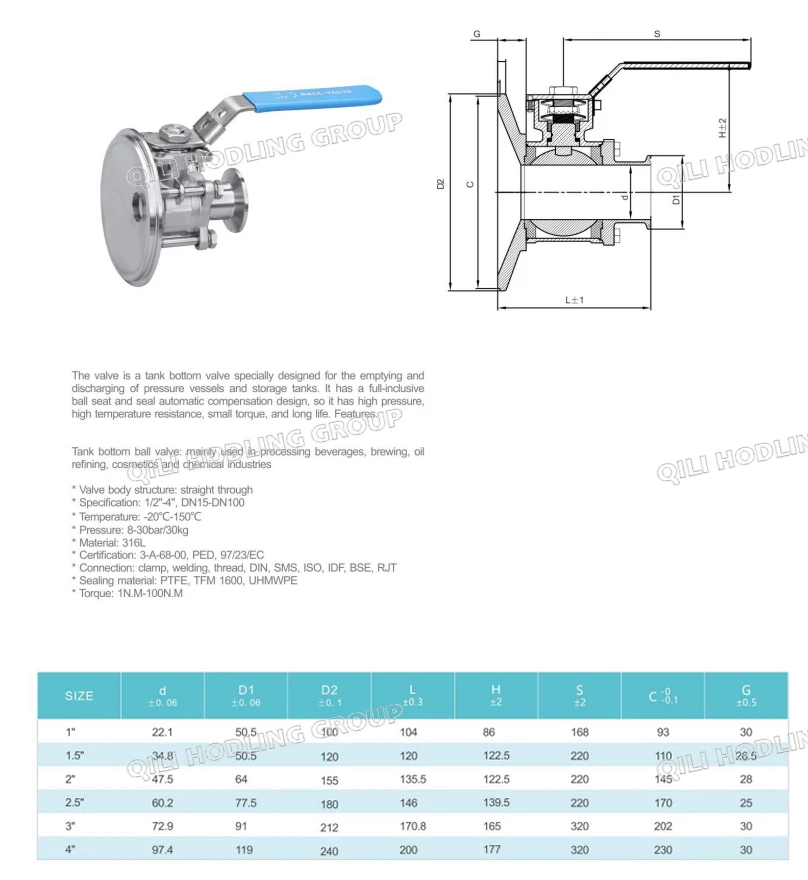

Drawings
Details
| 1.Material | Stainless Steel 304/316L |
| 2. Port Size | 1-4" |
| 3. Certificate | CE/ISO/3A |
| 4. Port | Ningbo Or Shanghai,China |
| 5. Pressure | 0-10bar |
| 6. Connection Ends | Quick-install |
| 7. Working Temp. | -20 Degree Celsius to 120 Degree |
| 8. Suitable Medium | Milk,Bear,Water,Oil,Ect |
| 9.Standard | SMS,DIN,AAA,IDF,ISO,RJT |
| 10. Machine Processing | The most advanced CNC machine from Japan for processing |
| 11. Special Design | We can produce according to your drawings |
Application
Manual Tank Bottom Ball Valve With Flange Connection is mainly used in the wine brewing,dairy,beverage,and pharmaceutical industries.
Operating Principle
This ball valve with special tank bottom flange connection,be welded on the tank bottom.The design of contour and radius have effective gravity discharge function.Also smooth taper hole and the sphere closely to the bottom,which prevent the medium from staying at the entrance of valve.Make sure drain smoothly.
Design Features
Small fluid resistance,resistance equal to same length section of pipe
Simple structure,small volume,light weight
Easy to operate,open and close rapidly,from fully open to full closed only 90 degree rotation,convenient remote control.
Easy maintenance,simple structure,convenient to disassembly and replacement the seal ice seal,PTFE sealing,at fully open or fully closed,sphere and the sealing surface of valve seat are Isolate with medium.
When medium transiting ,these will not cause erosion of sealing surface.
Connection:clamp,weld,thred,flange
