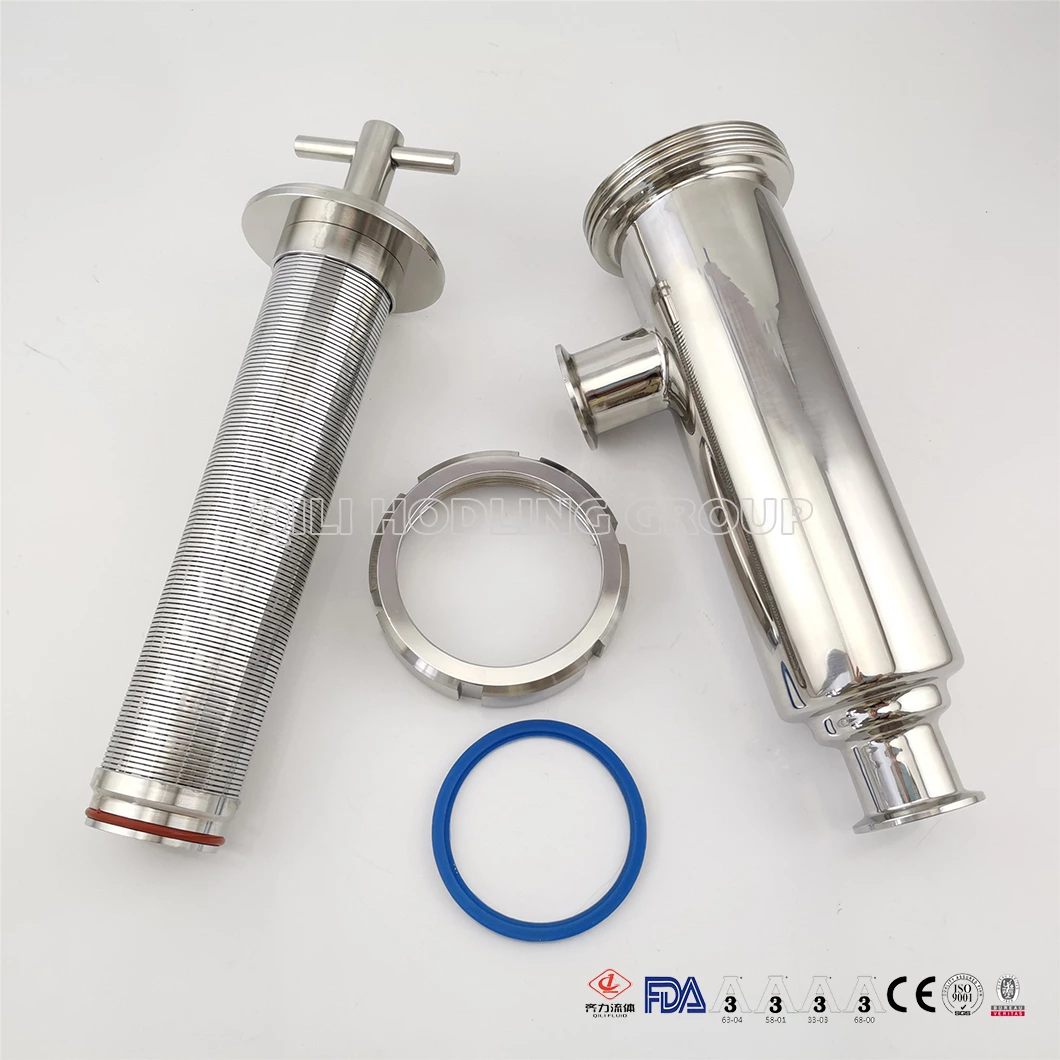

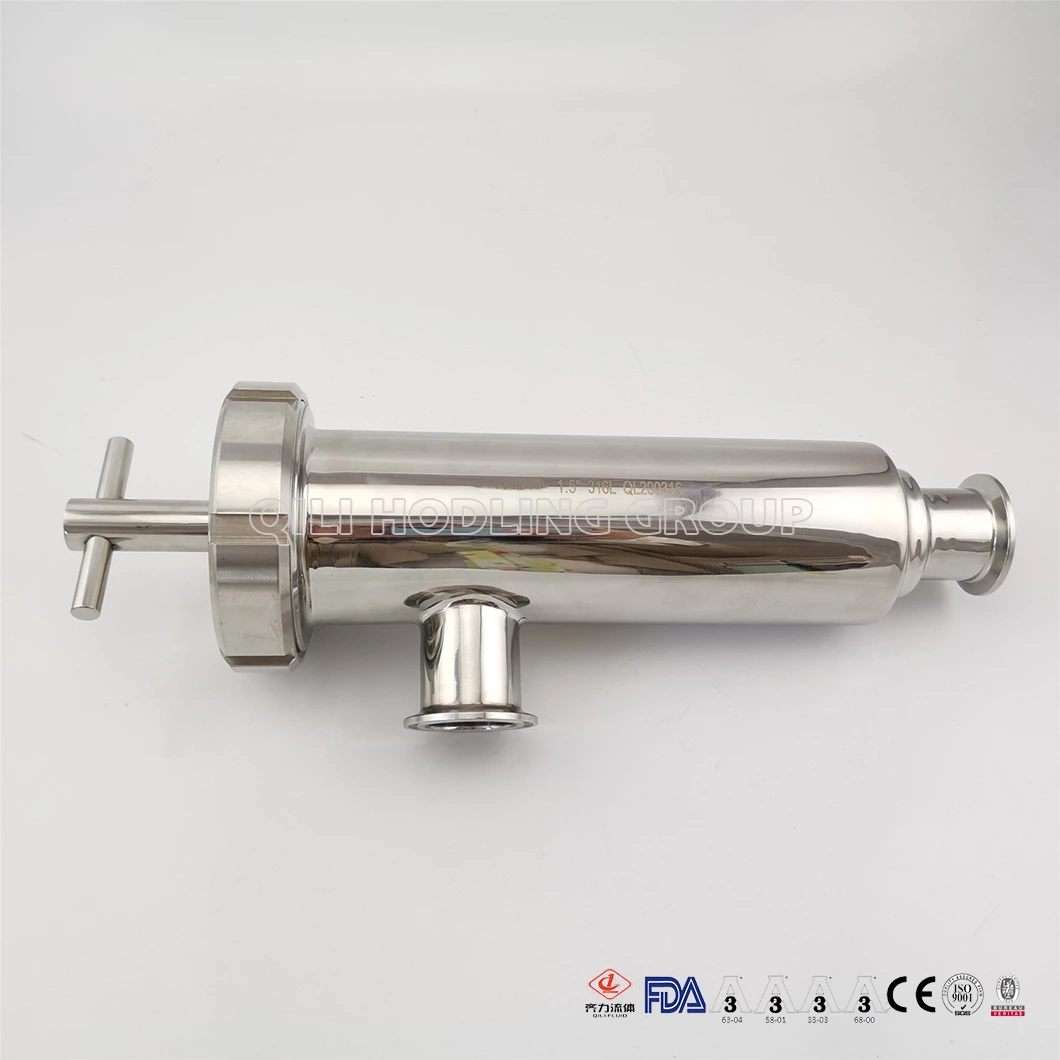

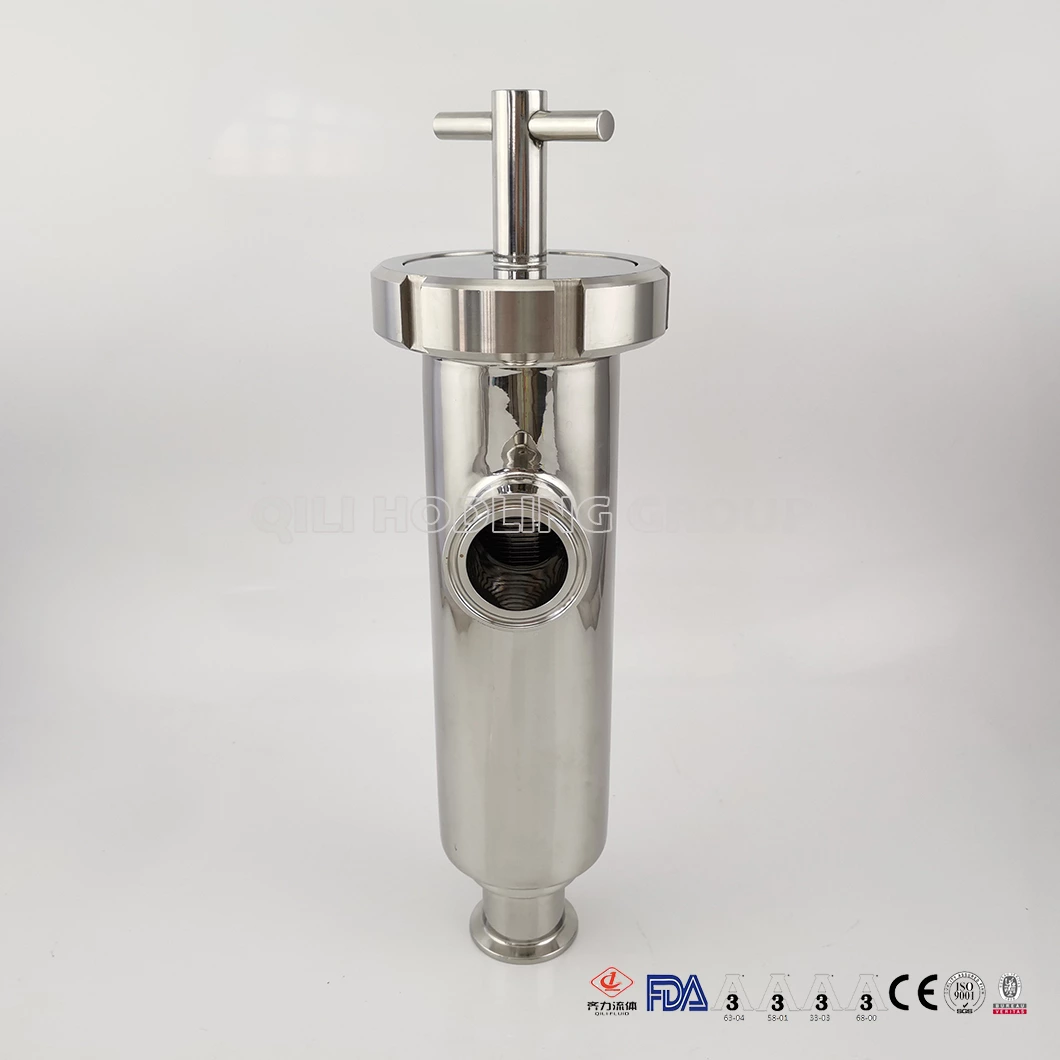

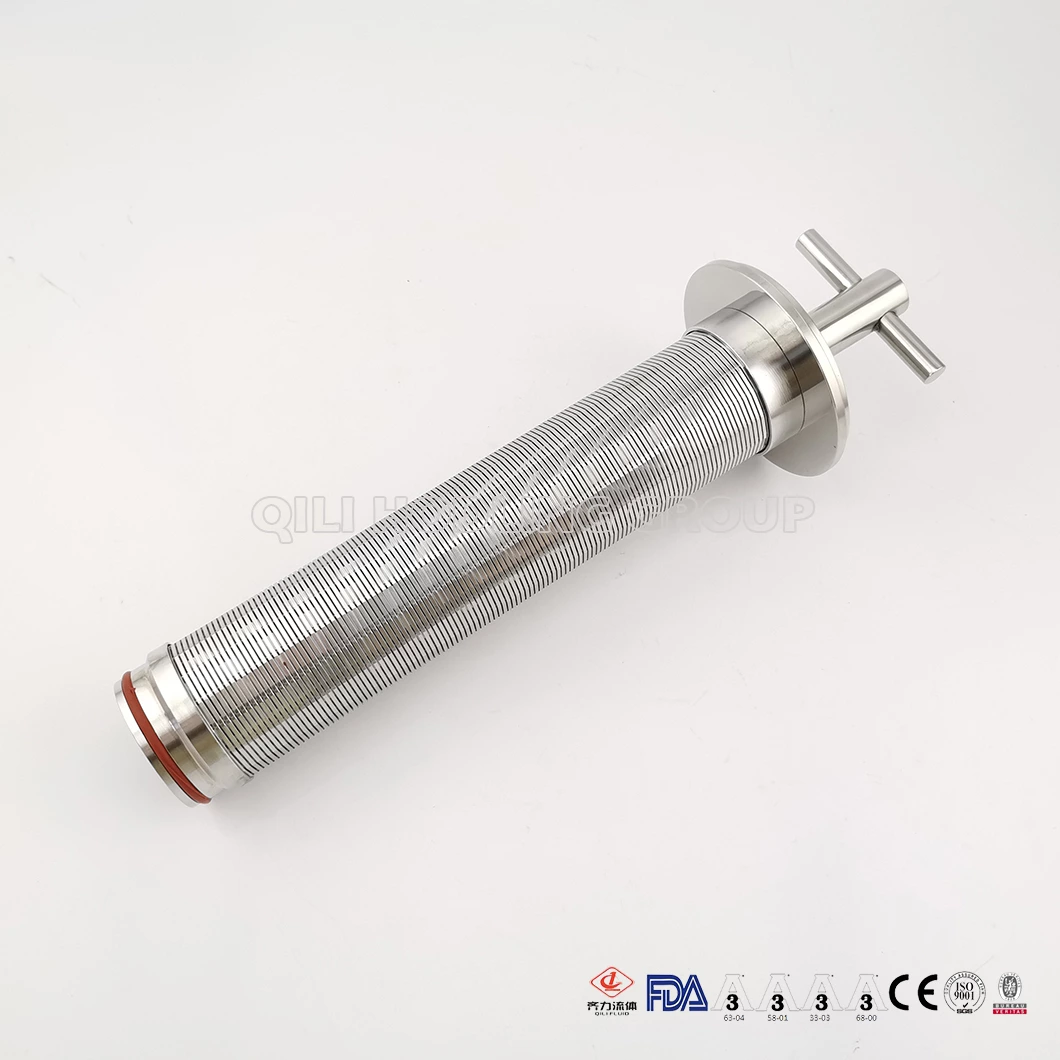

Stainless Steel Flow Control Clamped Angle Type Filter
Sanitary Stainless Steel 304/316L Water Filter/Tube Filter
1) Specification: 1.5",2.0"
2) Standard: ISO, IDF, DIN, 3A
3) Material: : SS304, SS316L
4) Connection: Welded, clamped
- Material:
- SS304 and SS316L
- Standard:
- 3A ISO SMS DIN
- Working Temperature:
- -30~200° C
- Application:
- Beer, Dairy, Beverage, Pharmacy, Cosmetics
- Connection ways:
- Clamp, weld
- Size:
- DN25-DN100
- Sales Models:
- wholesale or retail
- Valve Seal:
- EPDM silicone viton
- Surface Treatment:
- Food grade
- Pressure Value:
- Mid-Pressure (2.5mpa< Pn <6.4mpa)
- Seal Material:
- Viton, NBR, PTFE, Slilicon
- Transport Package:
- cartons
Details
- Stainless Steel Flow Control Clamped Angle Type Filter
- Size:Dn25-DN100
- Connection way:Tri clamp,weld,
- Work Pressure:Mid-Pressure (2.5mpa< Pn <6.4mpa)
- Working Temperature:-20 ~ 135° C
- Medium:Beer, Dairy, Beverage, Pharmacy, Cosmetics
- Screen mesh: 100,200,300 etc as your request
- Standards: SMS DIN ISO 3A
Advantage
- All products enjoy one year free exchange service
- Factory price advantage, you do not haveYou can put your logo on the product
- We can use your company logo

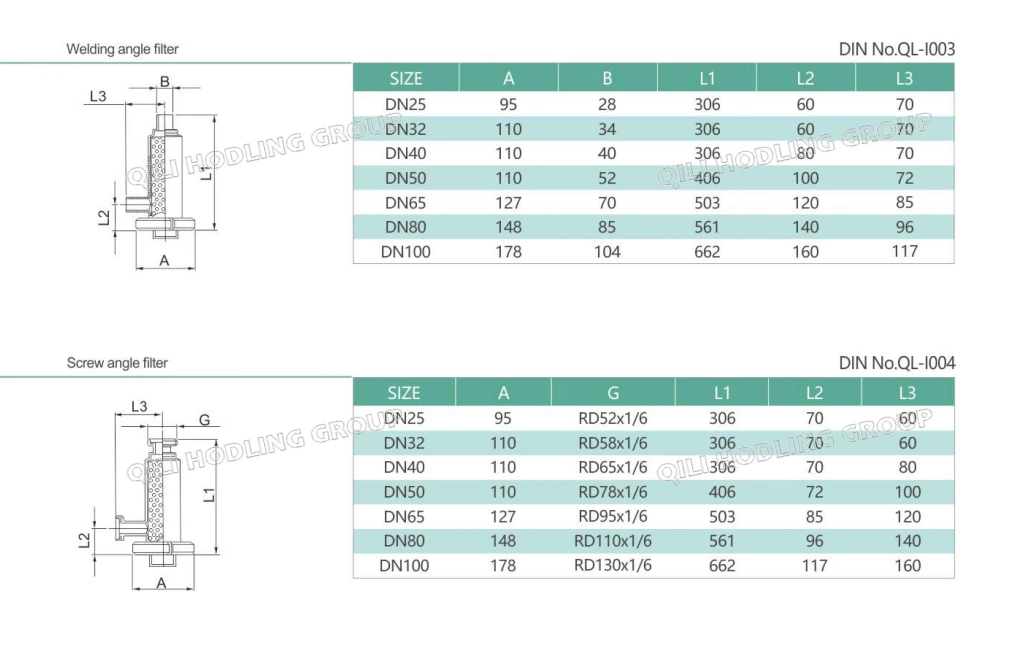

Drawings
