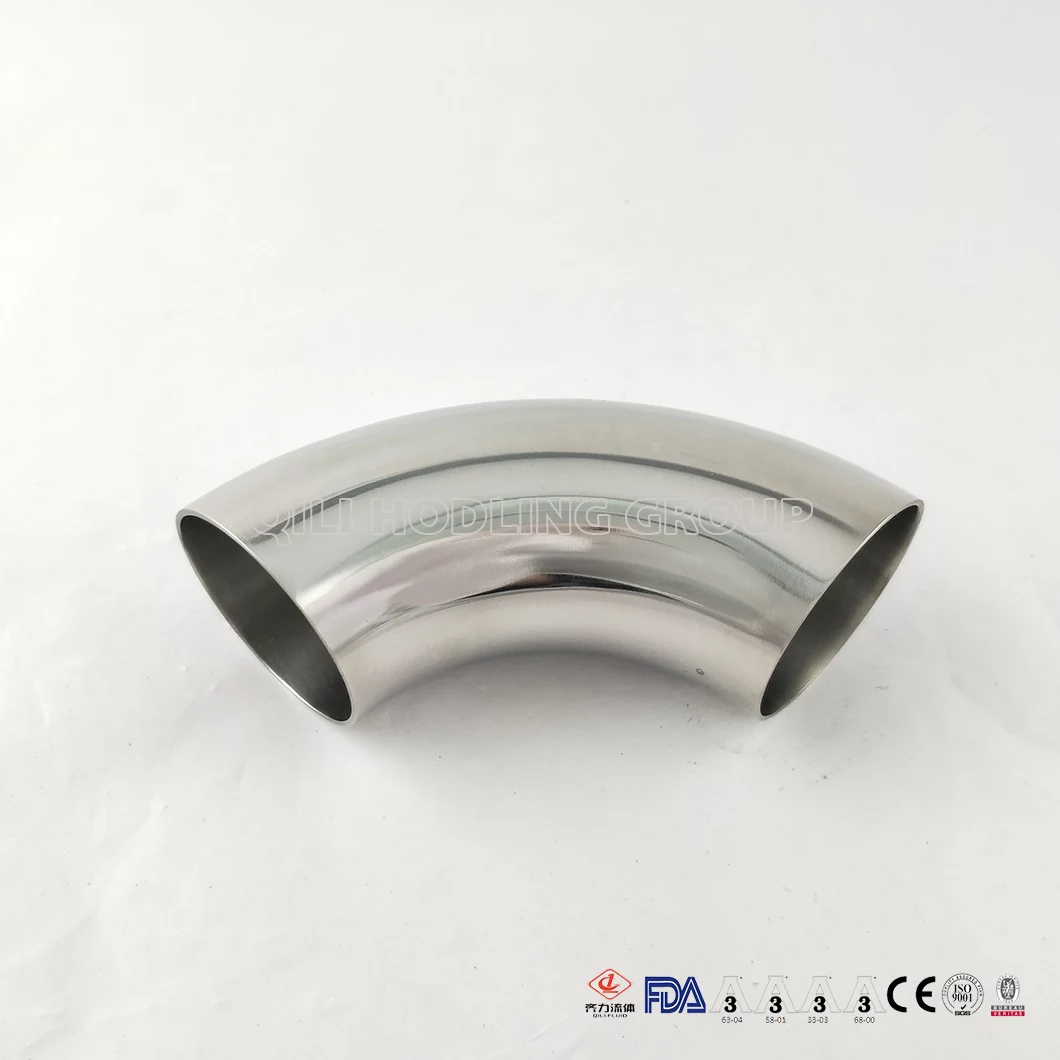

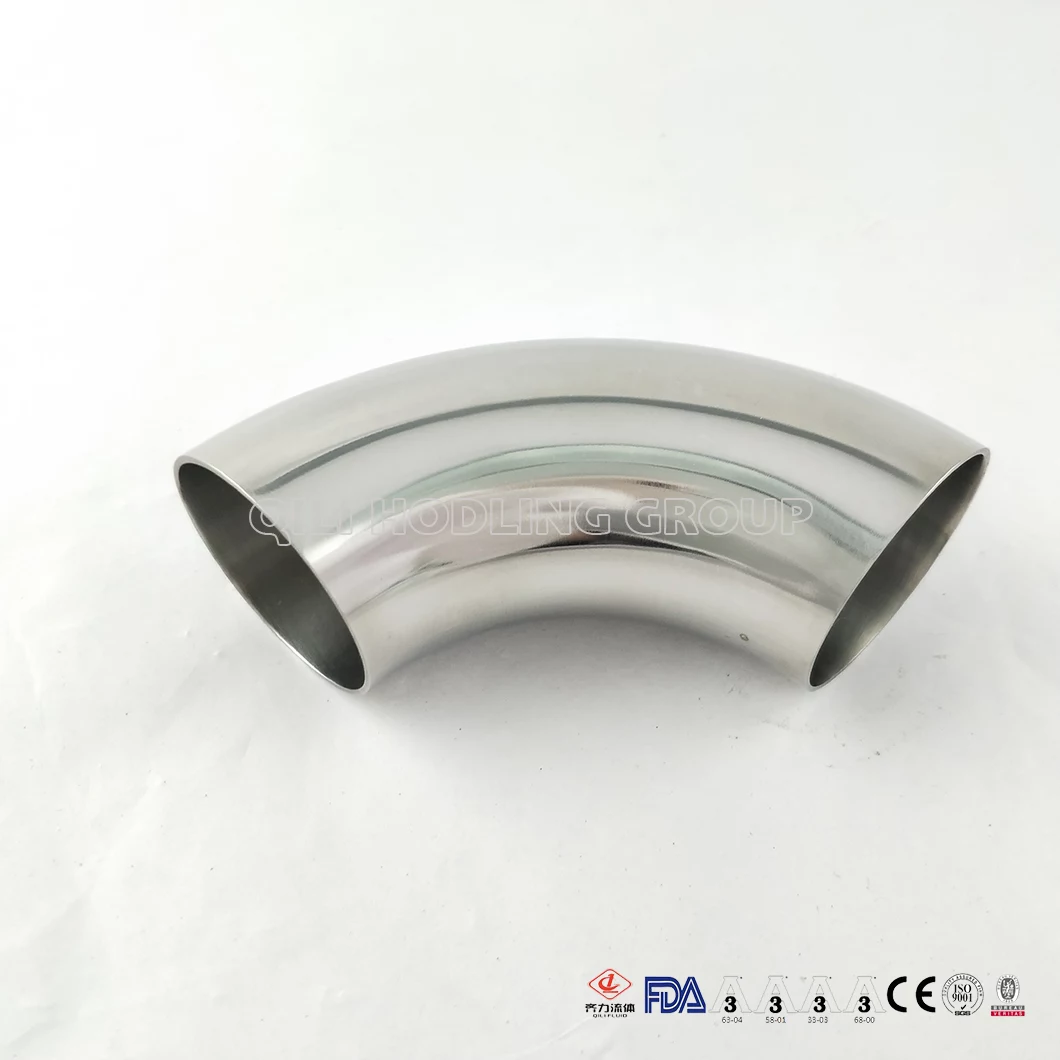

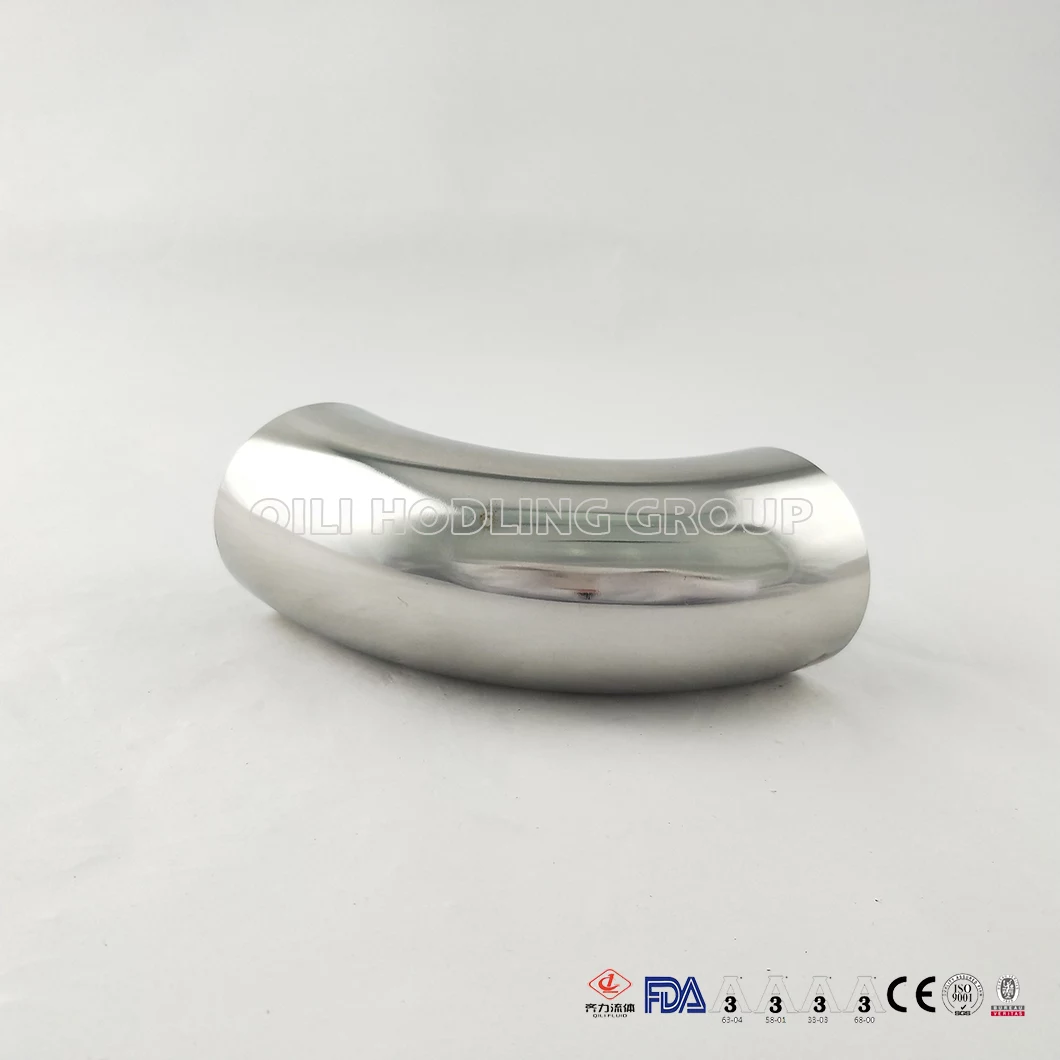

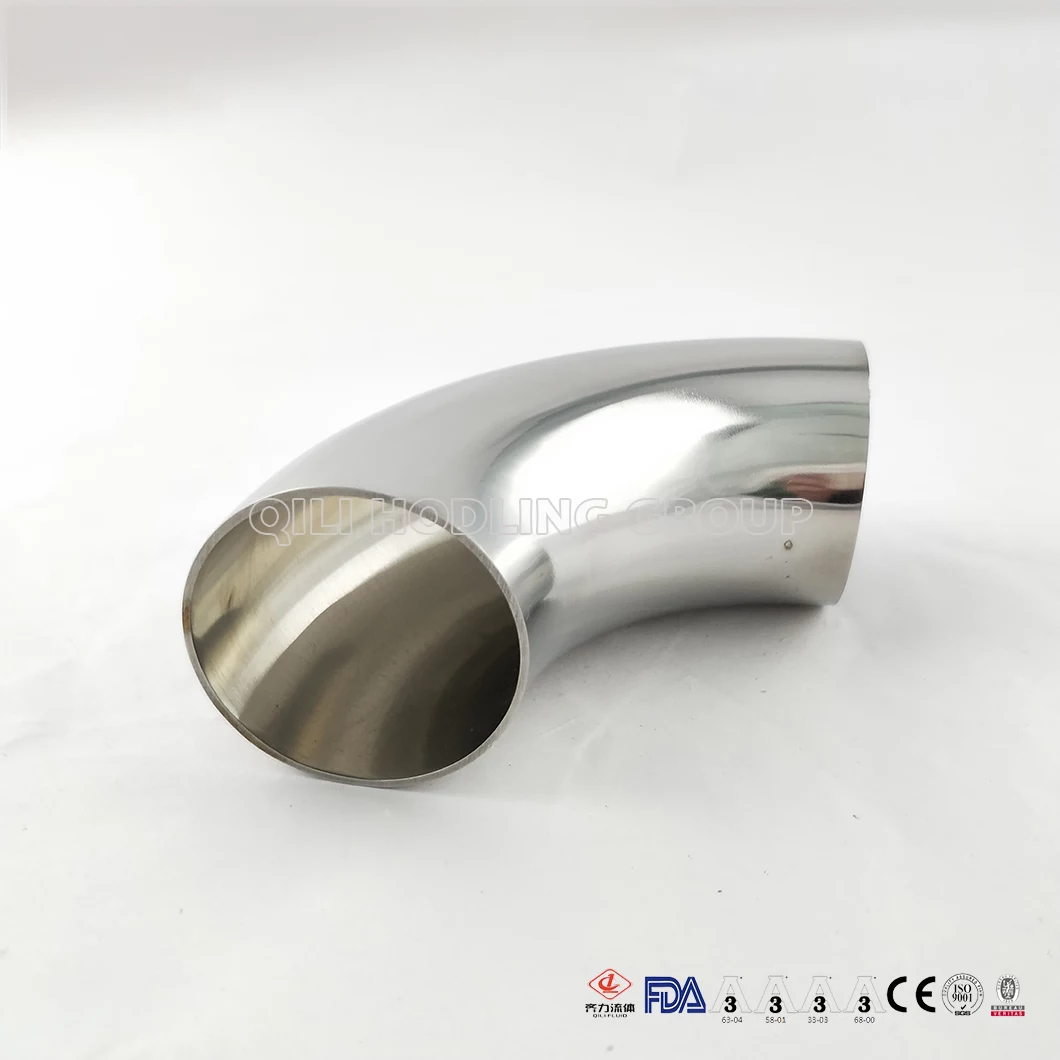

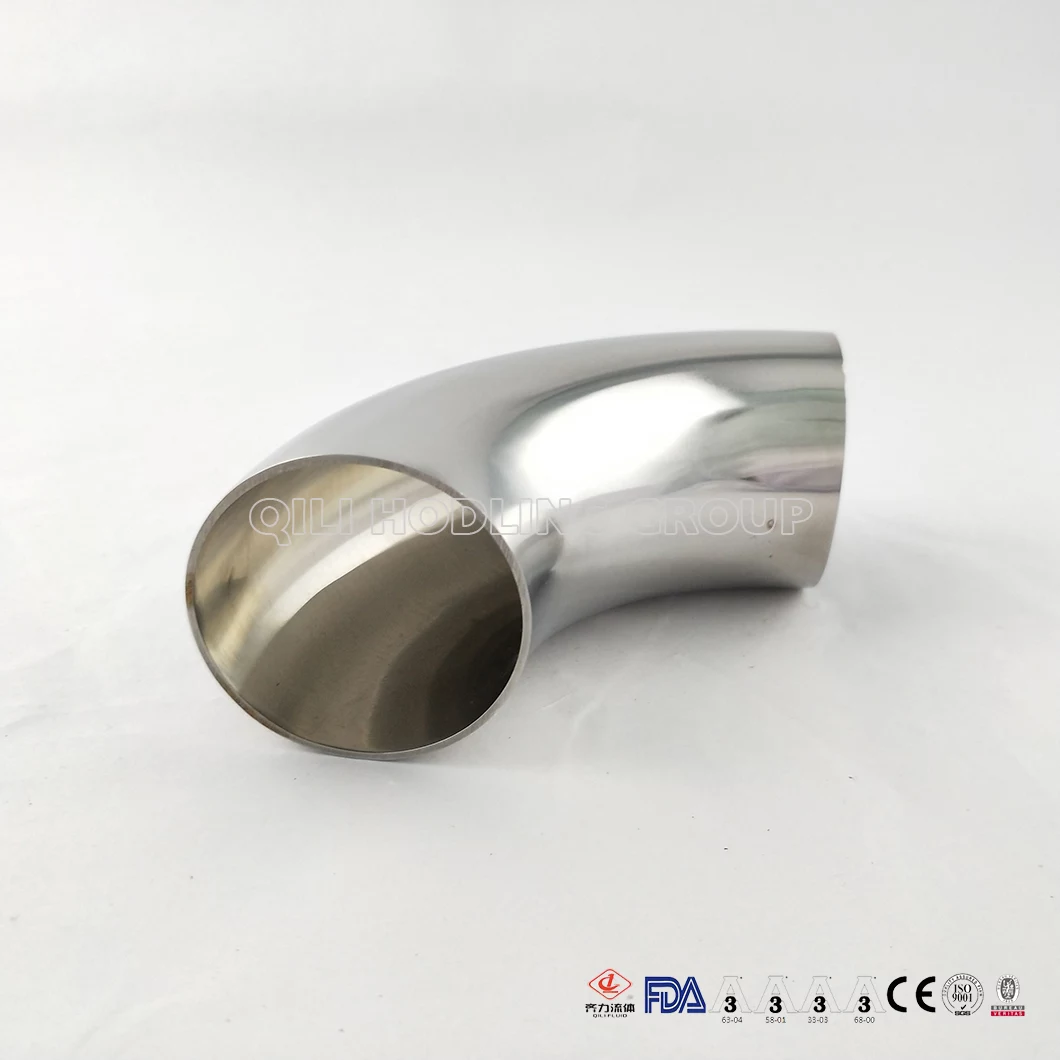

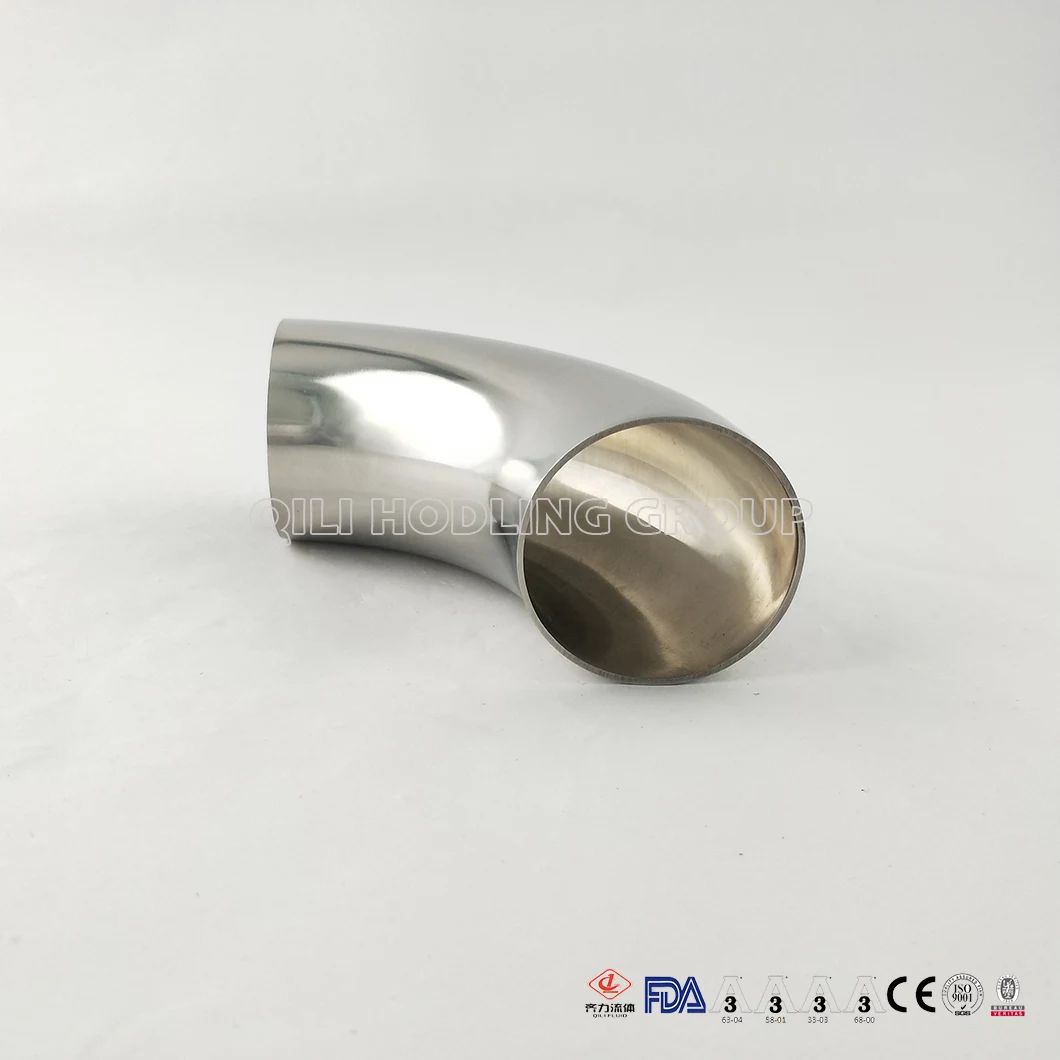

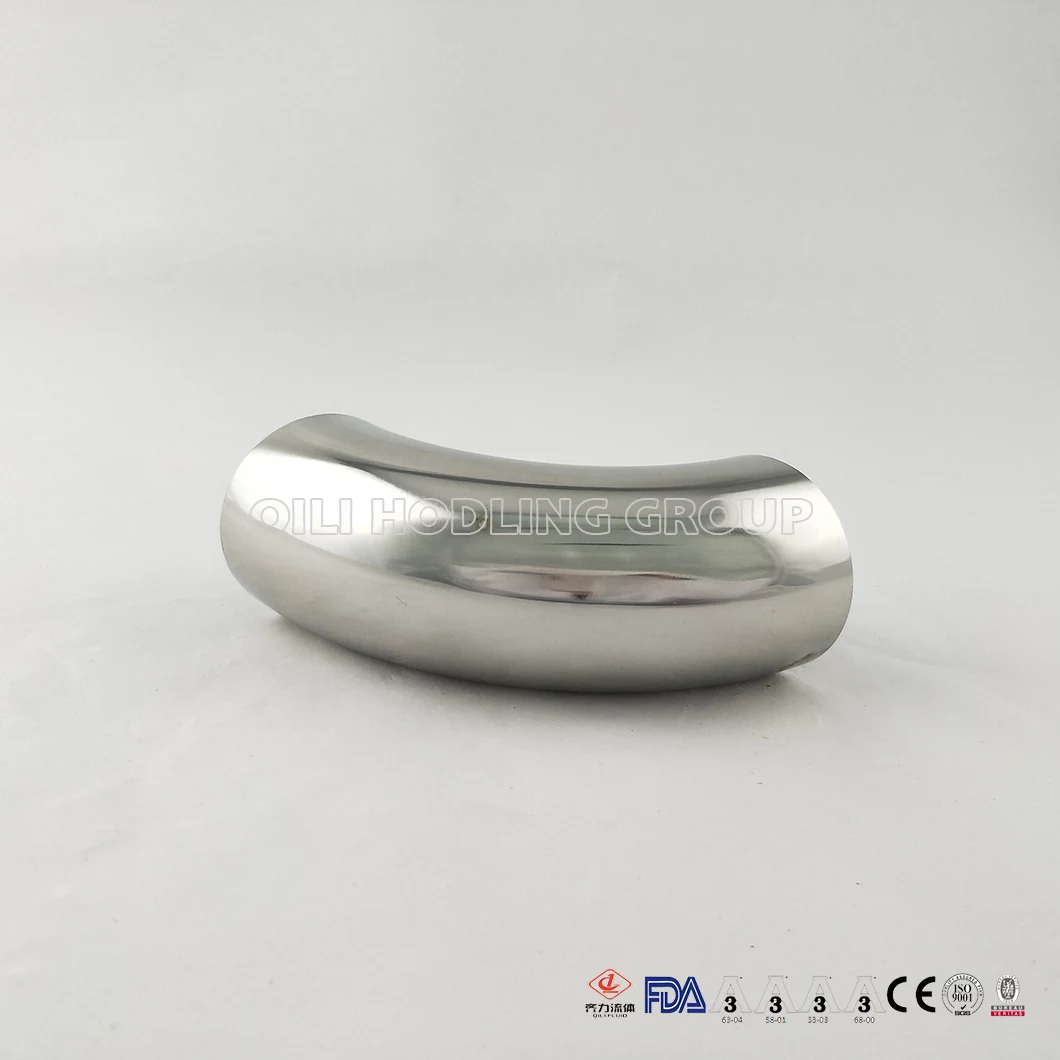

Sanitary Weld 90 Degree Pipe Fittings Elbow
1. Material: Stainless steel 304, 304L, 316L
2. Specification: 1/2"-12", DN15-DN300
3. Degree: 90, 45, 180
4. Standard: 3A, SMS, DIN11851, ISO, BS 4825, BPE, AS, ASME B16.9-2007 and so on, we also would like to produce the non-standard fitting according customer request.
5. End connection: Welding, ferrule clamped, screw and so on.
- Material:
- Stainless steel 304, 316L
- Standard:
- ASME, ANSI, ISO, 3A
- Working Temperature:
- 20-150℃
- Application:
- Pharmacy, beer, food, dairy, beverage, cosmetic, chemical
- Delivery Time:
- 15-20 days
- Connection ways:
- Weld
- Size:
- DN15-DN300&1/2”-12”
- Sales Models:
- wholesale or retail
- Surface Treatment:
- 0.4-0.6μm
- Pressure Value:
- 10bar
- MOQ:
- 1
- Transport Package:
- cartons

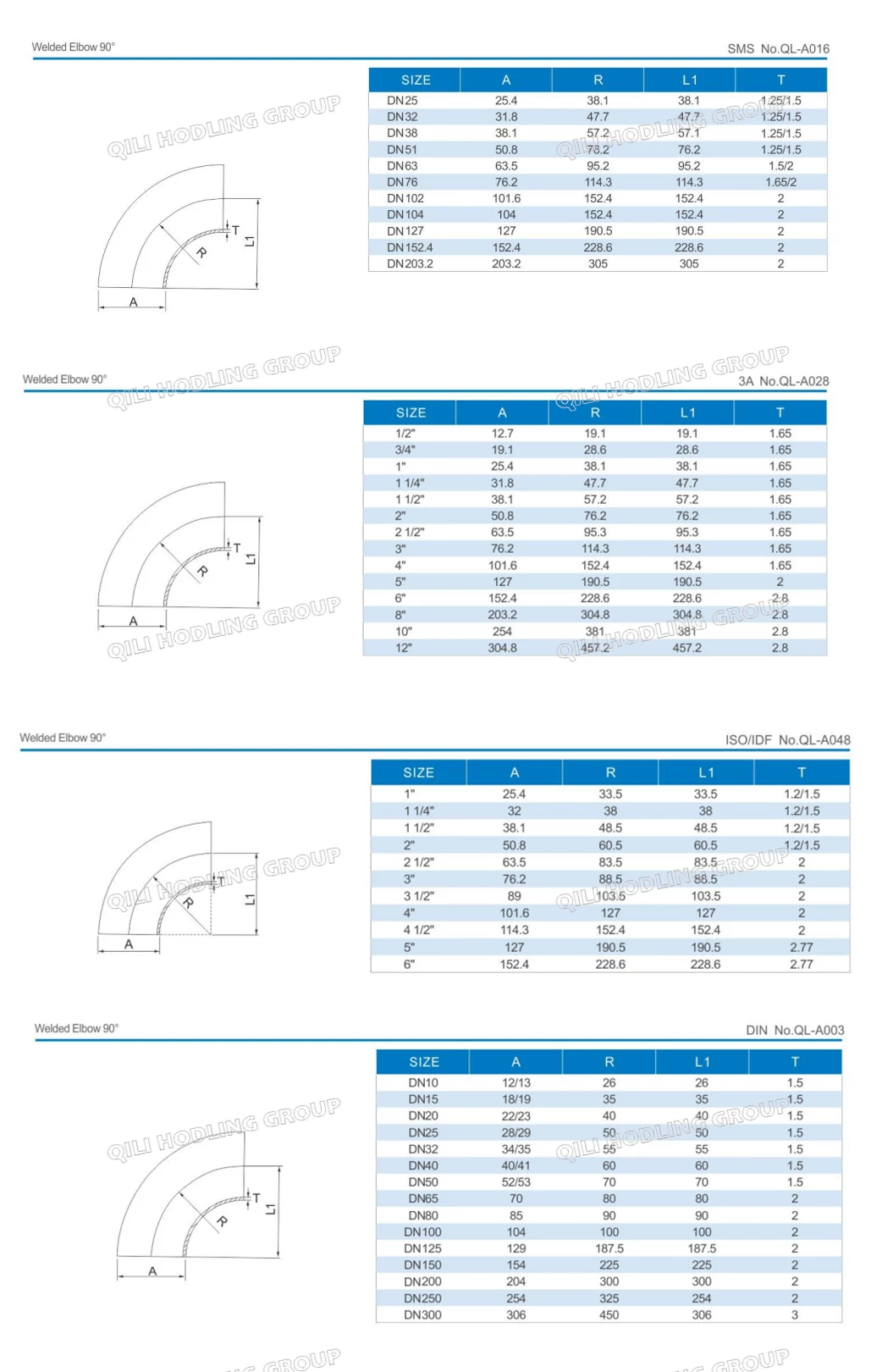

Drawings
Details
| Description | Sanitary Stainless Steel Polished 90° Weld Short Elbow B2WCL |
| Material | Stainless steel 304, 316L |
| Size | DN15-DN300&1/2”-12”. Larger size can be customized. |
| Connection | Weld |
| Shape | Equal |
| Standard | ASME, ANSI, ISO, 3A |
| Head Code | Round |
| Angle | 90 degree and 45 degree |
| Technics | Forged |
| Surface treatment | Satin finishing and mirror finishing can be chosen. Ra≤0.8um 180grit ; Ra≤0.6um 240grit ; Ra≤0.5um 320grit ; Ra≤0.4um 420grit . Other surface finish can be ordered. |
| Application | Pharmacy, beer, food, dairy, beverage, cosmetic, chemical industry. |
| Delivery detail | Usually in 15-20 days after down payment confirmation. |
| Advantage | Quotation, competitive price, punctual delivery and guaranteed quality. |
| Packaging | Carton packaging. Wooden case packaging. |
