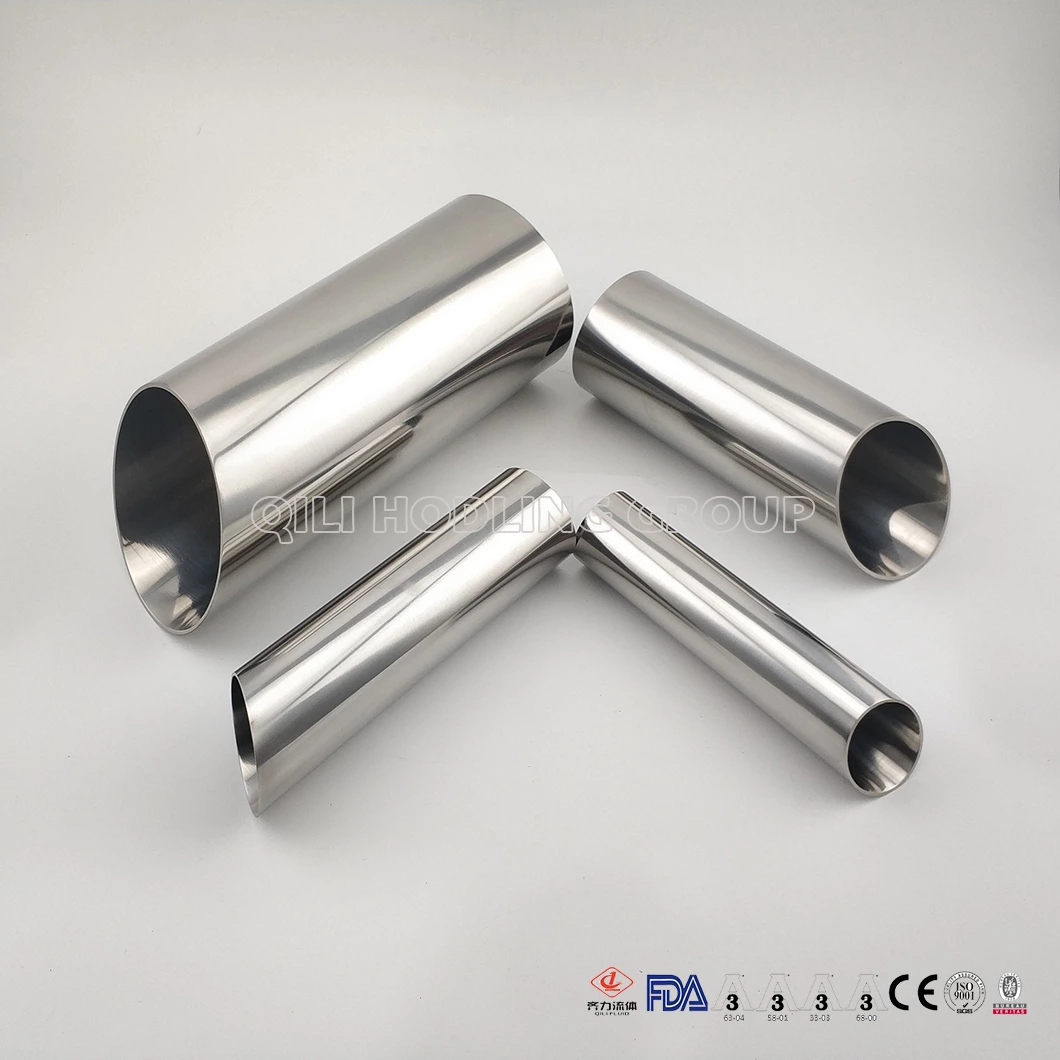

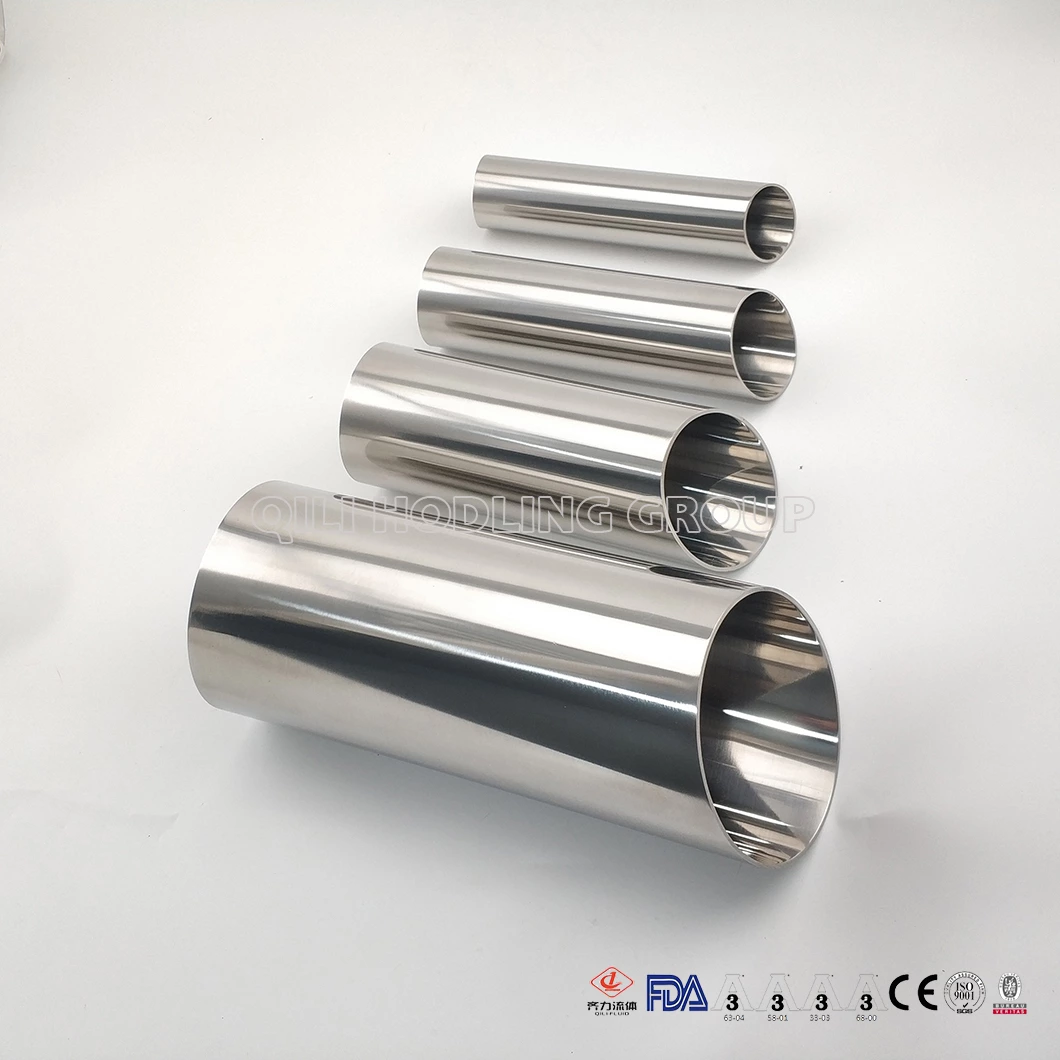

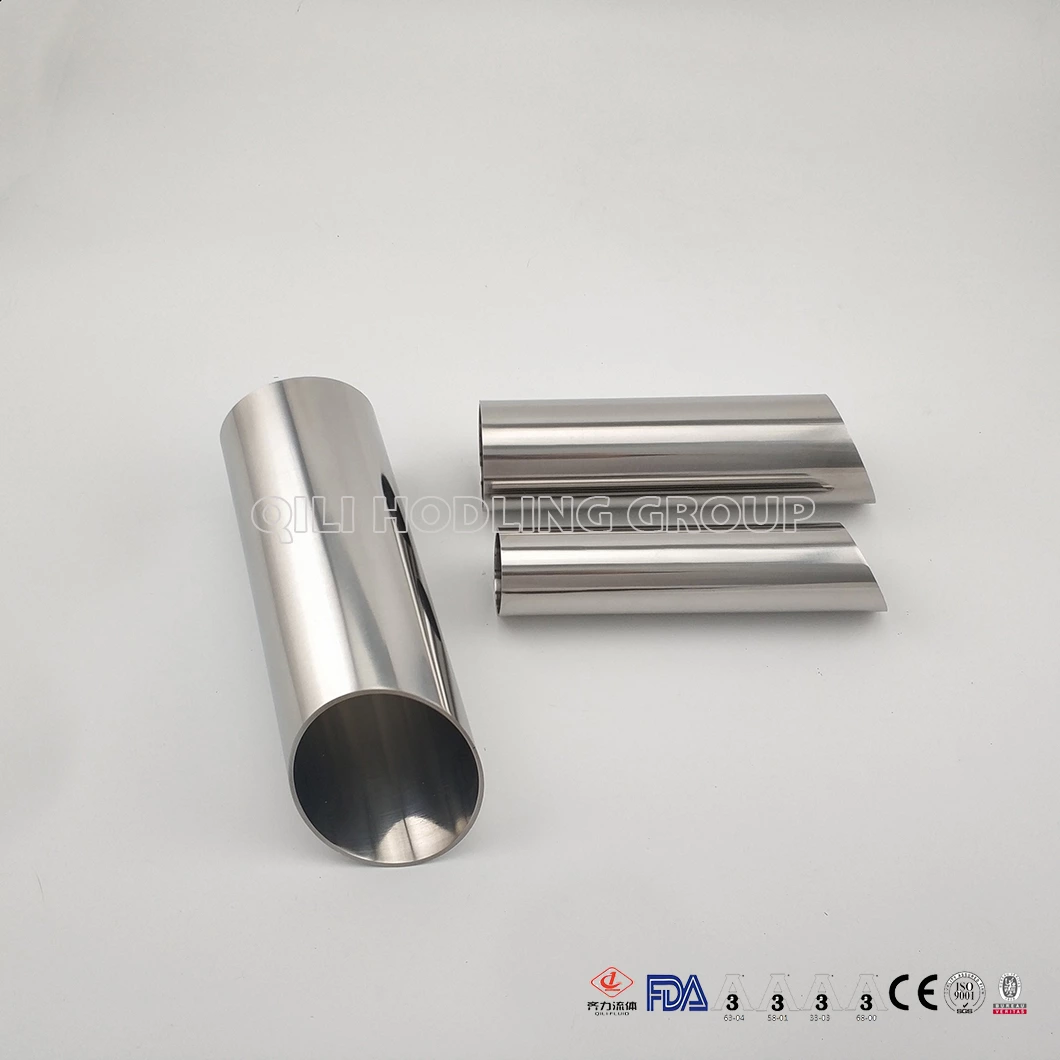

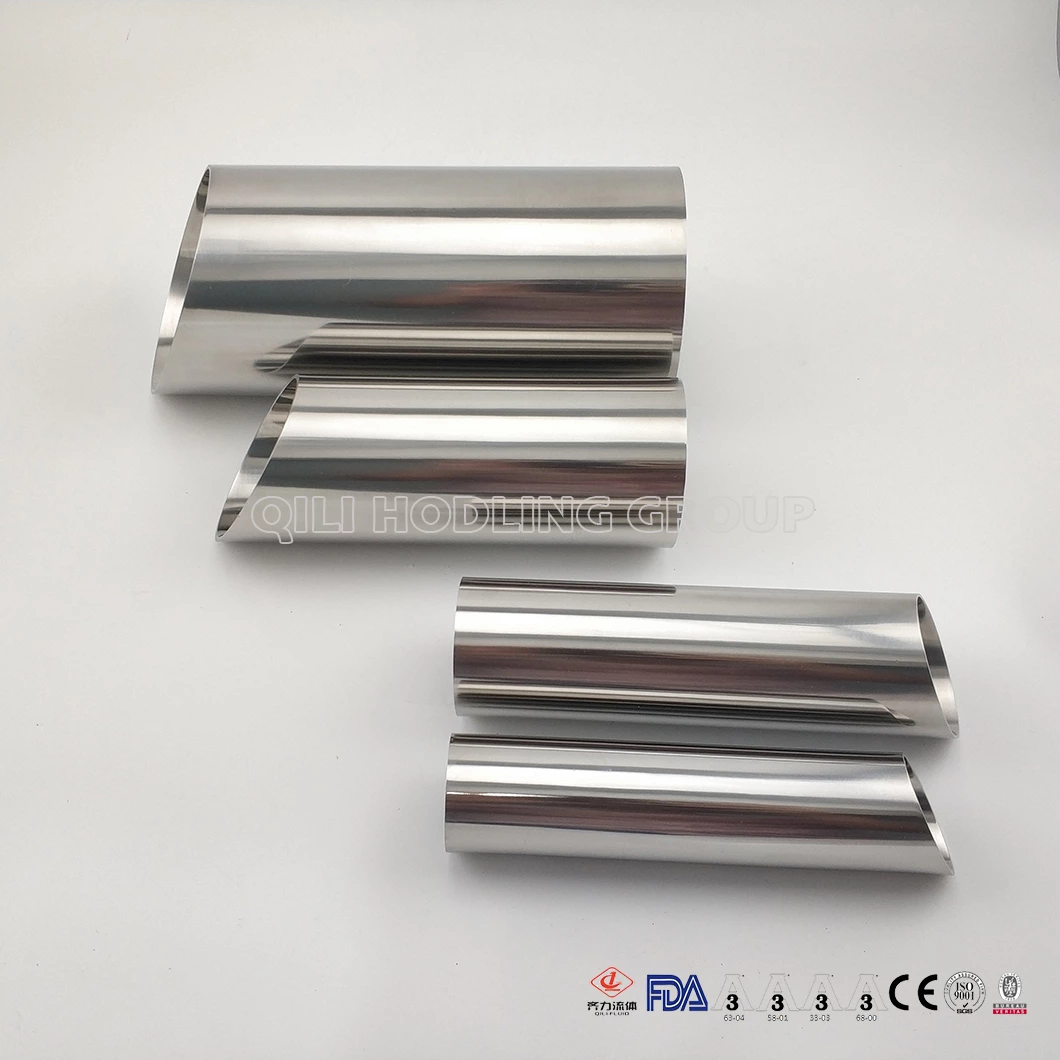

Seamless Stainless Steel Sanitary Weldable Tubing
Seamless Stainless Steel Sanitary Weldable Tubing
Material 304(0cr18ni9,ocr17ni8)201(1cr17mn6ni5n,1cr13mn9ni1n)Customer’s requests available
Tolerance Outer diameter:±0.2mmThickness:±0.05mmLength:±5mm
- Material:
- A)304(0cr18ni9, 0cr17ni8) B)201(1cr17mn6ni5n, 1cr13mn9ni1n) C)Customer's requests available
- Standard:
- ASTM/ASME A312/A376 ASTM A213 ASTM A269 GOST 9941-80/81
- Specification:
- Sanitary Weldable Tubing
- Application:
- beer,milk,beverage,etc.
- Size:
- 10*10, 12*12, 15*15, 17*17, 18*18, 19*19, 20*20, 22*22, 23*23, 24*24, 25*25, 28*28, 30*30, 35*35, 36*36, 38*38, 40*40, 45*45, 50*50, 60*60, 80*80, 100*100mm
- Sales Models:
- wholesale or retail
- Surface Treatment:
- Annealed&Pickled
- Transport Package:
- Carton packaging. Wooden case packaging.
Grade
304, 304L, 304H, 316 316L, 316/316L, 316Ti, 321, 309S, 310S, 317L, 904L, S31803, 2205, 12X18H9, 08X18H10, 03X18H11, 03X17H14M2, 08X17H13M2T, 08X18H10T, 08X18H12B, duplex grade and other stainless steel material.
Testing
- Visual and Dimension Check, Chemical Testing, Physical Testing, Eddy Current Test or Hydrostatic Test in accordance to specification A999/A999 M.
- Ultrasonic test can be done by customer's request.
- Mechanical Property test of Tensile Strength, Yielding Point, Elongation and Flattening test by Mechanical Test Machine and Hardness by Rockwell test.
Specification
| Material | 304(0cr18ni9,ocr17ni8) 201(1cr17mn6ni5n,1cr13mn9ni1n) Customer’s requests available |
| Size range | O.D:1/8-24 inch,W.T:SCH10S,SCH40S,SCH80S, SCH160S,etc. Or Non-regular sizes as reqyested. |
| Tolerance | Outer diameter:±0.2mm Thickness:±0.05mm Length:±5mm |
| Manufacture process | Cold draw or cold roll, Annealed&Pickled |
| Standard | ASTM/ASME A312/A376 ASTM A213 ASTM A269 GOST 9941-80/81 |
| Surface Treatment | Annealed, and pickled. |
| Length | To be Specificed or Random. |
| Packaging | Carton packaging. Wooden case packaging. |
