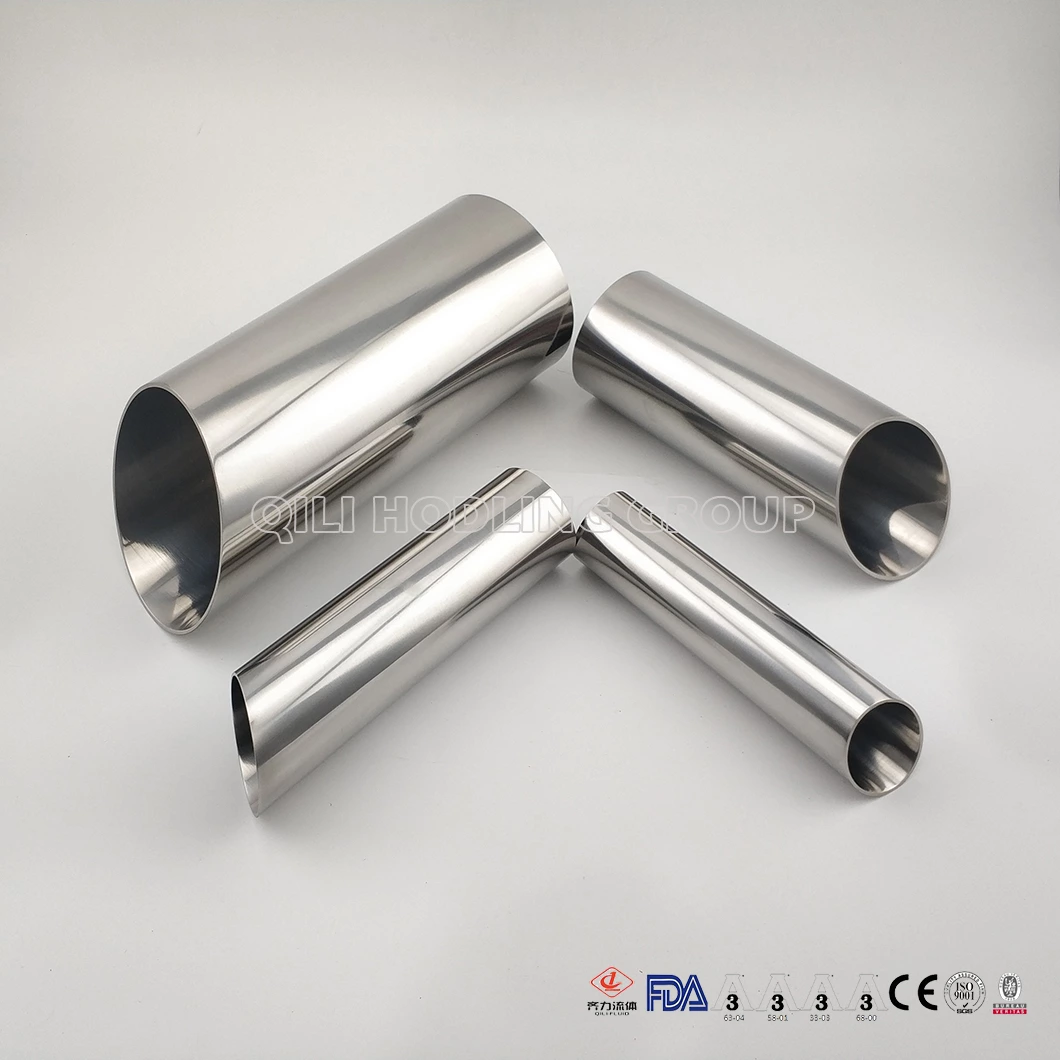

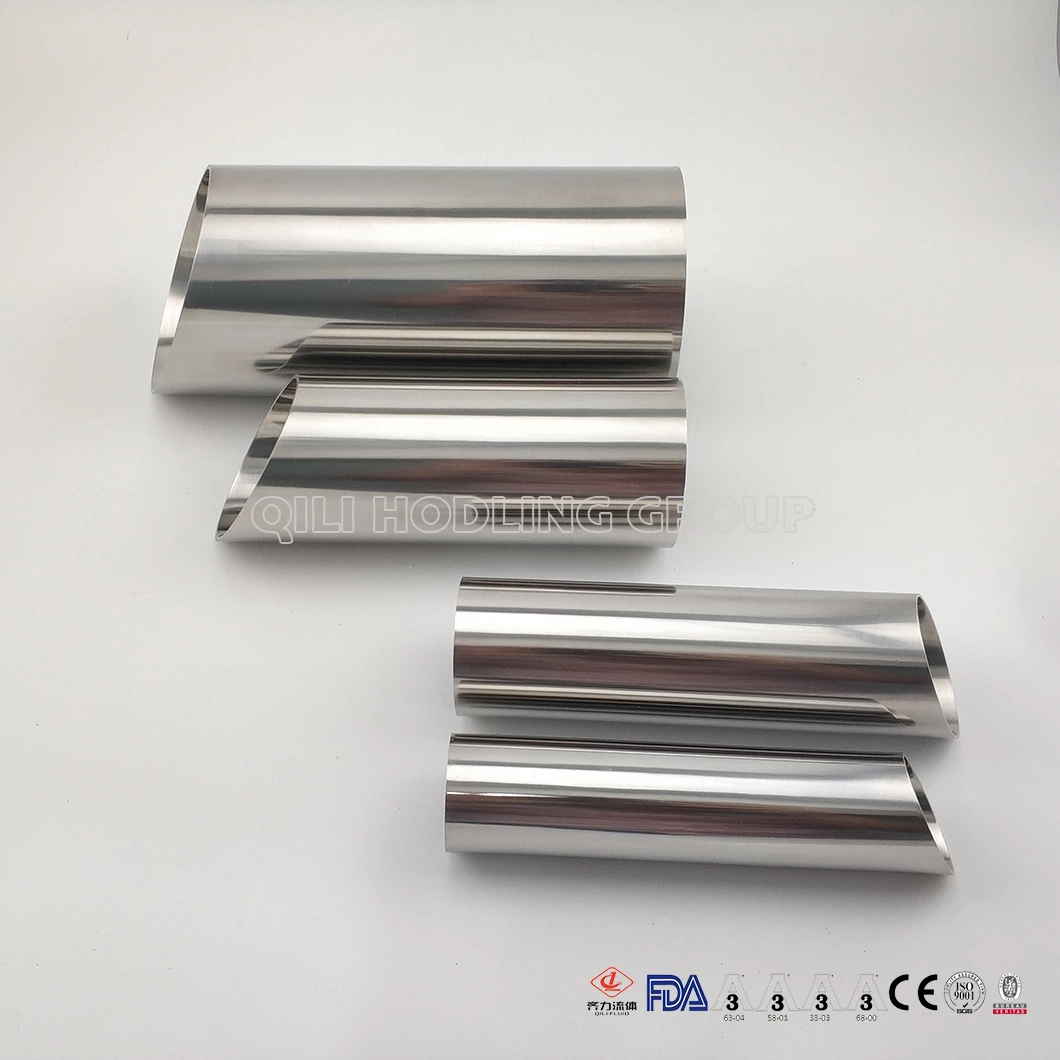

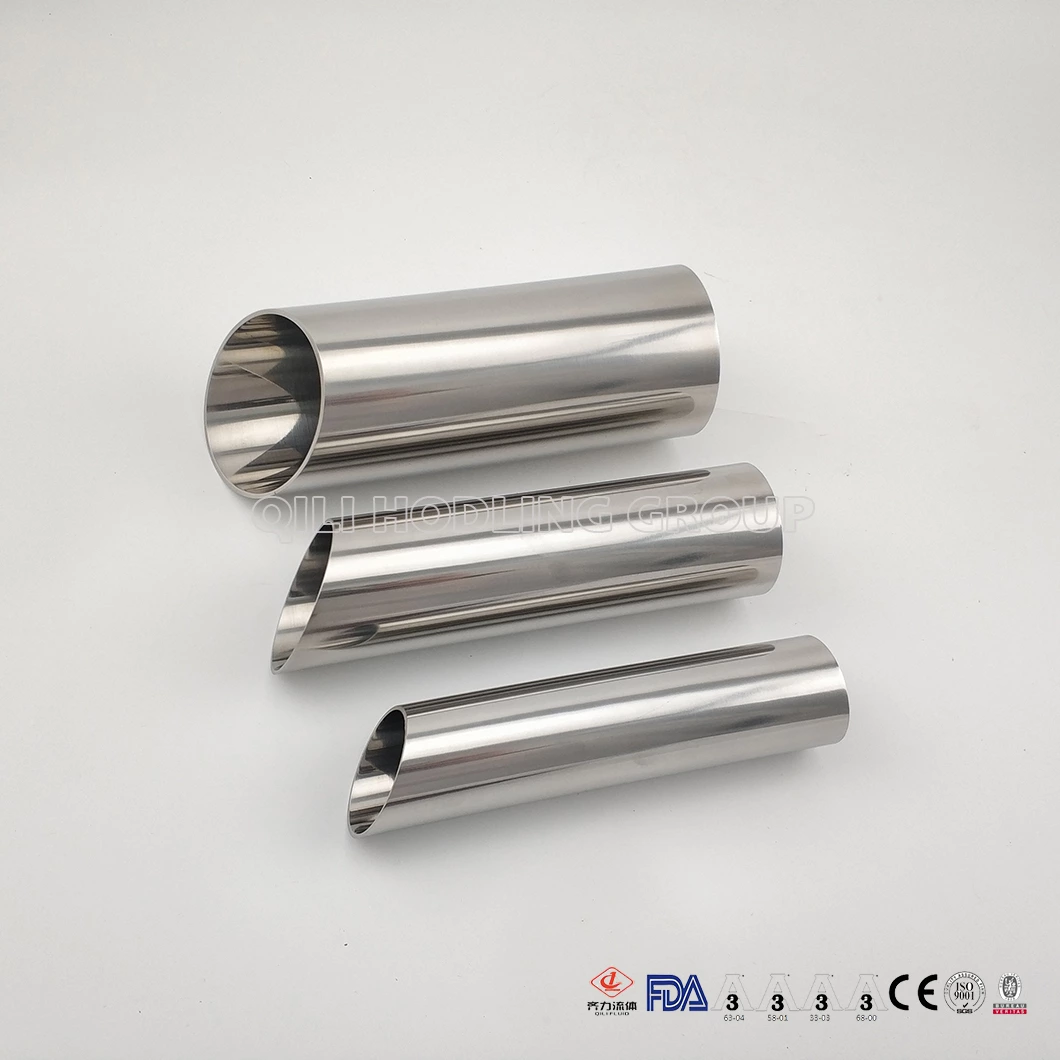

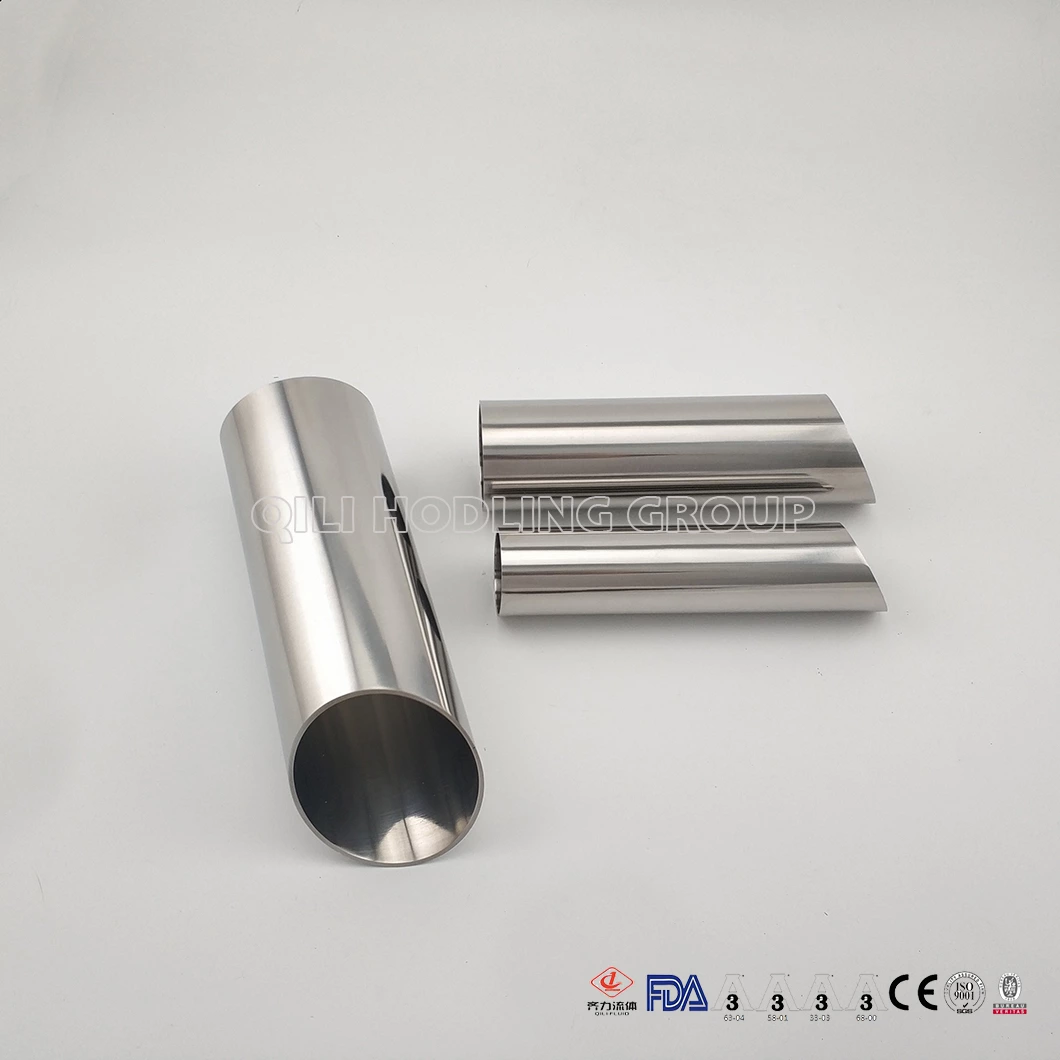

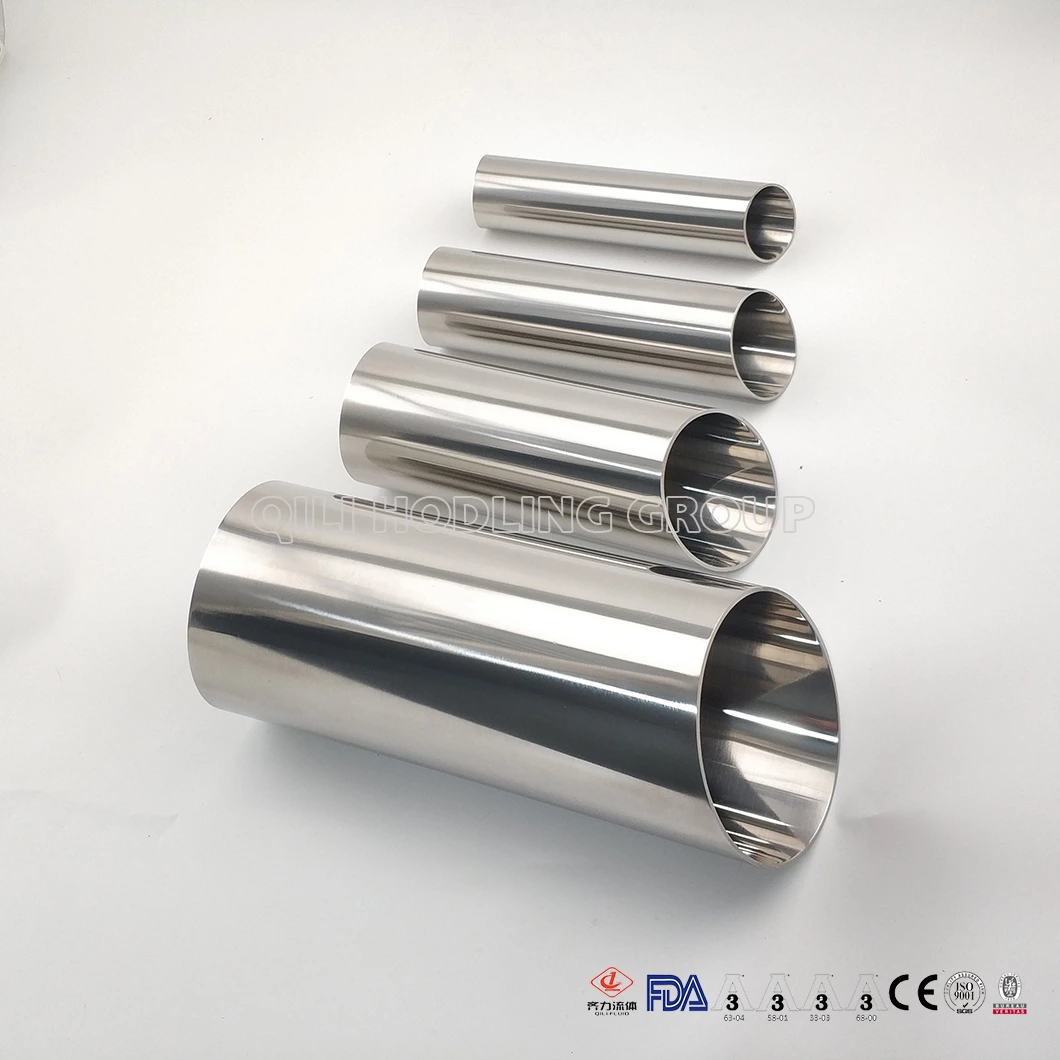

304 Sanitary Stainless Steel Dairy Polished Tubing
Sanitary Stainless Steel Seamless Pipe Tube is featured products in Qili products, and all of our sanitary valves, fittings and pumps are made from high quality forging by CNC process center, we do strict quality control since raw material testing. And our management and system are very formal. - Wenzhou Qili Fluid Equipment Co.,ltd.
- Model:
- QL-TB03
- Material:
- 304(0cr18ni9,ocr17ni8) 201(1cr17mn6ni5n,1cr13mn9ni1n) Customer’s requests available
- Standard:
- ASTM/ASME A312/A376 ASTM A213 ASTM A269 GOST 9941-80/81
- Application:
- Beer, Dairy, Beverage, Pharmacy, Cosmetics,
- Size:
- O.D:1/8-24 inch,W.T:SCH10S,SCH40S,SCH80S, SCH160S,etc. Or Non-regular sizes as reqyested.
- Sales Models:
- wholesale or retail
- Surface Treatment:
- Annealed, and pickled.
- Transport Package:
- wooden case
Grade
304, 304L, 304H, 316 316L, 316/316L, 316Ti, 321, 309S, 310S, 317L, 904L, S31803, 2205, 12X18H9, 08X18H10, 03X18H11, 03X17H14M2, 08X17H13M2T, 08X18H10T, 08X18H12B, duplex grade and other stainless steel material.
Testing
- Visual and Dimension Check, Chemical Testing, Physical Testing, Eddy Current Test or Hydrostatic Test in accordance to specification A999/A999 M.
- Ultrasonic test can be done by customer's request.
- Mechanical Property test of Tensile Strength, Yielding Point, Elongation and Flattening test by Mechanical Test Machine and Hardness by Rockwell test.
Specification
| Material | 304(0cr18ni9,ocr17ni8) 201(1cr17mn6ni5n,1cr13mn9ni1n) Customer’s requests available |
| Size range | O.D:1/8-24 inch,W.T:SCH10S,SCH40S,SCH80S, SCH160S,etc. Or Non-regular sizes as reqyested. |
| Tolerance | Outer diameter:±0.2mm Thickness:±0.05mm Length:±5mm |
| Manufacture process | Cold draw or cold roll, Annealed&Pickled |
| Standard | ASTM/ASME A312/A376 ASTM A213 ASTM A269 GOST 9941-80/81 |
| Surface Treatment | Annealed, and pickled. |
| Length | To be Specificed or Random. |
| Packaging | Carton packaging. Wooden case packaging. |
