Stainless Steel Sanitary Grade Union Type Sight Glass
Stainless Steel Sanitary Grade Union Type Sight Glass
Specification
N25-100 & 1"-4"
Standard
DIN, SMS, ISO, 3A, BPE, CMP, IDF
Material
Stainless steel 304, 316L
Connection
Welded,
- Model:
- QL-SG03
- Material:
- AISI 1.4301(304); 1.4404(316L)
- Standard:
- DIN, SMS, ISO, 3A, BPE, CMP, IDF
- Specification:
- Union Type Sight Glass
- Working Temperature:
- 120℃
- Application:
- Pharmacy, beer, food, petroleum, dairy beverage, cosmetics
- Connection ways:
- Welded, quick-installed, threaded
- Size:
- DN25-DN150
- Sales Models:
- Wholesale and Retail
- Pressure Value:
- 6bar
- MOQ:
- 1pc
- Seal Material:
- Viton, NBR, PTFE, Slilicon
- Transport Package:
- carton
Details
- Nut material: AISI 1.4301(304)
- The parts contact with liquid: AISI 1.4301(304); 1.4404(316L)
- Seals: Viton, NBR, PTFE, Slilicon
- standard:DIN, SMS, ISO, 3A, BPE, CMP, IDF
- Connection:Welded, quick-installed, threaded
- Temperature:max 120℃
- Pressure: 6bar (higher pressure is possible if needed) Vacuum
- Application:Pharmacy, beer, food, petroleum, dairy beverage, cosmetics

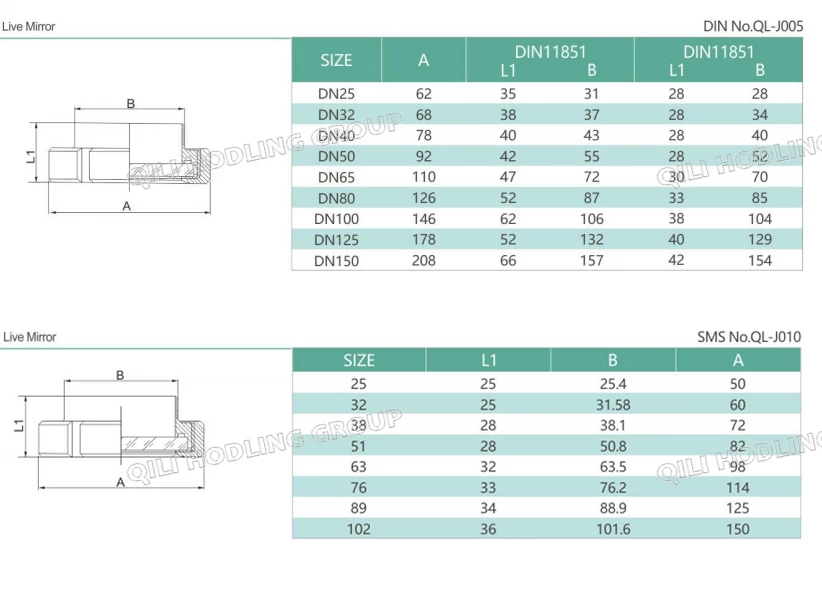

Drawings
Application
Union-type-sight-glass DIN11851/SMS (standard for dairy products), with transparent circular glass. Threaded nozzle with the welded neck.Welded sight glass with male. It is used viewing the biologic reactor, blender in laboratory, fitter, processing container,pipeline and other closed container. Especially apply in pharmacy,food and beverage processing, such as the brewery, dairy.
