SS304 316L Fittings Sanitary Stainless Steel Union Sight Glass
Product Description

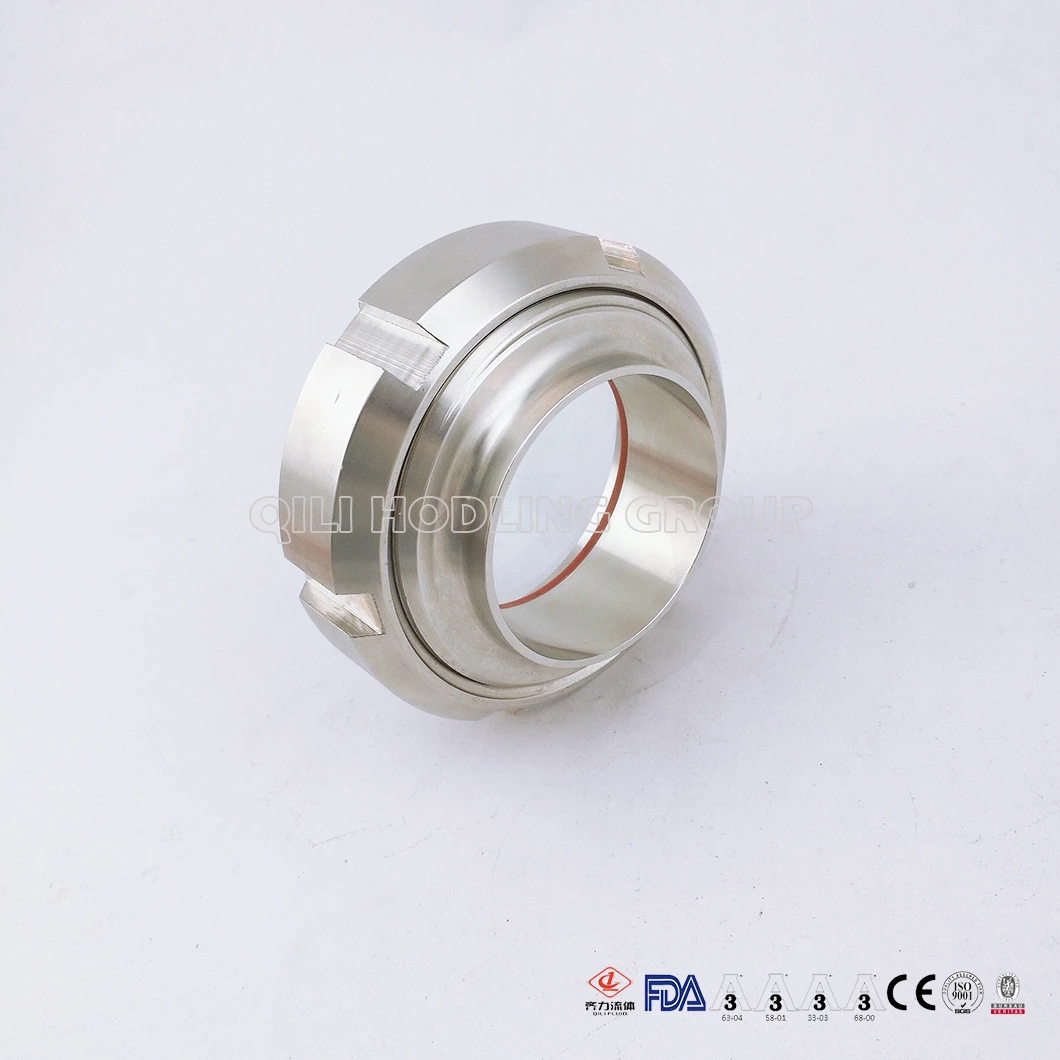

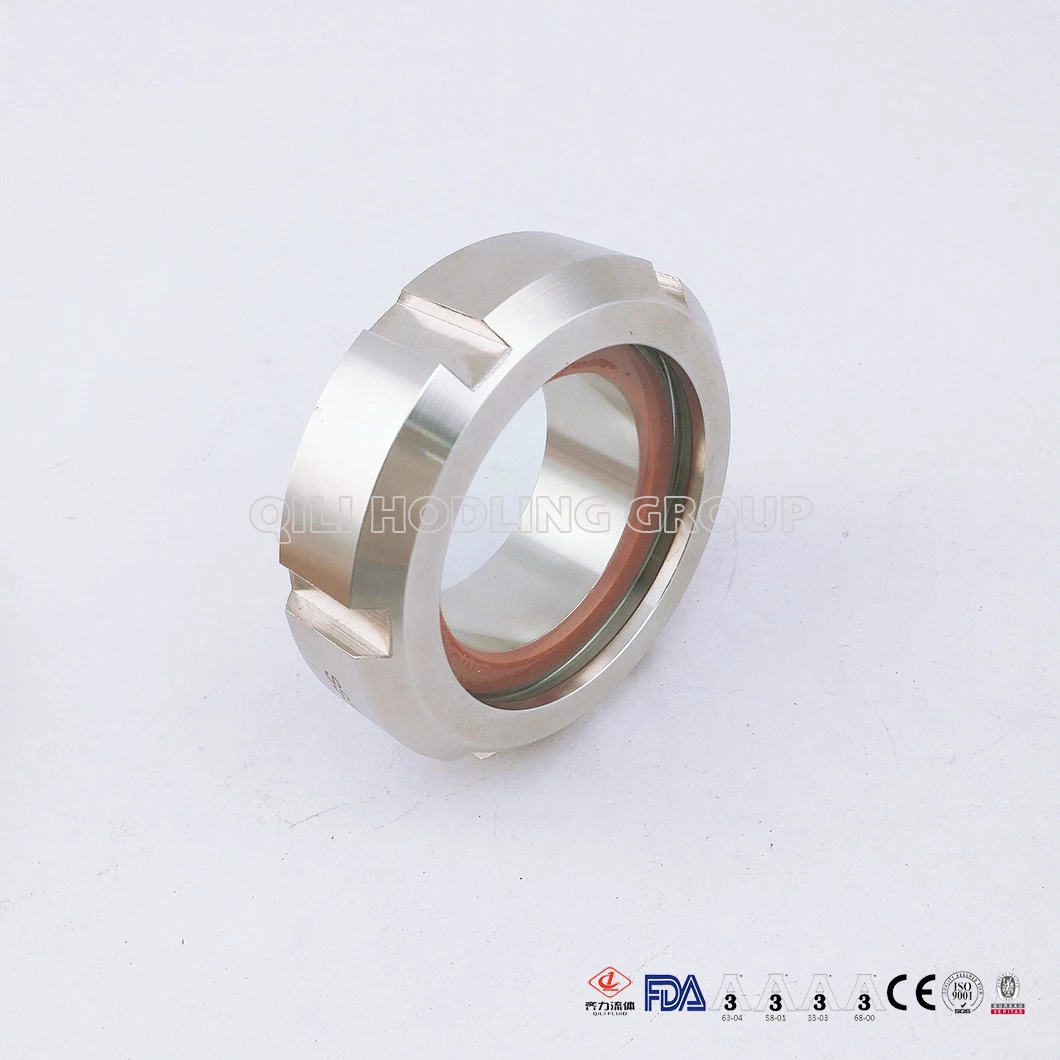

Stainless Steel Sanitary welding round Sight Glass
1) Specification: DN25-100 & 1"-4"
2) Standard: DIN, SMS, ISO, 3A, BPE, CMP, IDF
3) Material: Stainless steel 304, 316L
- Material:
- AISI 1.4301(304); 1.4404(316L)
- Standard:
- DIN, SMS
- Specification:
- Union Sight Glass
- Working Temperature:
- 120℃
- Connection ways:
- Welded, quick-installed, threaded
- Size:
- DN25-DN150
- Sales Models:
- Wholesale and Retail
- Pressure Value:
- 6bar
- MOQ:
- 1PC
- Seal Material:
- Viton, NBR, PTFE, Slilicon
- Transport Package:
- carton
Specification
- Nut material: AISI 1.4301(304)
- The parts contact with liquid: AISI 1.4301(304); 1.4404(316L)
- Seals: Viton, NBR, PTFE, Slilicon
- standard:DIN, SMS
- Connection:Welded, quick-installed, threaded
- Temperature:max 120℃
- Pressure: 6bar (higher pressure is possible if needed) Vacuum
- Application:Pharmacy, beer, food, petroleum, dairy beverage, cosmetics

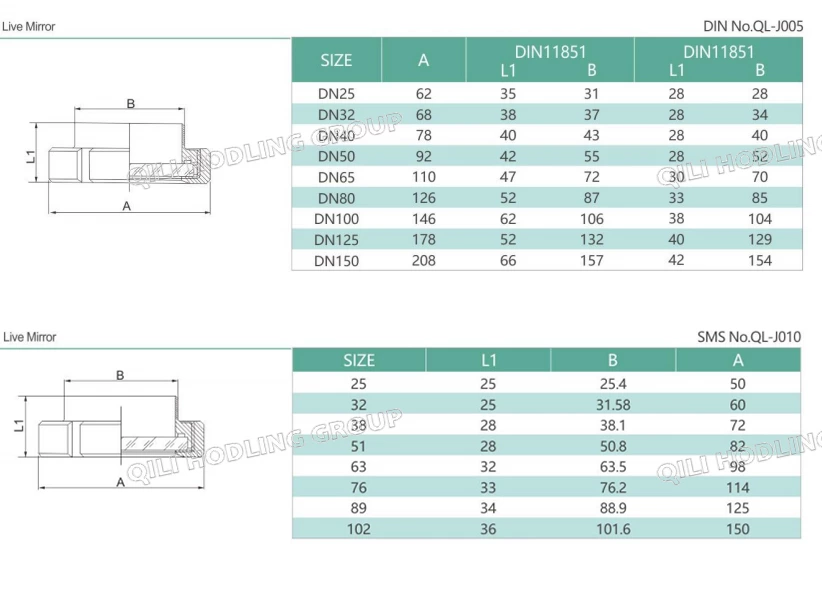

Drawings
Application

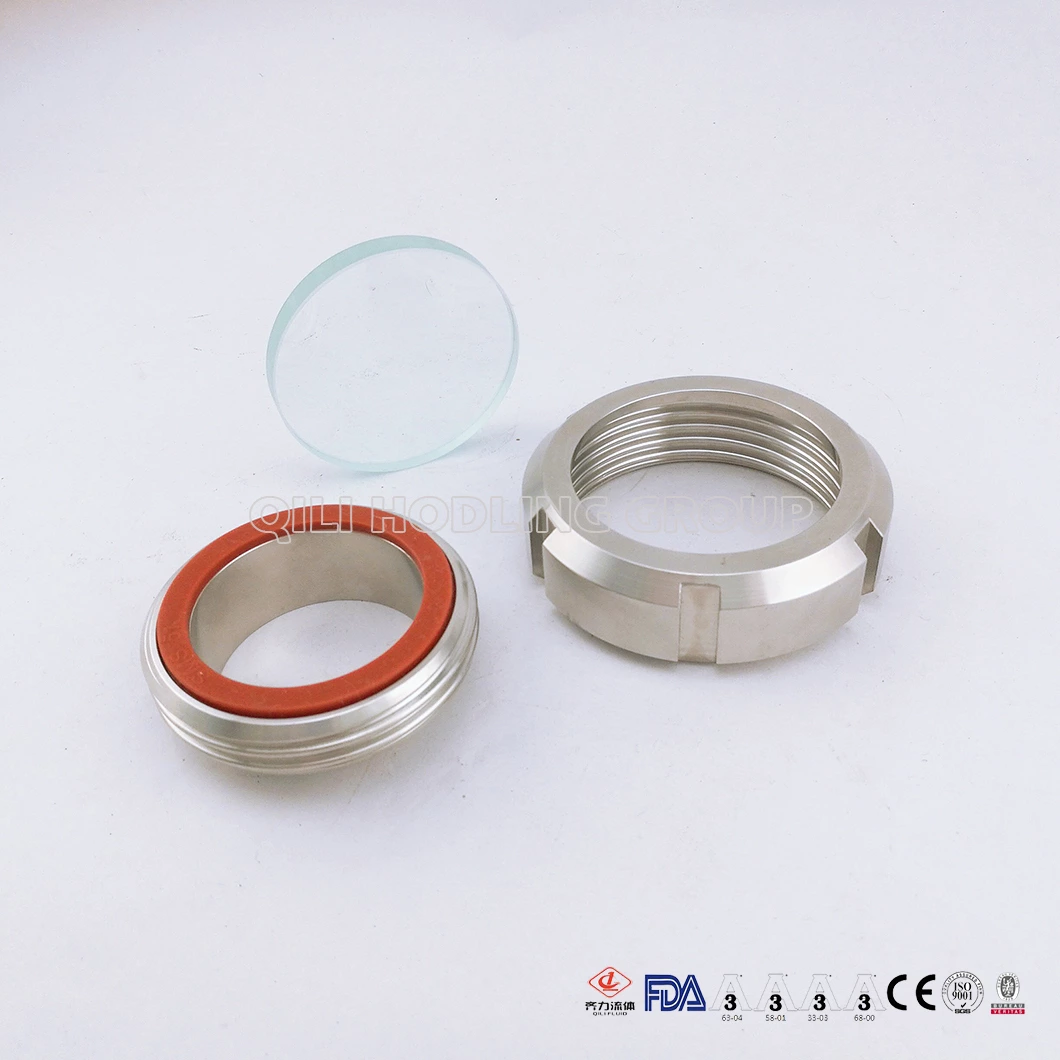

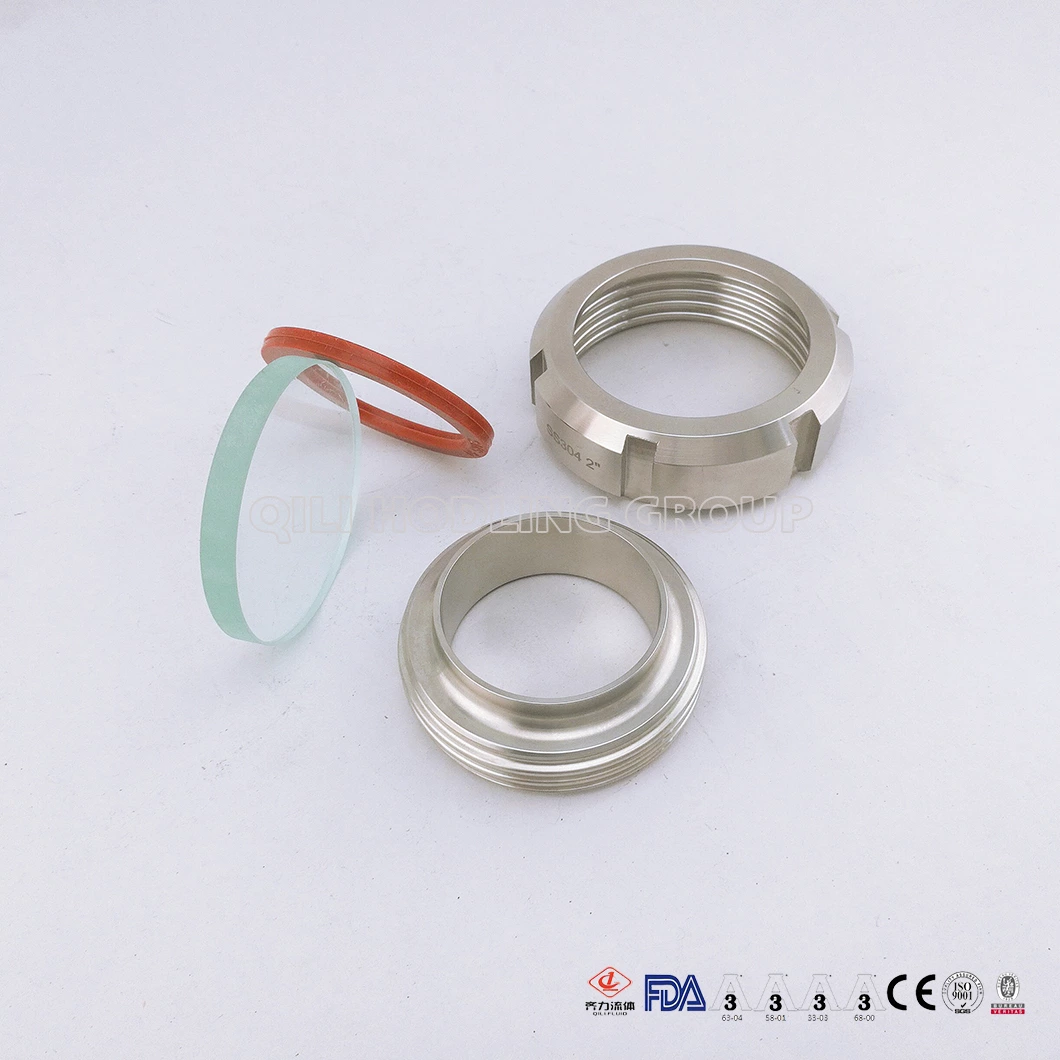

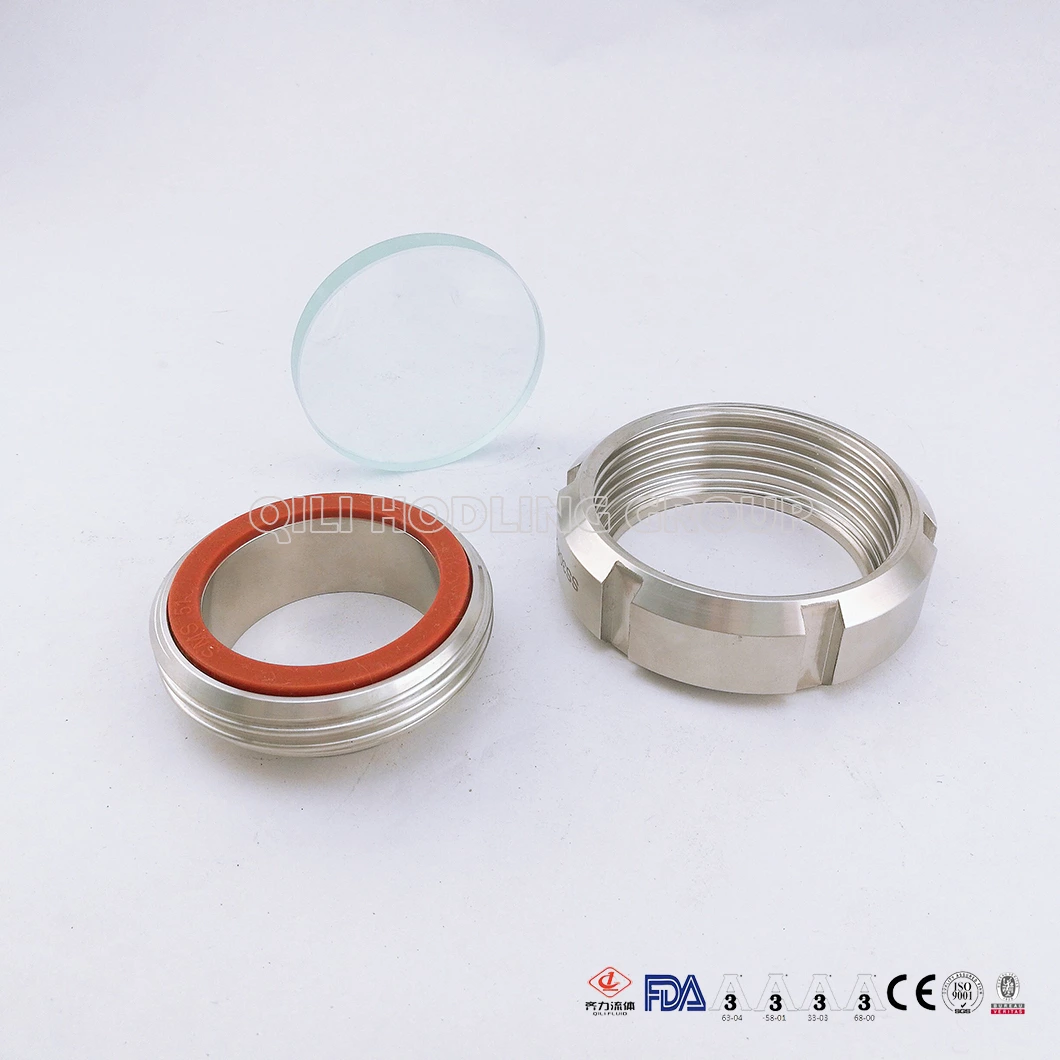

Union-type-sight-glass DIN11851/SMS (standard for dairy products), with transparent circular glass. Threaded nozzle with the welded neck.Welded sight glass with male. It is used viewing the biologic reactor, blender in laboratory, fitter, processing container,pipeline and other closed container. Especially apply in pharmacy,food and beverage processing, such as the brewery, dairy.
