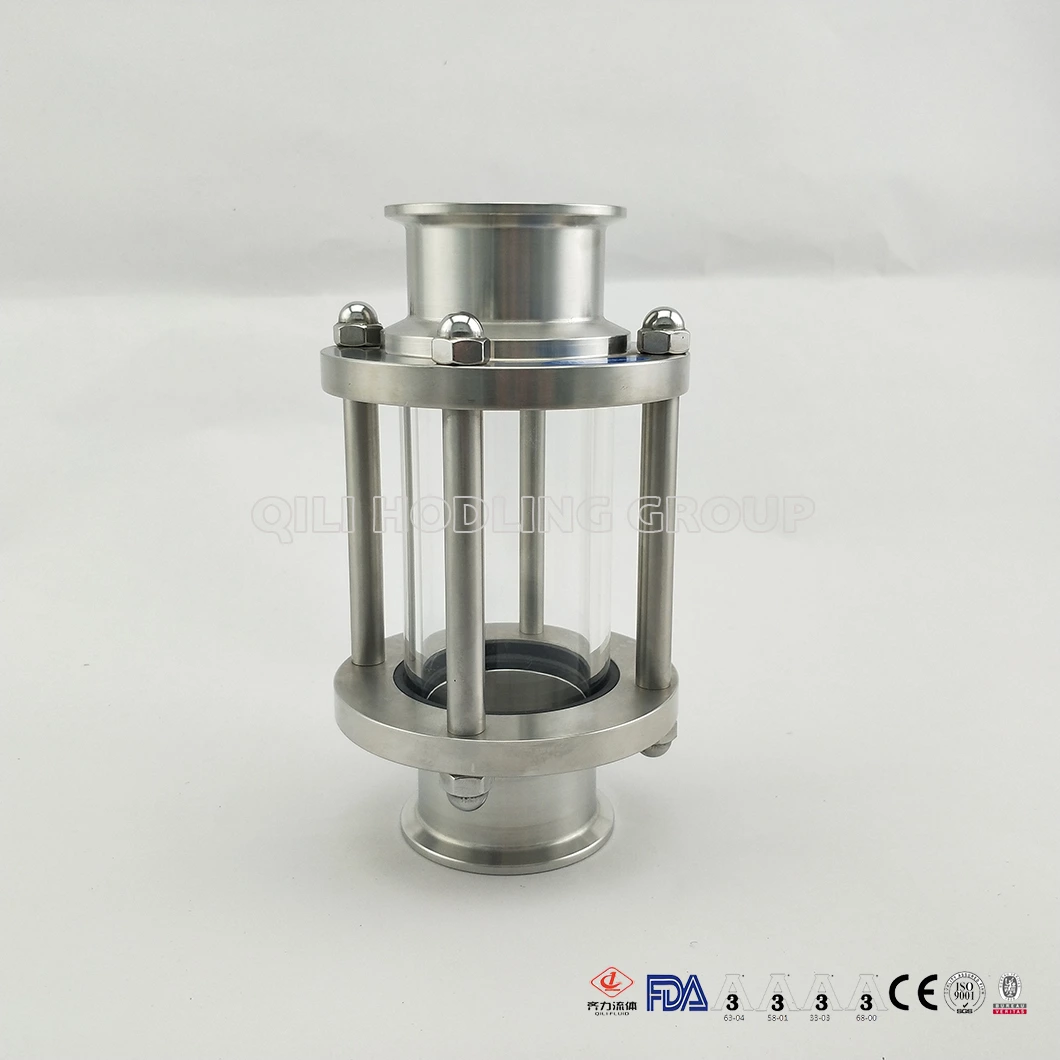

SS Food Grade Straight Sight Glass with protection net/tank level sight glass For Home Brewing Glass Columns Sight
Product Description
Products
Stainless steel tank sight glass
Model Number
Mibond series
Glass Material:
Pyrex glass/ Toughened high-borosilicate glass
Seal Material:
EPDM,Silicone,PTF
- Material:
- 304/304L/316/316L
- Standard:
- 3A,SMS,DIN,ISO,RJT
- Working Temperature:
- 120℃
- Application:
- Pharmacy, beer, food, petroleum, dairy beverage, cosmetics

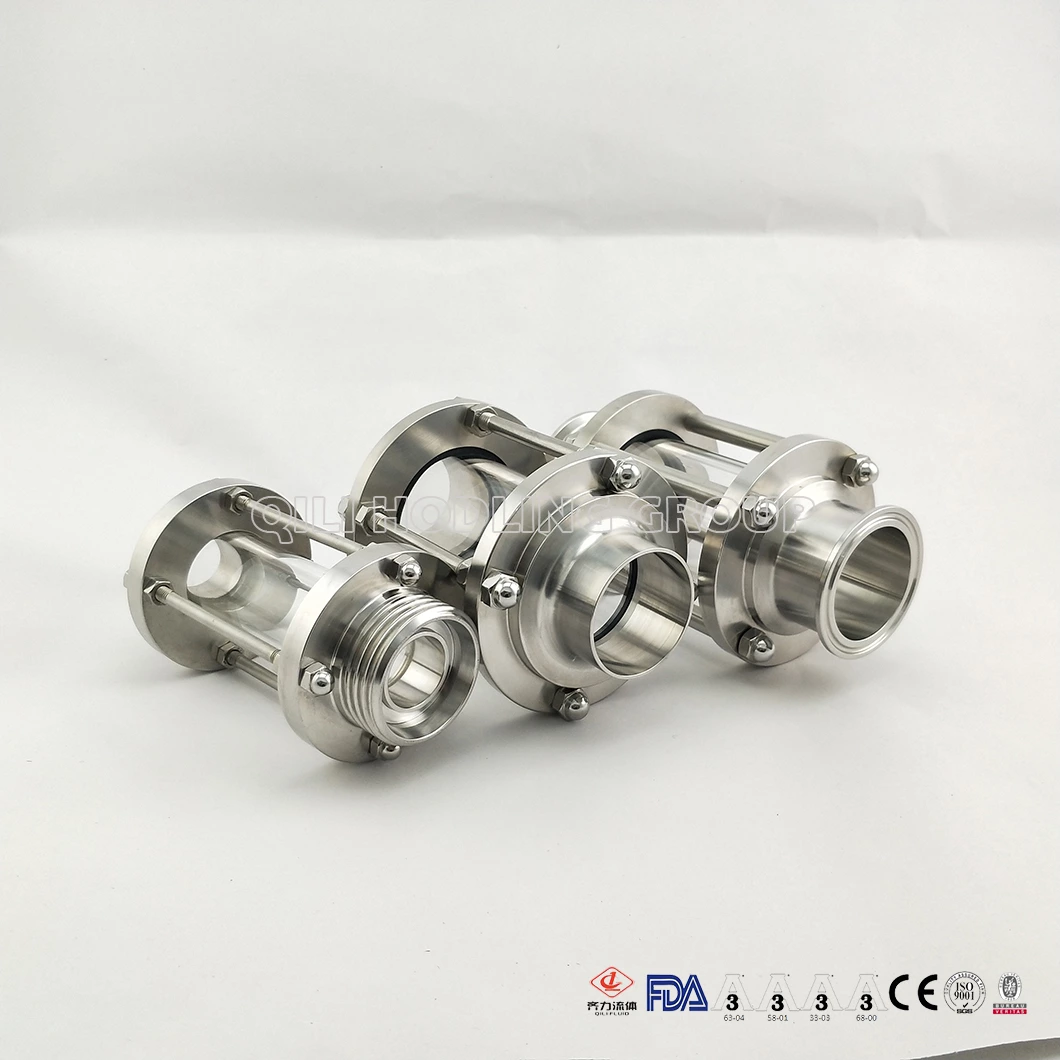

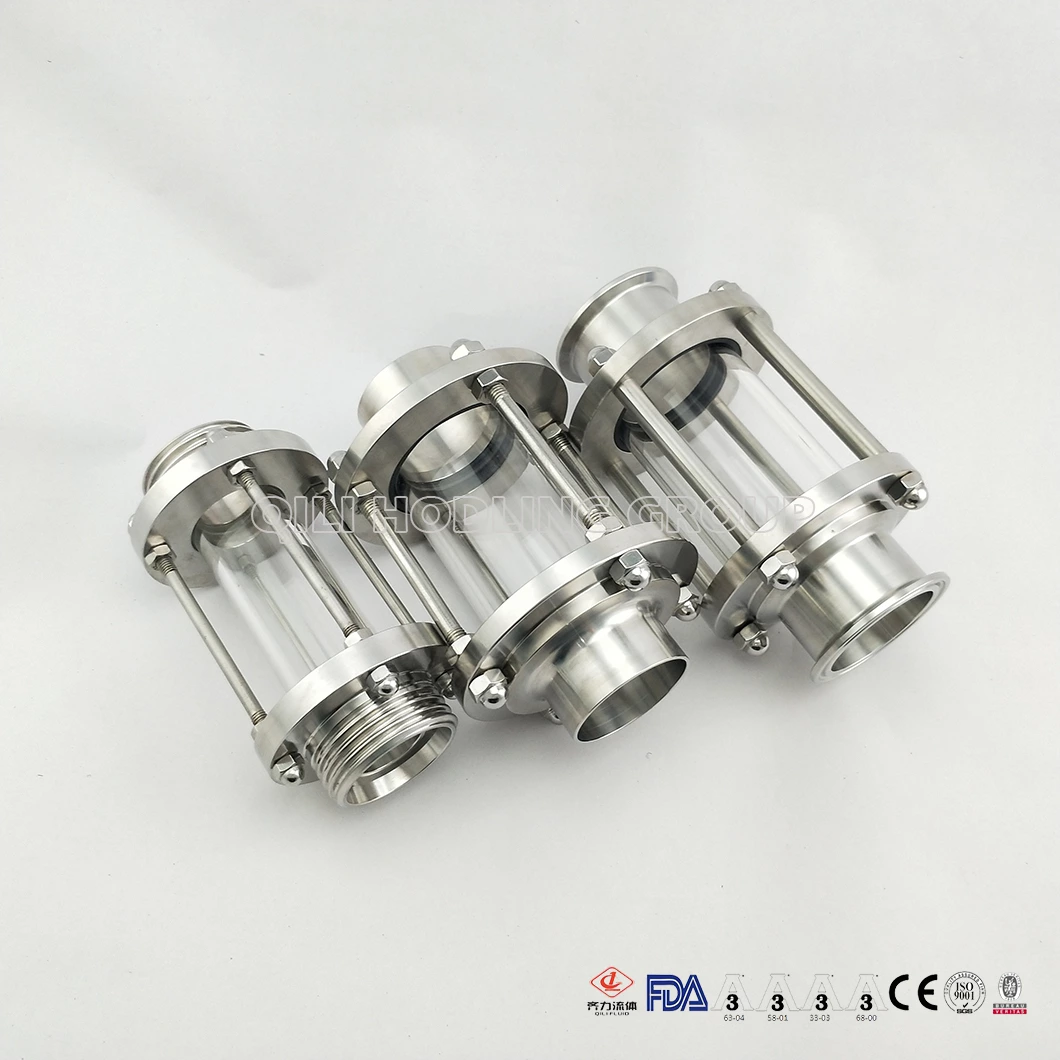

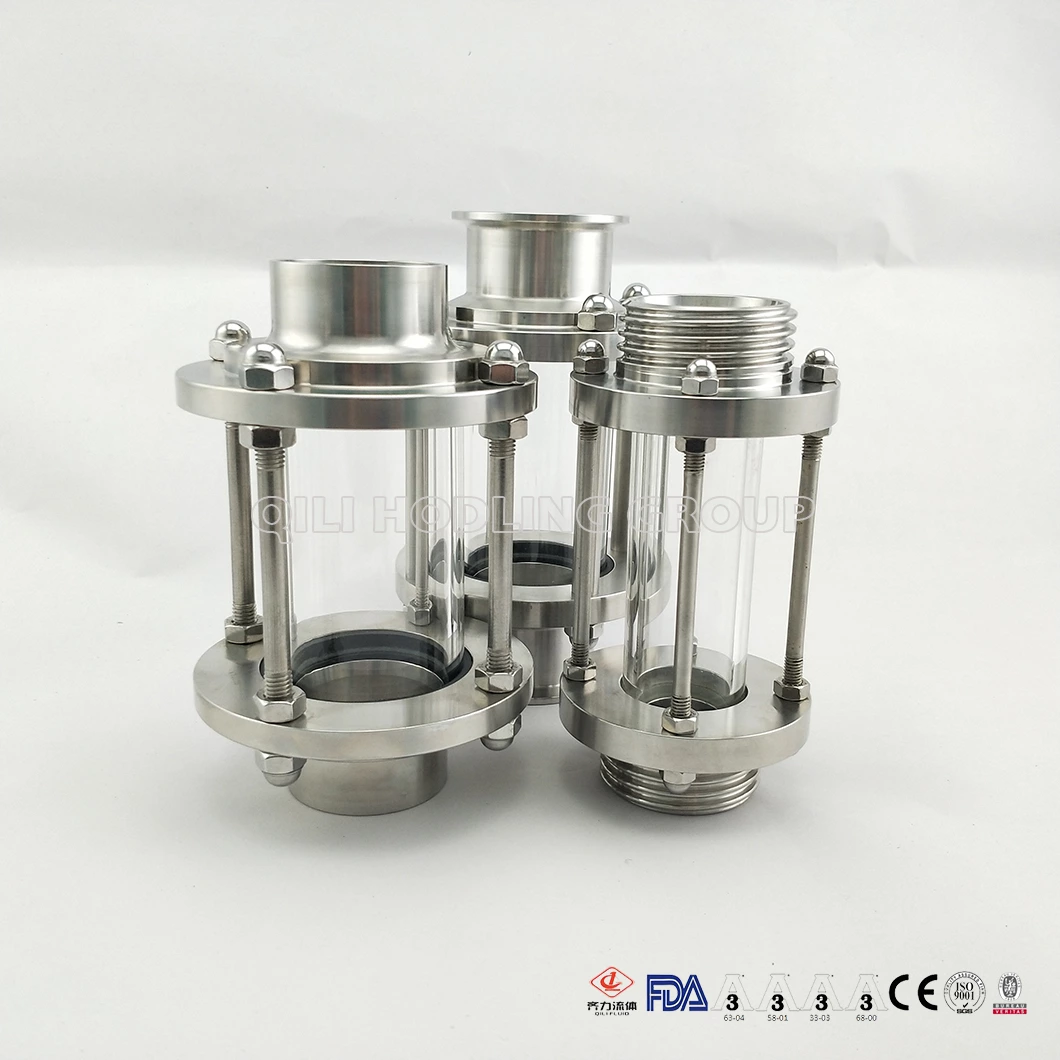

- Connection ways:
- Welded, quick-installed, threaded
- Size:
- DN25-DN100,1-4"
- Sales Models:
- Wholesale and Retail
- Pressure Value:
- 10bar
- Seal Material:
- Viton, NBR, PTFE, Slilicon
- Transport Package:
- carton
Application
Sight glasses enable the visibility of the process in a pipeline or tank. The visibility of the process is important- you can verify the addition of chemicals, agitation and changes via looking in through the sight glasses.A sight flow indicator works on the principle that the flow is disturbed as it goes through the sight glass, which will create an effect that can be seen.
Specification
| Products | Stainless steel tank sight glass |
| Model Number | Mibond series |
| Glass Material: | Pyrex glass/ Toughened high-borosilicate glass |
| Seal Material: | EPDM,Silicone,PTFE |
| Connection: | clamped,welded,threaded end |
| Size: | DN25-DN100, 1"-4" or as required |
| Standards: | DIN,3A,SMS,ISO,IDF |
| Max pressure: | 10 Bar |
| Working temp: | -10°C to +150°C |
| Applications: |
Pharmacy, beer, food, dairy, brewing, beverage, water treatment and chemical industry,etc |
| Terms | EX-WORK, FOB |
| Place of Origin | China |
Drawings

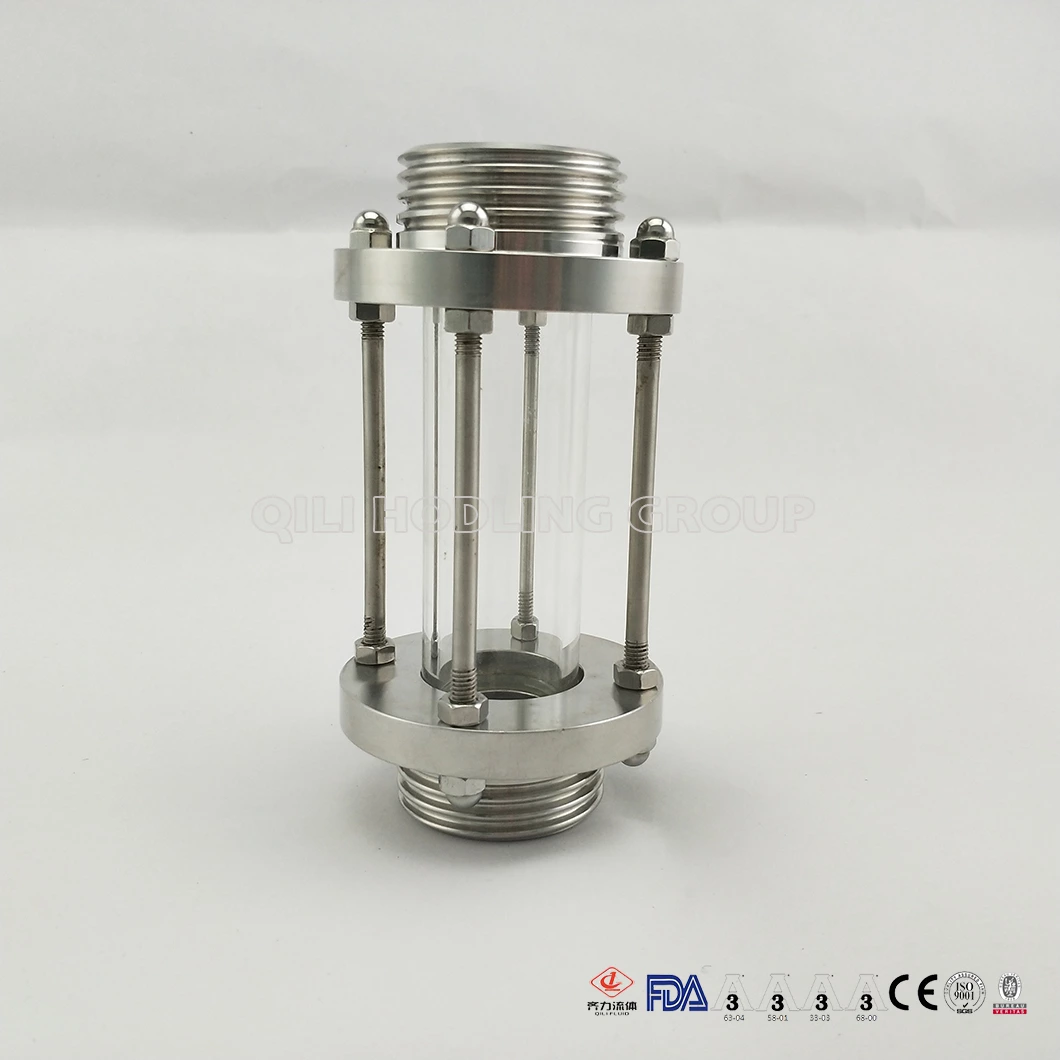

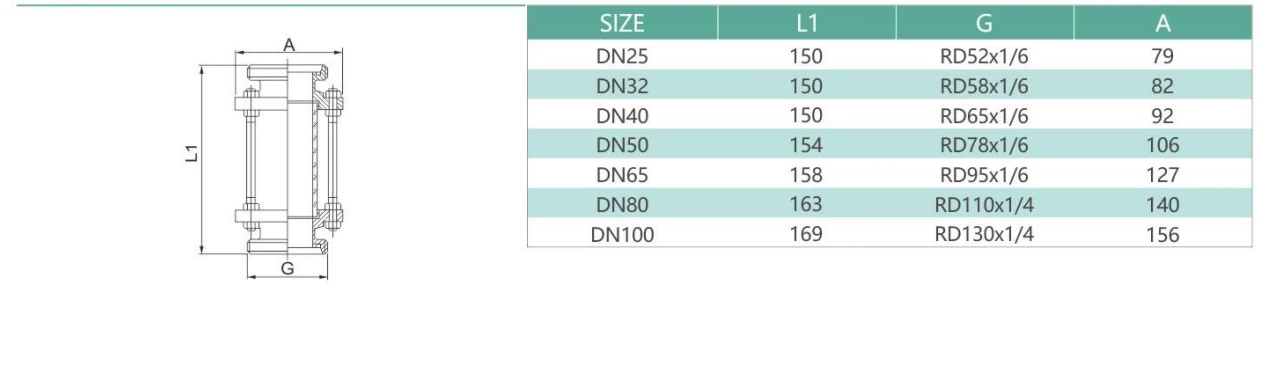

- DIN-Thread end

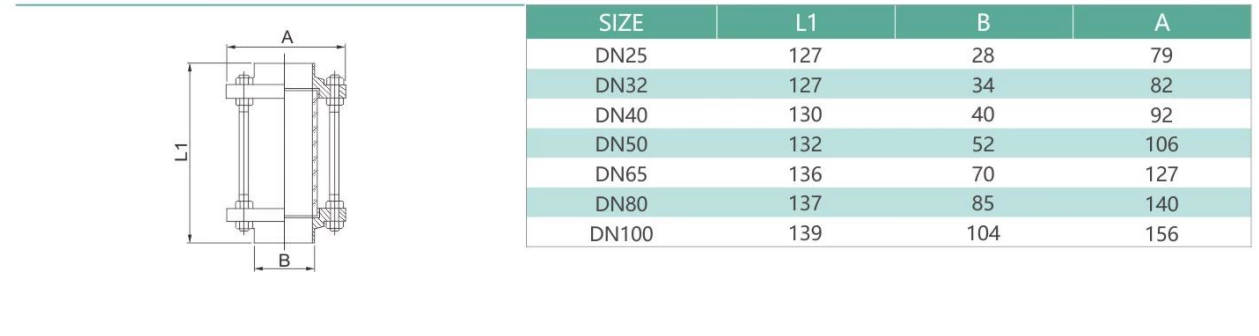

- DIN-Welded end

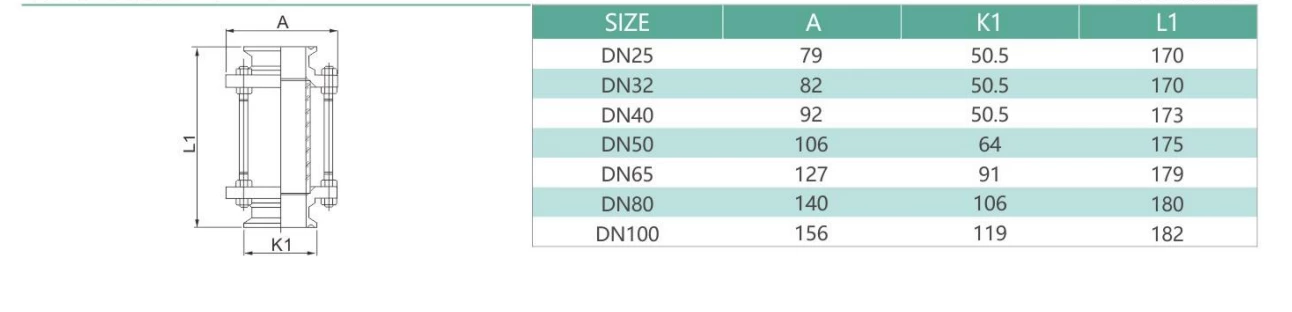

- DIN-Clamp end
