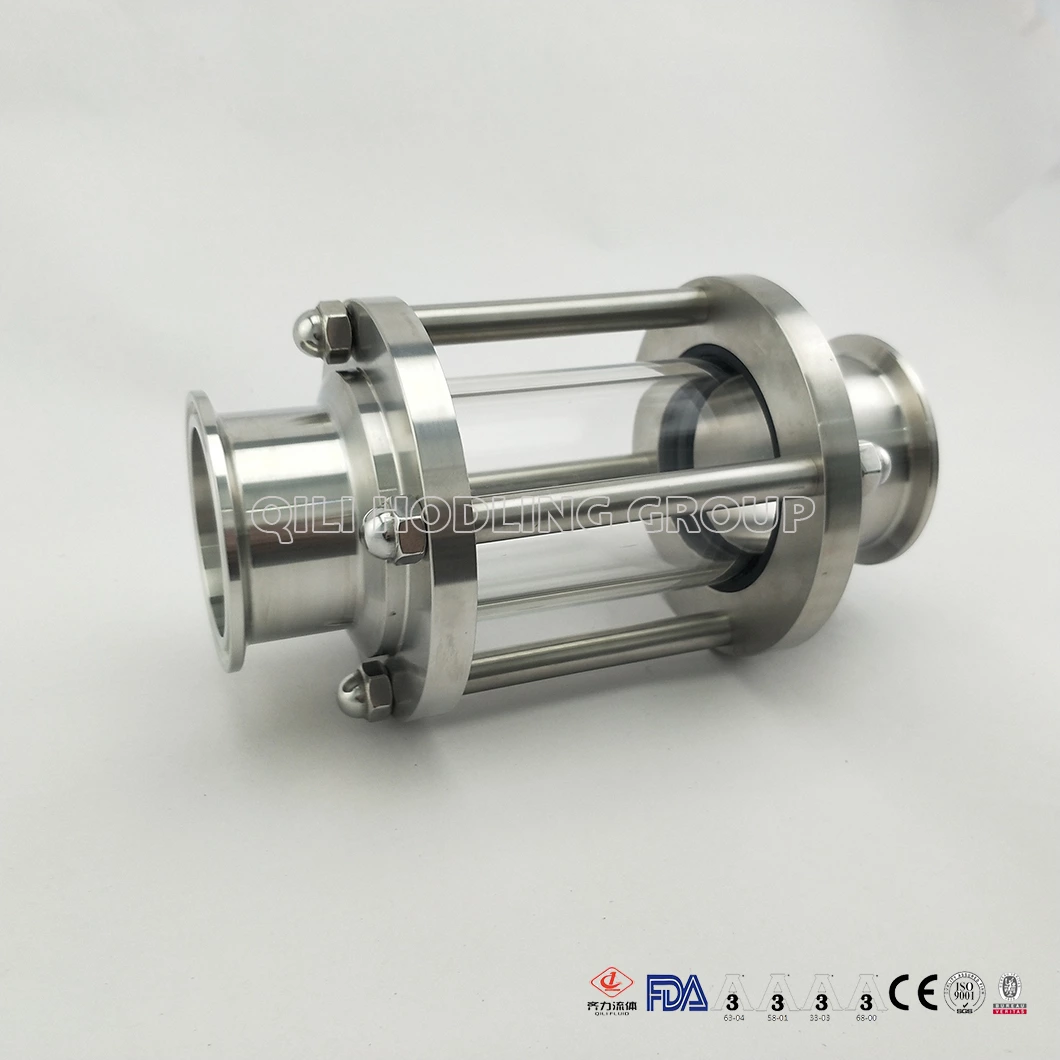

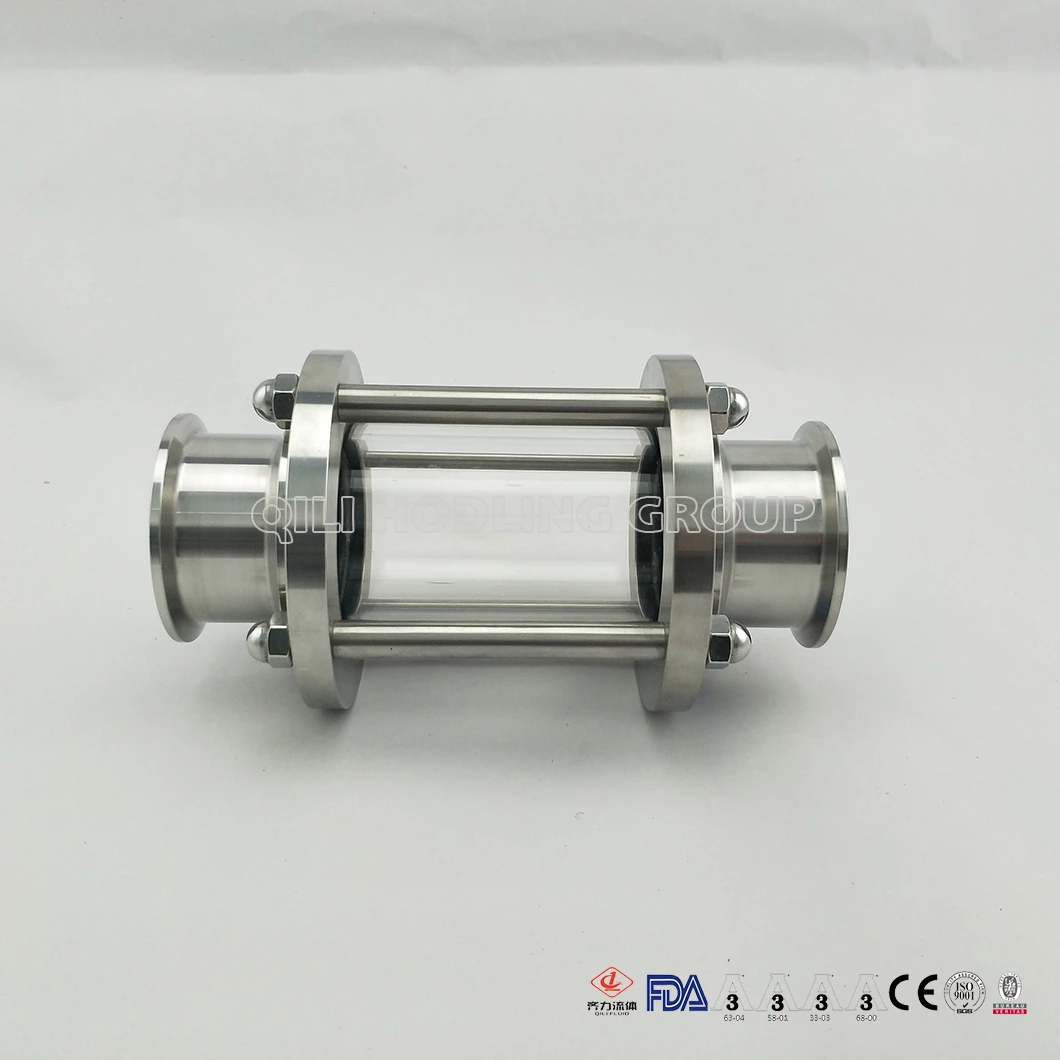

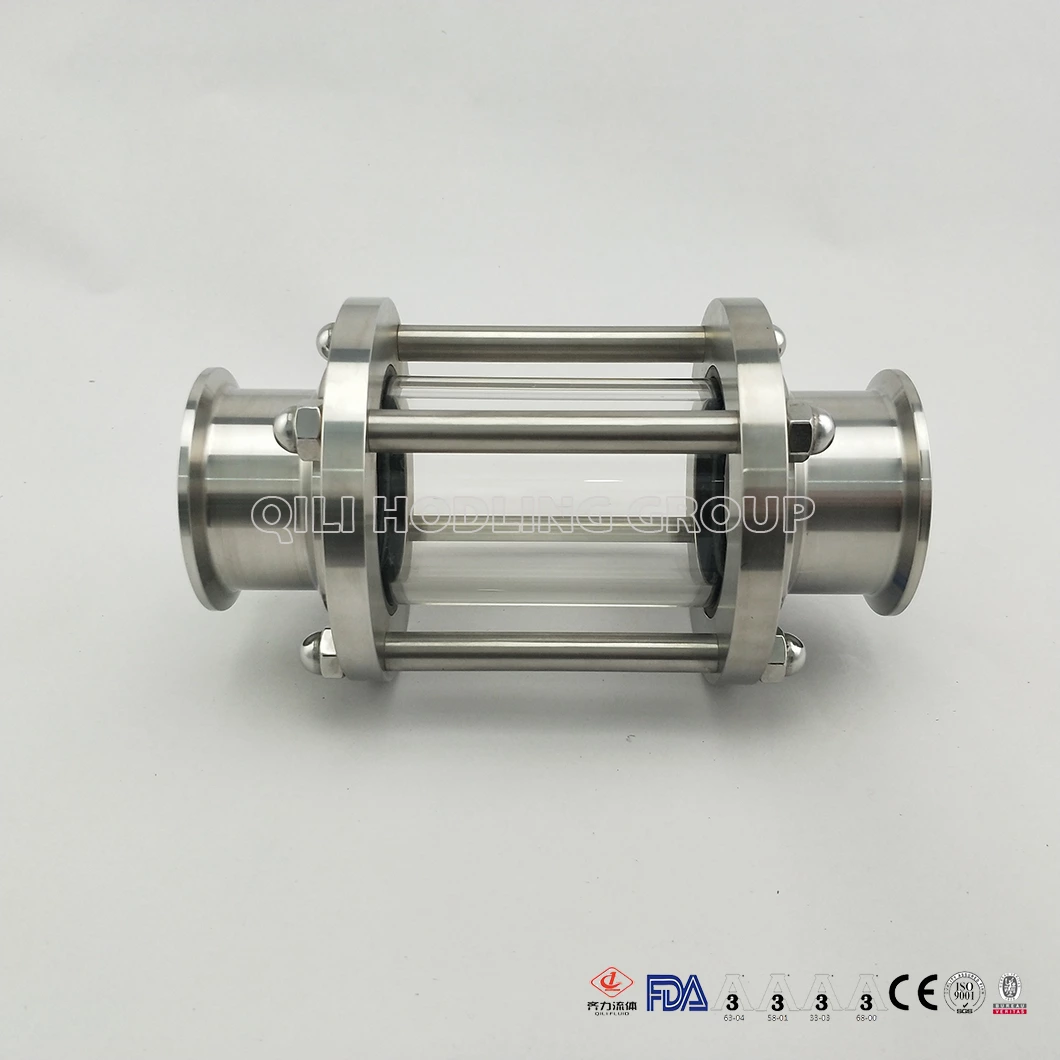

Sanitary Clamped Stainless Steel 304/316L Sight Glass
Product Description
Products
Stainless steel tank sight glass
Model Number
Mibond series
Glass Material:
Pyrex glass/ Toughened high-borosilicate glass
Seal Material:
EPDM,Silicone,PTF
- Material:
- 304/304L/316/316L
- Standard:
- 3A,SMS,DIN,ISO,RJT
- Working Temperature:
- 120℃
- Application:
- Pharmacy, beer, food, petroleum, dairy beverage, cosmetics
- Size:
- DN25-DN100
- Connection Type:
- Welded, quick-installed, threaded
- Sales Models:
- Wholesale and Retail
- Pressure Value:
- 6bar
- Seal Material:
- Viton, NBR, PTFE, Slilicon
- Transport Package:
- carton

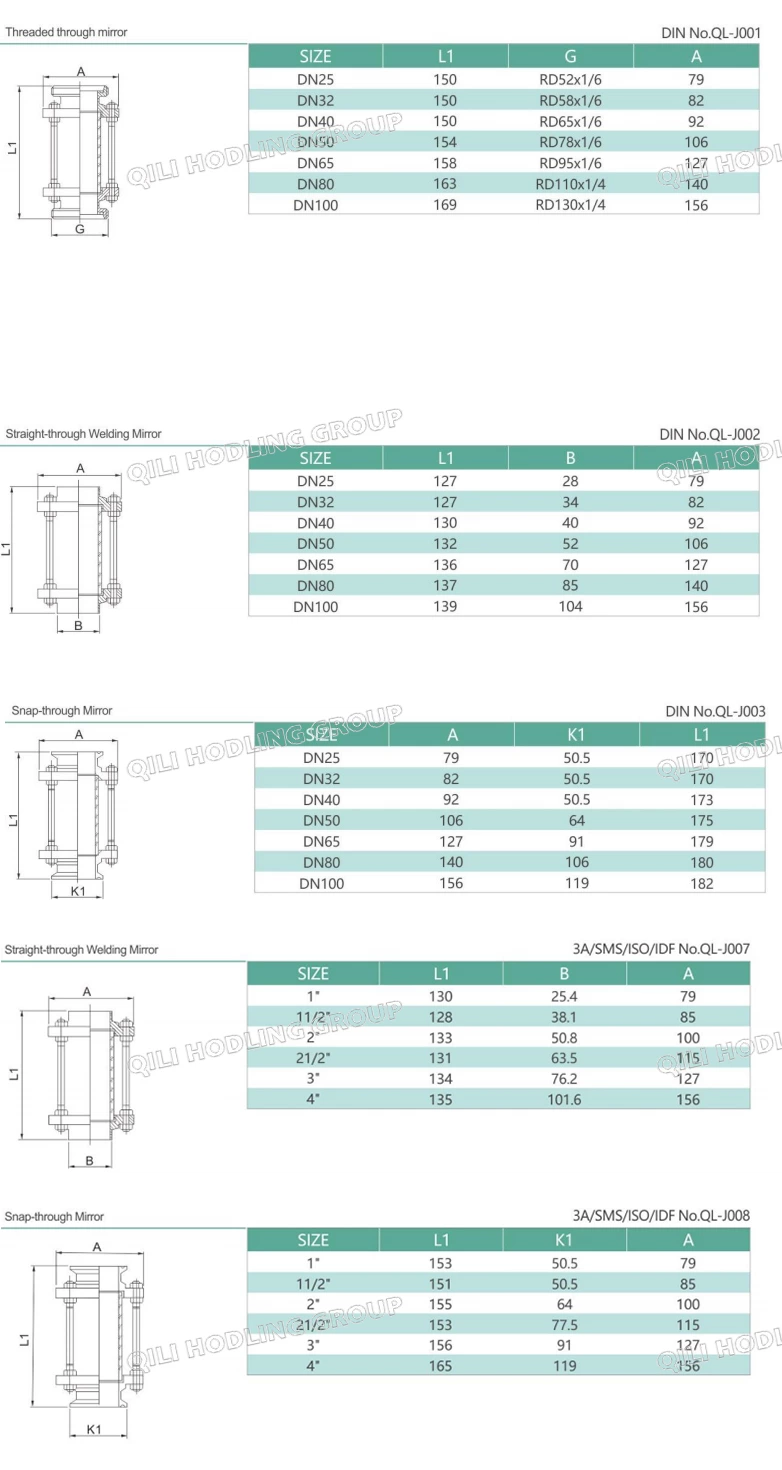

Drawings
Product Description
| Material | SS304; SS316L(Forged, 1.4301/1.4404) Customer’s requests available |
| Connection | Welded,Clamped,Threaded |
| Size | 1/2”-4”, DN15-DN100 and others |
| Features | 100%hydraulic tested/100% inspected |
| Surface treatment | Straightway sight glass surface cutting:Ra1.6-3.2um; Inside surface treatment Ra≤0.4um; Outside surface treatment Ra≤0.8um |
| Standard | ISO,DIN,SMS,3A,IDF |
| Application | Pharmacy, beer, food, dairy, beverage, cosmetic, and chemical industry, etc. |
