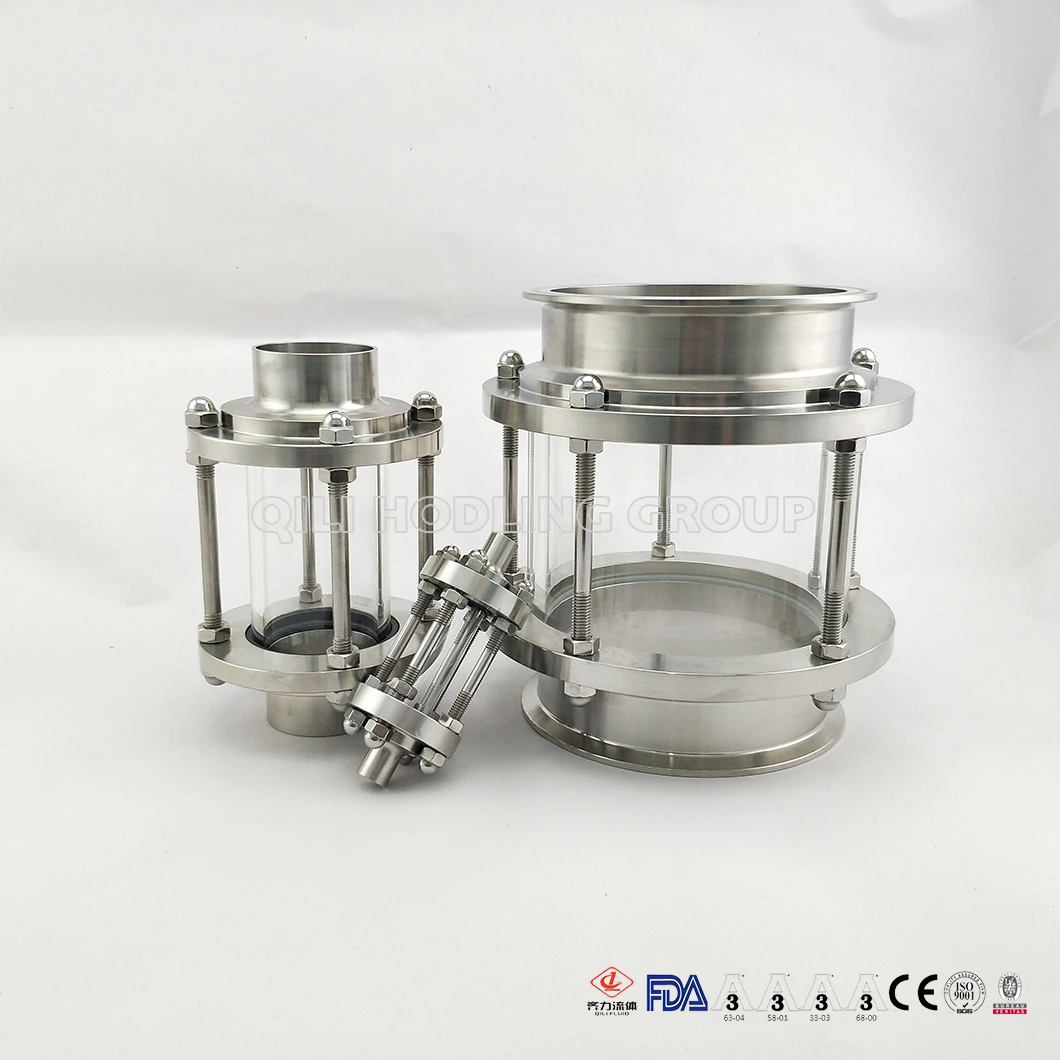

304/316L Sanitary Stainless Steel liquid level tank Sight Glass/Column Sight Glass
Product Description
Products
Stainless steel tank sight glass
Model Number
Mibond series
Glass Material:
Pyrex glass/ Toughened high-borosilicate glass
Seal Material:
EPDM,Silicone,PTF
- Material:
- 304/304L/316/316L
- Standard:
- 3A,SMS,DIN,ISO,RJT
- Specification:
- Column Sight Glass
- Working Temperature:
- -10°C to +150°C
- Connection ways:
- clamped end,welded end,threaded end
- Size:
- DN25-DN100, 1"-4"
- Sales Models:
- Wholesale and Retail
- Pressure Value:
- 10 Bar
- MOQ:
- 1pc
- Seal Material:
- EPDM,Silicone,PTFE
- Transport Package:
- carton

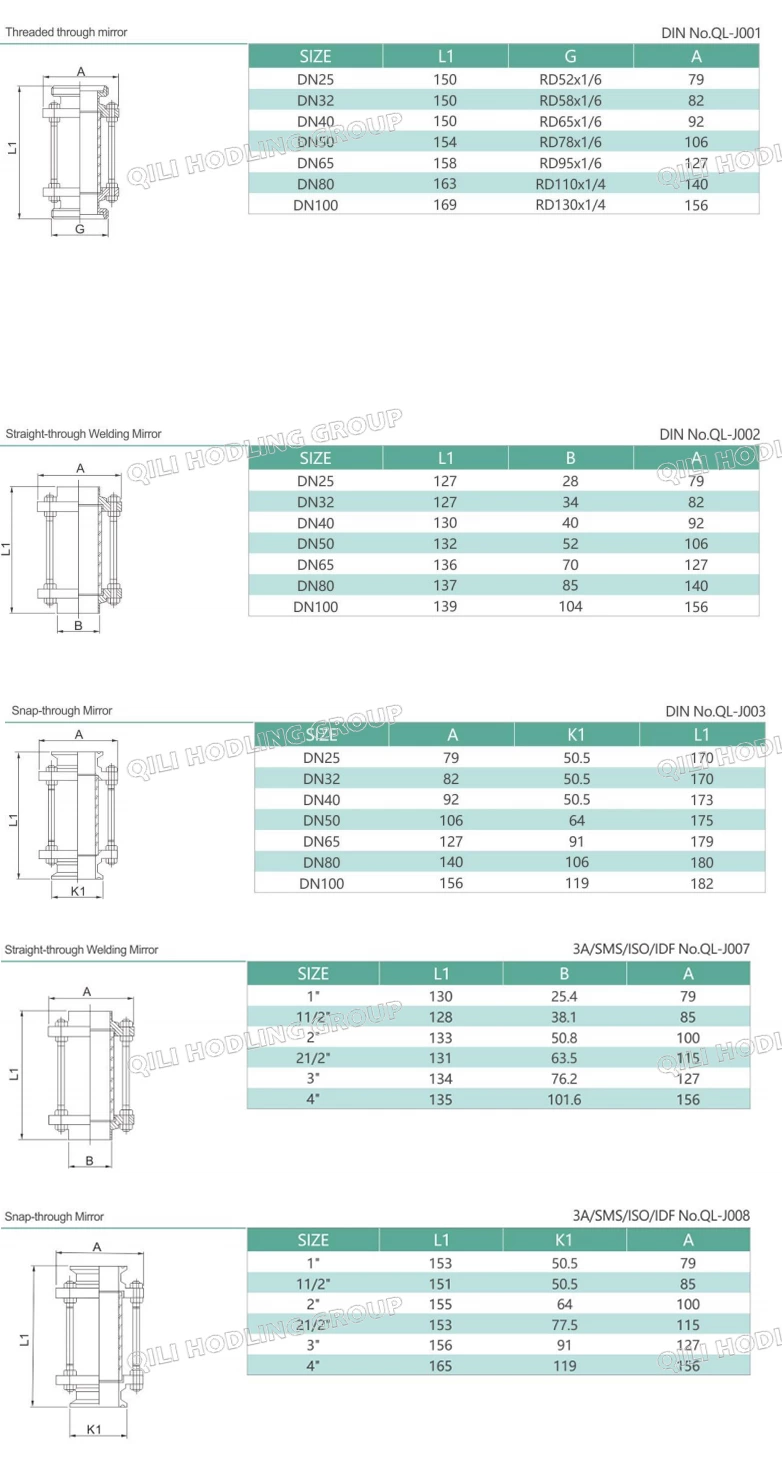

Drawings
Product Description
| Products | Stainless steel tank sight glass |
| Model Number | Mibond series |
| Glass Material: | Pyrex glass/ Toughened high-borosilicate glass |
| Seal Material: | EPDM,Silicone,PTFE |
| Connection: | clamped,welded,threaded end |
| Size: | DN25-DN100, 1"-4" or as required |
| Standards: | DIN,3A,SMS,ISO,IDF |
| Max pressure: | 10 Bar |
| Working temp: | -10°C to +150°C |
| Applications: | Pharmacy, beer, food, dairy, brewing, beverage, water treatment and chemical industry,etc |
| Terms | EX-WORK, FOB |
| Place of Origin | China |
