Sanitary Stainless Steel Manual Tank Bottom Diaphragm Valve
Sanitary Stainless Steel Manual Tank Bottom Diaphragm Valve is our strong product. We produce it many years, and export them to many countries with high praises and repurchasing.We are a - Wenzhou Qili Fluid Equipment Co.,ltd.
- Material:
- SS304/316L
- Standard:
- DIN, SMS IDF ISO 3A BPE
- Working Temperature:
- -10 to 150℃
- Application:
- food, beverage, wine, cosmetic,etc.
- Size:
- DN15-DN80
- Type:
- diaphragm valves
- Connection Type:
- weld,clamp
- Sales Models:
- wholesale or retail
- Pressure Value:
- 0-10bar
- Seal Material:
- EPDM,PTFE
- Transport Package:
- cartons
Details
| Description | Sanitary Stainless Steel Manual Tank Bottom Diaphragm Valve |
| Material | Stainless steel 304, 316L |
| Driving mode | Manual or Pneumatic |
| Connection form | Weld, Clamp |
| Body type | T-type tee, Utype tee, Mini type, tank bottom type, etc. |
| Work Pressure | Max. Working pressure 10 bar |
| Temperature range | -10℃ - 120℃, EPDM |
| Function | Electronic type,intelligenr type,field bus. |
| Inside polishing | Ra 16-32 (0.4 - 0.8 μm) |
| Standard | DIN,3A,ISO,SMS |
| Size | DN15-DN80 |
| Standard Sealing Material | EPDM, PTFE, EPDM+PTFE |
| Application | Dairy, water, food, beer, beverage, phramaceutical, cosmetic, chemical industry. |

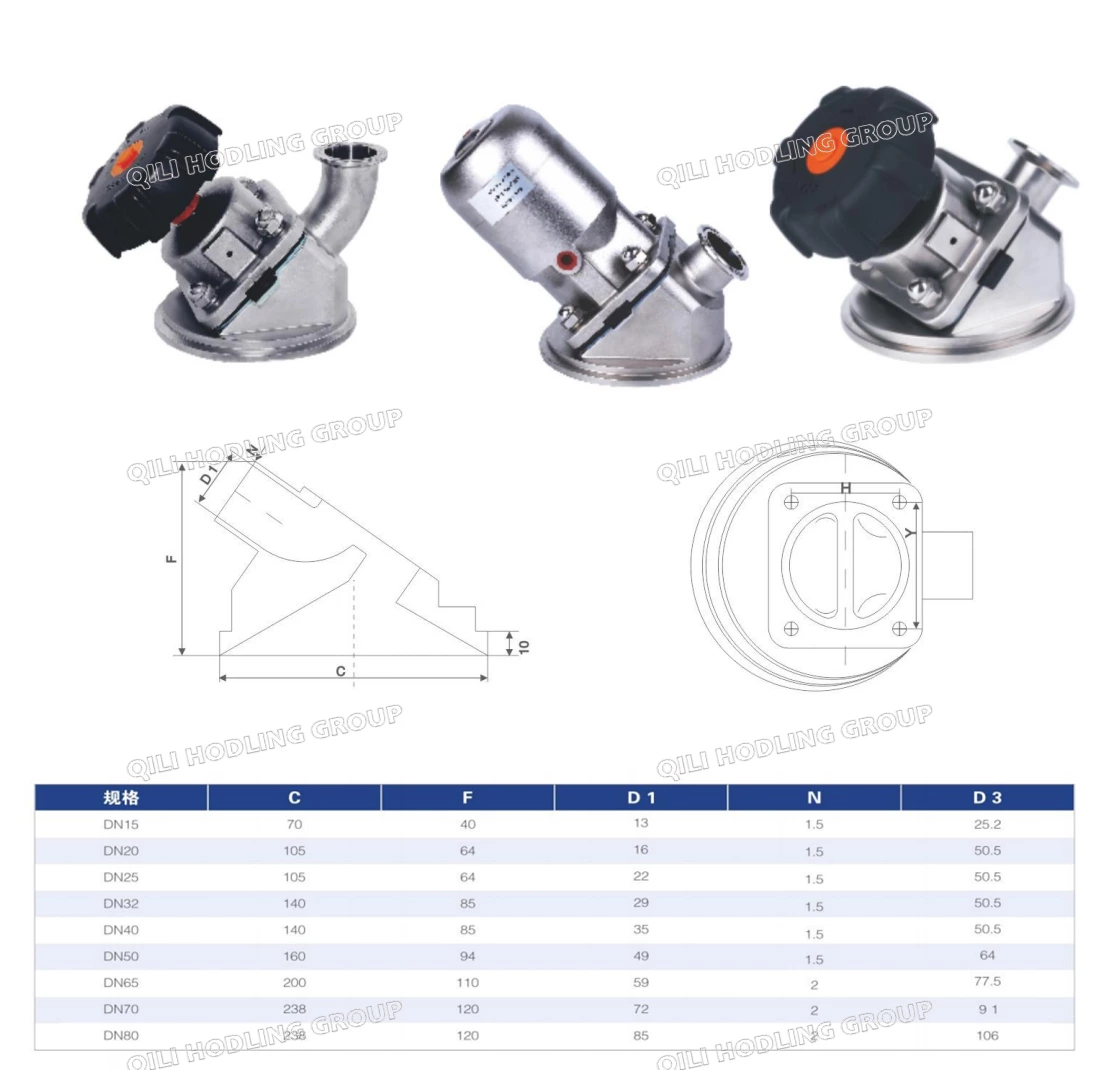

Drawings
