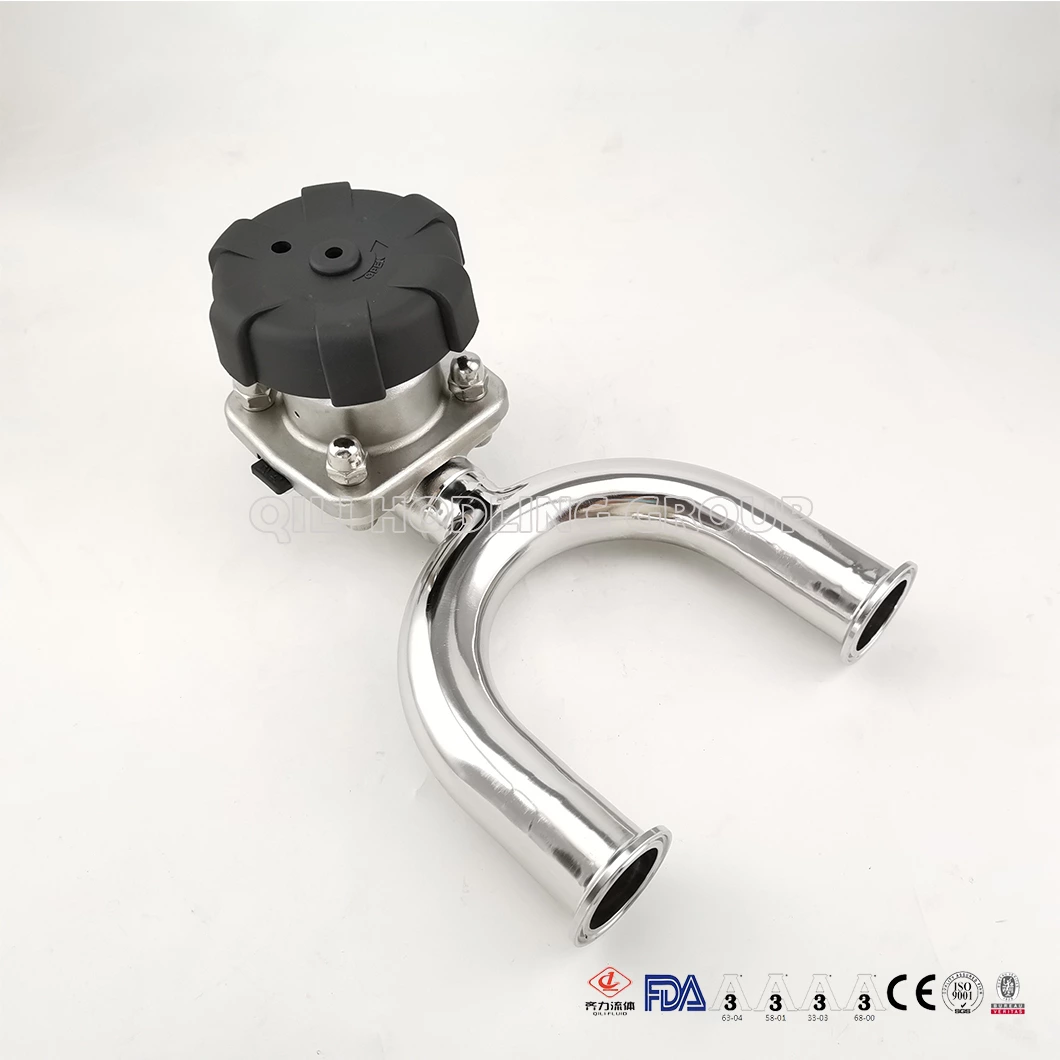

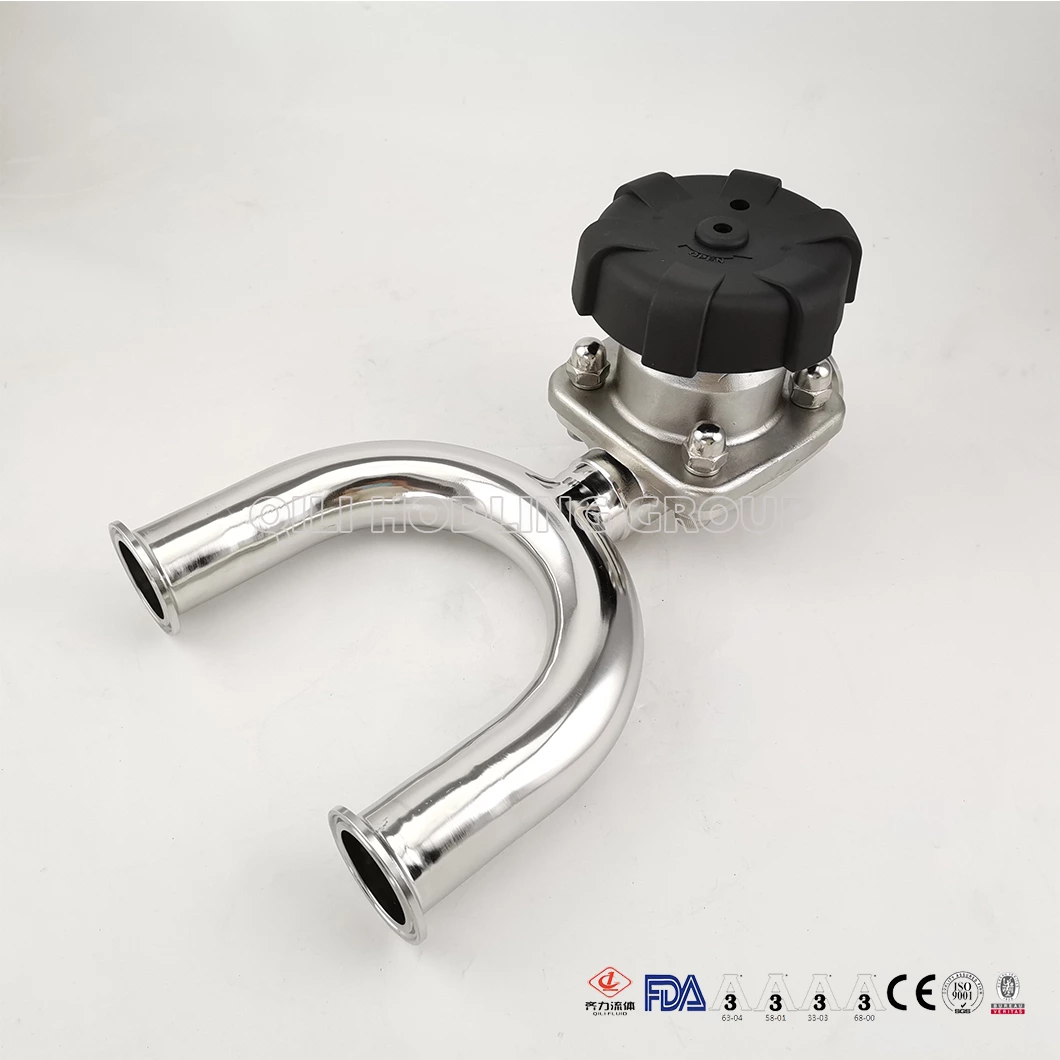

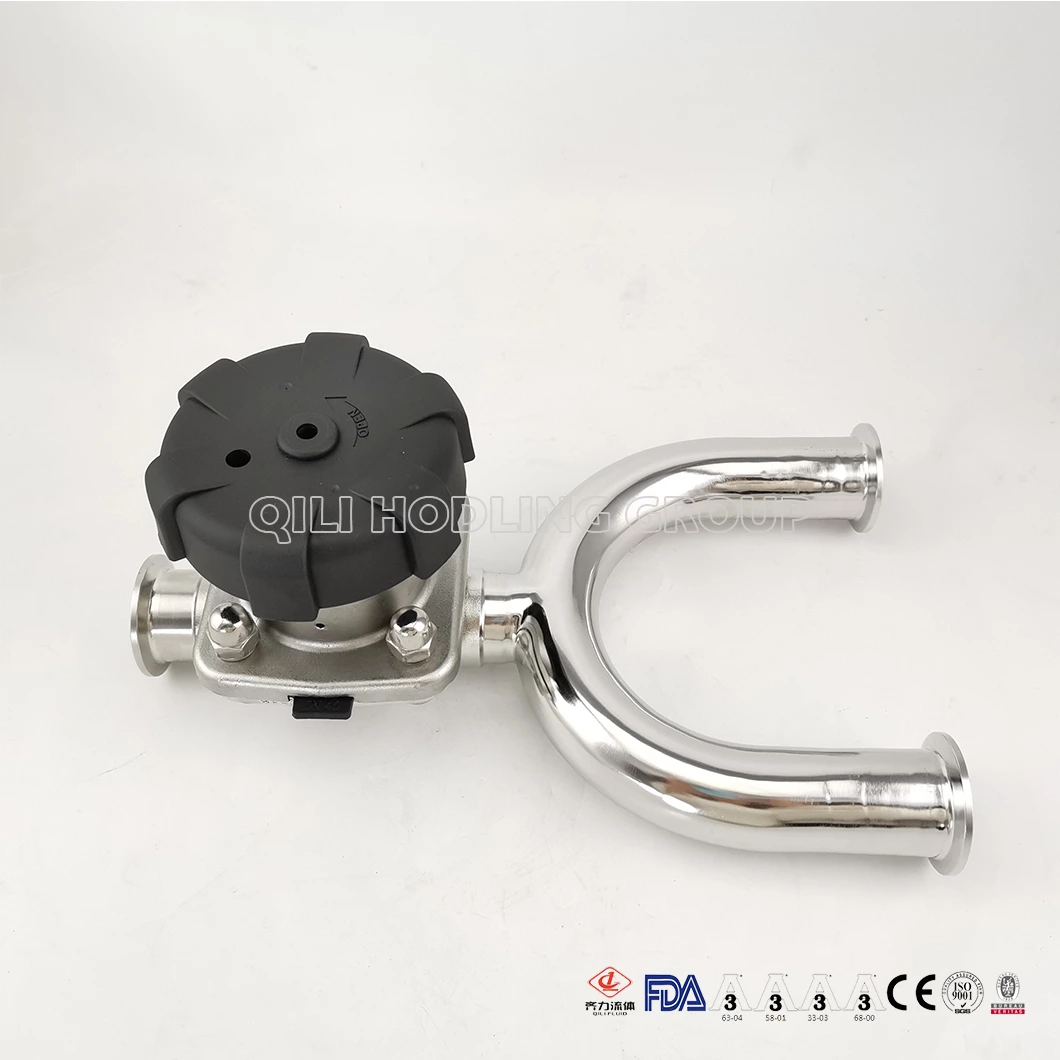

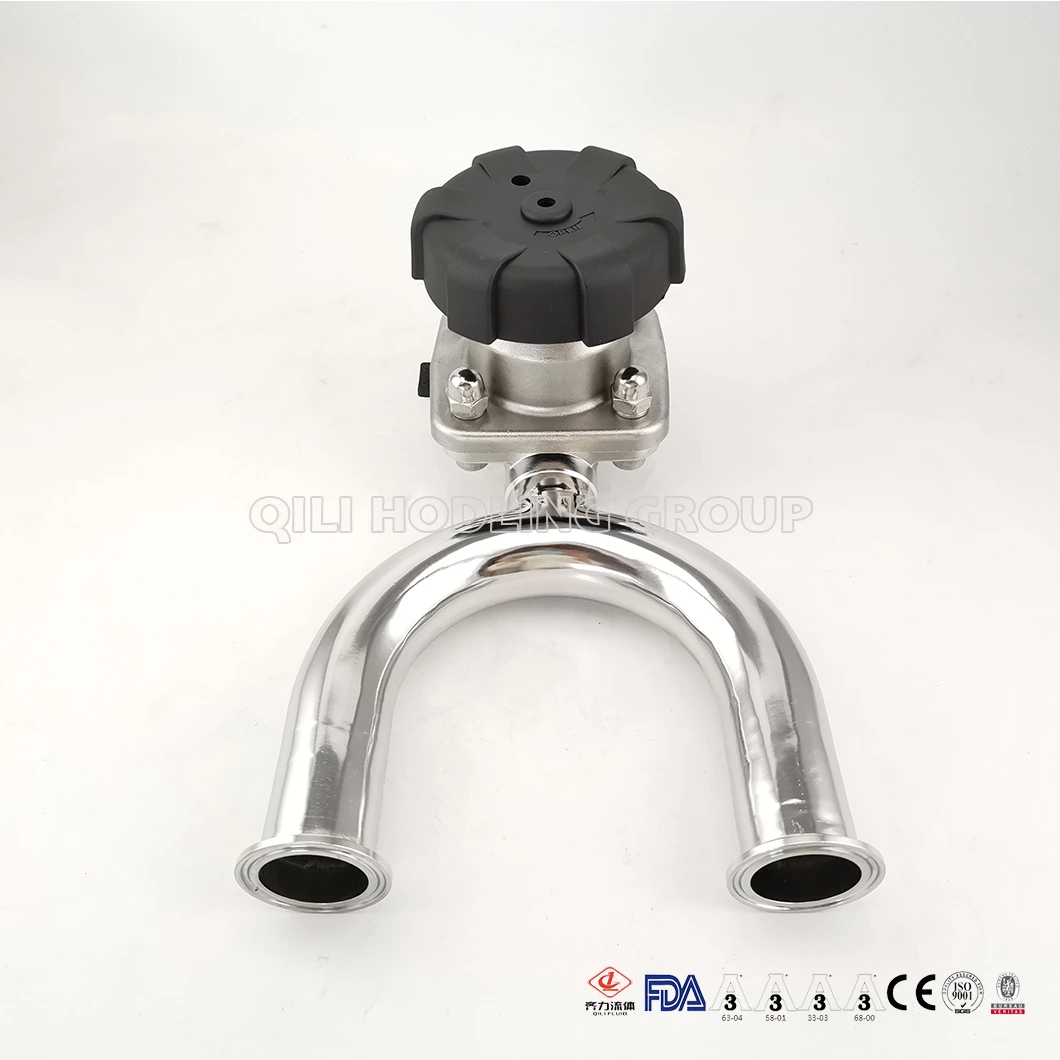

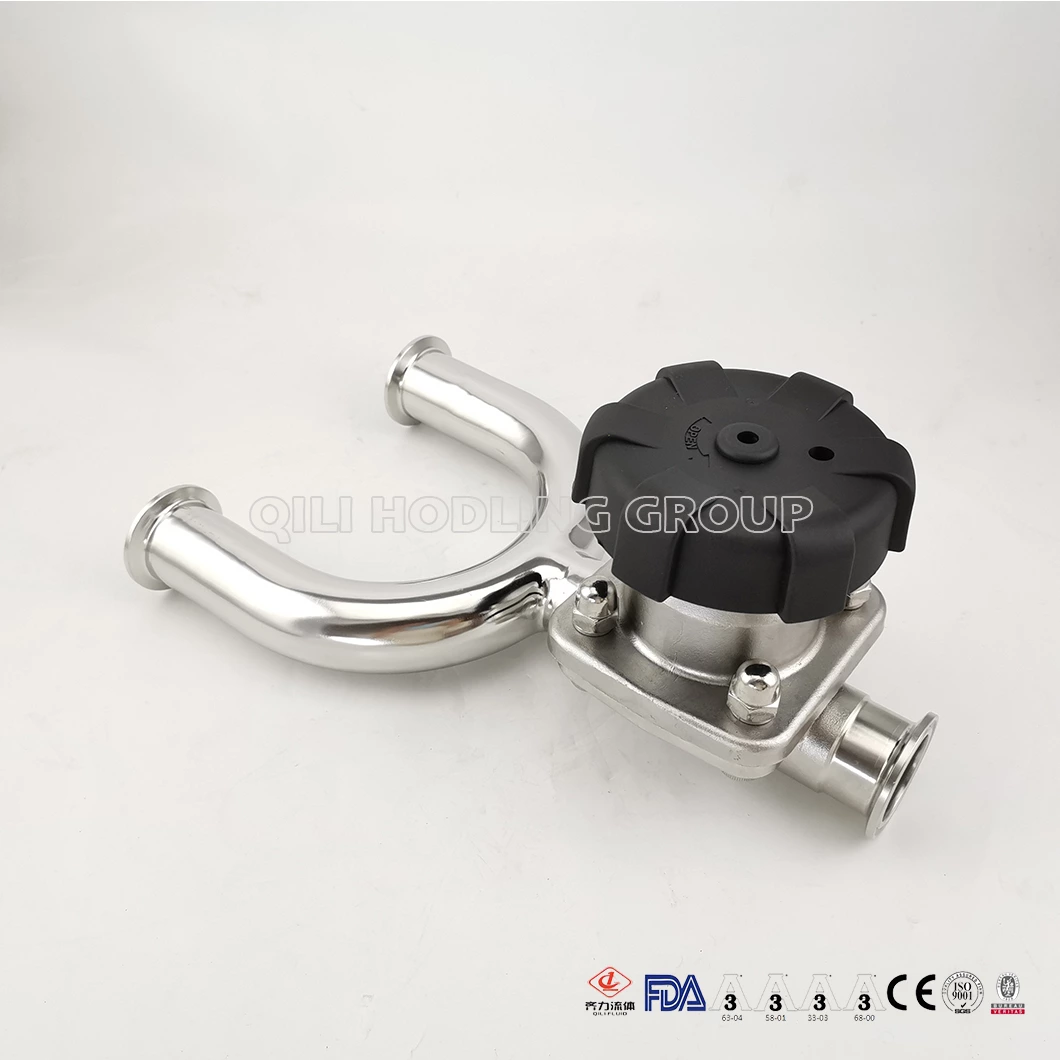

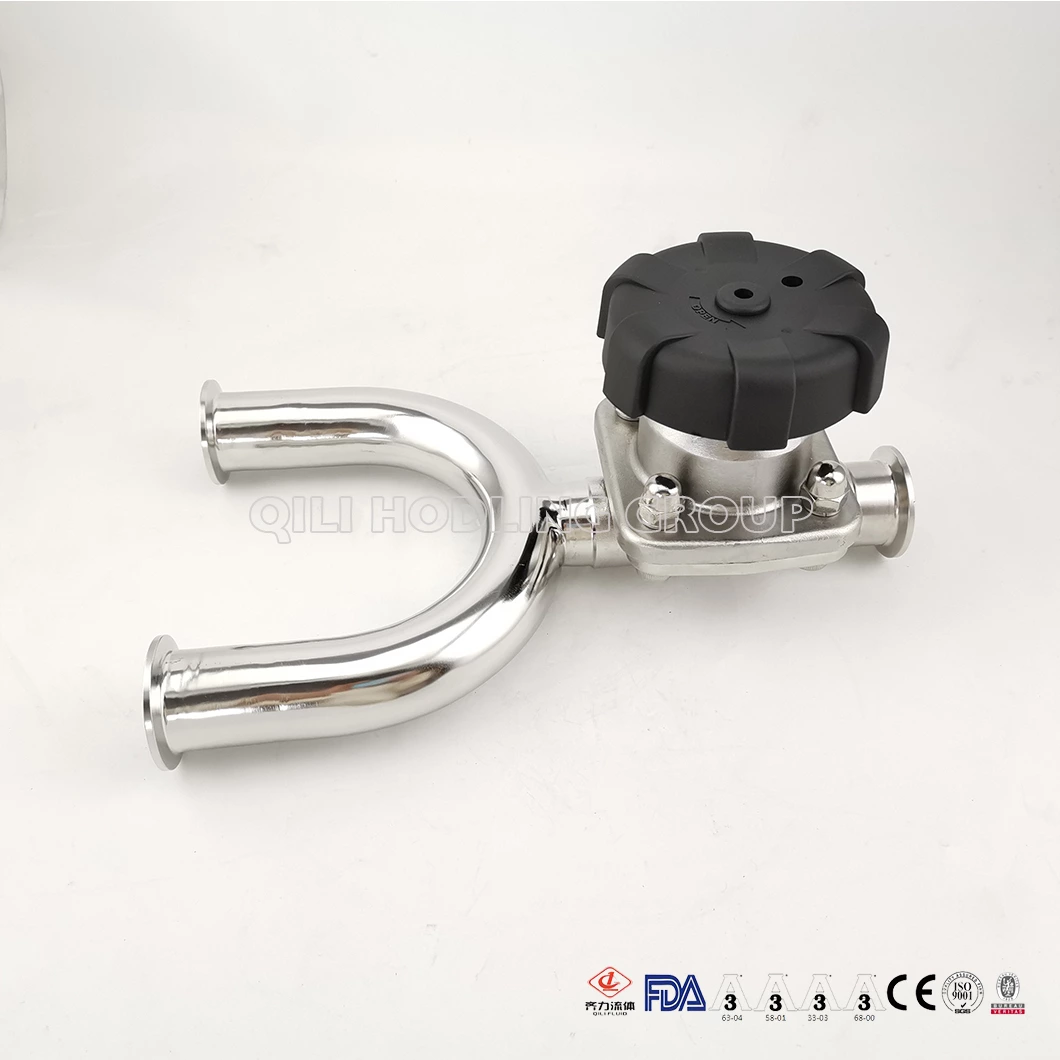

Sanitary Manual U-Type Clamp Ends Diaphragm Valve For Flow Control
Manual type sanitary 3 way diaphragm valve with U body design. we can supply kinds of connection ways as your demands
- Material:
- SS304/316L
- Standard:
- DIN, SMS IDF ISO 3A BPE
- Working Temperature:
- -10 to 150℃
- Application:
- food, beverage, wine, cosmetic,etc.
- Size:
- 12.7-63.5MM
- Type:
- diaphragm valves
- Connection Type:
- weld,clamp
- Sales Models:
- wholesale or retail
- Pressure Value:
- 0-10bar
- Seal Material:
- EPDM,PTFE
- Transport Package:
- cartons
Details
- Connection ways: Tri-clamp, Butt-weld,
- Valve seat: EPDM+PTFE
- Inside surface treatment: Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the default.
- Outside surface treatment: Ra 32μin (0.8μm), Sand Blast or other upon request.
- Max. working pressure: 145psi (10bar)
- Application: Mainly used in the pharmaceutical field
Drawings
