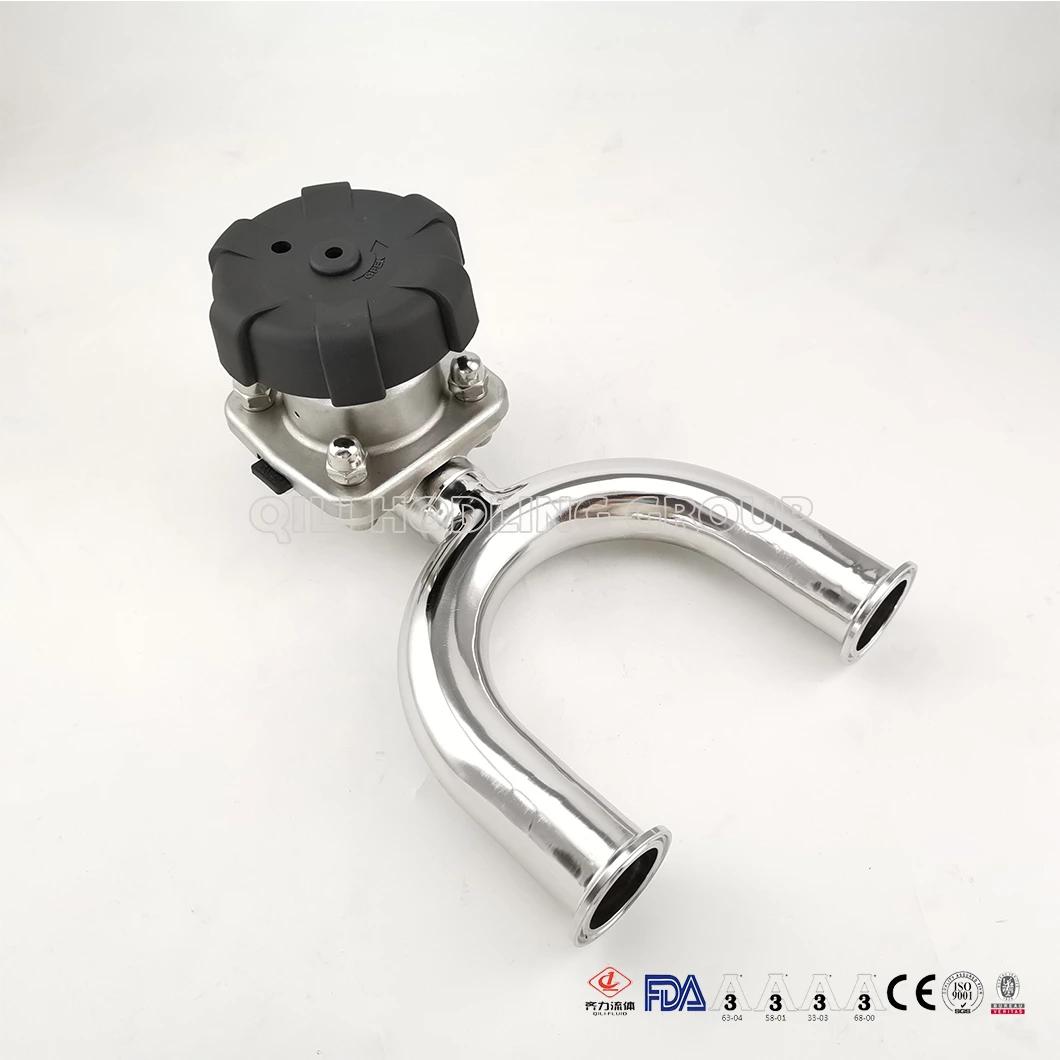

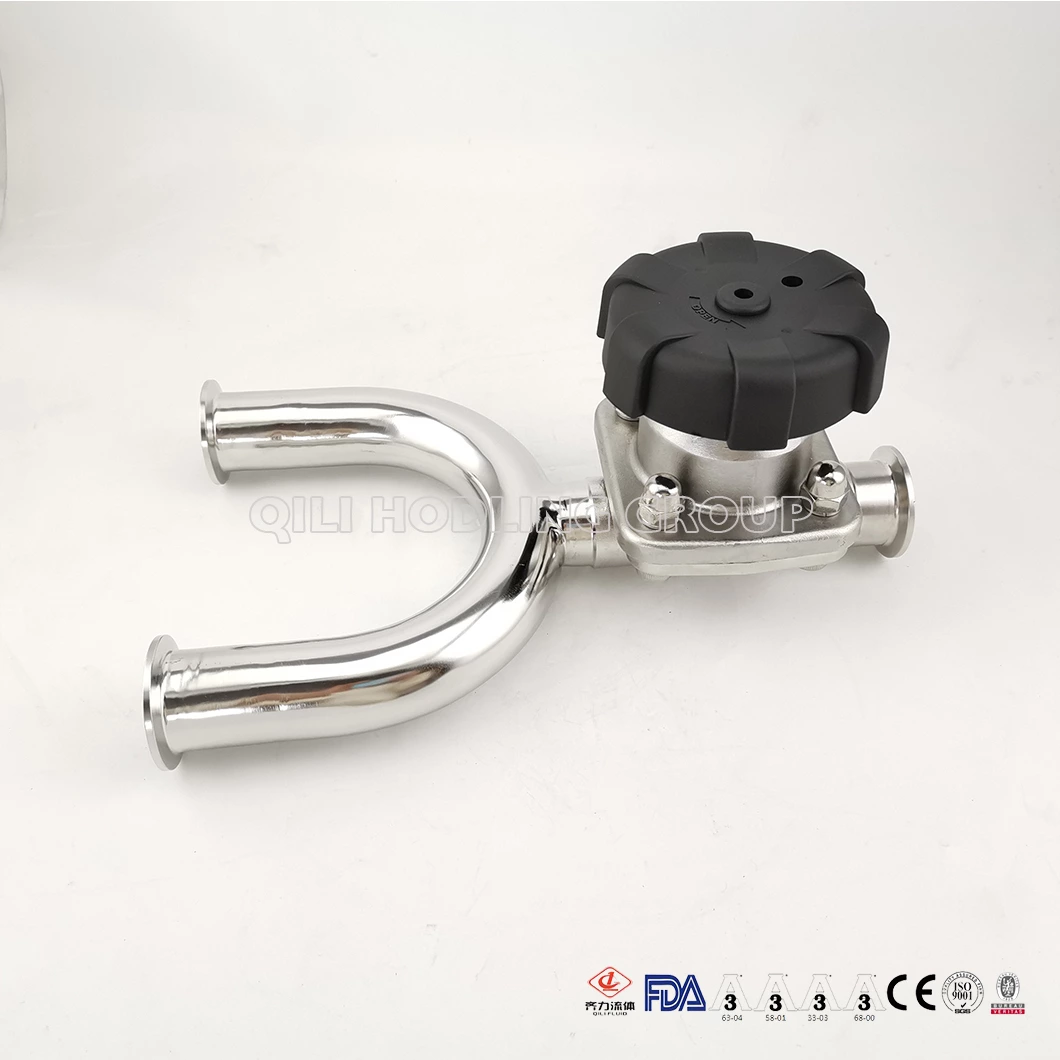

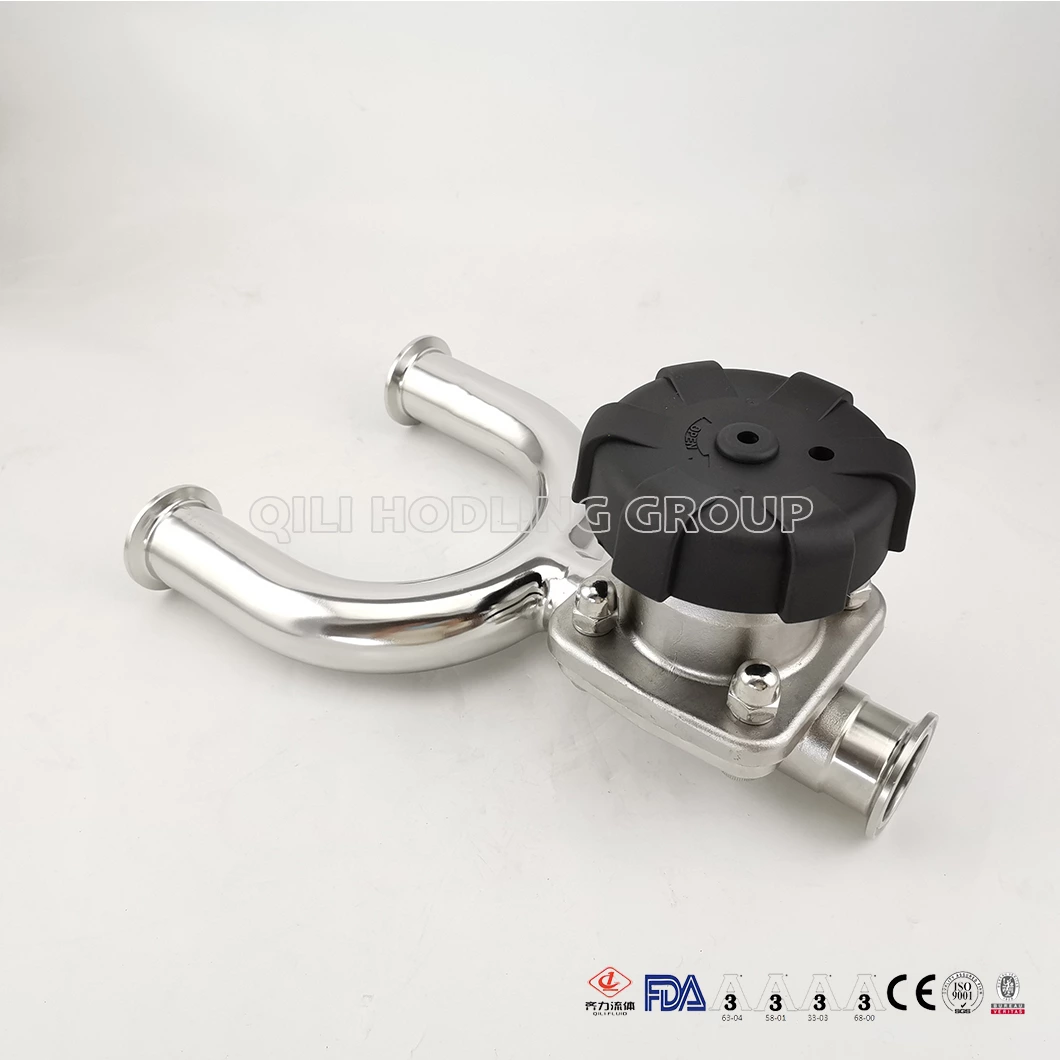

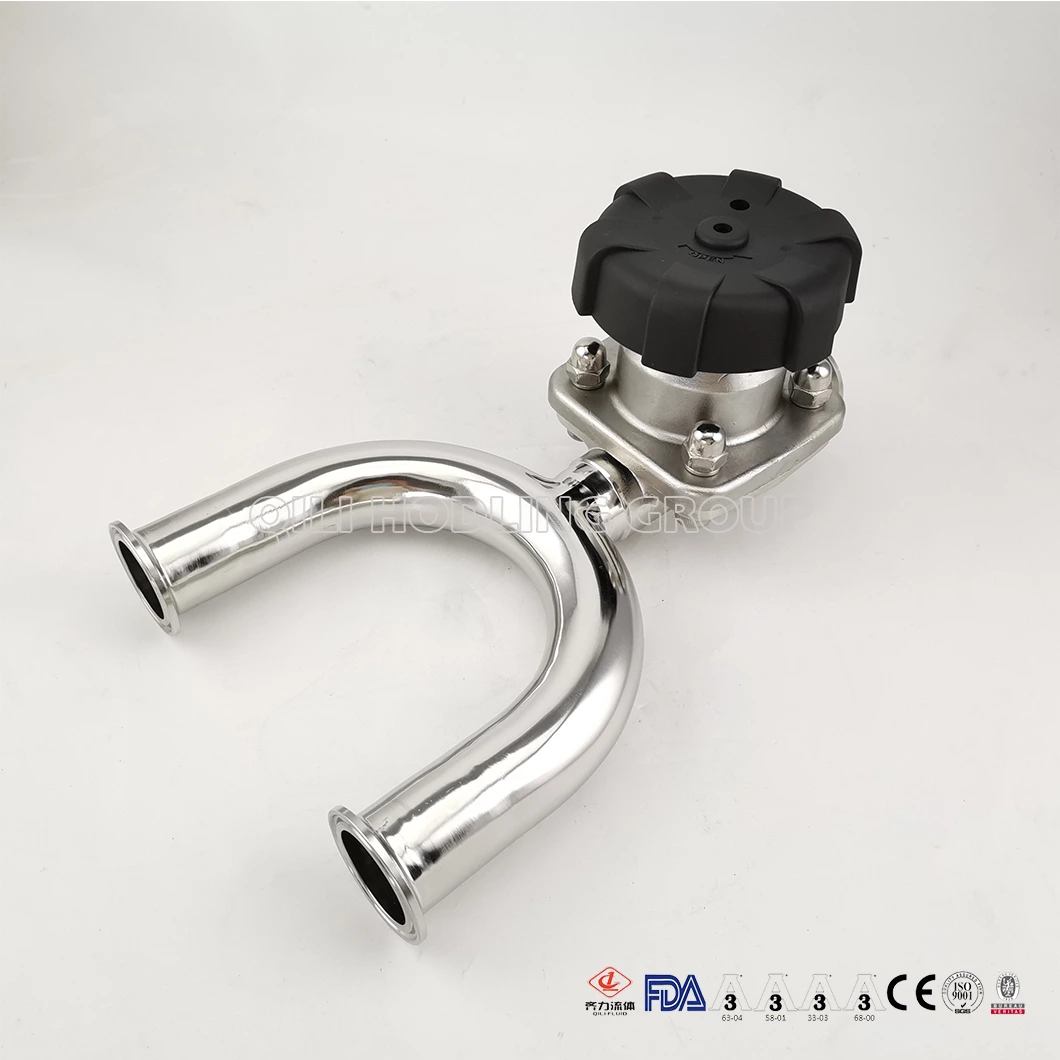

Hygienic Stainless Steel 316L EPDM with PTFE U Type Diaphragm Valve with Plastic Handle
Diaphragm valves, manually or pneumatically operated, and specfically designed for use on hygiene
and aseptic processes in the pharmaceutical industries
The valve is excellent for flow control as well as for open/close duties
The diaphragm valves are better in feature of flow in comparison with other valves. It is easier to clean up and better to process the
substance with particles. The phenomenon of air pocket is rare during application of flow control
- Material:
- SS304/316L
- Standard:
- DIN, SMS IDF ISO 3A BPE
- Working Temperature:
- -10 to 150℃
- Application:
- food, beverage, wine, cosmetic,etc.
- Size:
- 12.7-63.5mm
- Type:
- diaphragm valves
- Connection Type:
- weld,clamp
- Sales Models:
- wholesale or retail
- Pressure Value:
- 0-10bar
- Seal Material:
- EPDM,PTFE
- Transport Package:
- cartons
Details
- Size:12.7-63.5MM
- Connection way:Tri clamp,weld,male, flange
- Work Pressure:Mid-Pressure (2.5mpa< Pn <6.4mpa)
- Working Temperature:-20 ~ 135° C
- Material of Seal Surface:Soft Sealed
- Medium:Beer, Dairy, Beverage, Pharmacy, Cosmetics
- All diaphragm products are made by ourself and certified to ISO9001:2008 standards.

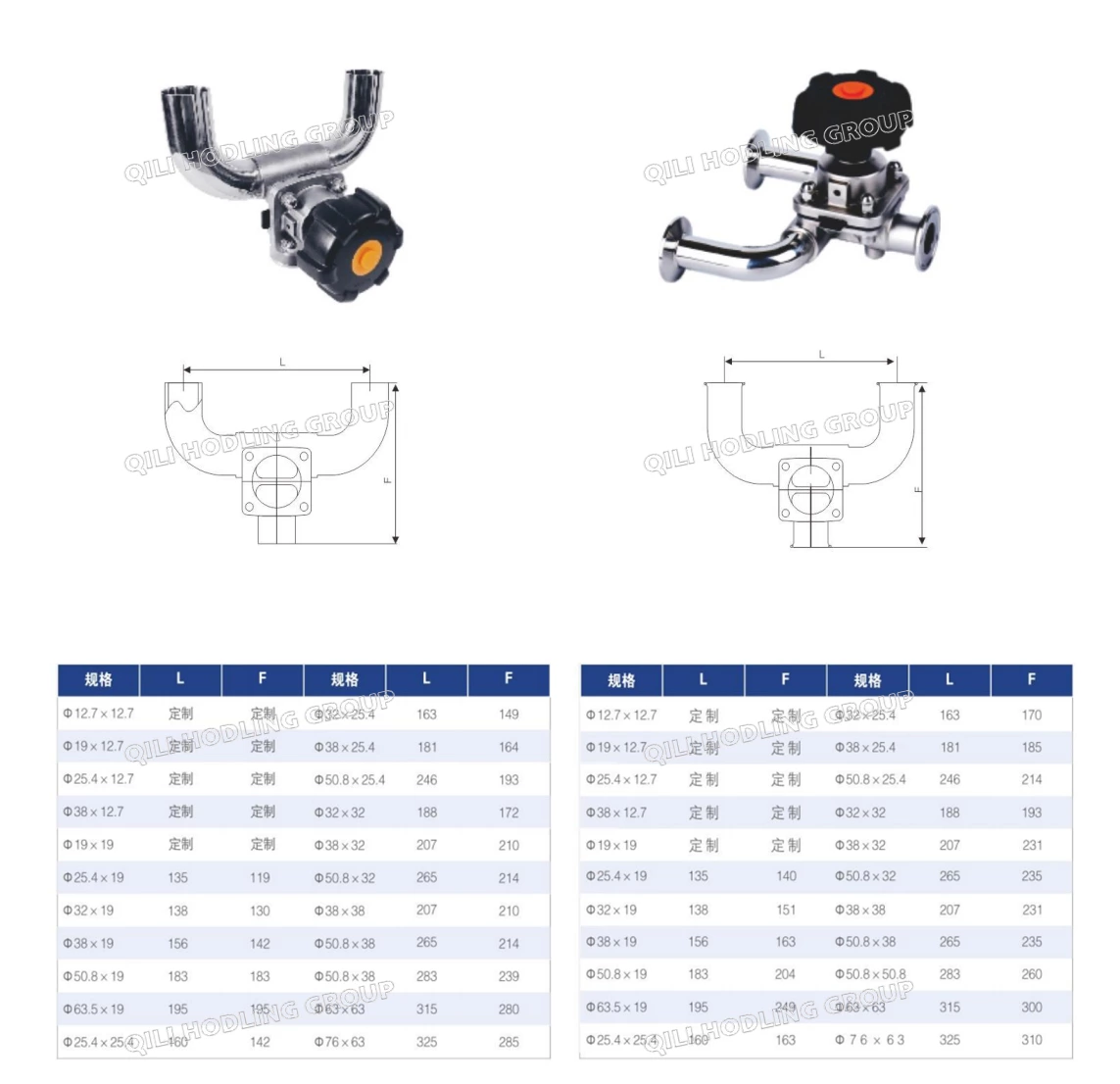

Drawings
