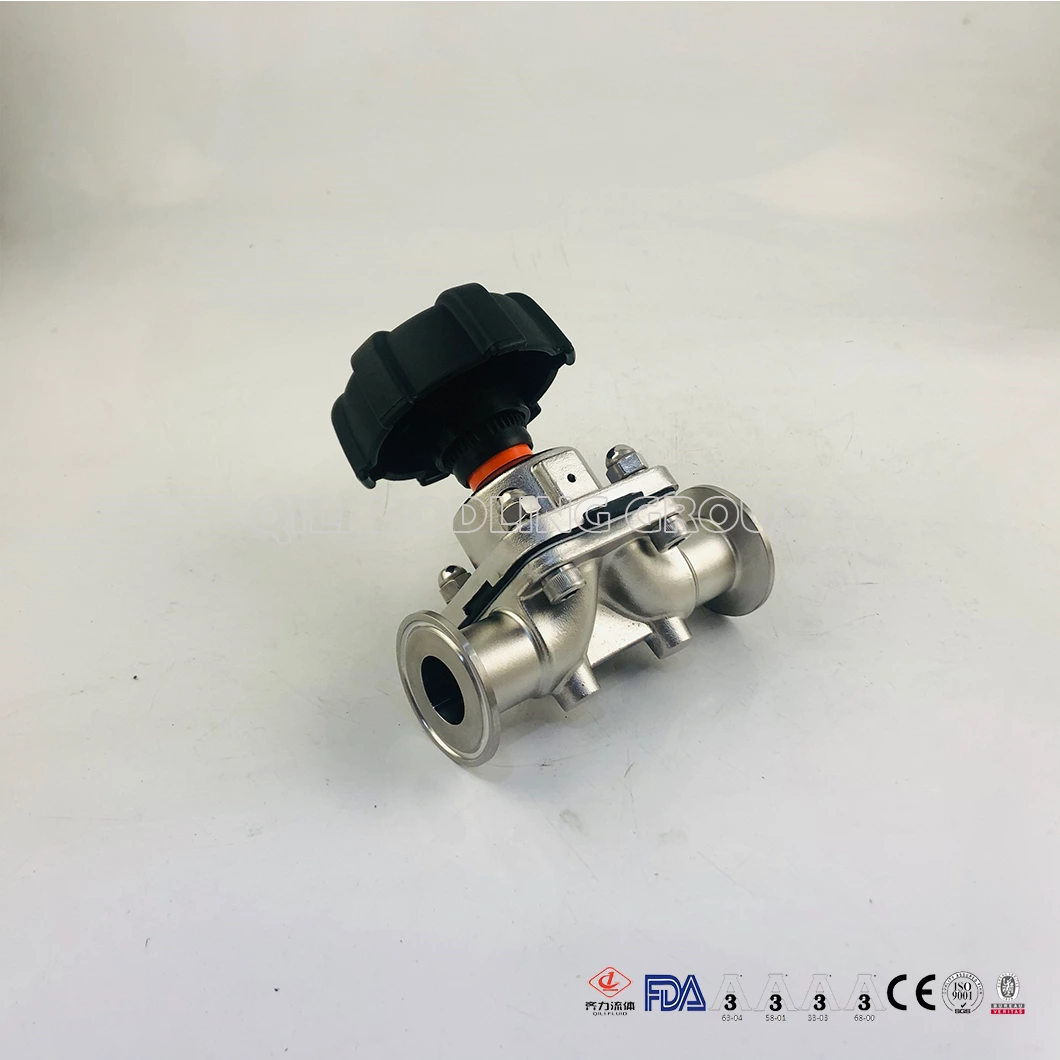

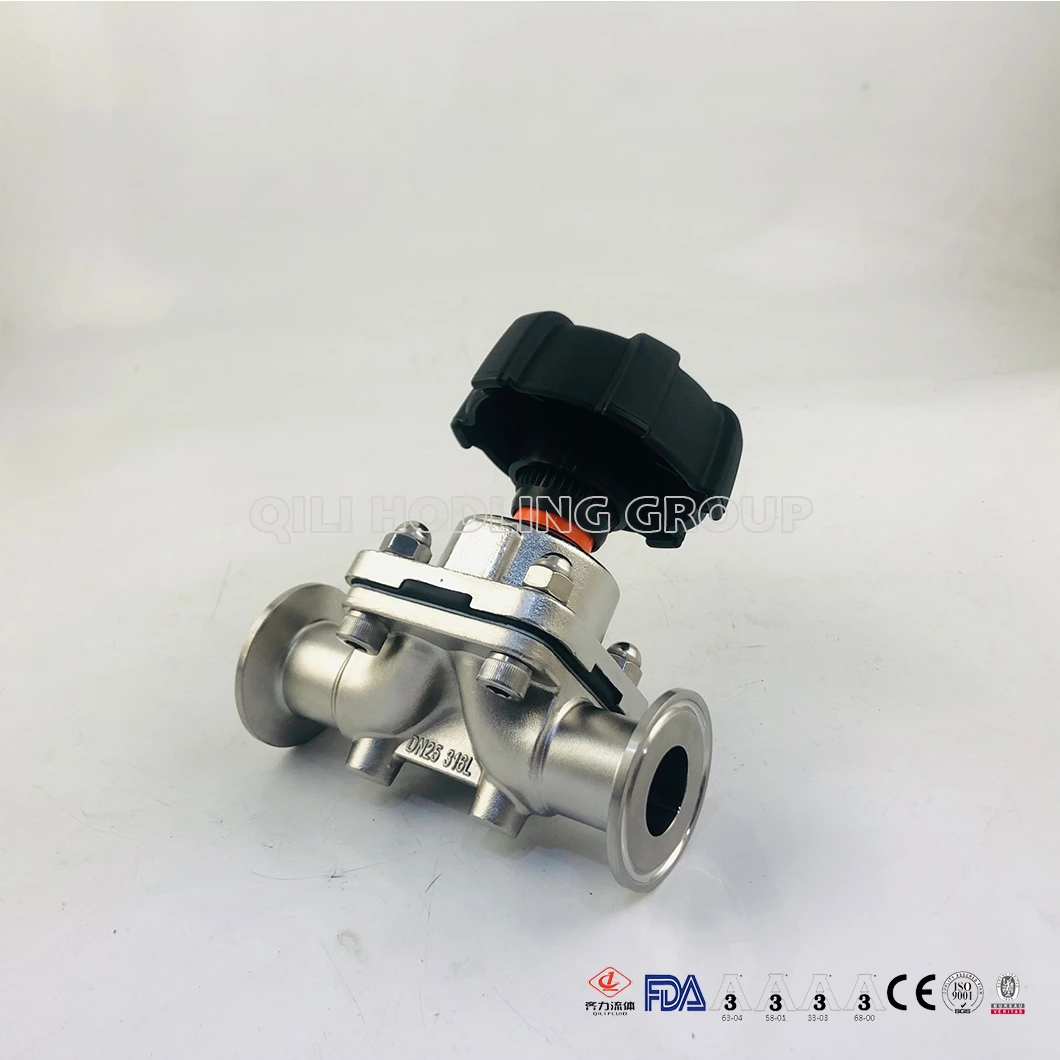

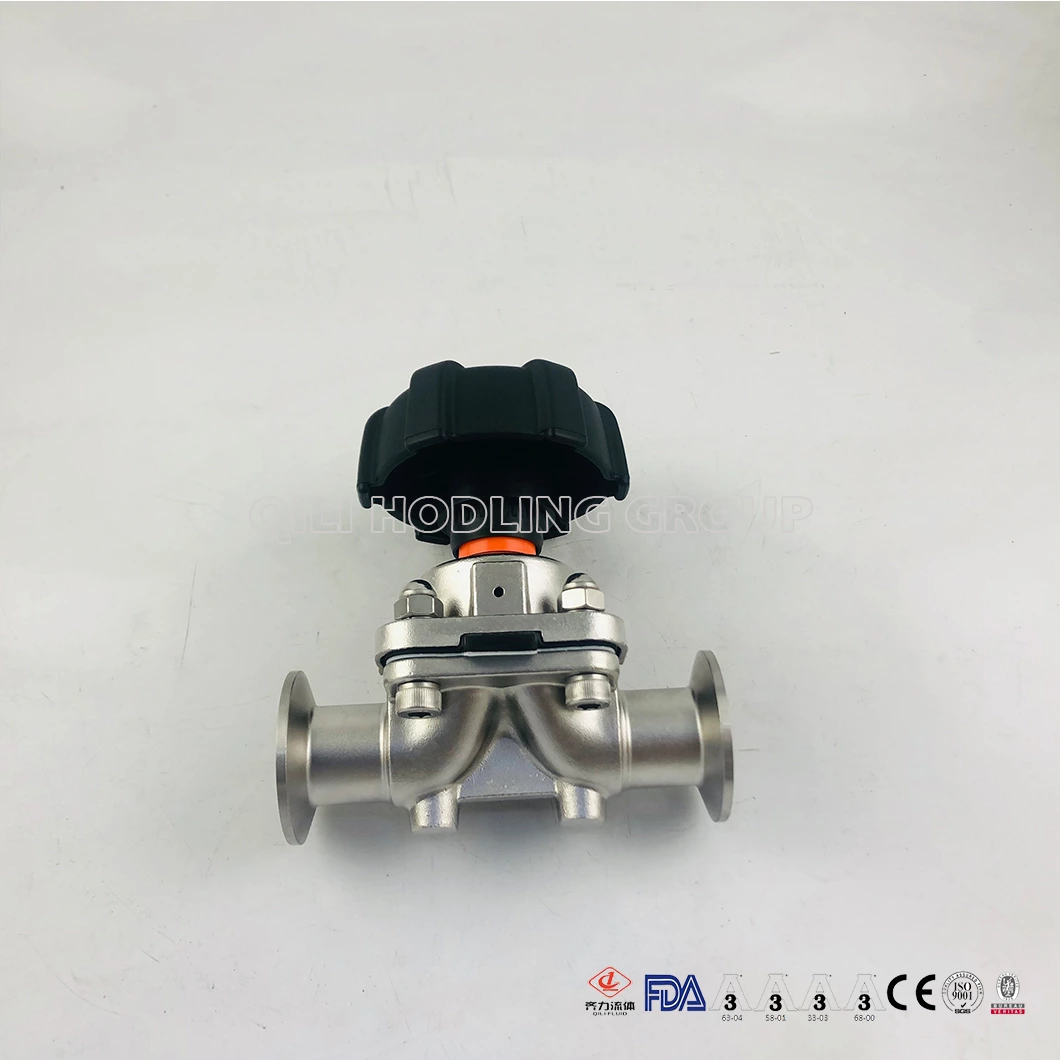

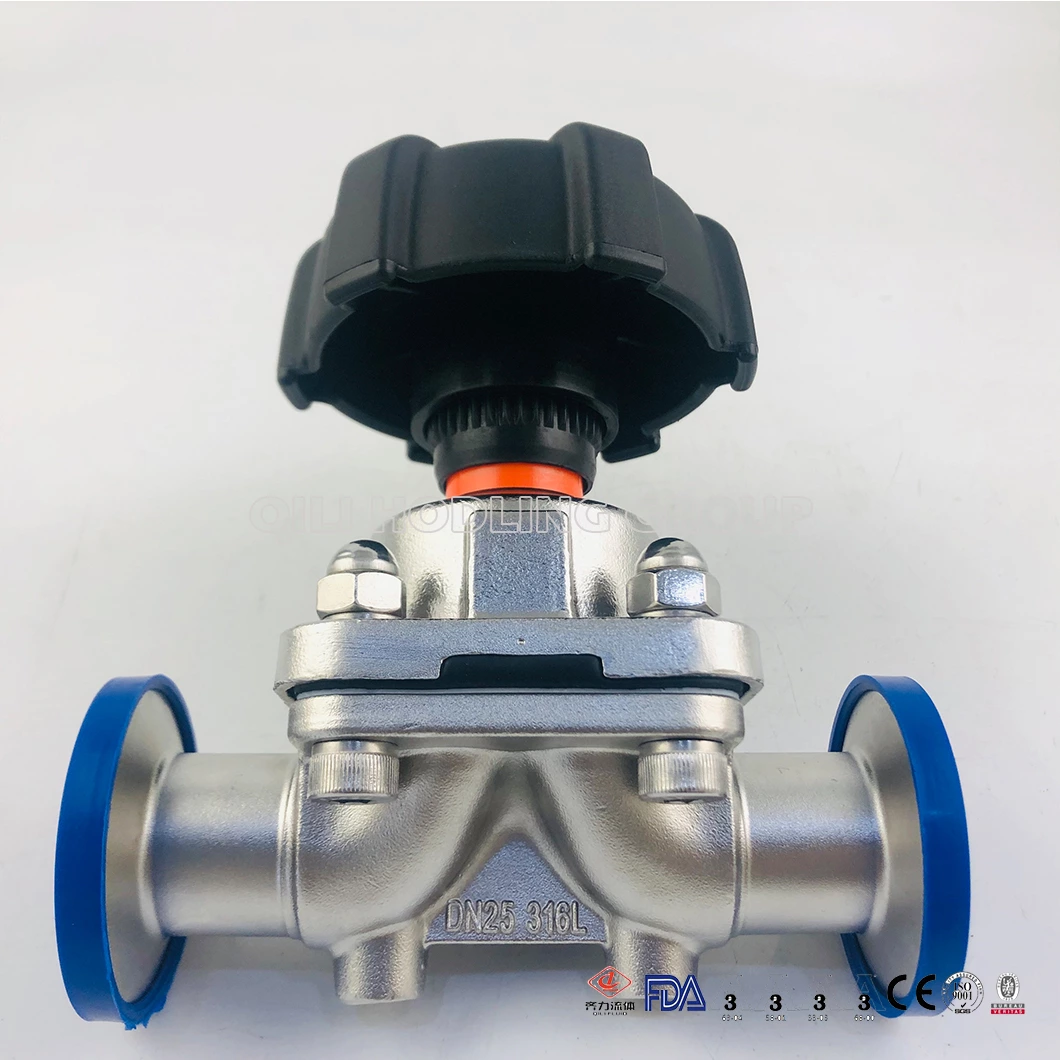

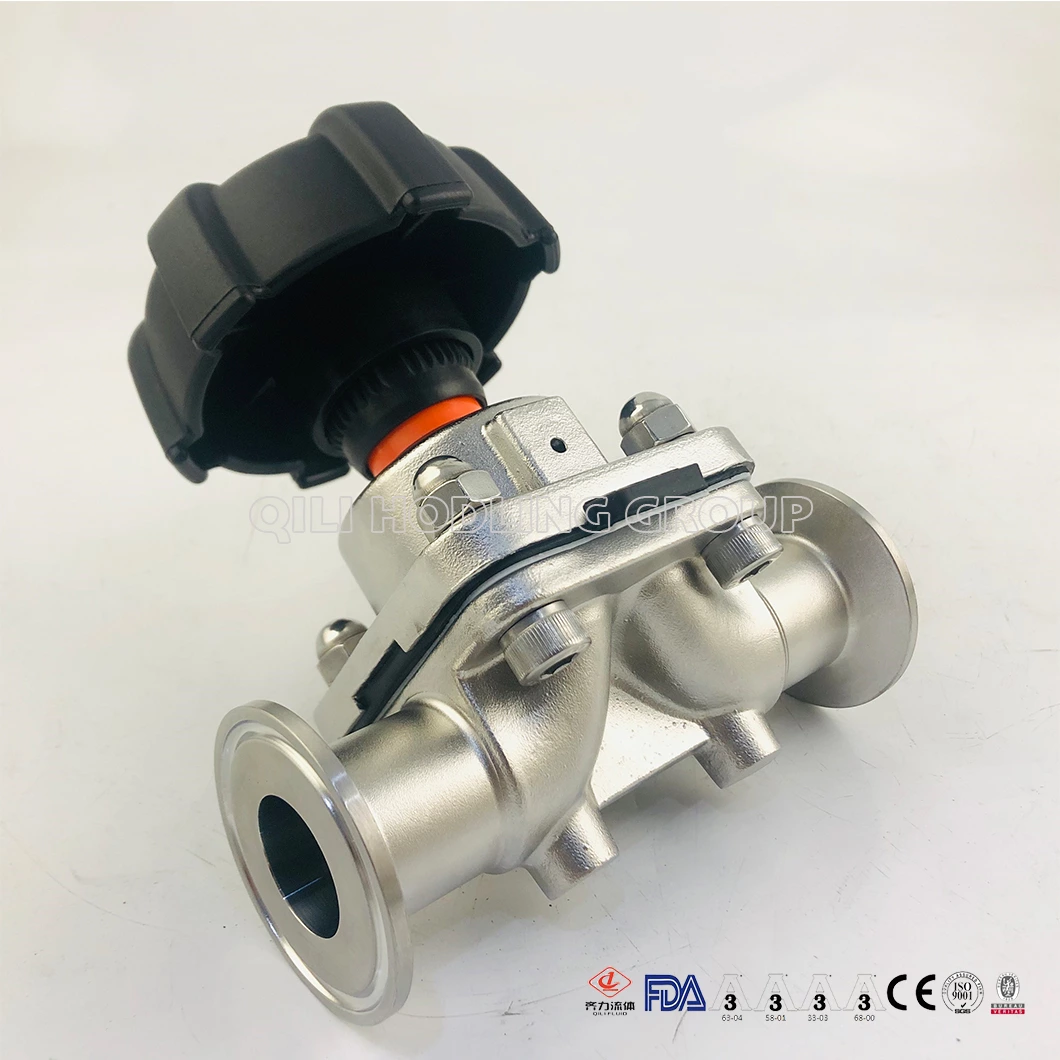

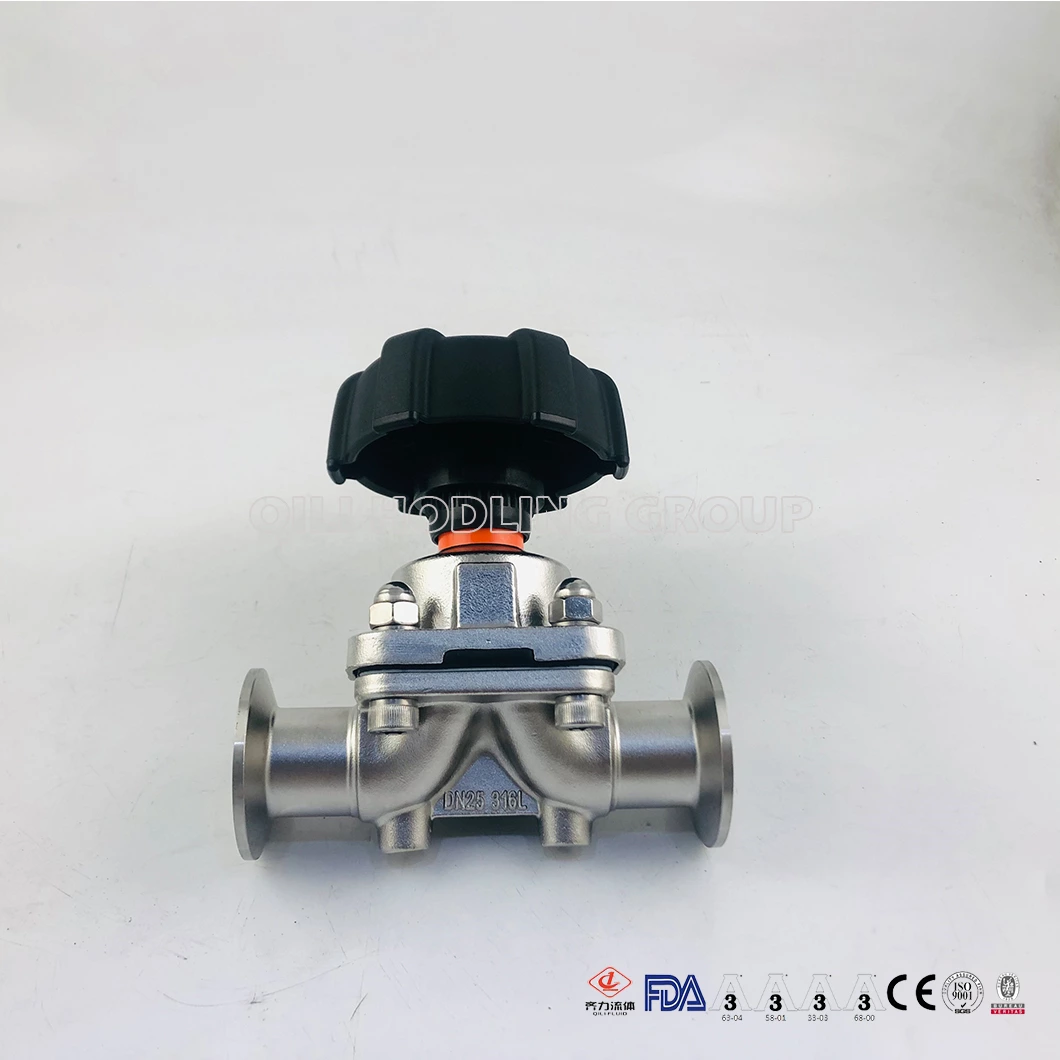

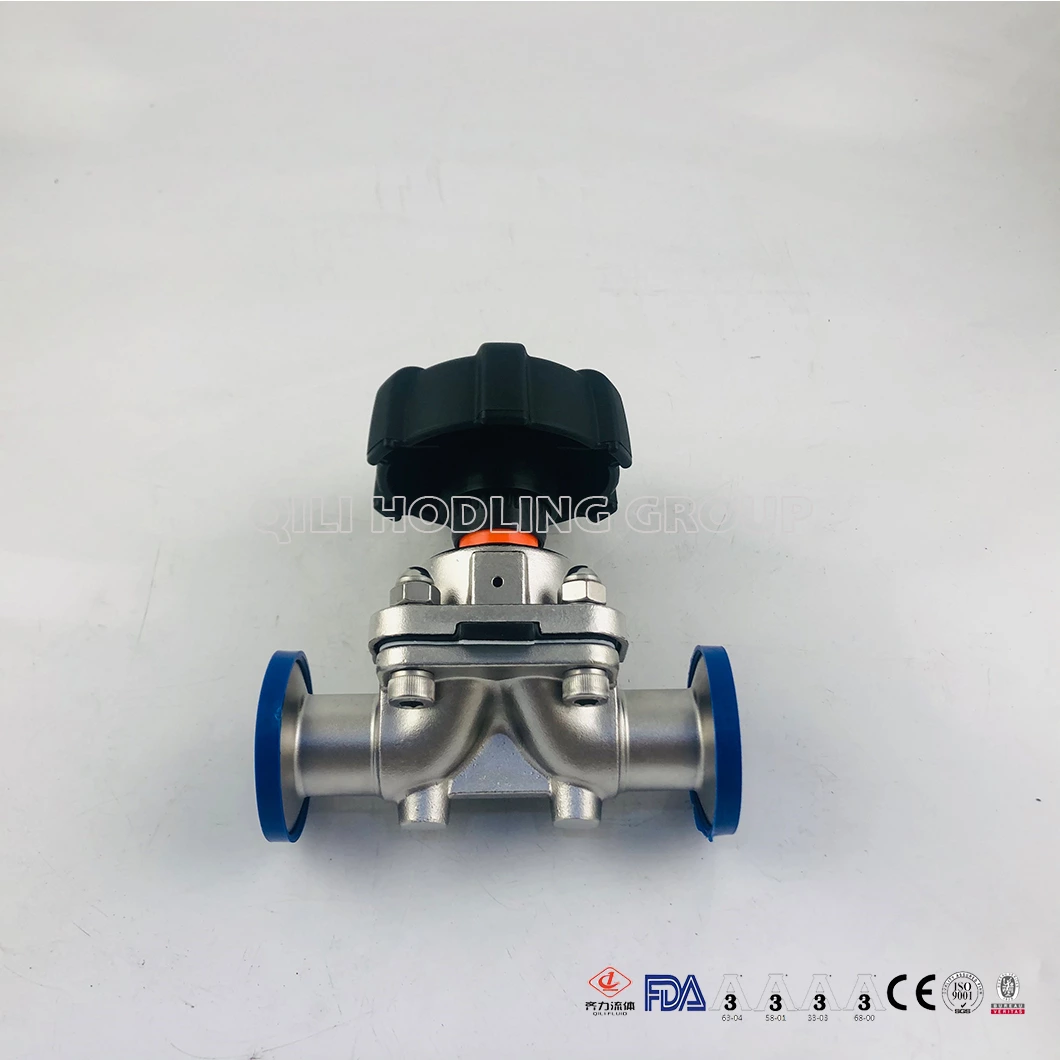

High Quality Hygienic Pharmaceutical Diaphragm Valves
Diaphragm valves, manually or pneumatically operated, and specfically designed for use on hygiene and aseptic processes in the pharmaceutical industries
The valve is excellent for flow control as well as for open/close duties
The diaphragm valves are better in feature of flow in comparison with other valves. It is easier to clean up and better to process the substance with particles. The phenomenon of air pocket is rare during application of flow control
- Material:
- SS304/316L
- Standard:
- DIN, SMS IDF ISO 3A BPE
- Working Temperature:
- -10 to 150℃
- Application:
- food, beverage, wine, cosmetic,etc.
- Size:
- DN8-DN125
- Type:
- diaphragm valves
- Connection Type:
- weld,clamp
- Pressure Value:
- 10bar to 12bar
- Seal Material:
- EPDM,PTFE
- Transport Package:
- cartons
Details
- Size:DN8-DN125
- Connection way:Tri clamp,weld,male, flange
- Work Pressure:Mid-Pressure (2.5mpa< Pn <6.4mpa)
- Working Temperature:-20 ~ 135° C
- Material of Seal Surface:Soft Sealed
- Medium:Beer, Dairy, Beverage, Pharmacy, Cosmetics
- All diaphragm products are made by ourself and certified to ISO9001:2008 standards.

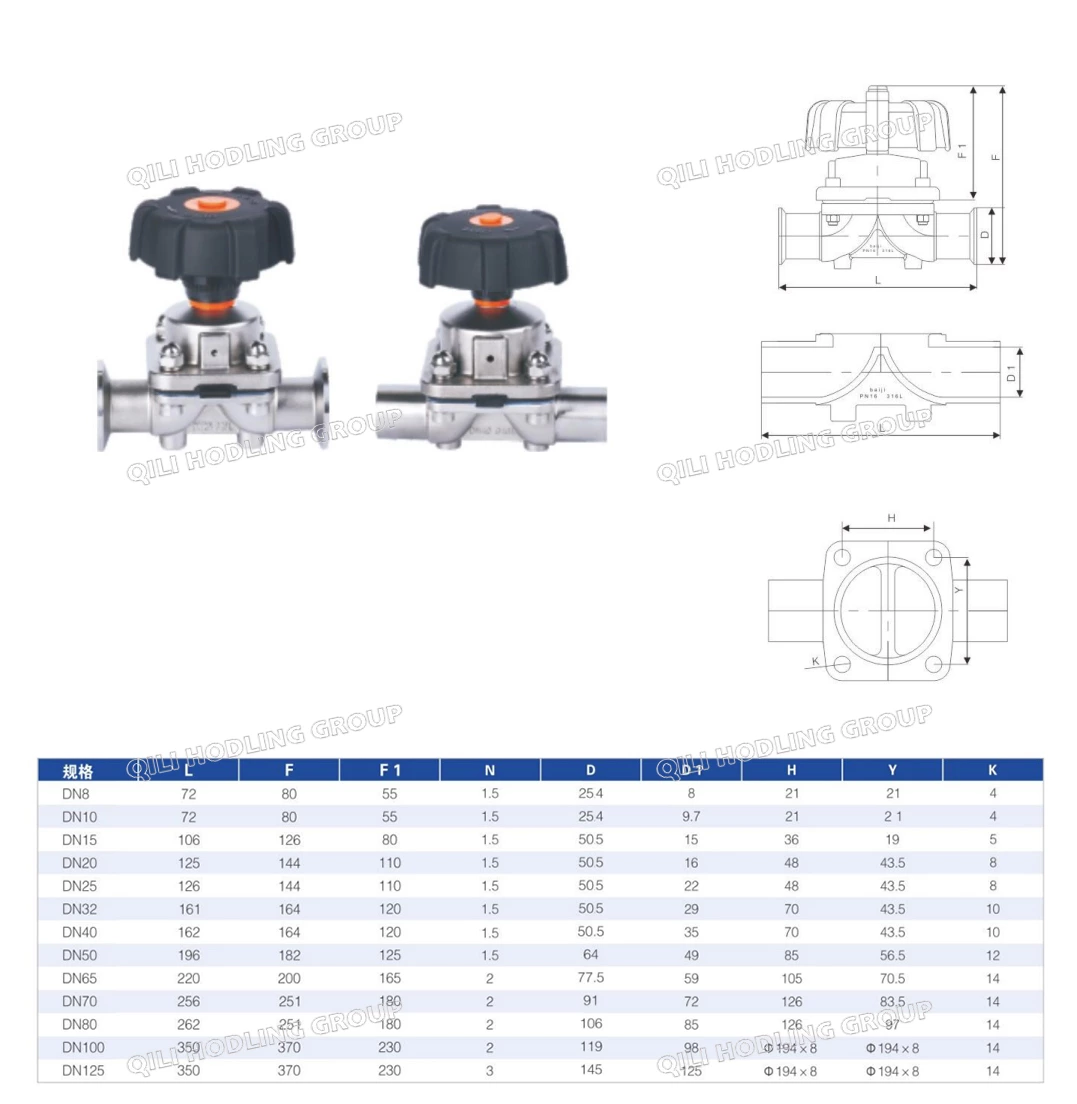

Drawings
