Stainless Steel Ball Type Hygienic Check Valve With Clamp Ends

Sanitary Stainless Steel Ball Type Check Valve primarily found in the Beverage, Chemical, Dairy or Tank Industries where an application is needed for a Sanitary Stainless Ball Type Check Valve for product flow applications that require the prevention of reverse flow.
Material:
SS304,SS316L
Standard:
DIN, 3A, SMS, ISO/IDF, BS/RJT
Working Temperature:
-10 to 140℃
Connection ways:
Welded, clamped, threaded
Size:
DN15-DN100, 1/2"-4"
Sales Models:
Retail and wholesale
Surface Treatment:
inner( Ra ≥0.4-0.8μm),outer(0.8-1.6μm)
Pressure Value:
0-10bar
MOQ:
1pc
Seal Material:
EPDM, FPM,silicone,VMQ
Transport Package:
cartons
Stainless Steel Ball Type Hygienic Check Valve With Clamp Ends
Stainless Steel Ball Type Hygienic Check Valve With Clamp Ends Stainless Steel Ball Type Hygienic Check Valve With Clamp Ends Stainless Steel Ball Type Hygienic Check Valve With Clamp Ends

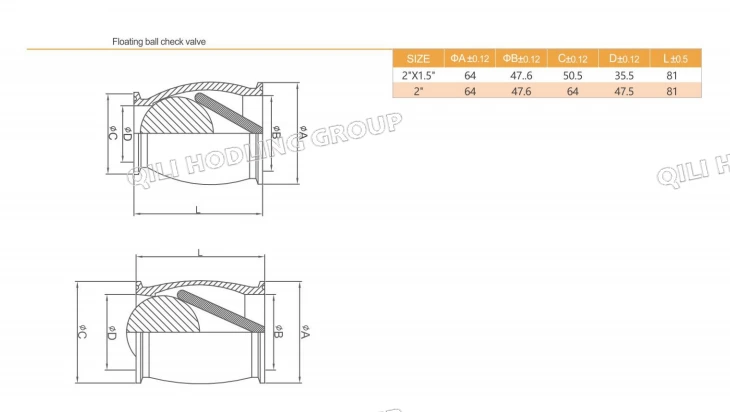

Drawings


Details
Size:38mm*38mm   51mm*51mm  and 38mm*51mm
Connection:clamped,threaded,welded or Reducer.

When you need a Sanitary Stainless Steel Ball type Check Valve to use with an Air Blow Check Valve to evacuate lines .By the way, we also manufacture sanitary stainless steel fittings and valves large quantity in  stock-- this is for Your information when those large jobs come up!

Application

Clamp connection for easy on/off and simple assembly/disassembly for cleaning, inspection or replacing any worn parts. Our valve comes standard  but we also stock a Viton® ball or Teflon® Ball and can ship various sizes per your request. Upon shipment, each valve is capped and bagged with the alloy, size and heat number for full traceability.
