Stainless Steel 304 Or 316 Tri-Clamp customized Check Valve for Food Pipe Prevent Backward Flow of Liquid
Spring Check Valves are designed to assist closure pressure to create a positive shutoff. They are commonly used with liquid products
- Material:
- SS304,SS316L
- Standard:
- DIN, 3A, SMS, ISO/IDF, BS/RJT
- Working Temperature:
- -10 to 140℃
- Connection ways:
- Welded, clamped, threaded
- Size:
- DN15-DN100, 1/2"-4"
- Sales Models:
- Retail and wholesale
- Surface Treatment:
- inner( Ra ≥0.4-0.8μm），outer（0.8-1.6μm）
- Pressure Value:
- 0-10bar
- MOQ:
- 1pc
- Seal Material:
- EPDM, FPM,silicone,VMQ,
- Transport Package:
- cartons
Details
Name: Sanitary tri clover check valve
- Connection: clamp end, weld end
- Materials: SS304 or SS316
- Polish:food grade standards, include all the surface contact the parts.

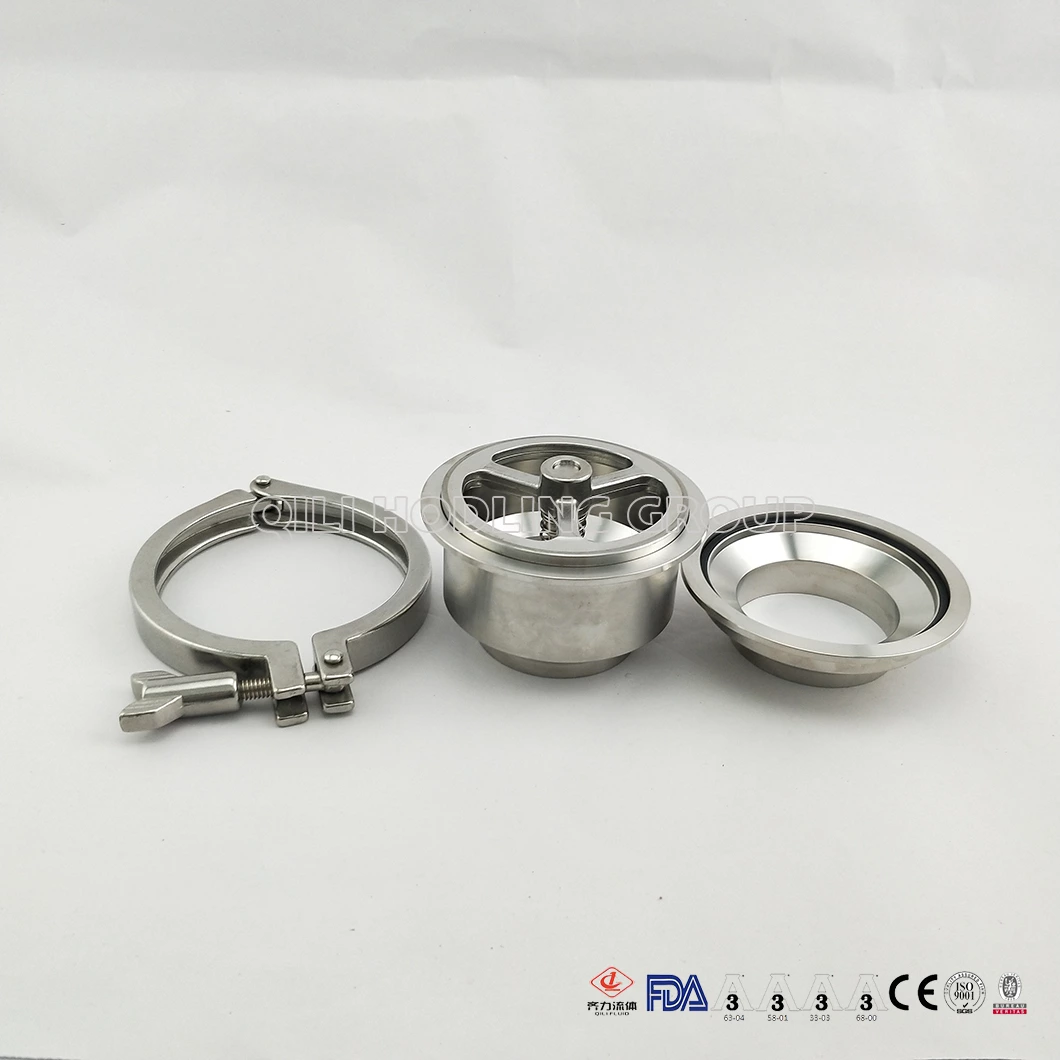

- Internal component:Spring, body, Seal ring of stem etc.
- Gaskets: silicone, viton and epdm. all the materials tested by FDA.
- EPDM Workpressure: -50o ~ 120o

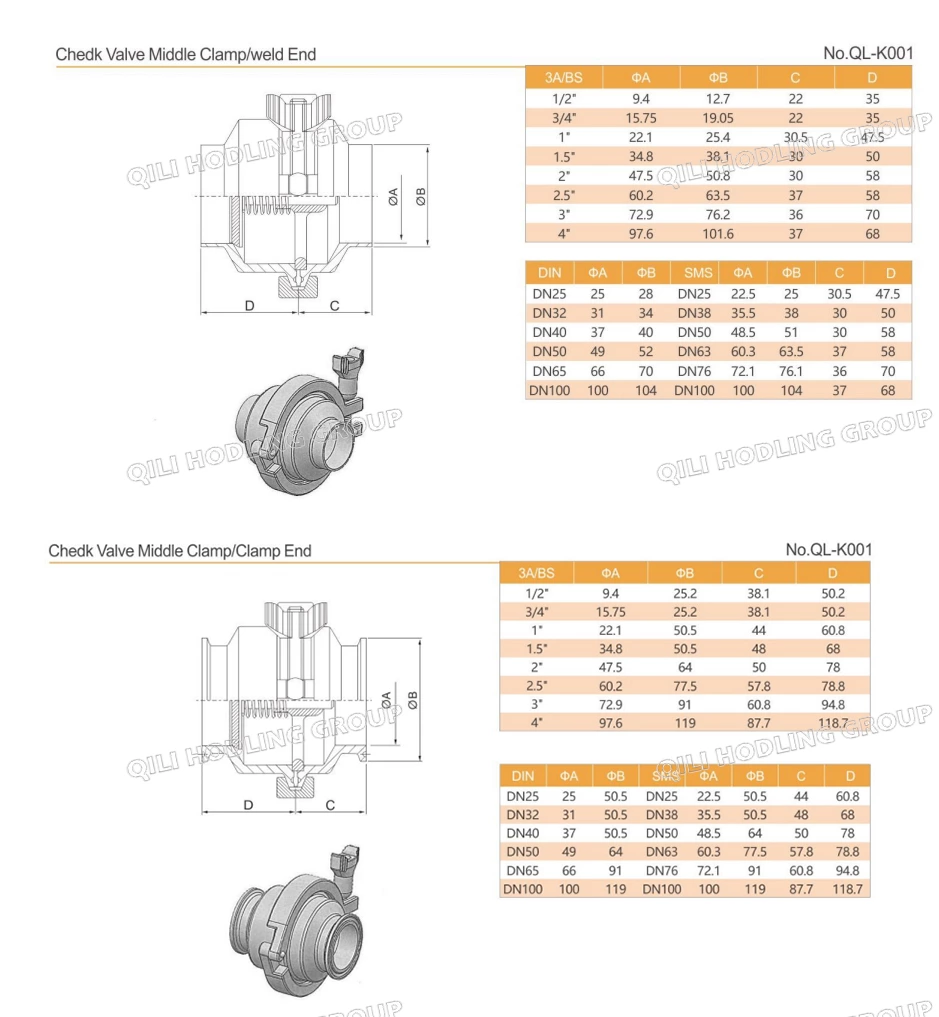

Drawings
