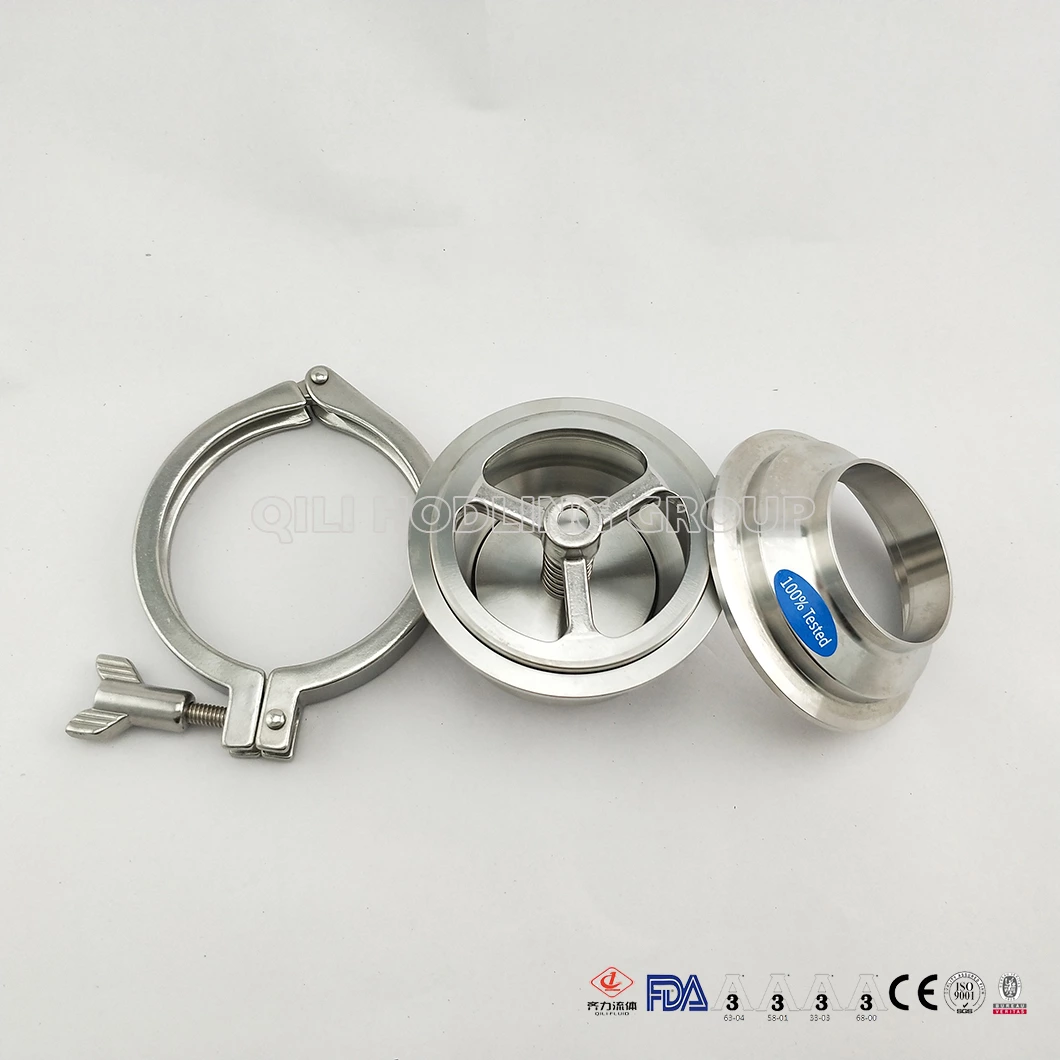

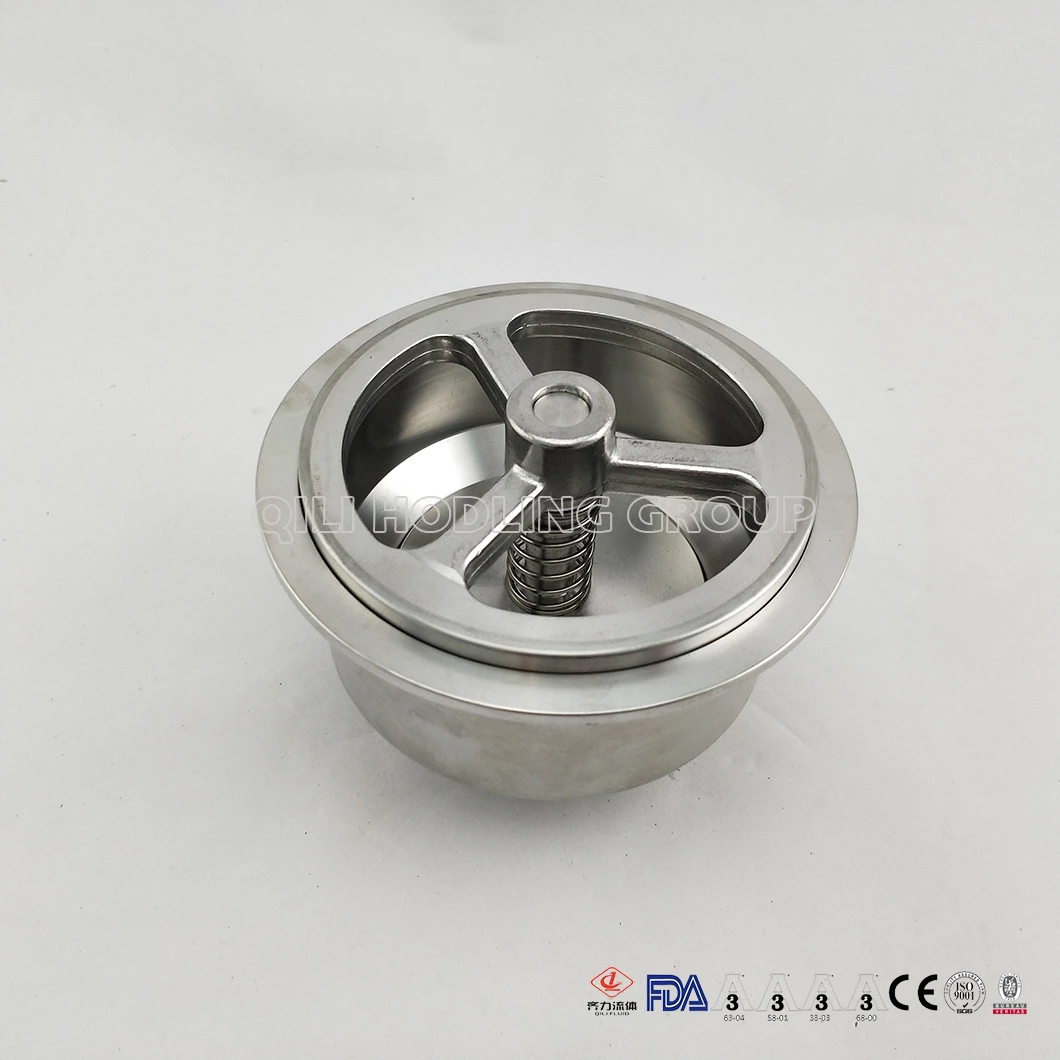

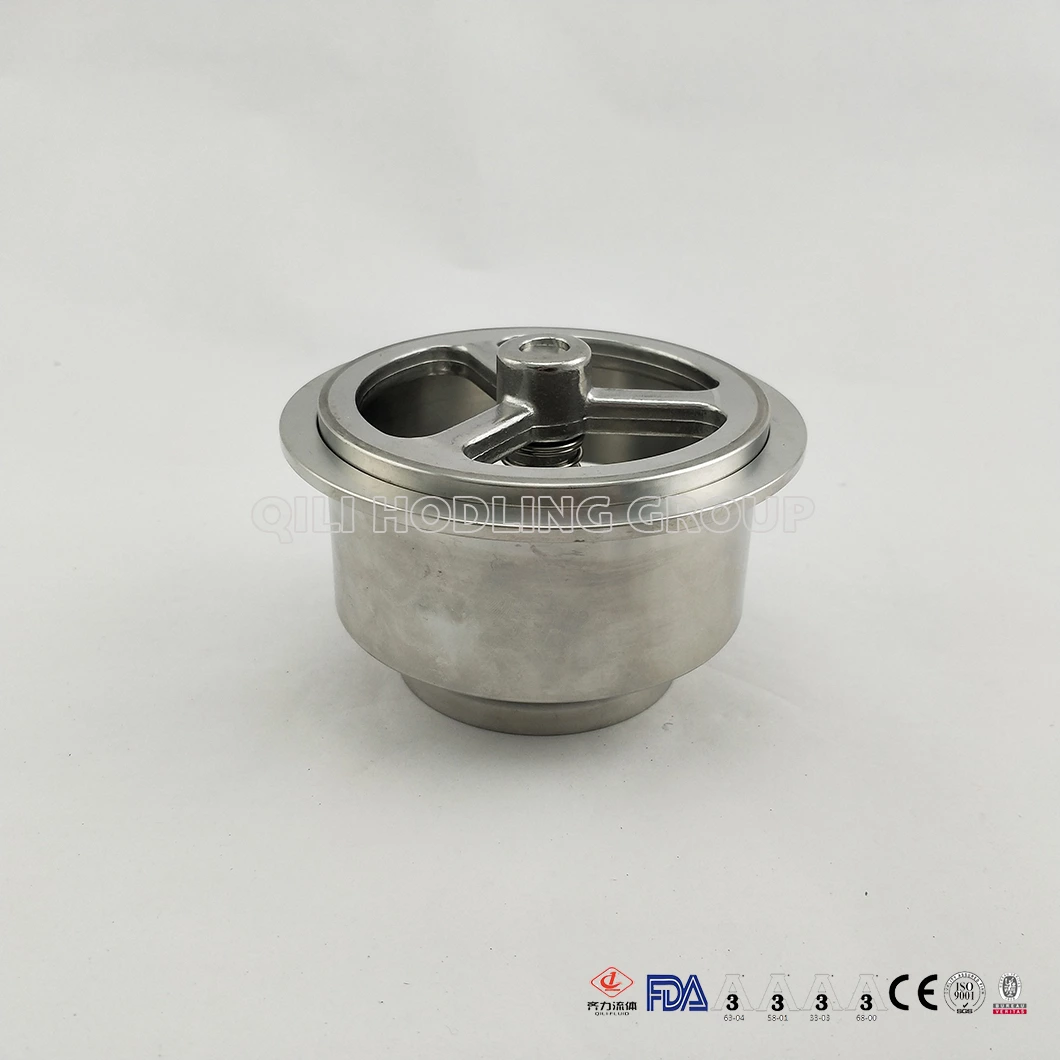

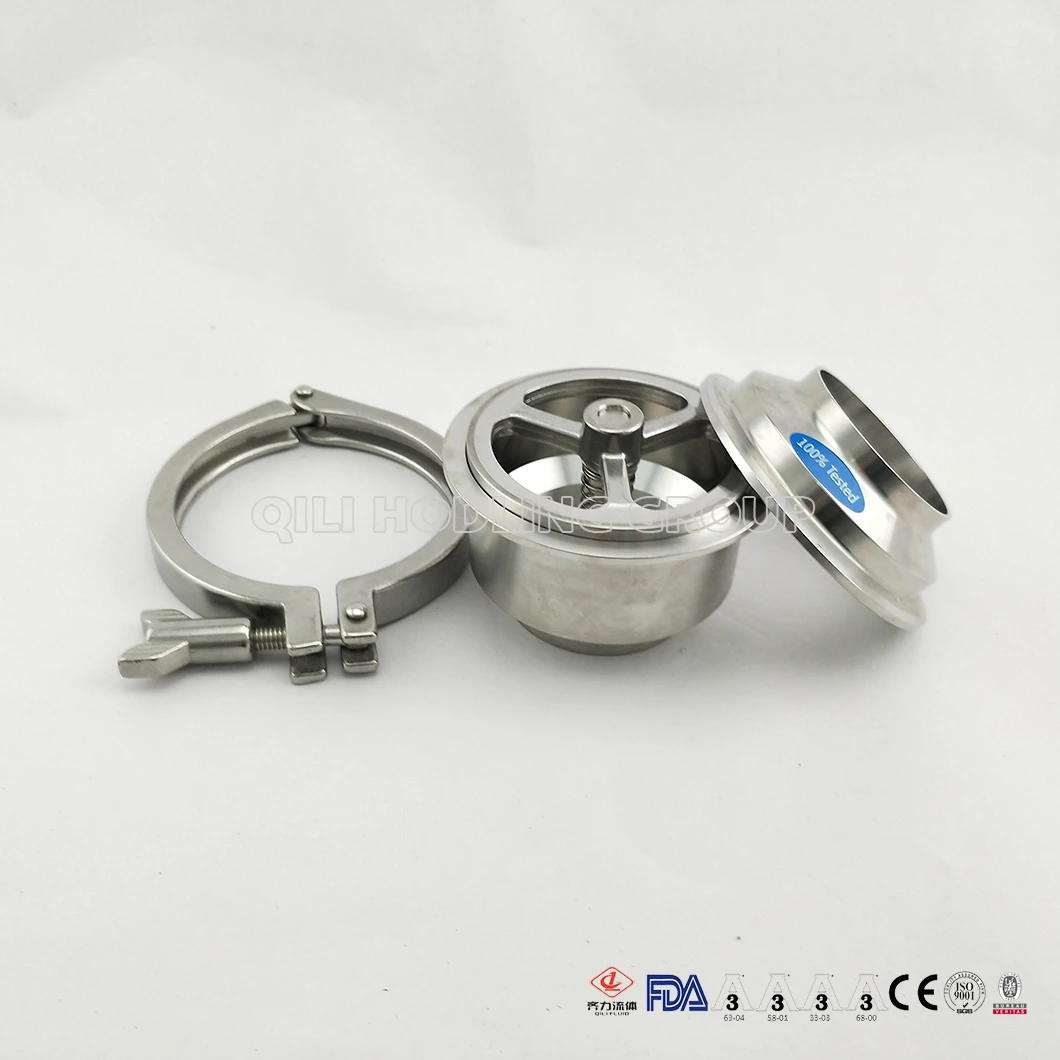

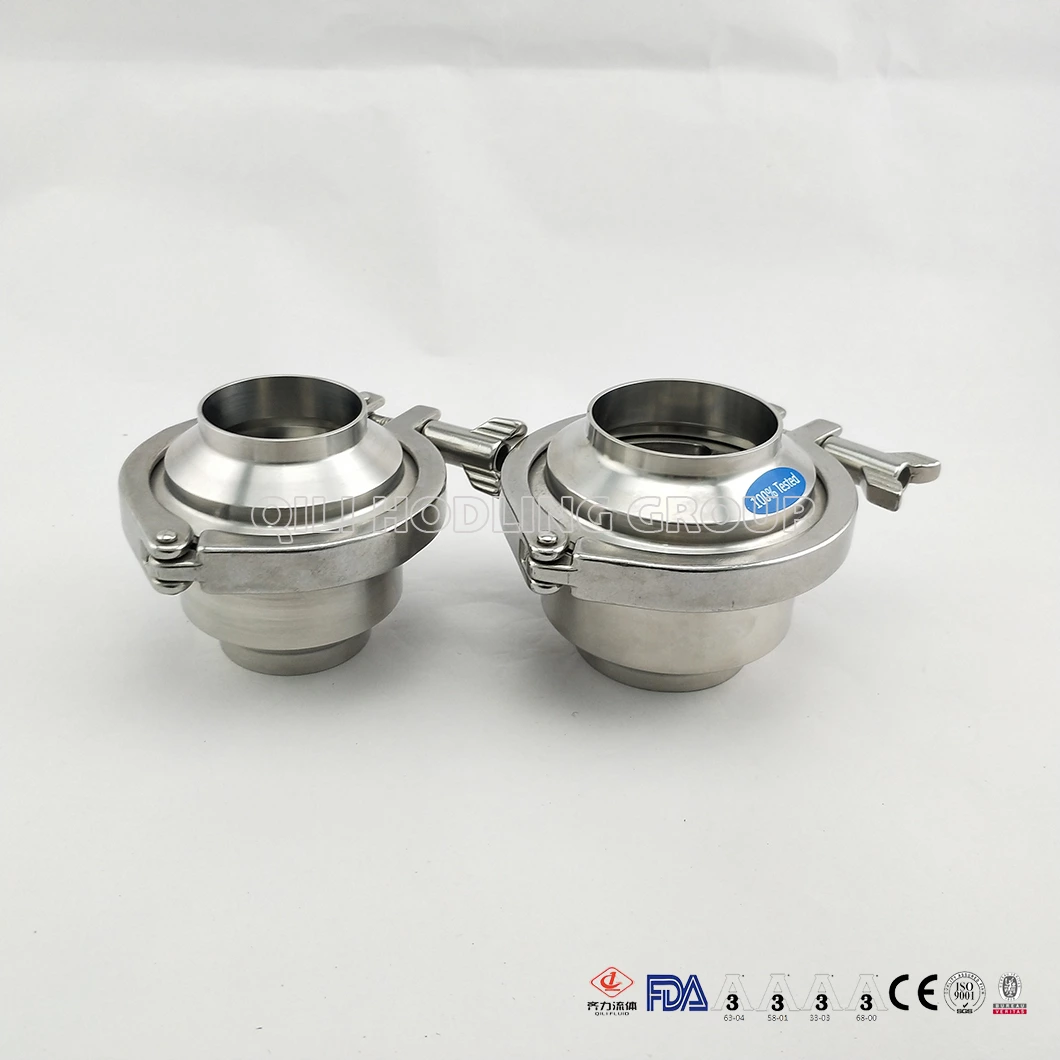

Sanitary Stainless Steel Welded Check Valve

Sanitary Stainless Steel Welded Check Valve, can be used on dairy products, beer, food, beverage, pharmacy, and bioengineering industry, etc. - Wenzhou Qili Fluid Equipment Co.,ltd.
Material:
SS304,SS316L
Standard:
DIN, 3A, SMS, ISO/IDF, BS/RJT
Working Temperature:
-10 to 140℃
Connection ways:
Welded, clamped, threaded
Size:
DN25-DN100, 1/2"-4"
Sales Models:
Retail and wholesale
Surface Treatment:
inner( Ra ≥0.4-0.8μm),outer(0.8-1.6μm)
Pressure Value:
10 Bar
MOQ:
1pcs
Seal Material:
EPDM, FPM,silicone,VMQ,
Transport Package:
cartons
Sanitary Stainless Steel Welded Check Valve
Sanitary Stainless Steel Welded Check Valve Sanitary Stainless Steel Welded Check Valve Sanitary Stainless Steel Welded Check Valve Sanitary Stainless Steel Welded Check Valve Sanitary Stainless Steel Welded Check Valve

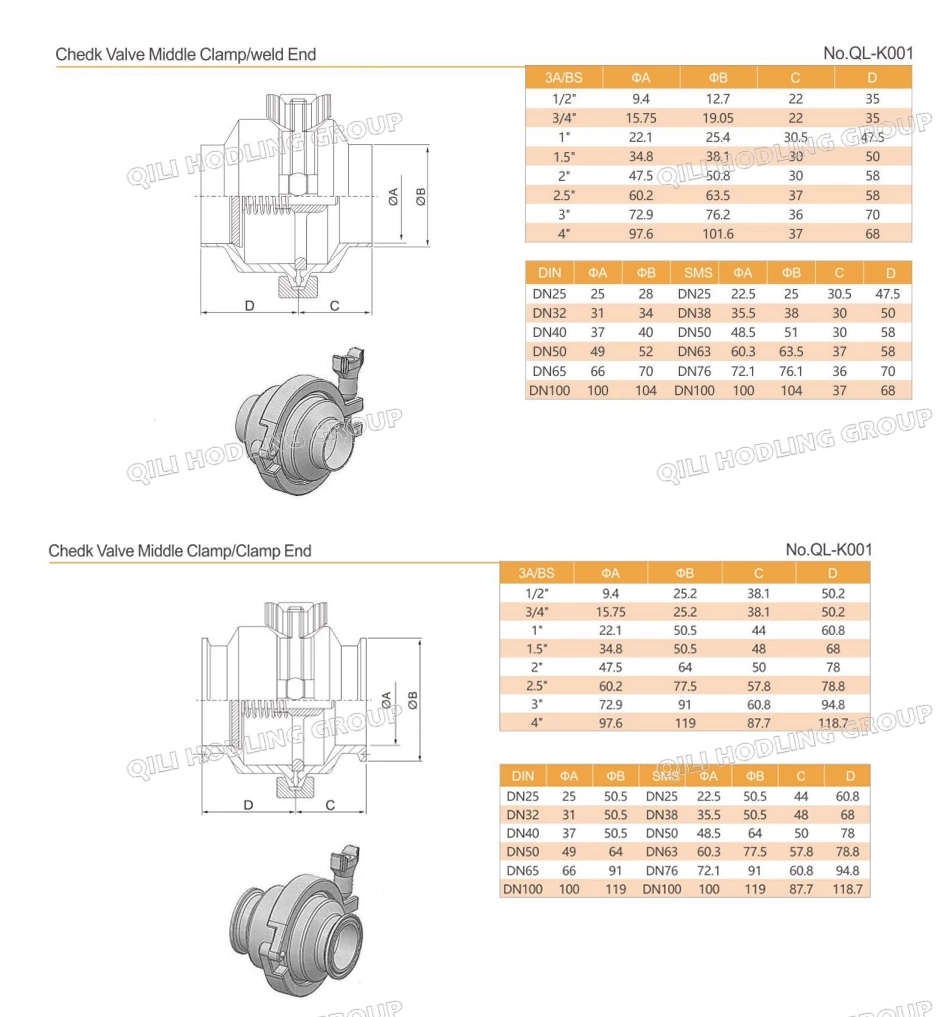

Drawings

Details

Description Sanitary Stainless Steel Welded Check Valve
Material Stainless Steel 304; Stainless Steel 316L
(Forged, 1.4301/1.4404)
Structure Swing
Function Ddcv Double Lobe
Temperature -20°C to 135°C
Pressure 10 Bar
Size 1/2” -- 4”, DN25-DN100.
Connection Butt-welded, clamped, male ends, union ends.
Standard 3A , SMS , ISO, DIN, IDF
Seal EPDM, VITON, or Silicon is required.
External surface Bright gloss,dull gloss.
Specifications Can see our products catalogues
Application Food process, Milk process, Beer brewage, Bio-pharmacy, etc.
Packaging Carton packaging. Wooden case packaging.





















FileName Summary Size Create Date Down
0.2 MB 2022/04/29
