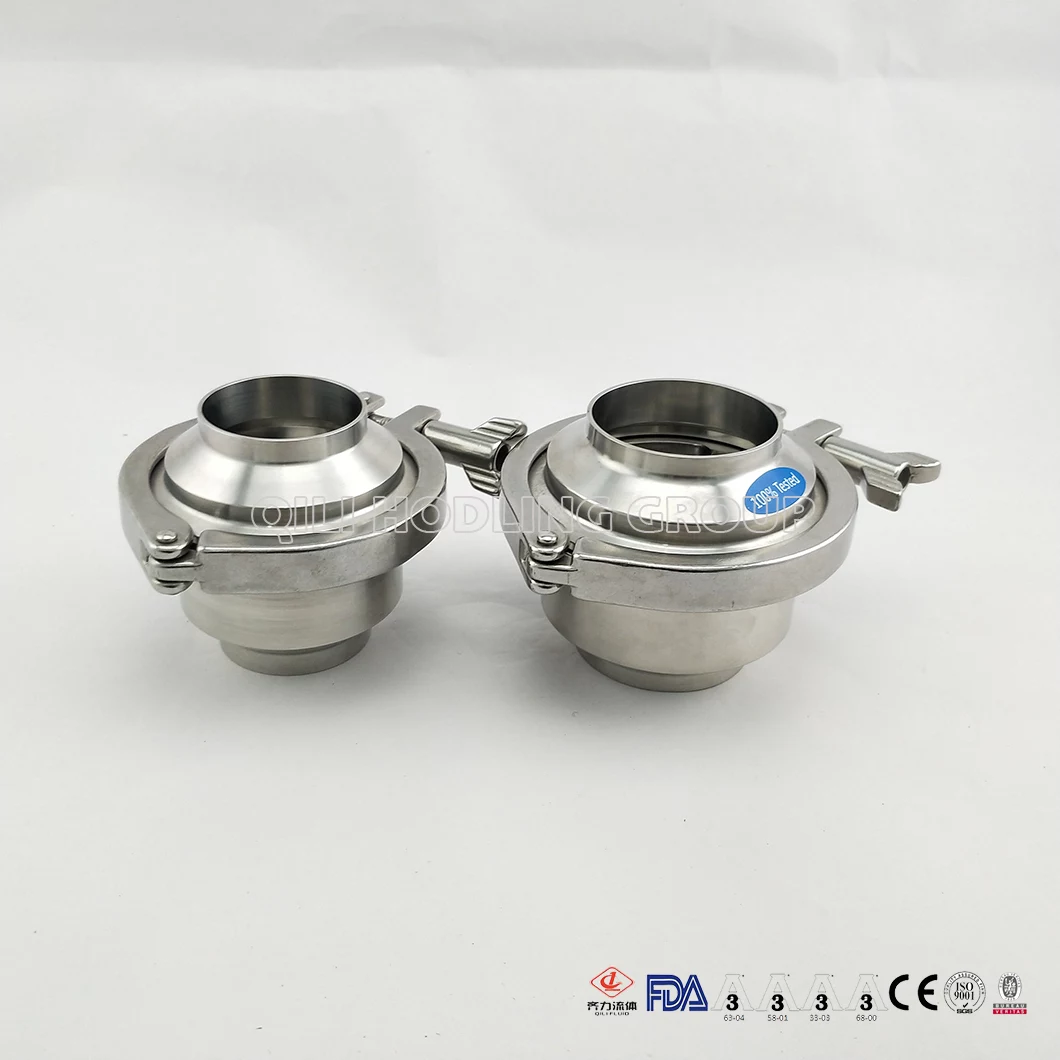

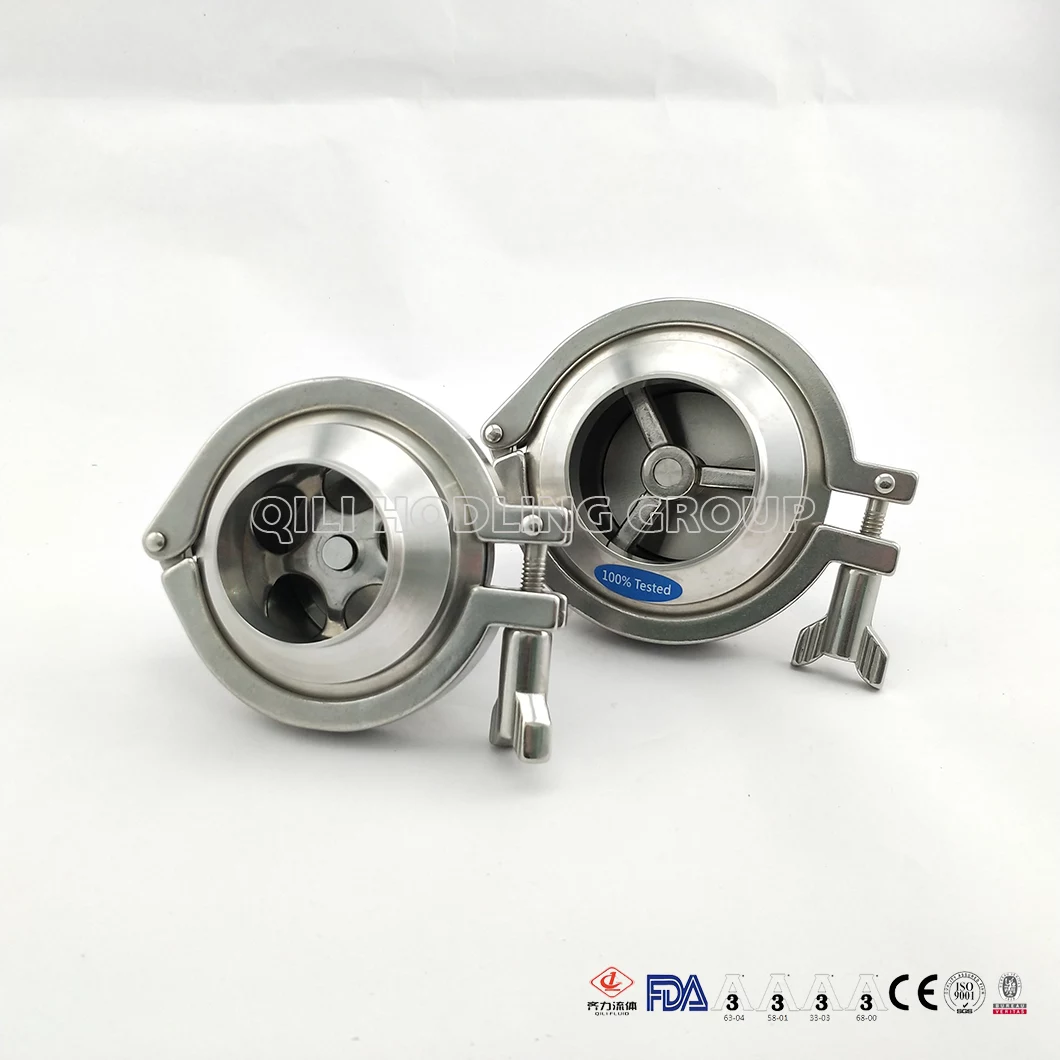

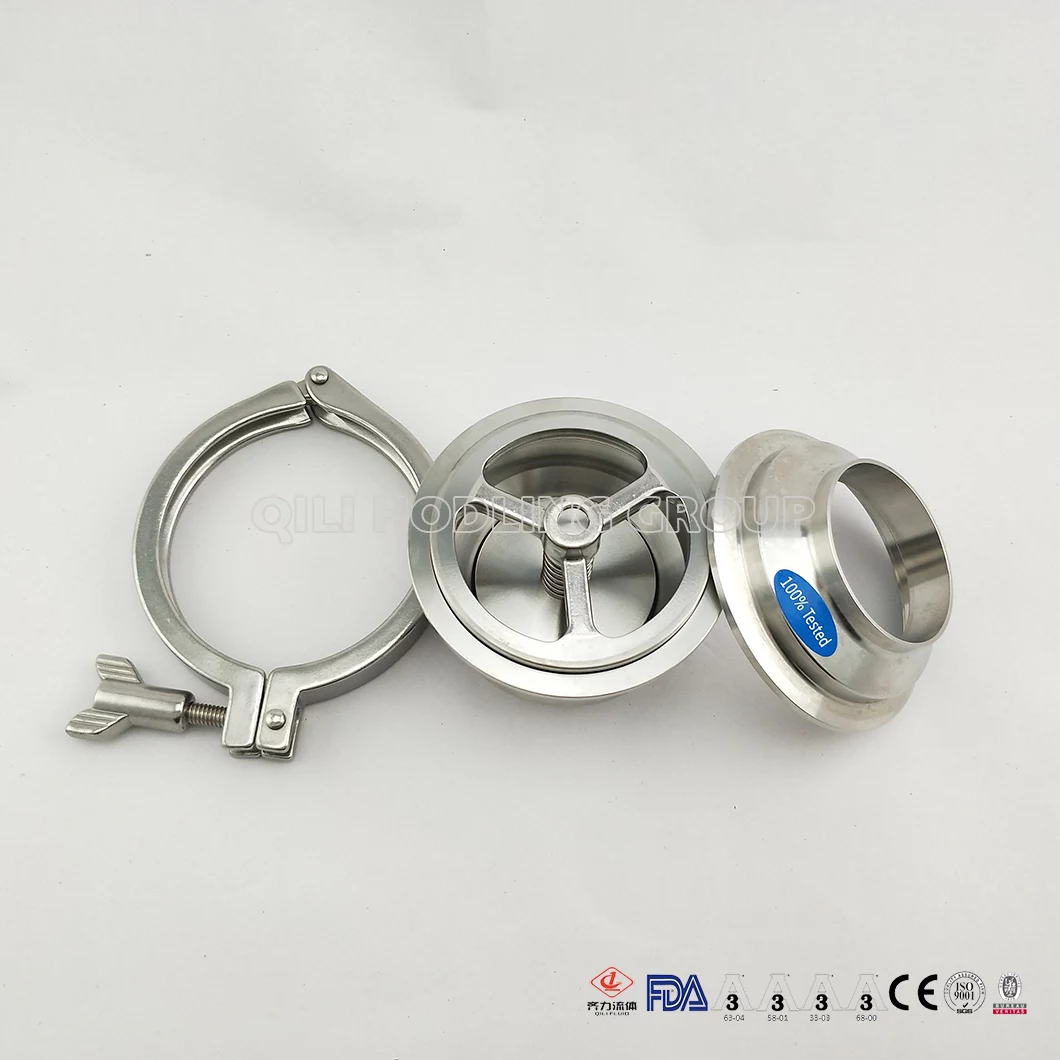

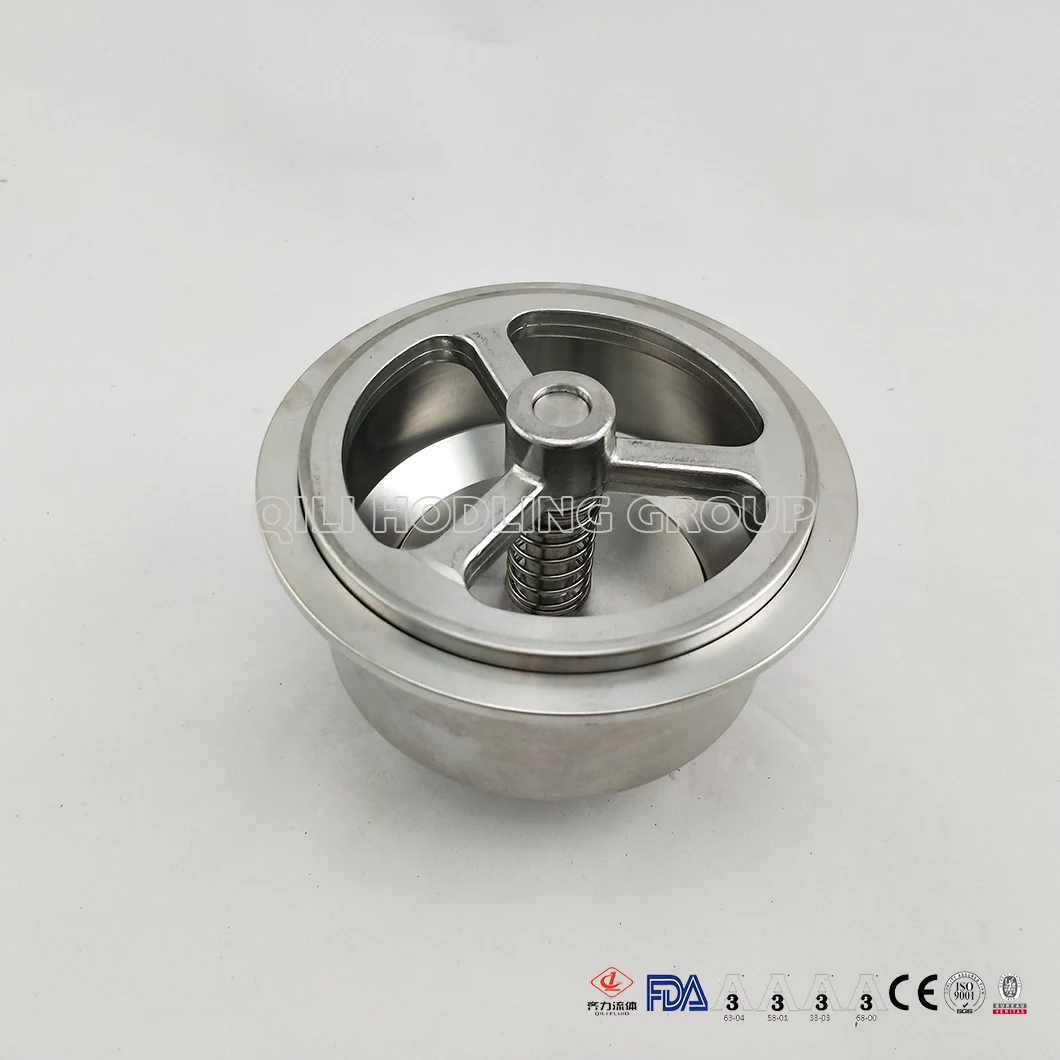

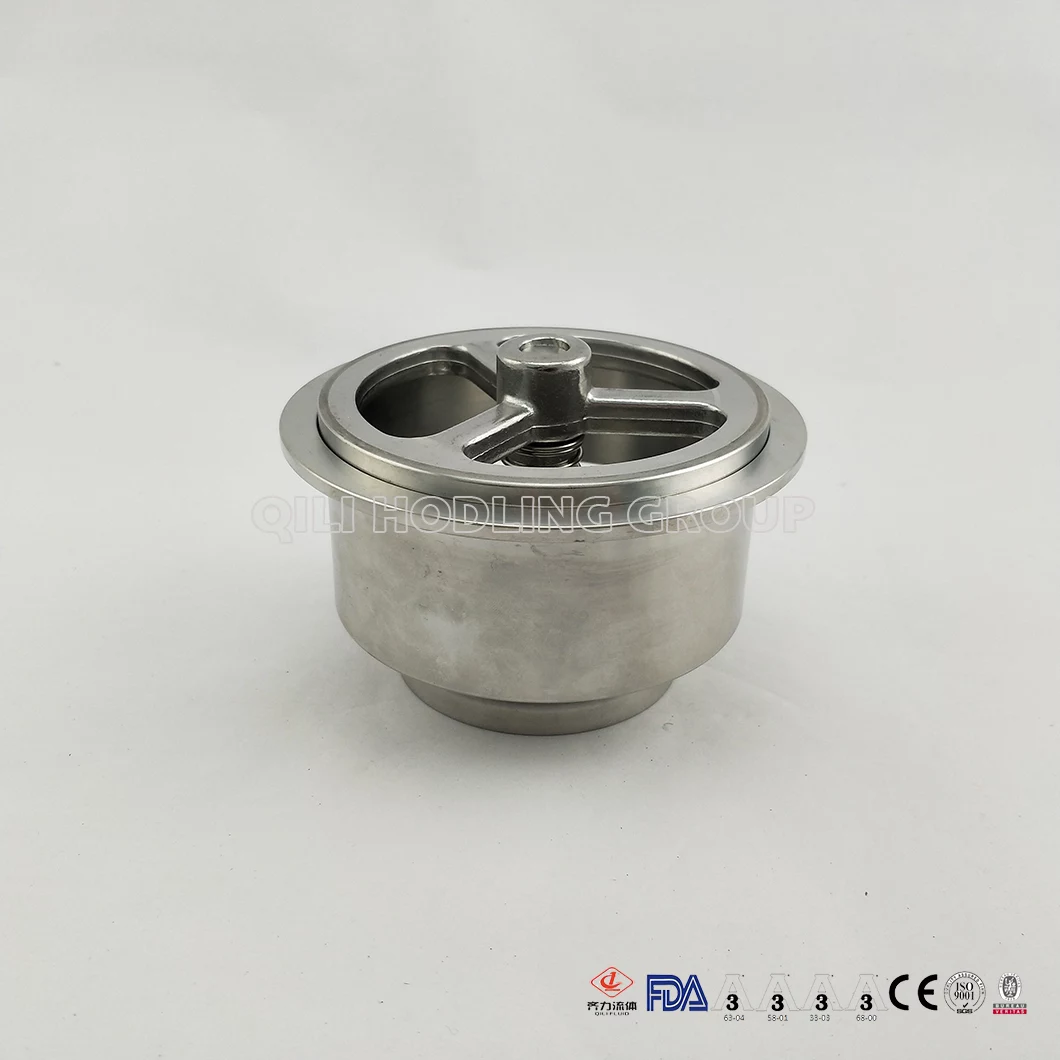

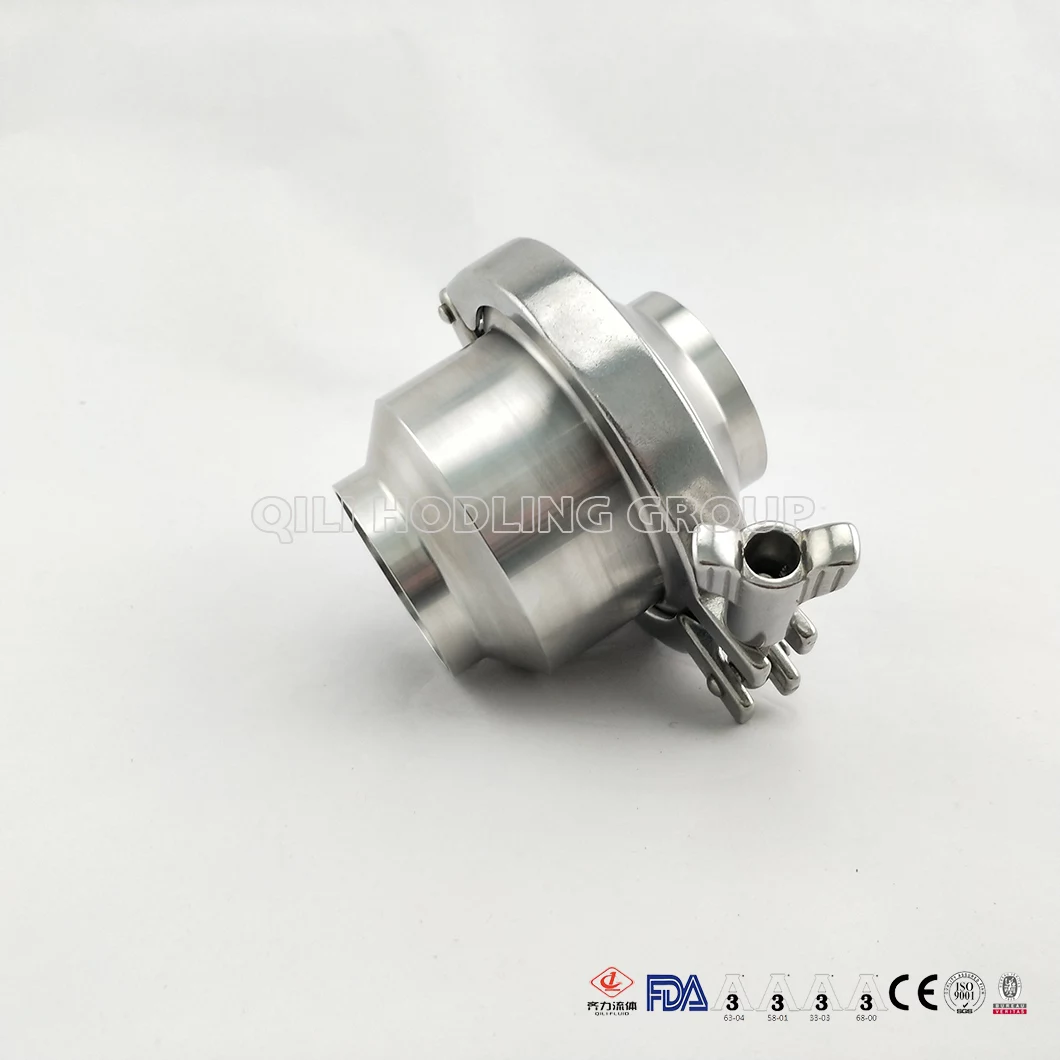

Sanitary Stainless Steel Check Valve Weld End
Our Check Valves are designed to prevent reverse flow.Concentric and eccentric styles as well as our tapered disk design are available for horizontal,vertical applications and are working well without leaking while getting a returnpressure.Our special designed Check valve can be using for many applications in such as food, dairy, beverage,pharmaceutical, chemical, and many other industries. - Wenzhou Qili Fluid Equipment Co.,ltd.
- Material:
- SS304,SS316L
- Standard:
- DIN, 3A, SMS, ISO/IDF, BS/RJT
- Working Temperature:
- -10 to 140℃
- Connection ways:
- Welded, clamped, threaded
- Size:
- DN25-DN100, 1/2"-4"
- Sales Models:
- Retail and wholesale
- Surface Treatment:
- inner( Ra ≥0.4-0.8μm），outer（0.8-1.6μm）
- Pressure Value:
- 0-10bar
- MOQ:
- 1pcs
- Seal Material:
- EPDM, FPM,silicone,VMQ,
- Transport Package:
- cartons

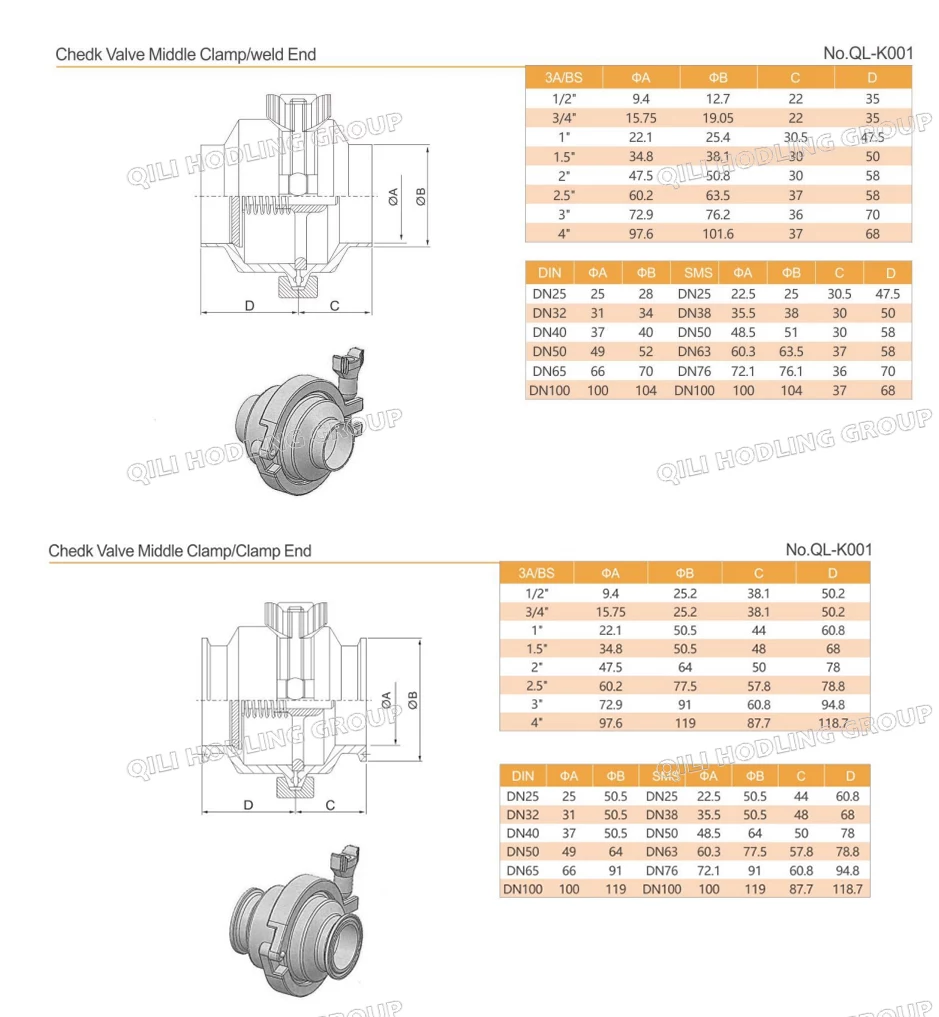

Drawings
Details
| Description | Sanitary Stainless Steel Check Valve Weld End |
| Material | Stainless Steel 304; Stainless Steel 316L (Forged, 1.4301/1.4404) |
| Structure | Swing |
| Function | Ddcv Double Lobe |
| Temperature | -20°C to 135°C |
| Pressure | 10bar |
| Finishing | Ra 16 ~ 32µin (0.4 ~ 0.8µm) electropolish available |
| Port Size | 1/2-4",DN25-DN100 |
| Connection | Tri-clamp ferrule; Threaded; Welded |
| Standard | 3A , SMS , ISO, DIN, IDF |
| Seal ring of stem | EPDM, VITON ir Silicon as required |
| External surface | Bright gloss,dull gloss. |
| Specifications | Can see our products catalogues |
| Application | Food process, Milk process, Beer brewage, Bio-pharmacy, etc. |
