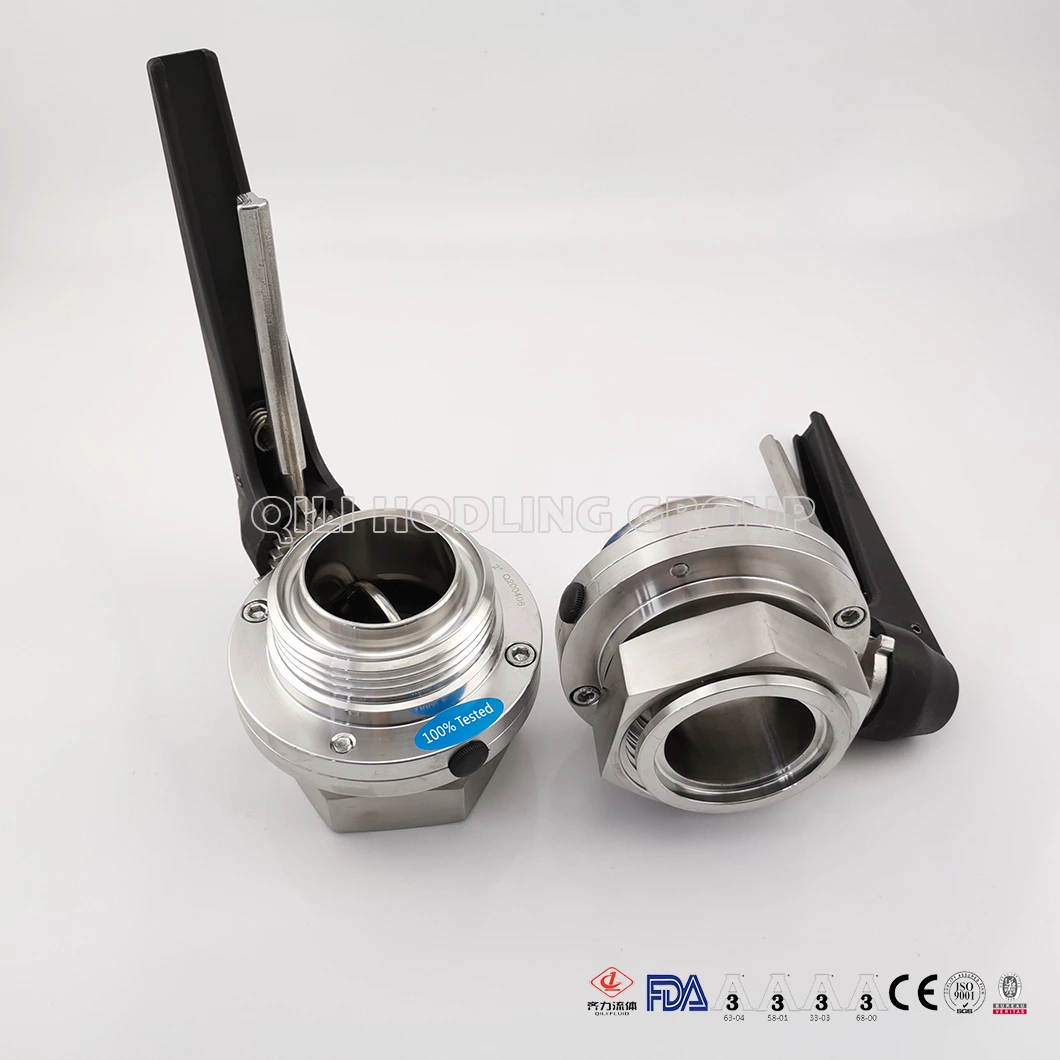

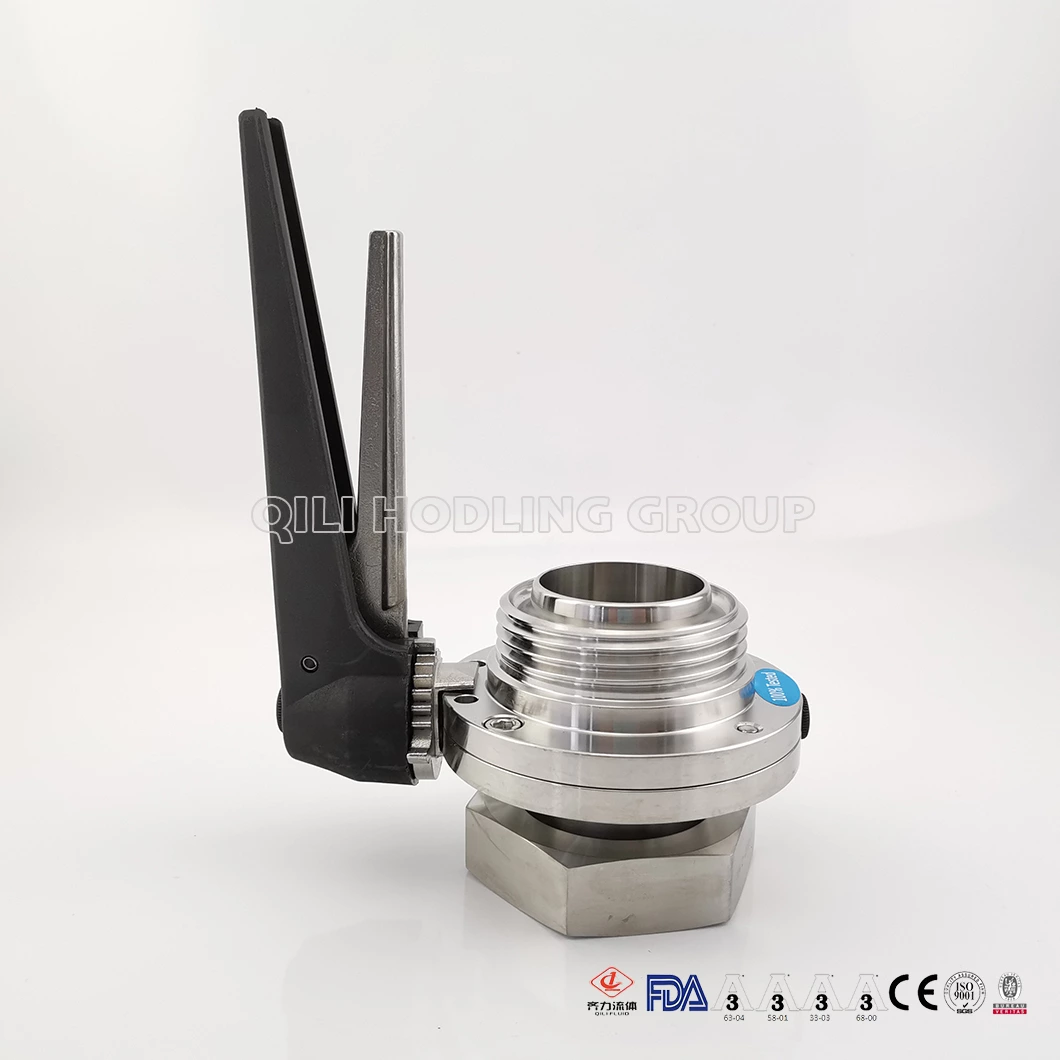

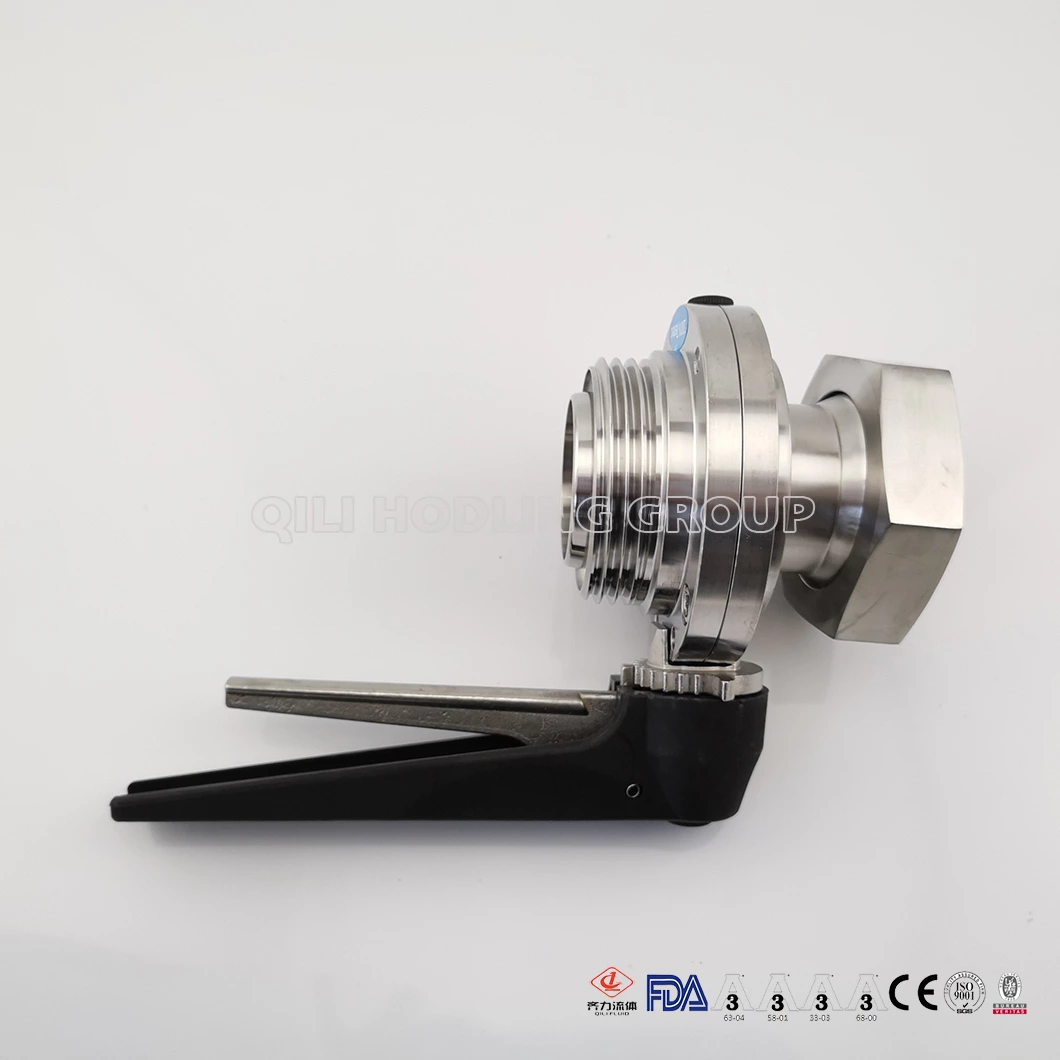

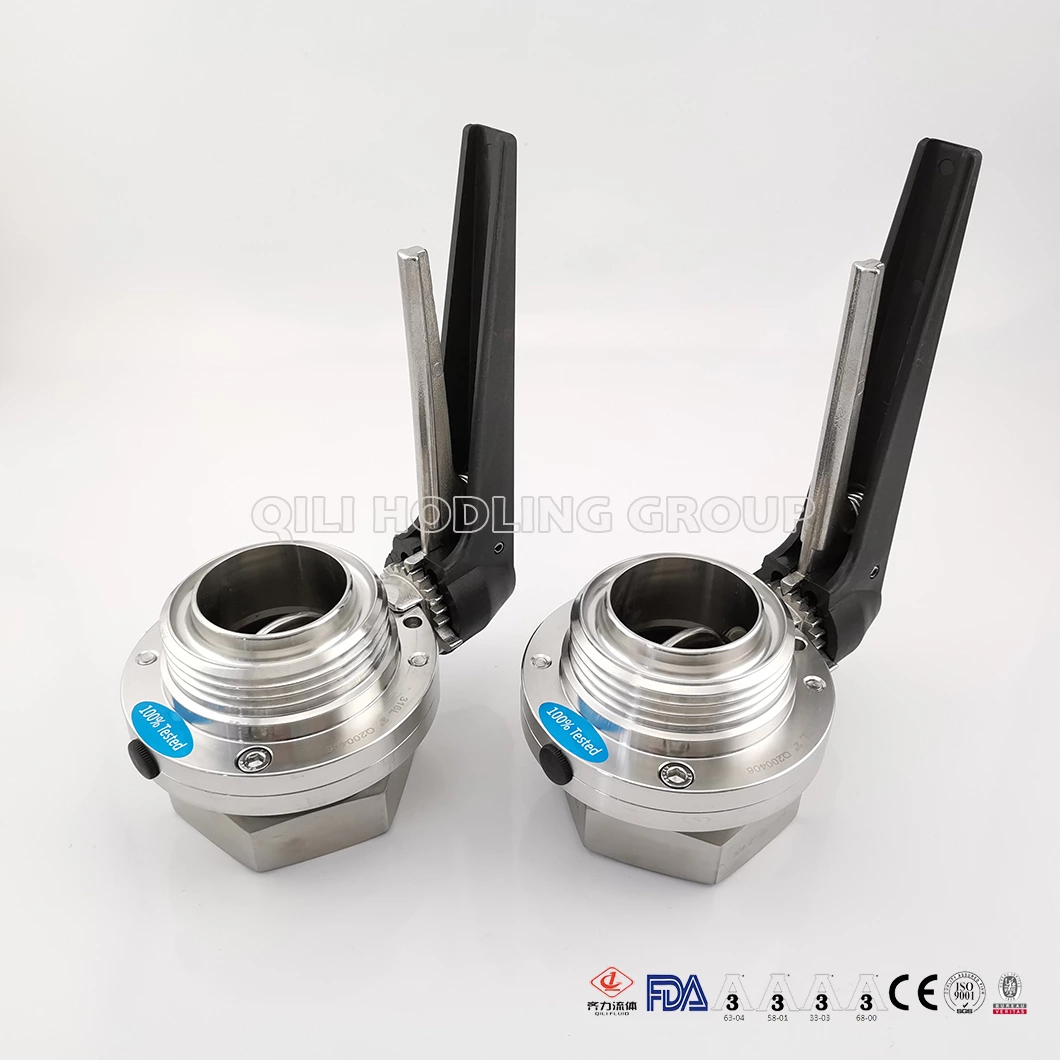

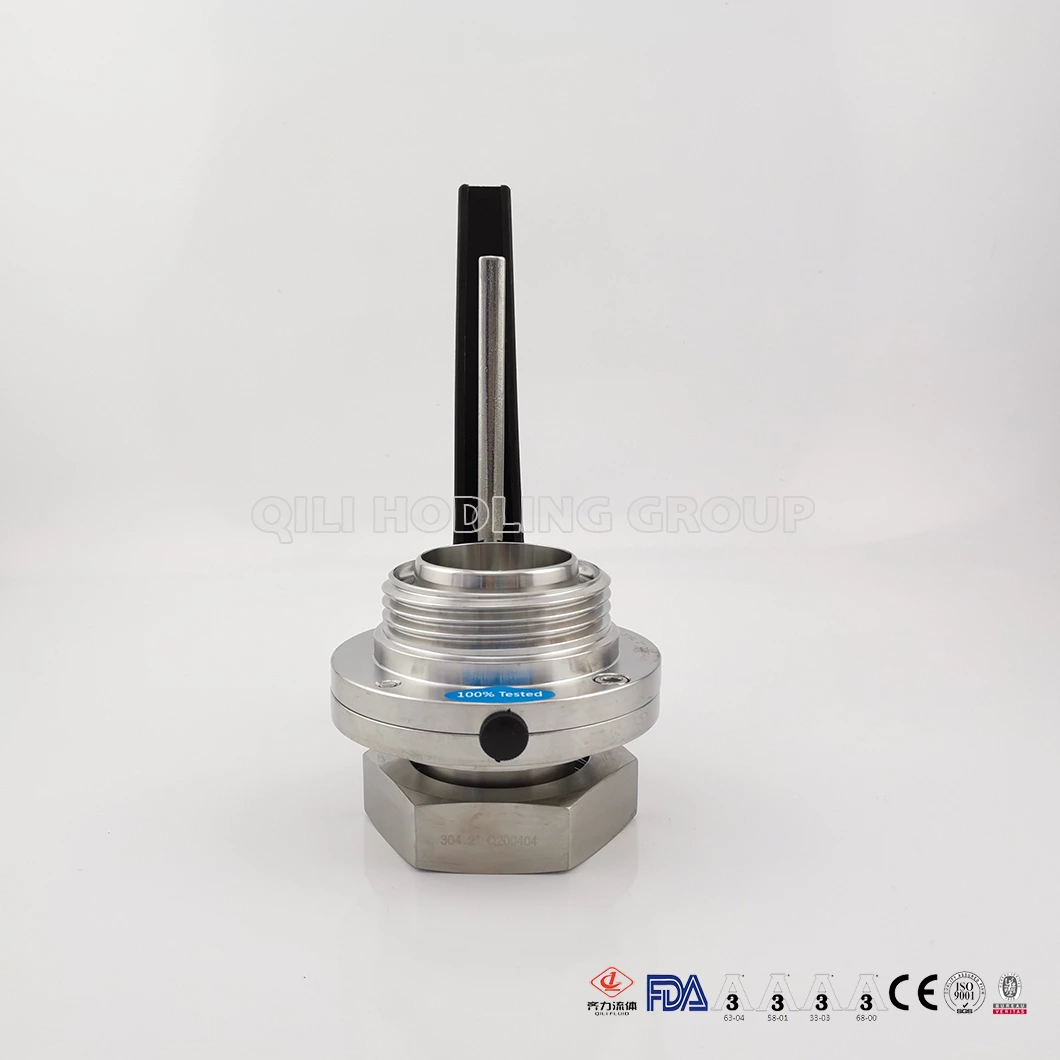

Stainless Steel Ss304 Ss316L RJT Thread Union Butterfly Valve
Material: 304SS, 304L, 316, 316L
Handle color: Blue , black
Type: Wave, straight
Connection type: Weld, flange, thread, clamped
Valve body: Forge
- Material:
- SS304,SS316L
- Standard:
- SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
- Working Temperature:
- VMQ（-50 to 180℃） EPDM（-20 to 135℃） FPM（-30 to 230℃）
- Application:
- Beer, Dairy, Beverage, Pharmacy, Cosmetics,
- Connection ways:
- union
- Size:
- 1-4"
- Color:
- Blue , black
- Sales Models:
- Wholesale and Retail
- Surface Treatment:
- inner（0.4-0.8µm） outer（0.8-1.6µm）
- Pressure Value:
- 0-10bar
- MOQ:
- 1pcs
- Seal Material:
- VMQ, EPDM，CMQ,FPM,silicone
- Transport Package:
- cartons
Details
- Name:Stainless Steel Ss304 Ss316L RJT Thread Union Butterfly Valve
- Size:1"-4"
- Connection way:Tri clamp,weld,male, flange
- Work Pressure:Mid-Pressure (2.5mpa< Pn <6.4mpa)
- Working Temperature:-20 ~ 135° C
- Material of Seal: FDA EPDM,FDA NBR,FDA SILICONE can as your request
- Medium:Beer, Dairy, Beverage, Pharmacy, Cosmetics
- All butterfly valve products are made by ourself and certified to ISO9001:2008 standards.

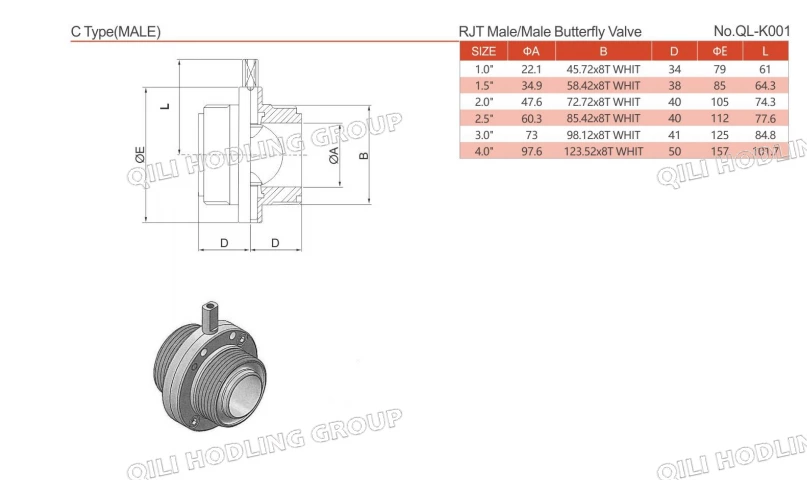

Drawings
