Sanitary Stainless Steel Tri Clamp Butterfly valve
QILI is your source for a SS304 and SS316L Clamp Four Position Butterfly Valve to service the Bakery, Beverage, Cosmetic, Dairy, Food and Pharmaceutical Industries.

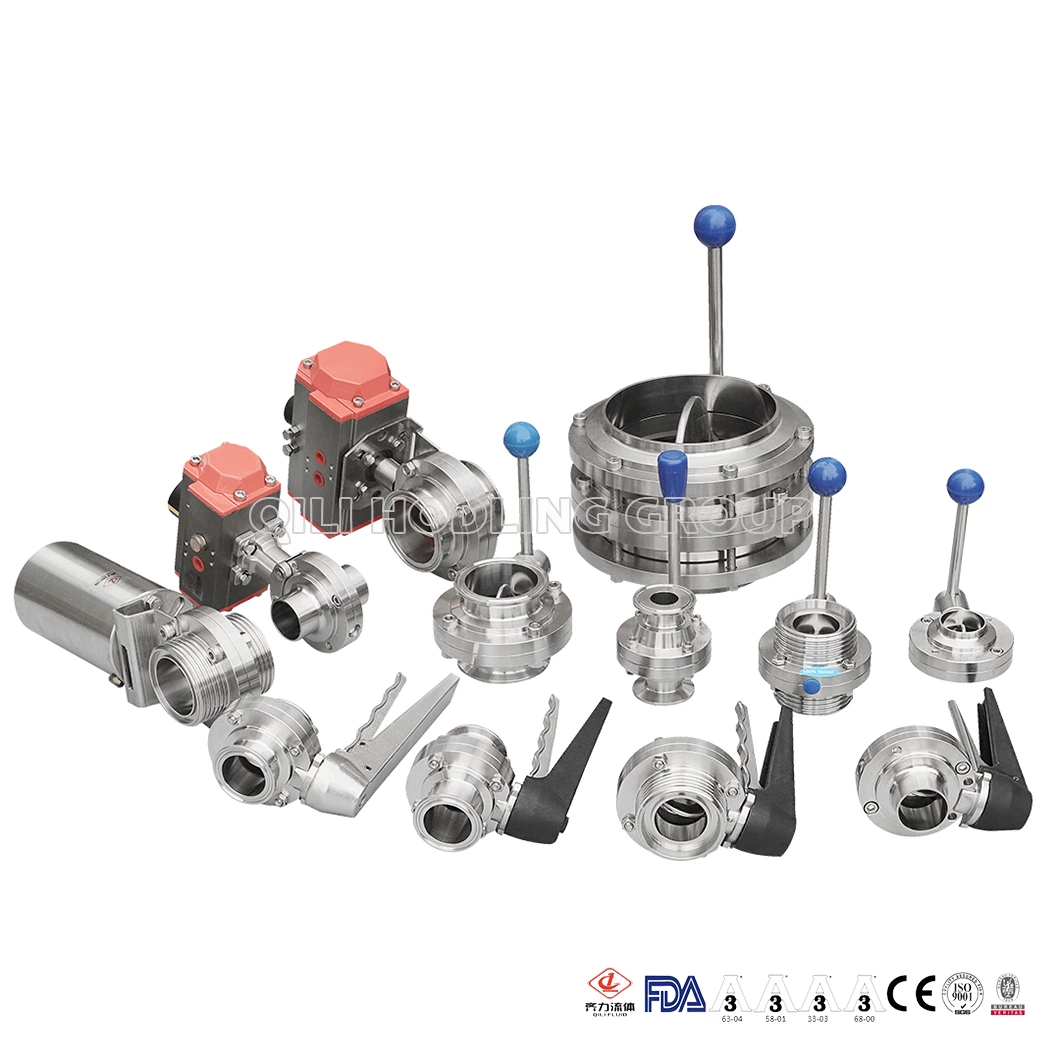

As you examine this valve with the pictures provided, look at the following features:
Our sizes ( 1" -- 6" ) valve is designed with (4) four positions so you can slowly open the valve and create less stress on the valve seat versus the open and close style of valve. Upon opening the valve, you have the option of two other positions for more or less flow depending on your needs. Since the valve comes standard with a clamp end, it is easy to assemble and disassemble when cleaning or working in a tight space.
- Material:
- SS304,SS316L
- Standard:
- SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
- Working Temperature:
- VMQ（-50 to 180℃） EPDM（-20 to 135℃） FPM（-30 to 230℃）
- Application:
- Beer, Dairy, Beverage, Pharmacy, Cosmetics,
- Connection ways:
- Weld, flange, thread/union, clamped
- Size:
- 1/2"-6"
- Color:
- Blue , black
- Sales Models:
- Wholesale and Retail
- Surface Treatment:
- inner（0.4-0.8µm） outer（0.8-1.6µm）
- Pressure Value:
- 0-10bar
- MOQ:
- 1pcs
- Seal Material:
- VMQ, EPDM，CMQ,FPM
- Transport Package:
- Carton packaging. Wooden case packaging.
Details
Drawings
| Description | Sanitary Stainless Steel Tri Clamp Butterfly valve |
| Material | Stainless steel 304, 316L |
| Driving mode | Manual |
| Connection form | Clamped |
| Structure | Double-eccentric sealing |
| Seal Form | Auto Sealed |
| Work Pressure | Low Pressure (-0.9 to 20Bar) |
| Work Temperature | Medium temperature -10 ~ 150°C |
| Valve body | Forge welding |
| Size | 1/2"-6" |
| Seal | Silicone, EPDM, Viton and NBR is available. |
| Medium | Beer,Dairy,Beverage,Pharmacy,Cosmetics. |
| Application | Pharmacy, beer, food, dairy, beverage, cosmetic, chemical industry. |
| Standard | DIN/SMS/3A/ISO/IDF, etc. |
| Packaging | Carton packaging. Wooden case packaging. |
