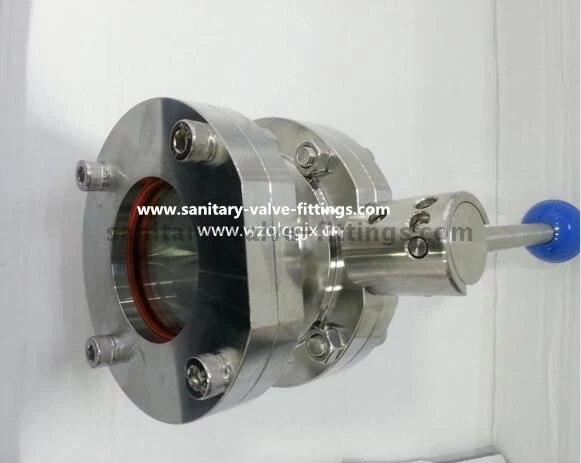

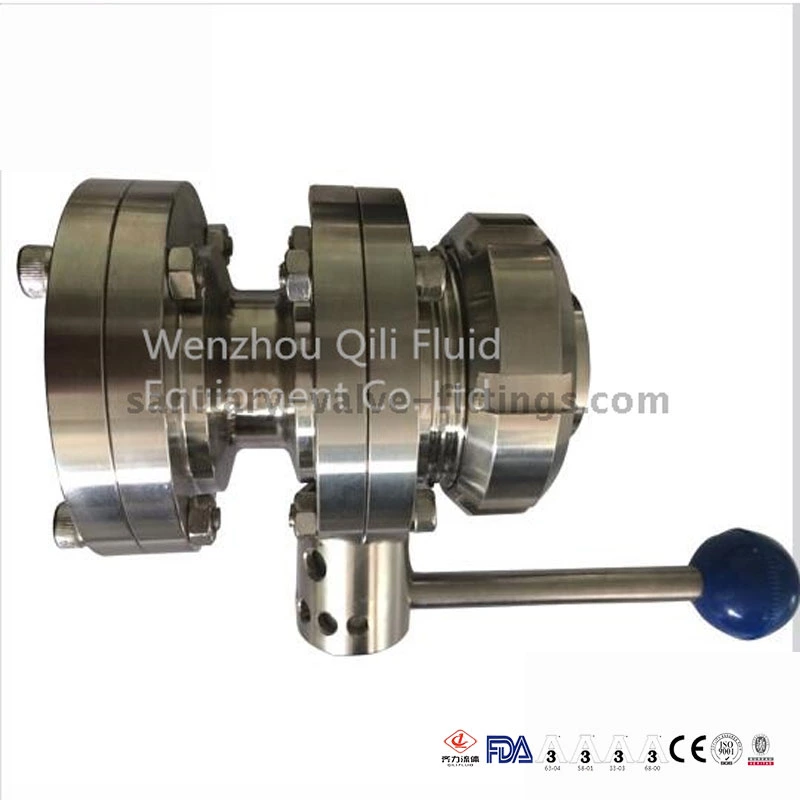

Sanitary Stainless Steel Threaded and Flange Manual Butterfly Valve
We can supply welding butterfly valve, thread butterfly valve, clamp butterfly valve, flange butterfly valve, male butterfly valve, female butterfly valve, welding/male butterfly valve and liner butterfly valve. At the same time we can also make to order various kinds of non-standard sanitary valve for guests. - Wenzhou Qili Fluid Equipment Co.,ltd.
- Material:
- SS304,SS316L
- Standard:
- SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
- Working Temperature:
- VMQ（-50 to 180℃） EPDM（-20 to 135℃） FPM（-30 to 230℃）
- Application:
- Beer, Dairy, Beverage, Pharmacy, Cosmetics,
- Connection ways:
- Weld, flange, thread/union, clamped
- Size:
- DN25-DN150
- Color:
- Blue , black
- Sales Models:
- Wholesale and Retail
- Surface Treatment:
- inner（0.4-0.8µm） outer（0.8-1.6µm）
- Pressure Value:
- 0-10bar
- MOQ:
- 1pcs
- Seal Material:
- VMQ, EPDM，CMQ,FPM
- Transport Package:
- cartons

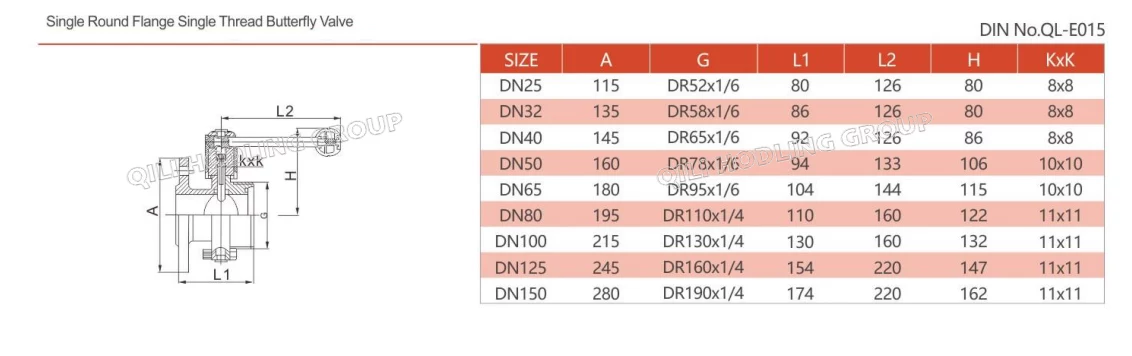

Drawings
Details
| Description | Sanitary Stainless Steel Threaded and Flange Manual Butterfly Valve |
| Material | Stainless steel 304, 316L |
| Size | DN25-DN150 |
| Driving Mode | Manual |
| Connection | one side thread one side thread |
| Structure | Double-Eccentric Sealing |
| Seal Form | Auto Sealed |
| Work Pressure | Low Pressure (Pn<1.6mpa) |
| Working Temperature | Normal Temperature (-40°C<T<120°C) |
| Material of Seal Surface | Soft Sealed |
| Valve Body | Forge Welding |
| Working pressure | -0.9 to 20 Bar for forged body |
| Working temperature | -10°C up to 150 °C |
| Standard | DIN, 3A, SMS, RJT, IDF |
| Application | Dairy, water, food, beer, beverage, phramaceutical, cosmetic, chemical industry. |
| Delivery detail | Usually in 15-20 days after down payment confirmation. |
| Advantage | Quotation, competitive price, punctual delivery and guaranteed quality. |
| Packaging | Carton packaging. Wooden case packaging. |
