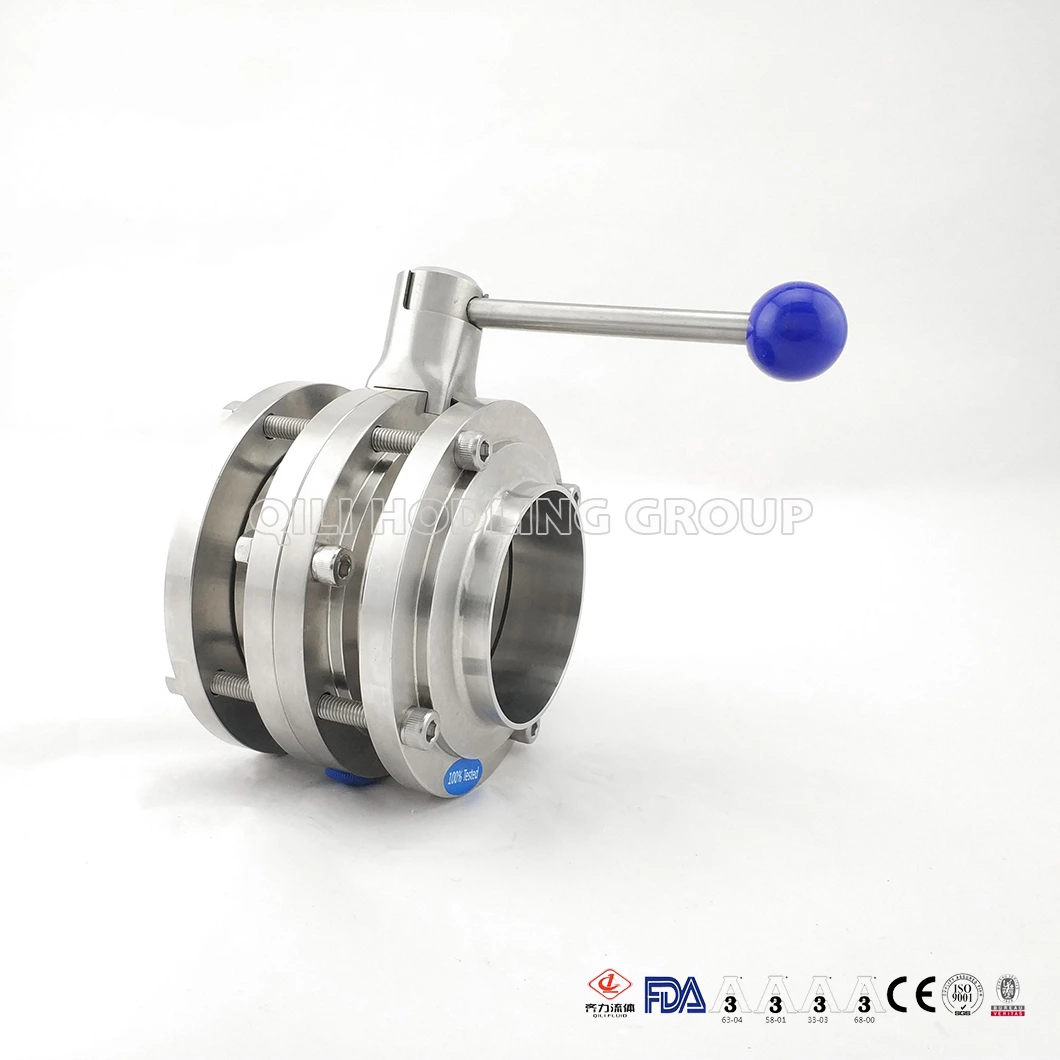

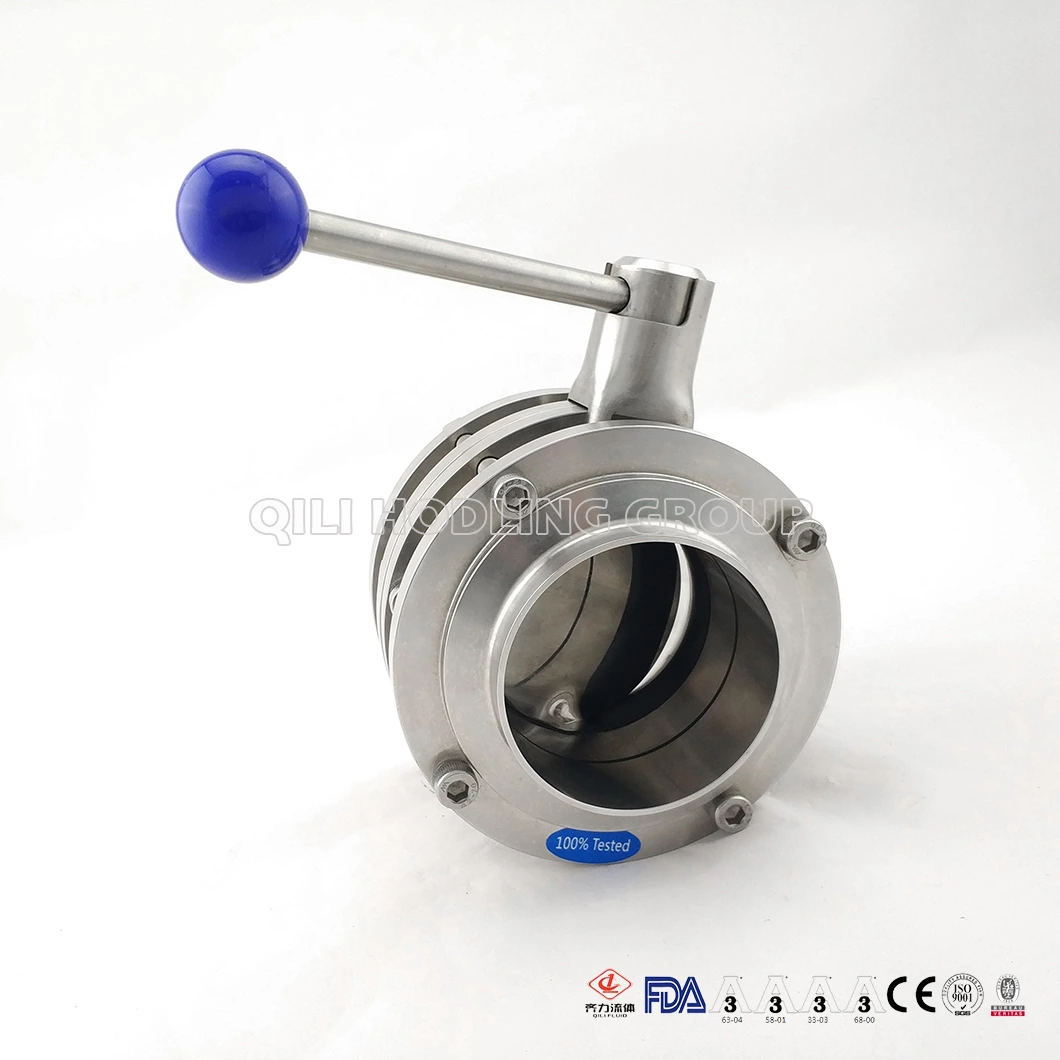

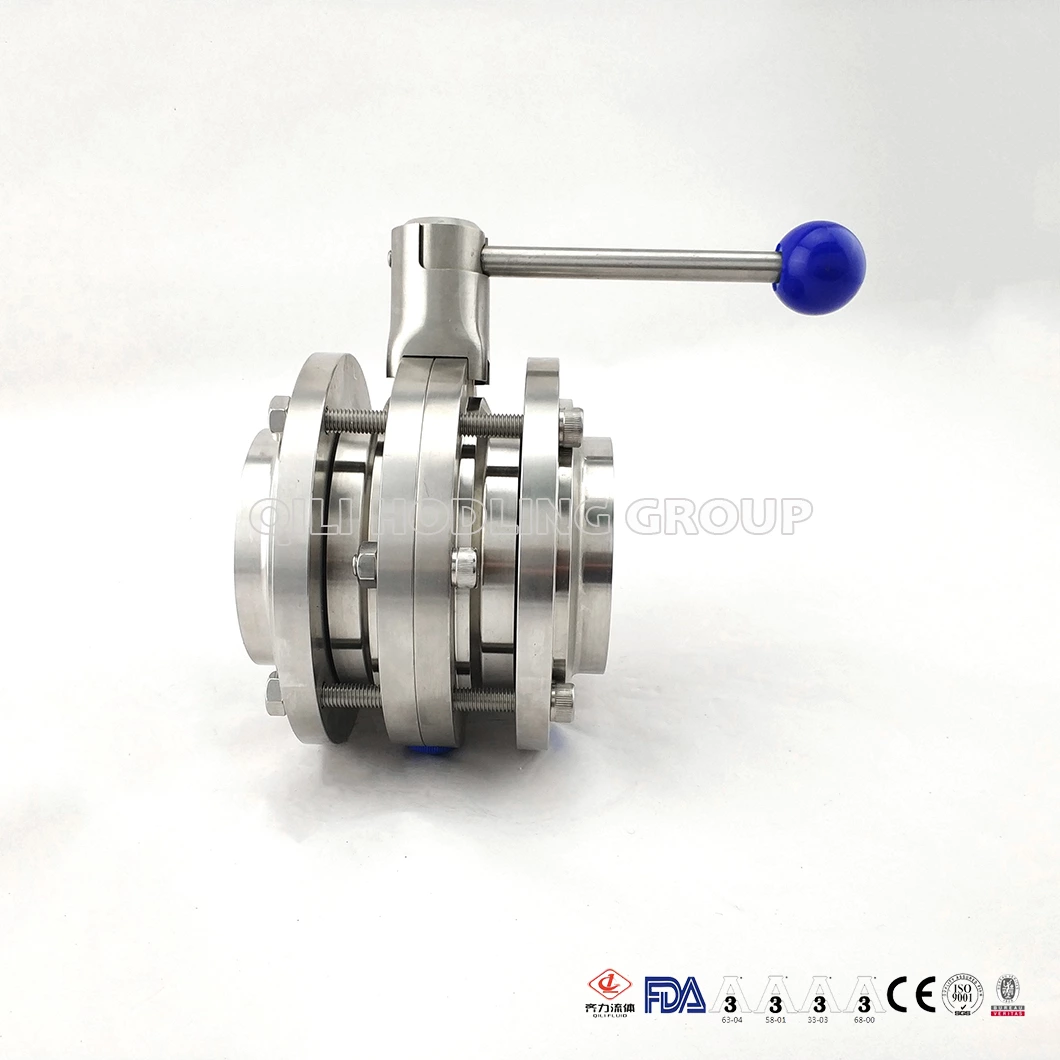

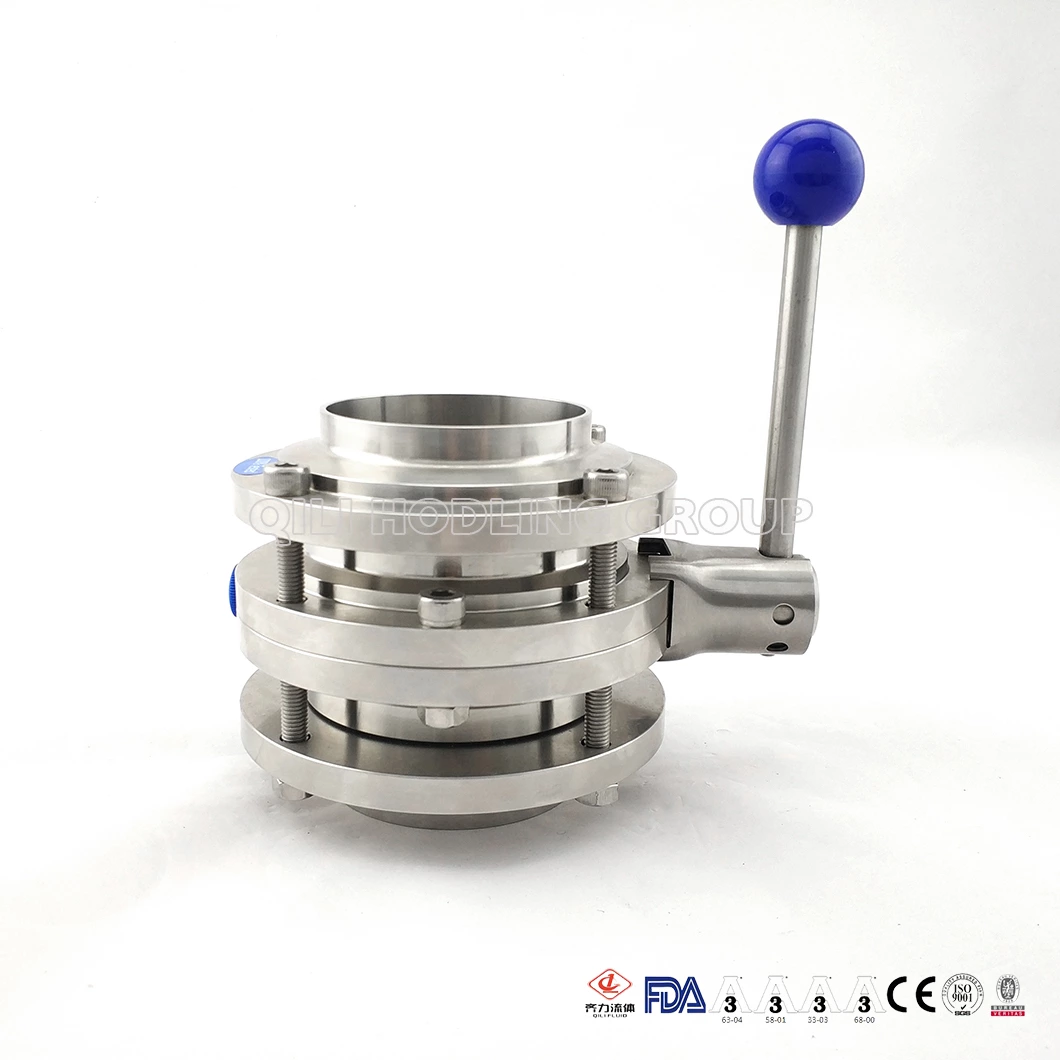

Sanitary Stainless Steel 3 Pieces Butterfly Valve
The butterfly bodies are forged, the gaskets are subjected to 24 hour constant temperature treatment to ensure the high quality of the butterfly valve
- Material:
- SS304,SS316L
- Standard:
- SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
- Working Temperature:
- VMQ（-50 to 180℃） EPDM（-20 to 135℃） FPM（-30 to 230℃）
- Application:
- Beer, Dairy, Beverage, Pharmacy, Cosmetics,
- Connection ways:
- Weld, flange, thread/union, clamped
- Size:
- DN25-DN100
- Color:
- Blue , black
- Sales Models:
- Wholesale and Retail
- Surface Treatment:
- inner（0.4-0.8µm） outer（0.8-1.6µm）
- Pressure Value:
- 0-10bar
- MOQ:
- 1pcs
- Seal Material:
- VMQ, EPDM，CMQ,FPM,silicone
- Transport Package:
- cartons

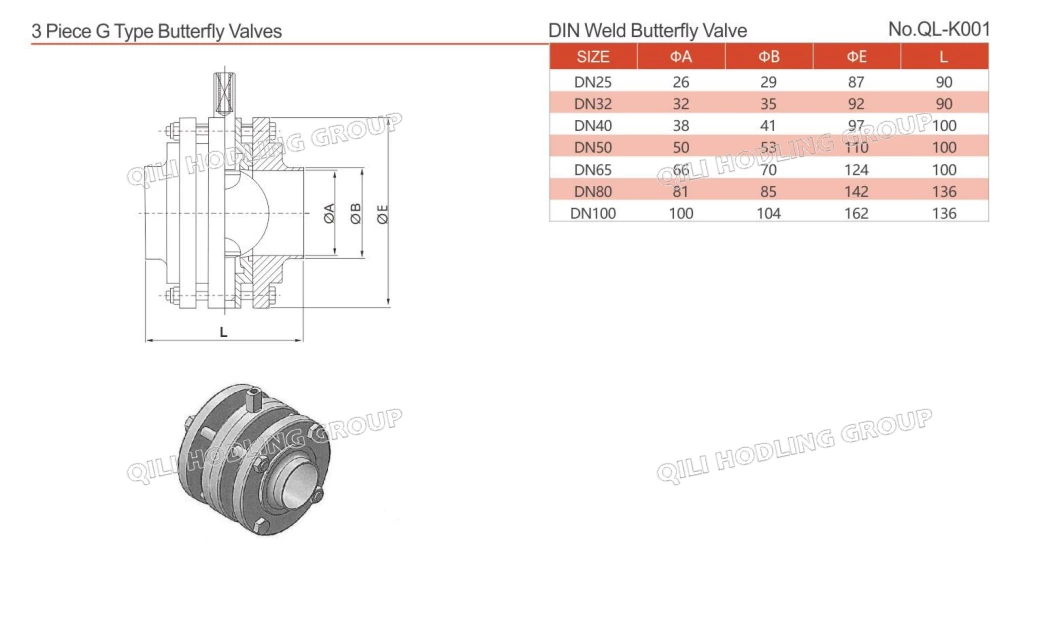

Drawings
Details
| Material: | SS304 or SS316L |
| Standard: | 3A, SMS, DIN, RJT, IDF |
| Size: | DN25-DN100 |
| Connection Way: | Weld, Clamp, Thread (male/female) , KF |
| Operated: | Manual, Pneumatic, Electric |
| Manual Handle: | Pull Handle (2-4 Positions), Plastic Trigger Handle (13 Positions), |
| Stainless Steel Trigger Handle (13 Positions) | |
| Seal Material: | Silicone, EPDM, Viton, NBR |
| Surface Finishing: | Ra≤0.8 |
| Working Temperature: | -10 degree to +120 degree (EPDM) |
| Working Pressure: | 0.2-10 Bar (DN25-DN100), 0.2-8 Bar (DN125-DN150) |
| Application scope: | Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc |
