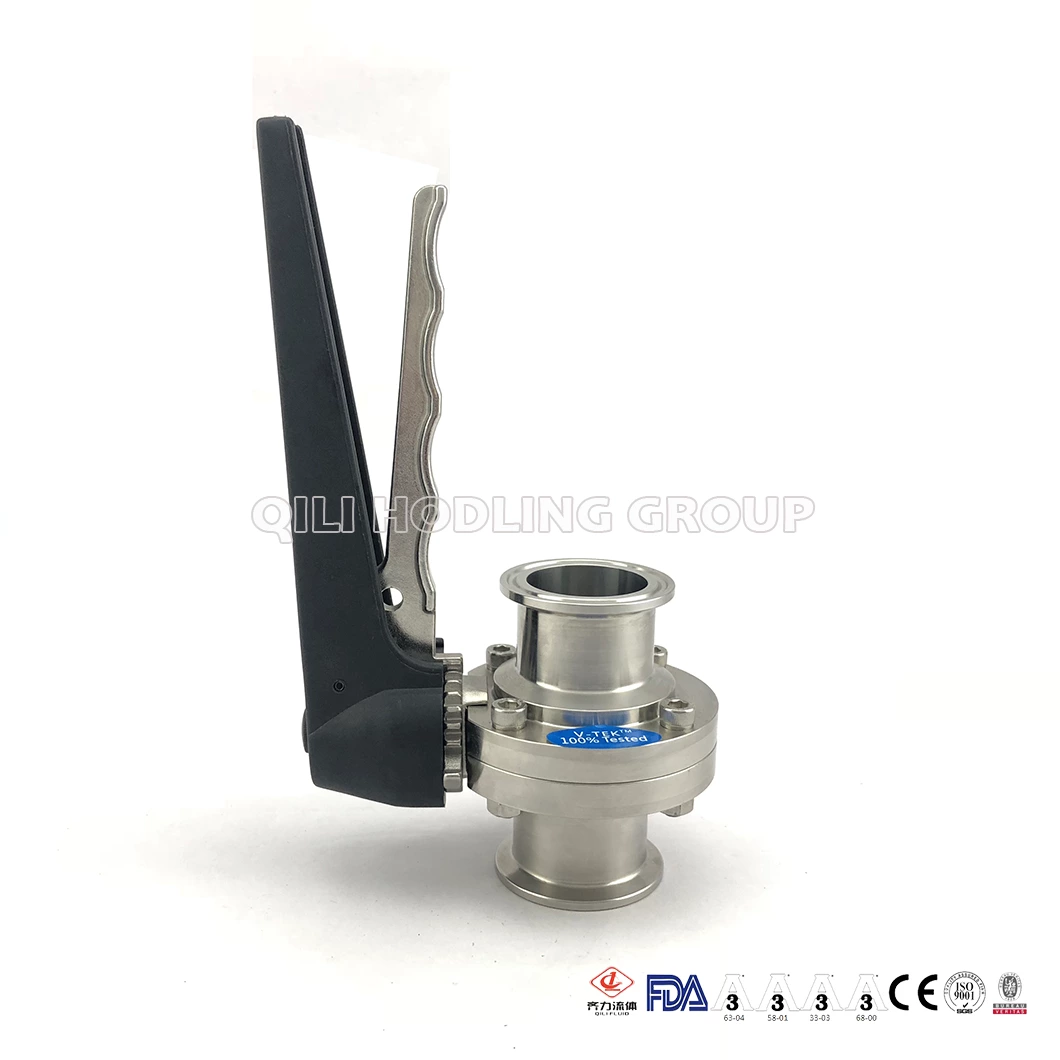

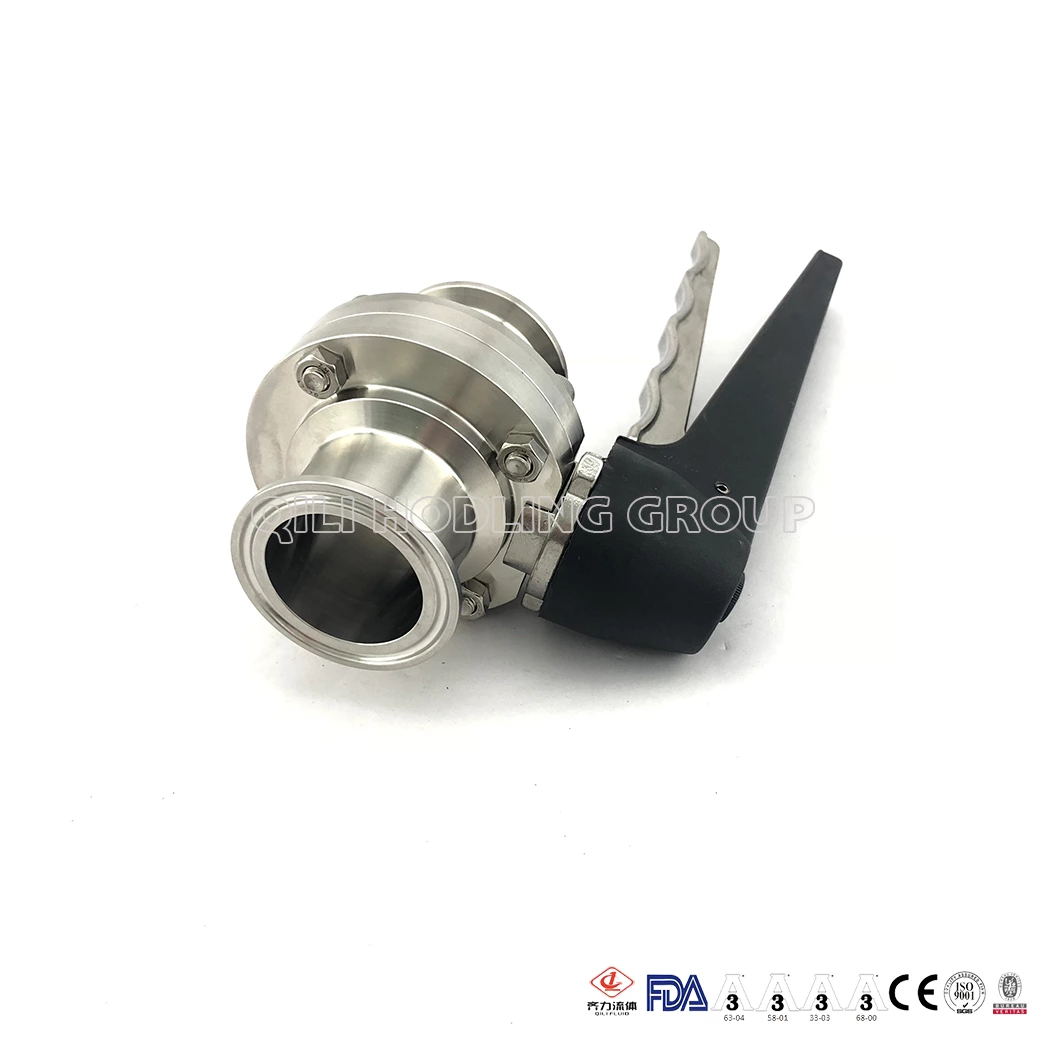

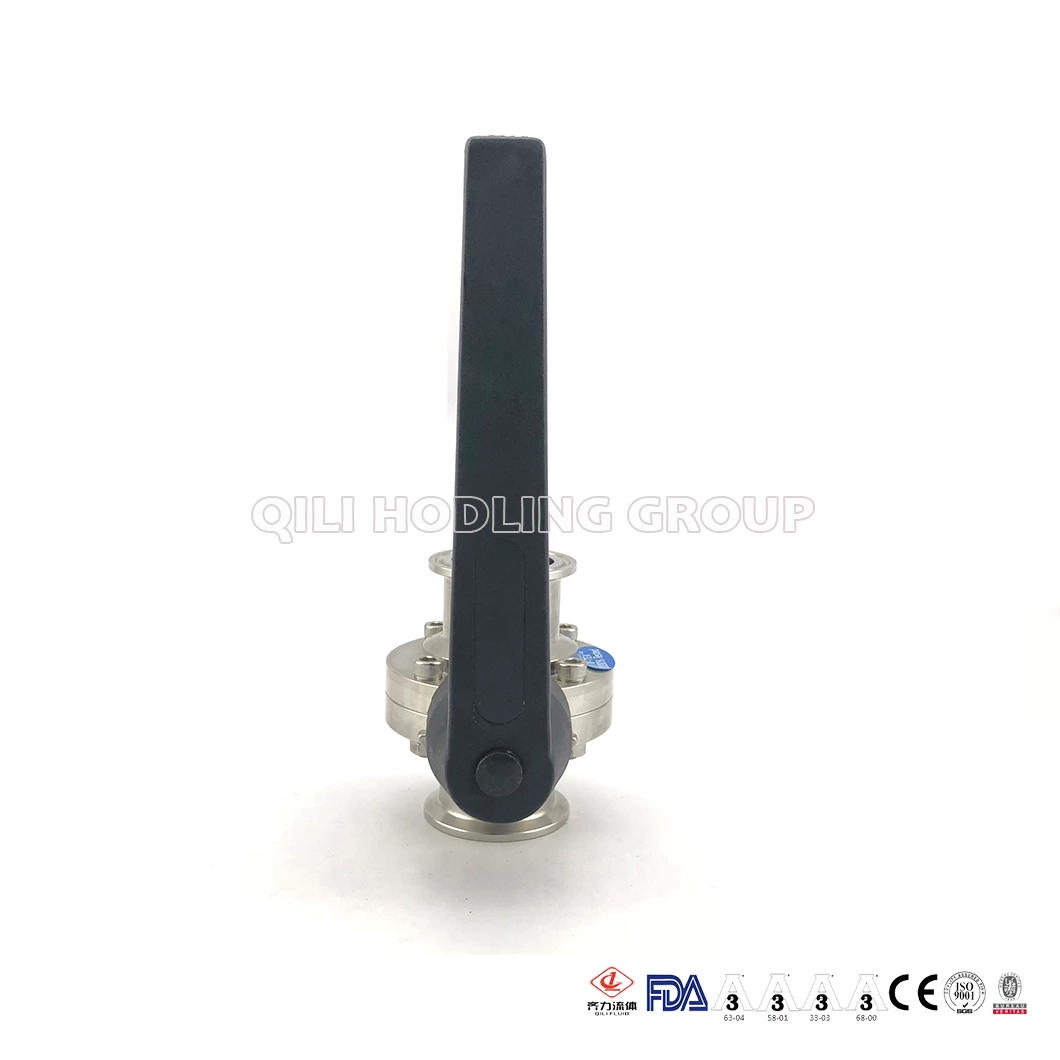

Sanitary Butterfly Valve with Stainless Steel Multi Handle Tc Type
We can supply this butterfly valve with weld end, clamp end, thread end and flange end connection.
Requiring more detail information or catalog pls don't hesitate to contact us.
- Material:
- SS304,SS316L
- Standard:
- SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
- Working Temperature:
- VMQ（-50 to 180℃） EPDM（-20 to 135℃） FPM（-30 to 230℃）
- Application:
- Beer, Dairy, Beverage, Pharmacy, Cosmetics,
- Connection ways:
- clamped
- Size:
- 1/2-6"
- Color:
- Blue , black
- Sales Models:
- wholesale or retail
- Surface Treatment:
- inner（0.4-0.8µm） outer（0.8-1.6µm）
- Pressure Value:
- 0-10bar
- MOQ:
- 1pcs
- Seal Material:
- VMQ, EPDM，CMQ,FPM,silicone
- Transport Package:
- cartons
Drawings
Details
| Material | SS304, SS304L, SS316L |
| Seal | Silicon, EPDM FPM |
| Working temperature | -20 ~ 135° C |
| Connection | Weled, quick-installed, thread, flange |
| SIZE | 1/2-6" |
| Standards | DIN, SMS, 3A, ISO |
| Medium | Beer, Dairy, Beverage, Pharmacy, Cosmetics, |
| Packing | Standard export packing |
