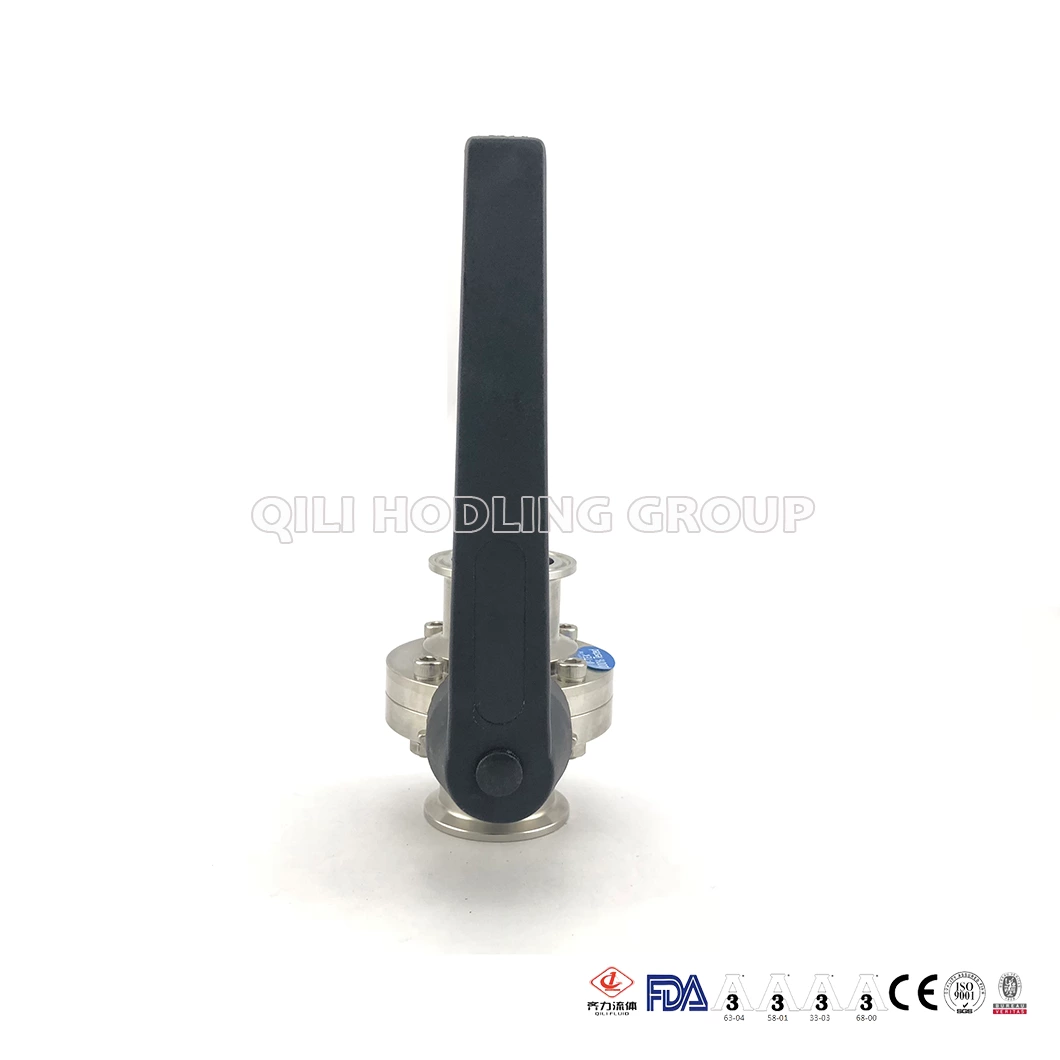

Hygienic Butterfly Valve Clamped End Notch Handle

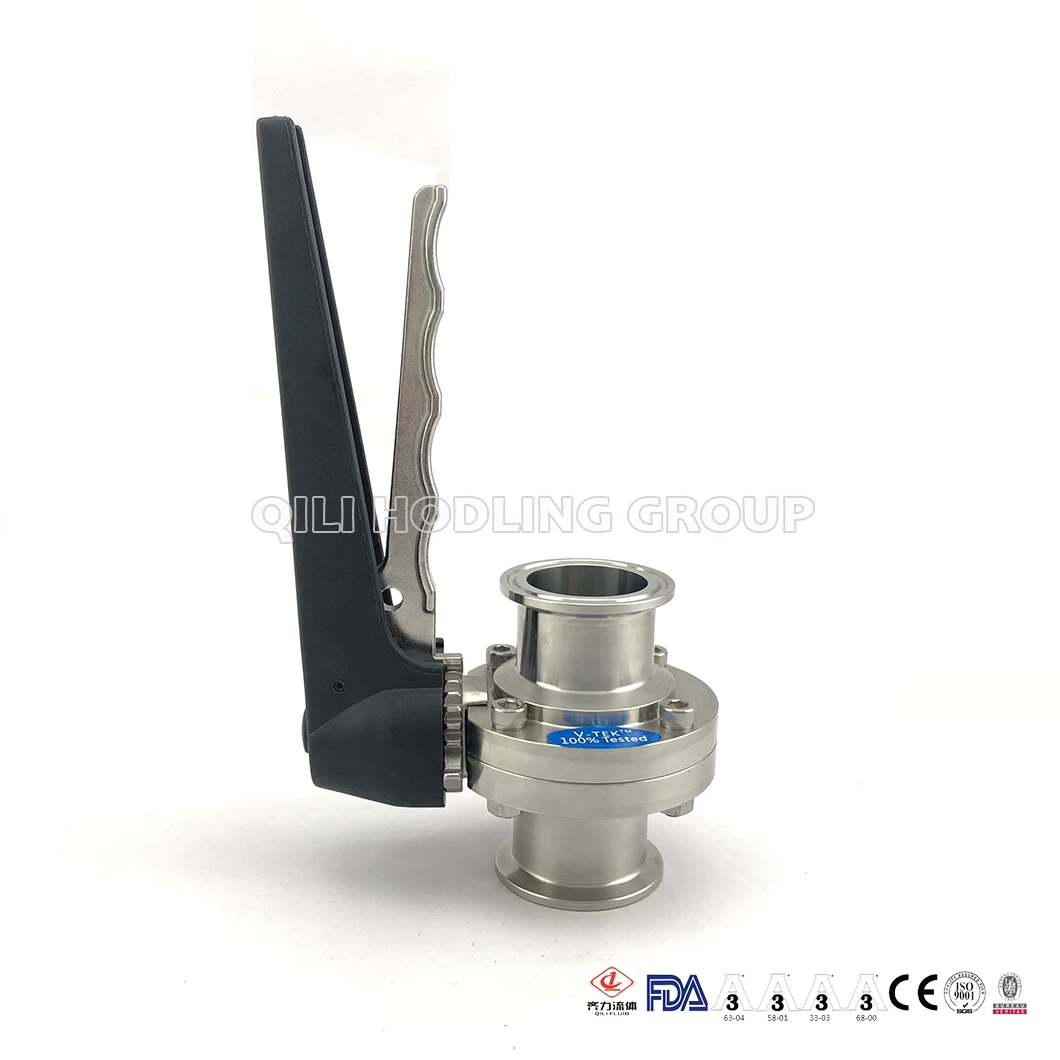

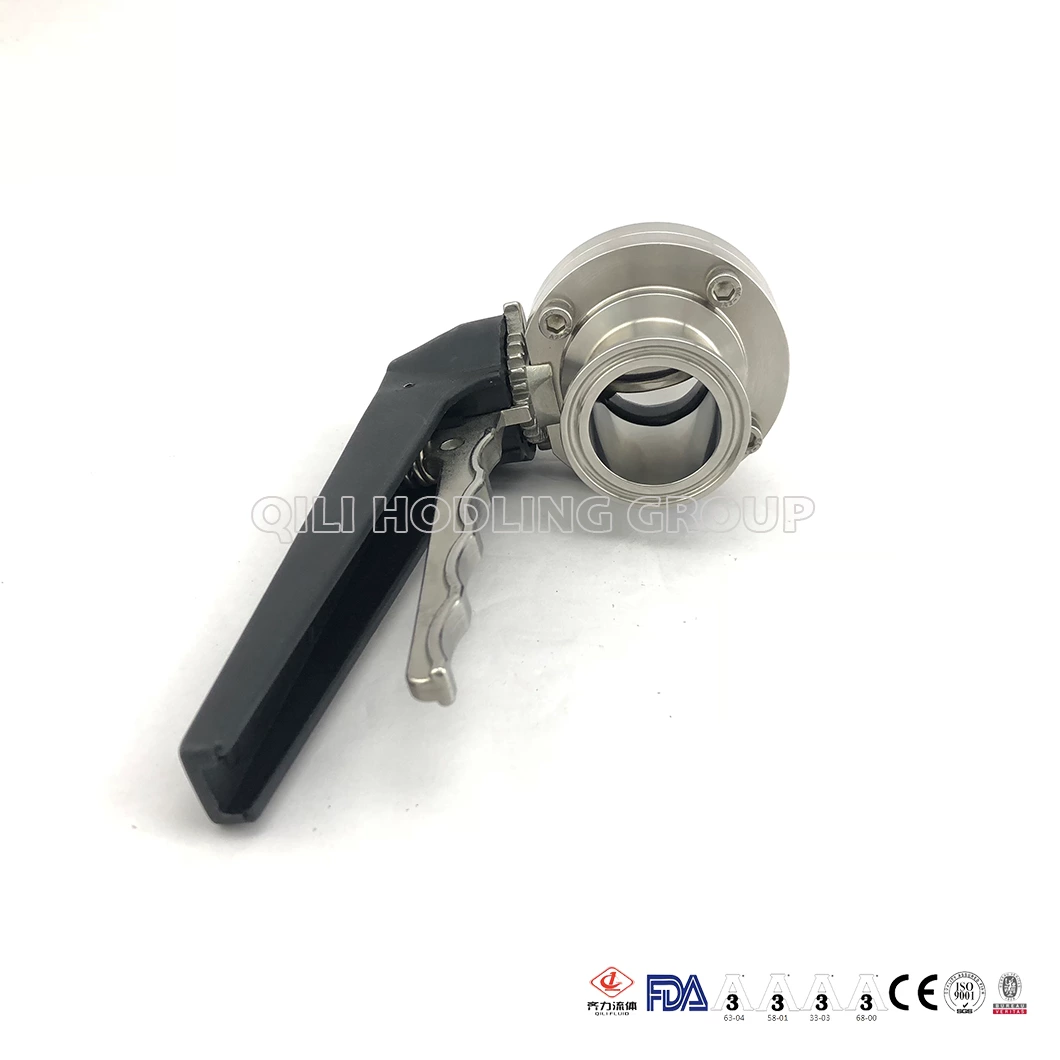

sanitary butterfly valve has a Squeeze-trigger lock on it and can be locked in 13 different positions. The handle is simply squeezed to rotate the valve gate and can be rotated 180° so it can be closed on either side. Butterfly valves can be cleaned in place as there are no pockets for nasties to hide. They are also lighter and more compact that Tri Clover Compatible ball valves. Made of 304 and 316L stainless steel. Since butterfly valves tend to be more of an on-off, ball valves tend to do a better job at controlling flow rates than Tri Clover Compatible butterfly valves. We usually recommend butterfly valves at vessel outlets and on fermenters and Tri Clover Compatible ball valves on pump outlets and vessle returns like mash tun sparge and vorlauf returns.
- Material:
- SS304,SS316L
- Standard:
- SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
- Working Temperature:
- VMQ（-50 to 180℃） EPDM（-20 to 135℃） FPM（-30 to 230℃）
- Application:
- Beer, Dairy, Beverage, Pharmacy, Cosmetics,
- Connection ways:
- Weld, flange, thread/union, clamped
- Size:
- 1/2"-6"
- Color:
- Blue , black
- Sales Models:
- Wholesale and Retail
- Surface Treatment:
- inner（0.4-0.8µm） outer（0.8-1.6µm）
- Pressure Value:
- 0-10bar
- MOQ:
- 1pcs
- Seal Material:
- VMQ, EPDM，CMQ,FPM
- Transport Package:
- cartons
Drawings
Details
| Description | Hygienic Butterfly Valve Clamped End With Handle |
| Material | Stainless steel 304, 316L |
| Driving Mode | Manual |
| Work Pressure | Low Pressure (Pn<1.6mpa) |
| Working Temperature | Normal Temperature (-40°C<T<120°C) |
| Structure | Double-Eccentric Sealing |
| Seal Form | Auto Sealed |
| Valve stem | Normal |
| Seal form | Auto sealed |
| Application | Industrial Usage, Water Industrial Usage, Household Usage |
| Size | Dn10-150 & 1/2′′-8′′ |
| Standard | DIN/SMS/3A/ISO/IDF |
| Packaging | Carton packaging. Wooden case packaging. |
