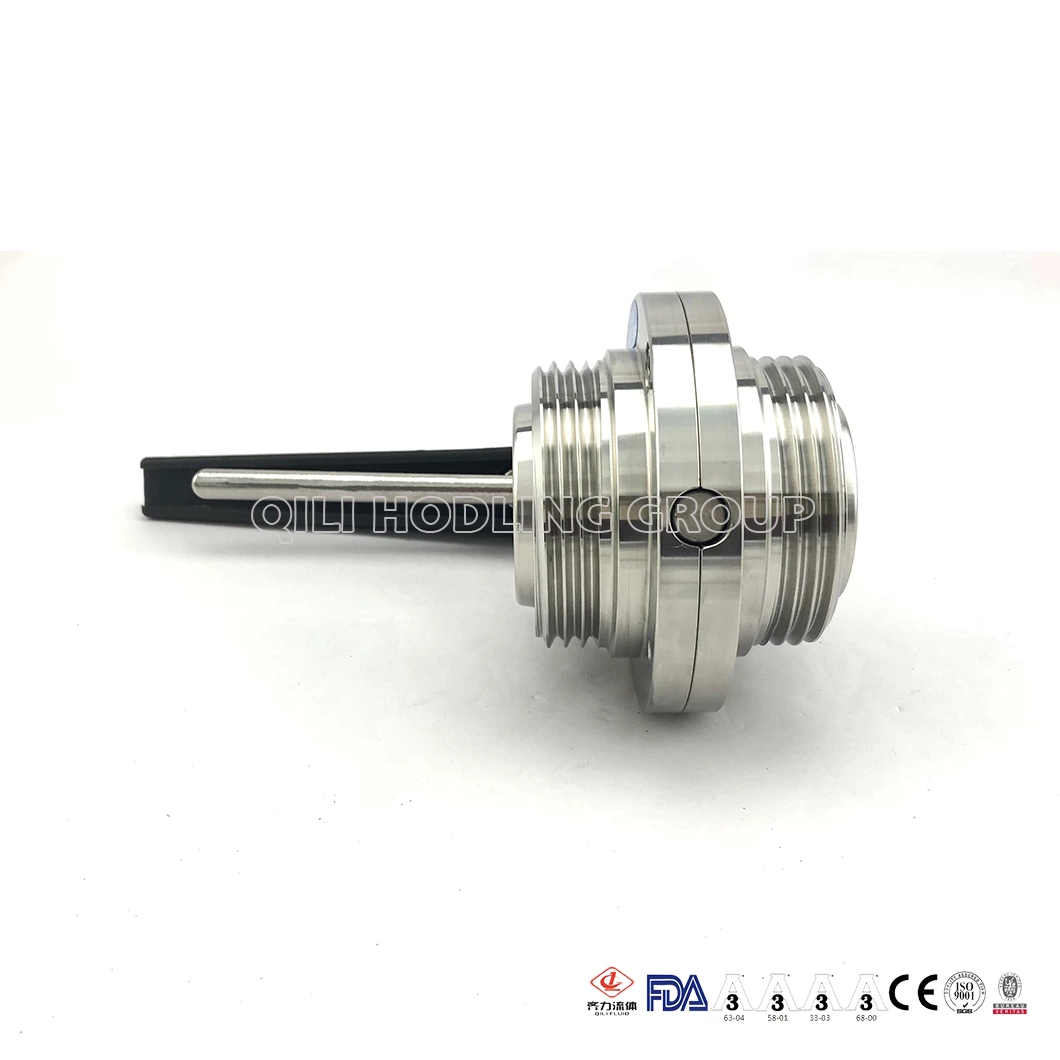

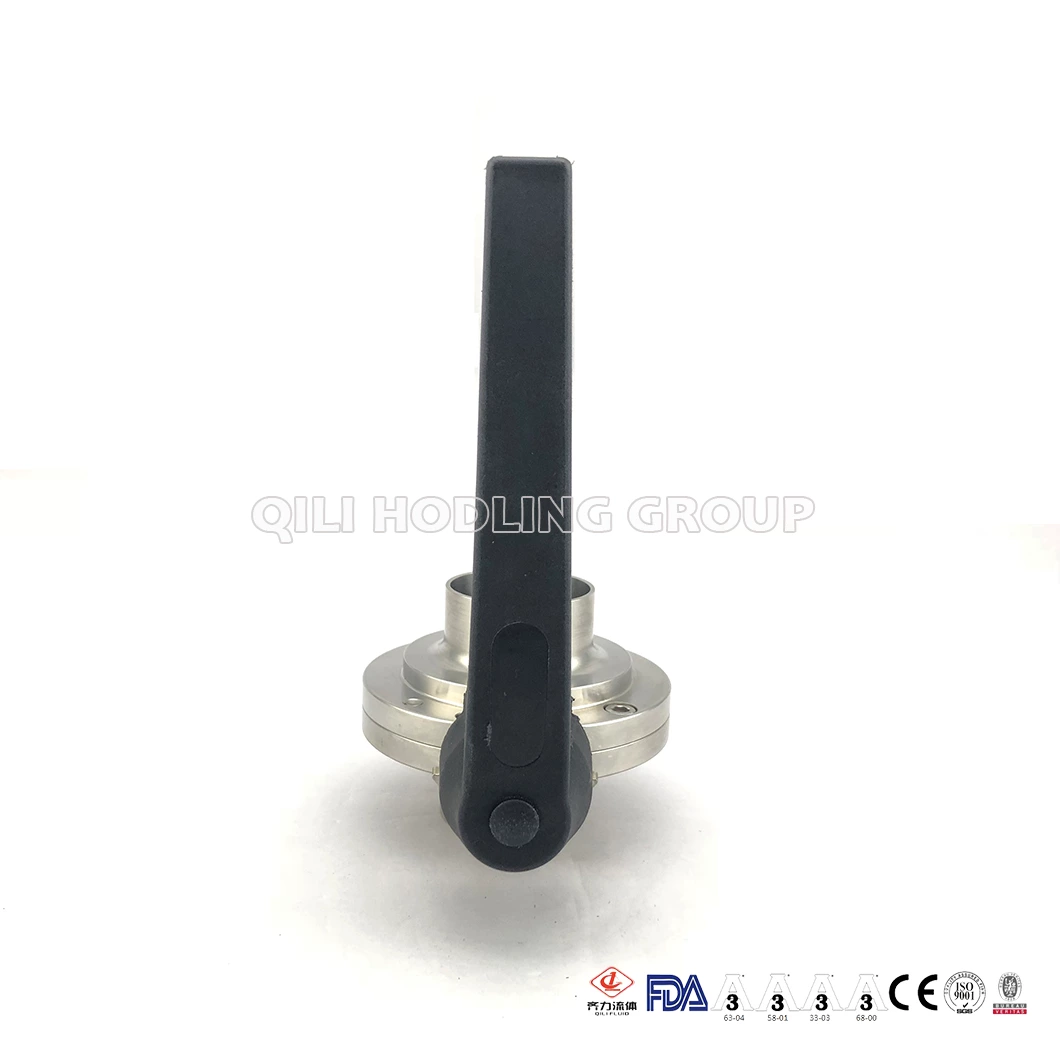

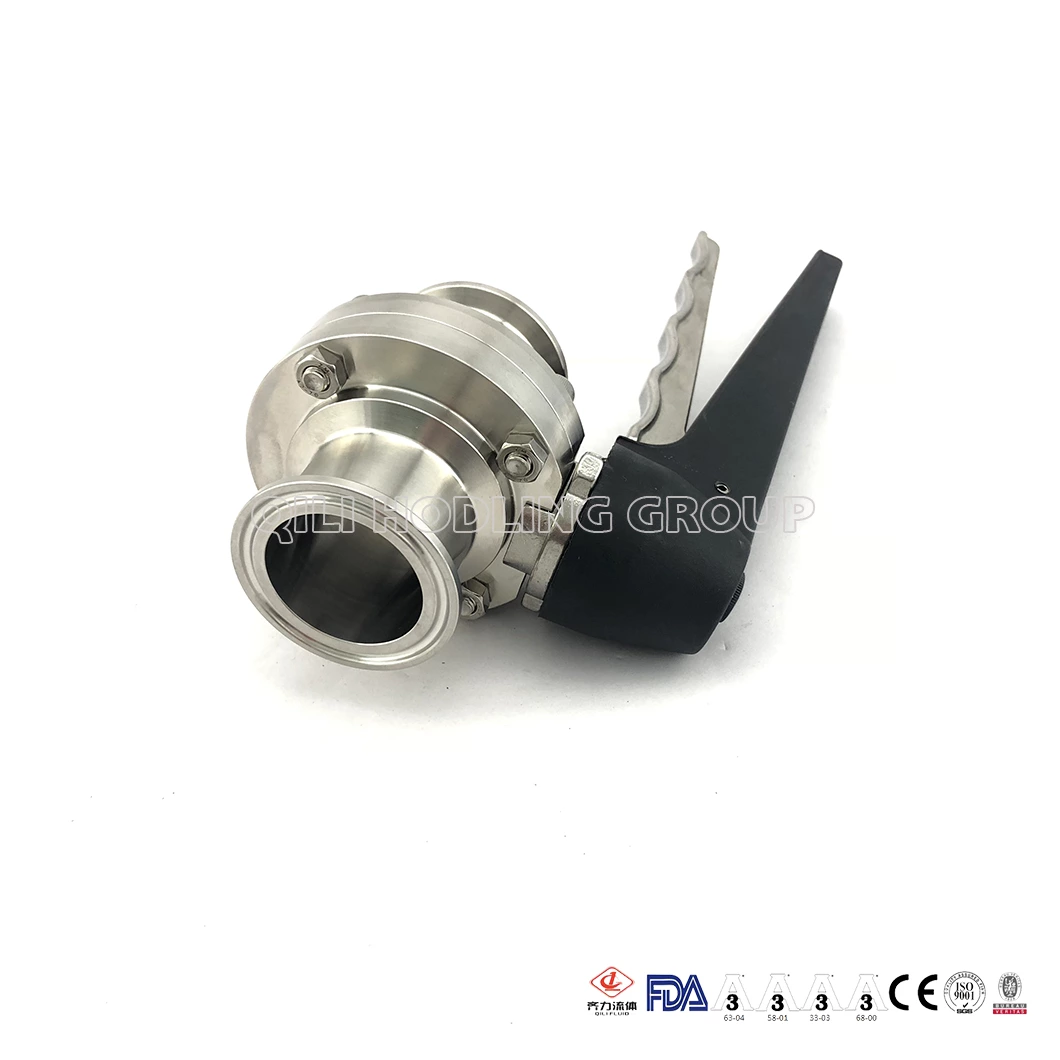

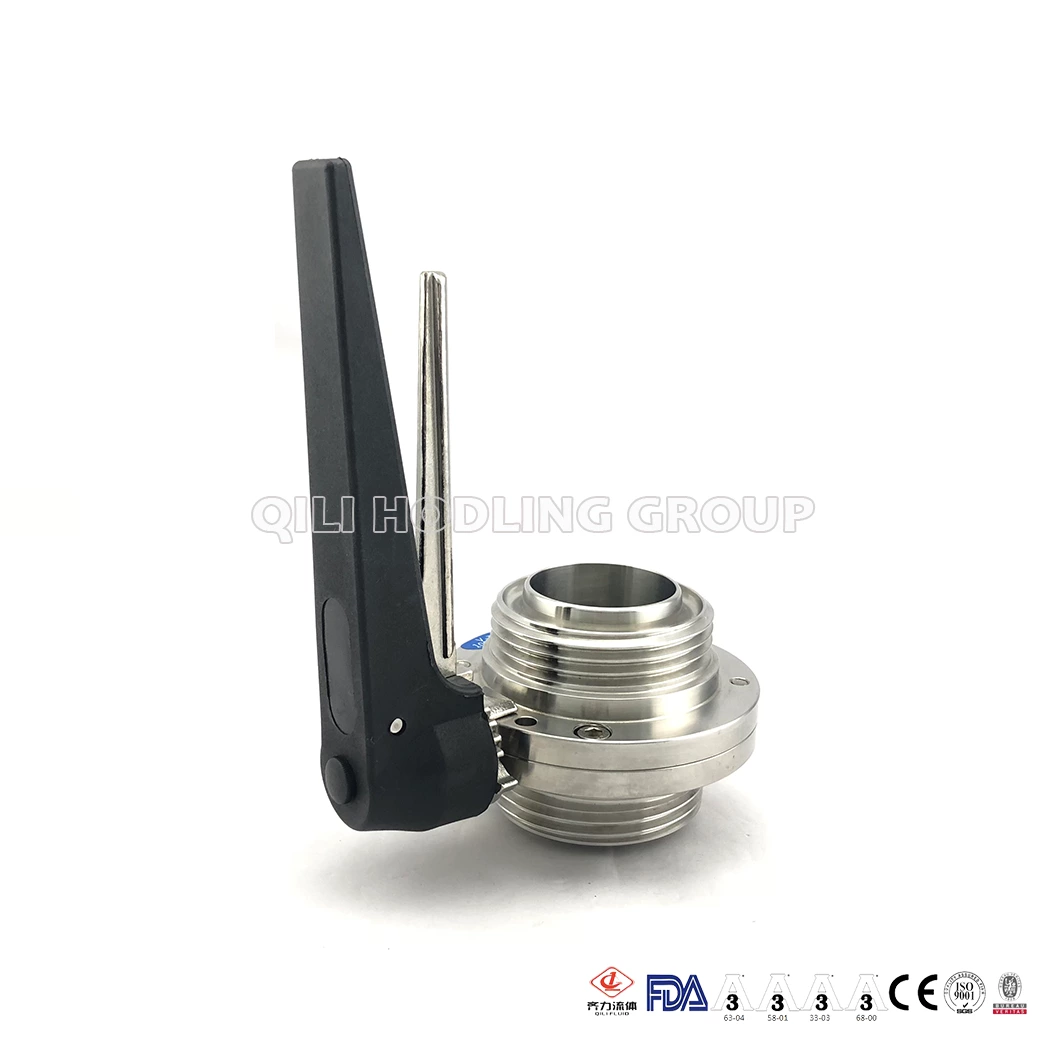

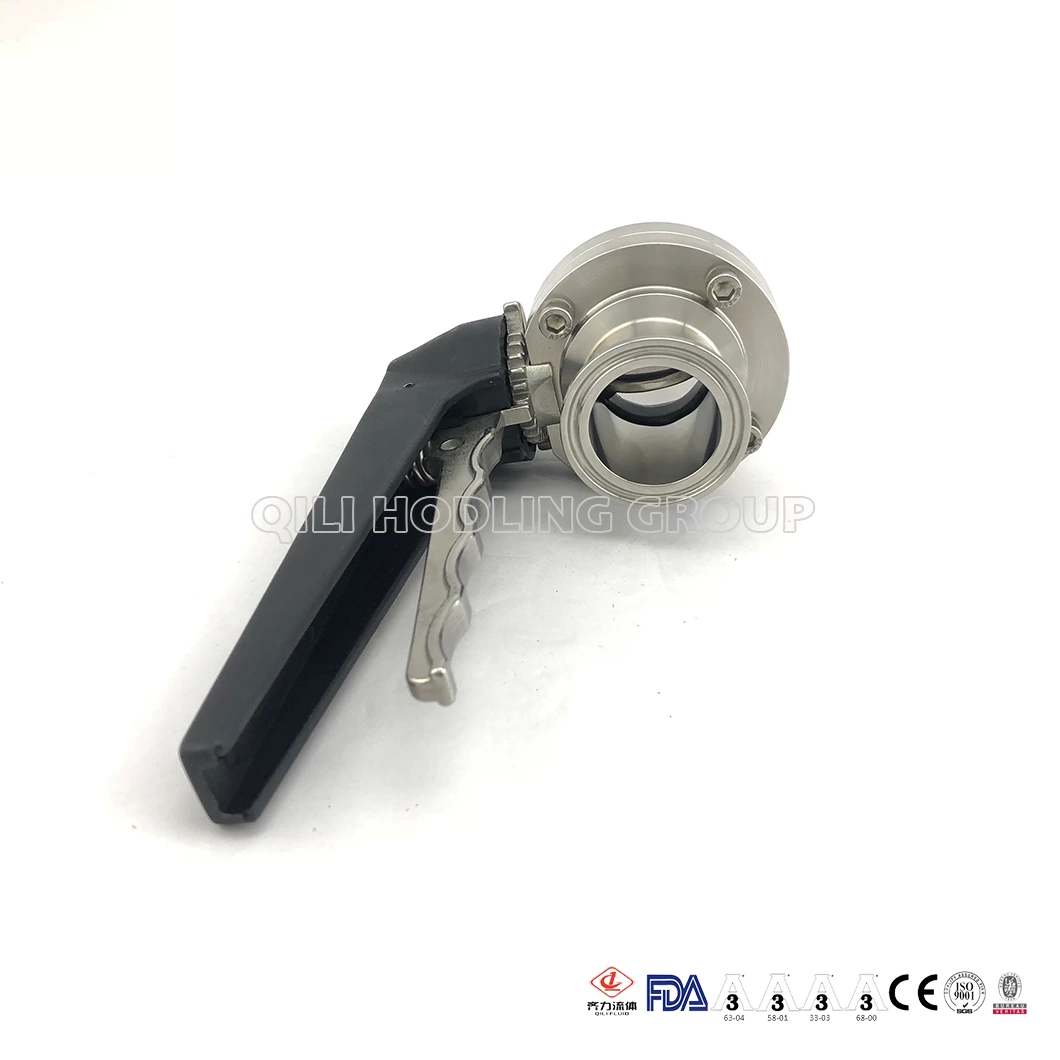

Factory Price with 3A Standard 304L/316L Stainless Steel Butterfly Valve
Material: forged, 304 or 316L
Size: DN10-DN150
Seal Material: Silicone for Germany imports
We can supply welding butterfly valve, thread butterfly valve, clamp butterfly valve, flange butterfly val
- Material:
- SS304,SS316L
- Standard:
- SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
- Working Temperature:
- VMQ（-50 to 180℃） EPDM（-20 to 135℃） FPM（-30 to 230℃）
- Application:
- Beer, Dairy, Beverage, Pharmacy, Cosmetics,
- Connection ways:
- Weld, flange, thread/union, clamped
- Size:
- 1/2"-6"
- Color:
- Blue , black
- Sales Models:
- Wholesale and Retail
- Surface Treatment:
- inner（0.4-0.8µm） outer（0.8-1.6µm）
- Pressure Value:
- 0-10bar
- MOQ:
- 1pcs
- Seal Material:
- VMQ, EPDM，CMQ,FPM
- Transport Package:
- cartons
Details
- Material: forged, 304 or 316L
- Size: 1/2"-6"
- Seal Material: Silicone for Germany imports
- Handle:Round Pull Handle
- Body Material:Forged 304(1.4301) or 316L(1.4404) By CNC machine
- Disk Material:Forged 304(1.4301) or 316L(1.4404) By CNC machine
- Handle Material:304(1.4301)
- Seal Material:Silicone, EPDM,Viton and NBR is available.
- Standard: Silicone for Germany imports
- End Standed:DIN,SMA,3A,BS,IDF,RJT..etc.
- End Size:DN10-DN150 or 1/2"-6"
- Working pressure:-0.9 to 20 Bar for forged body
- Working temperature:-10 ℃ up to 150 ℃

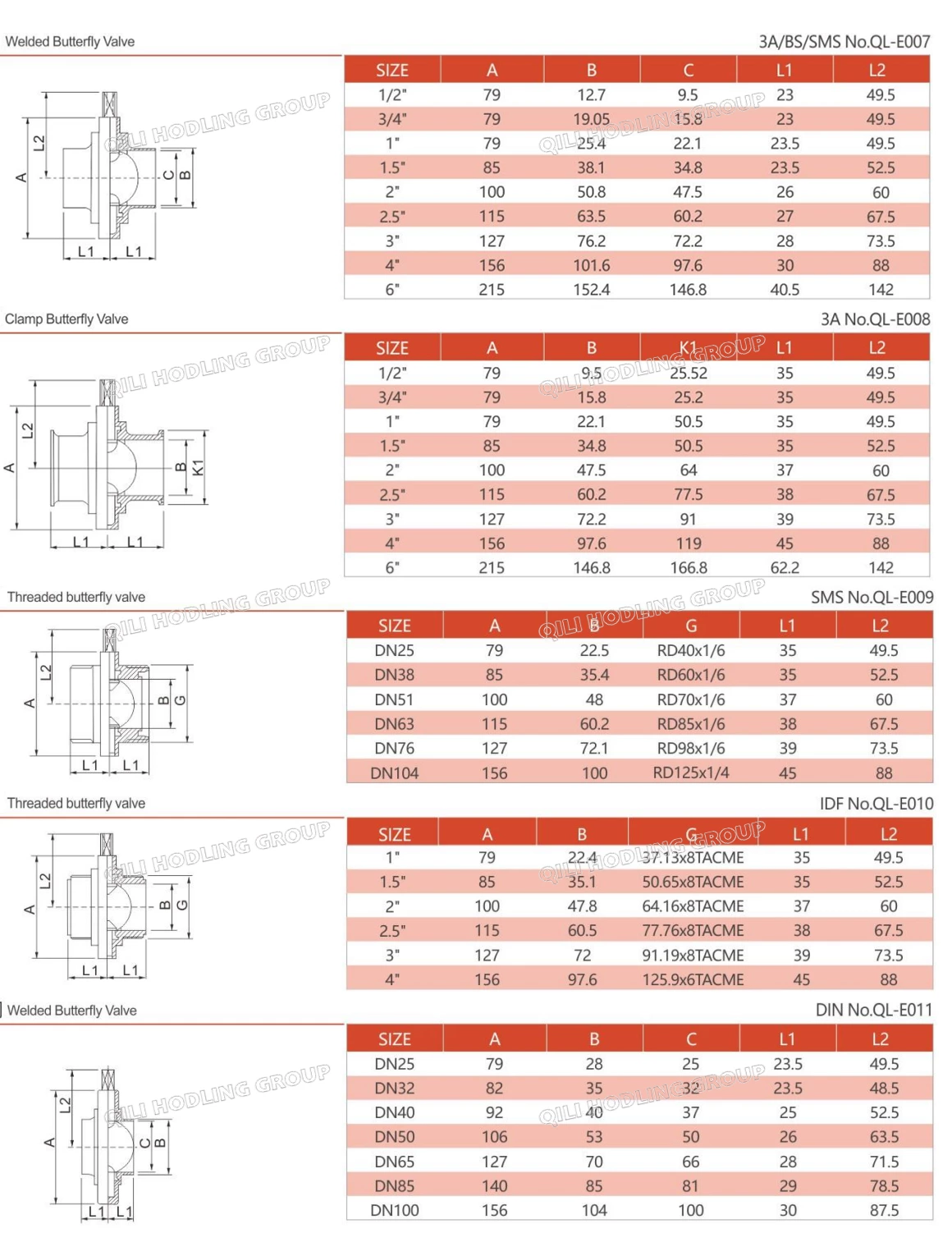

Drawings
