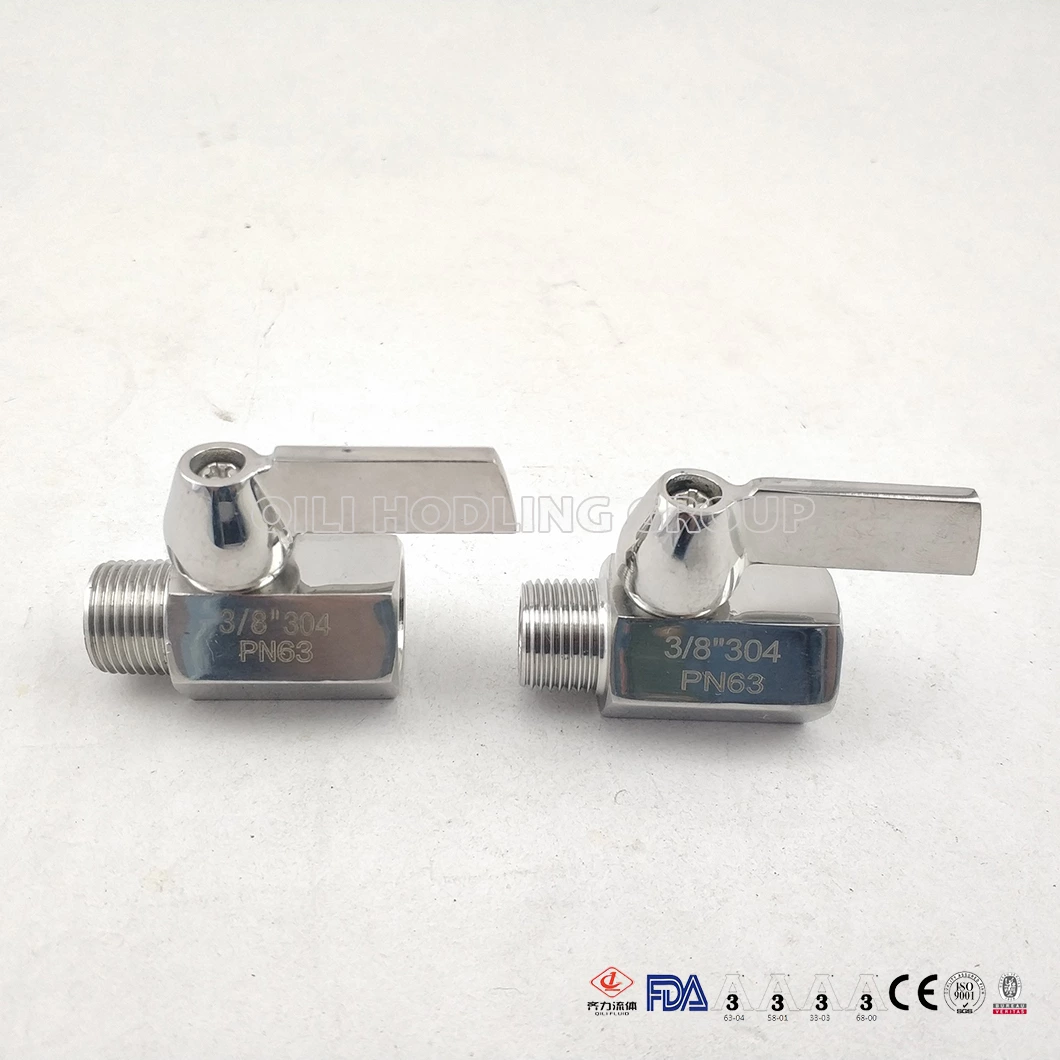

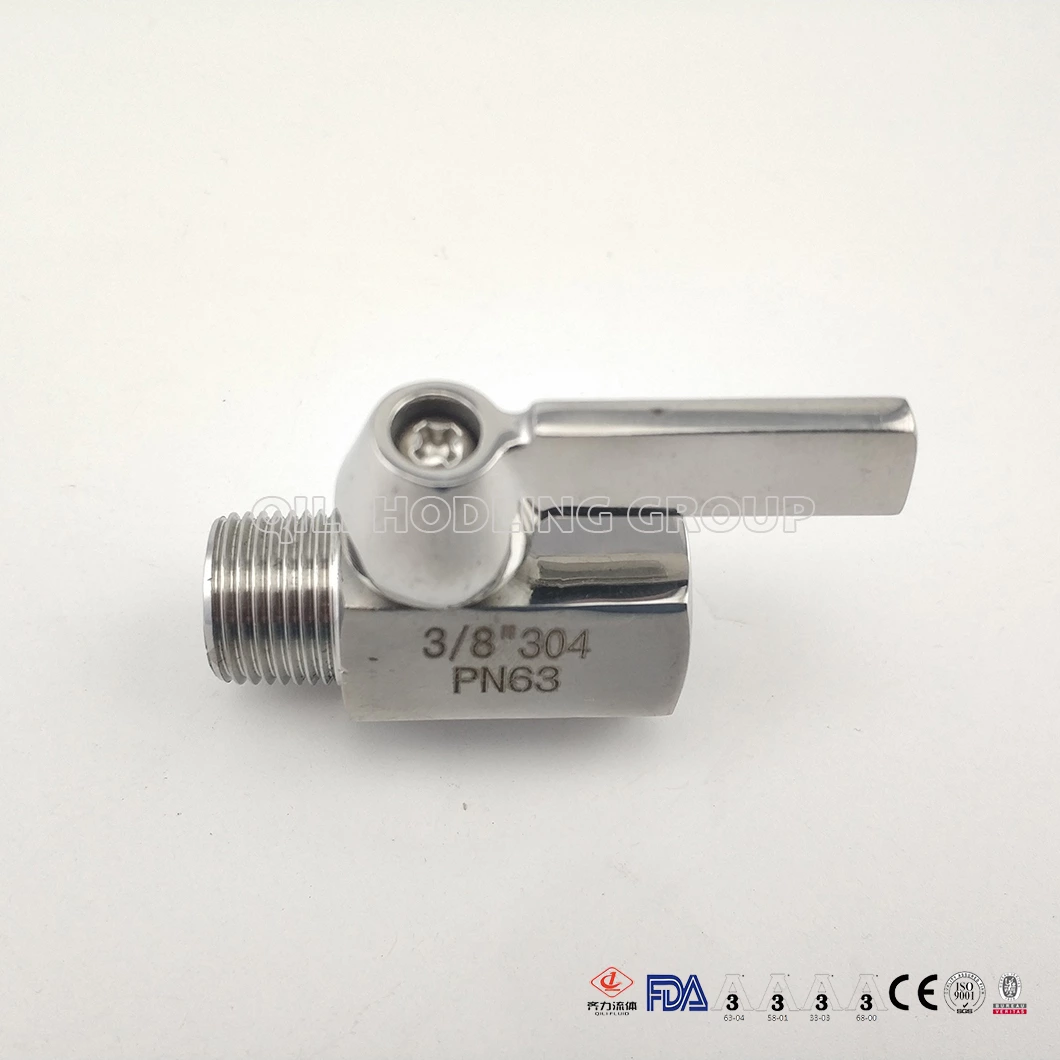

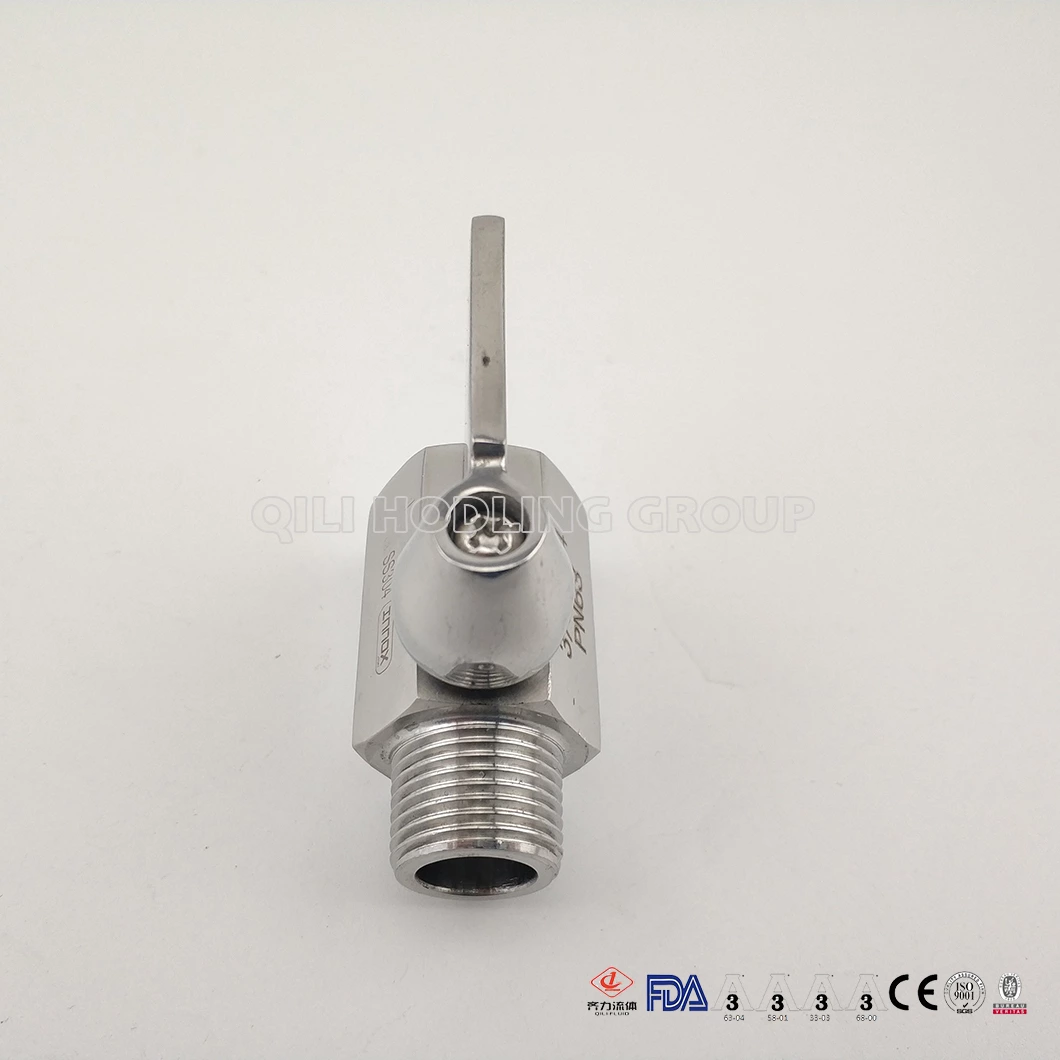

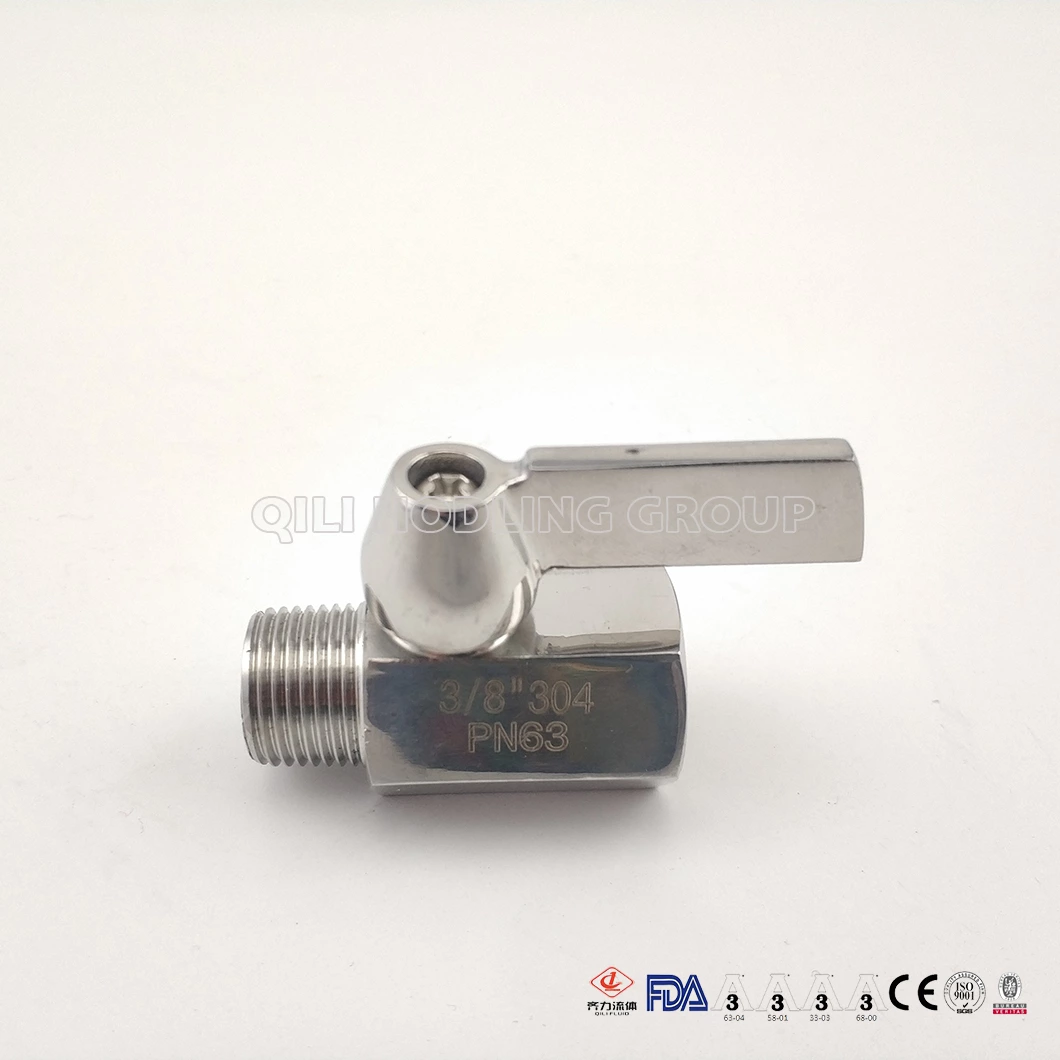

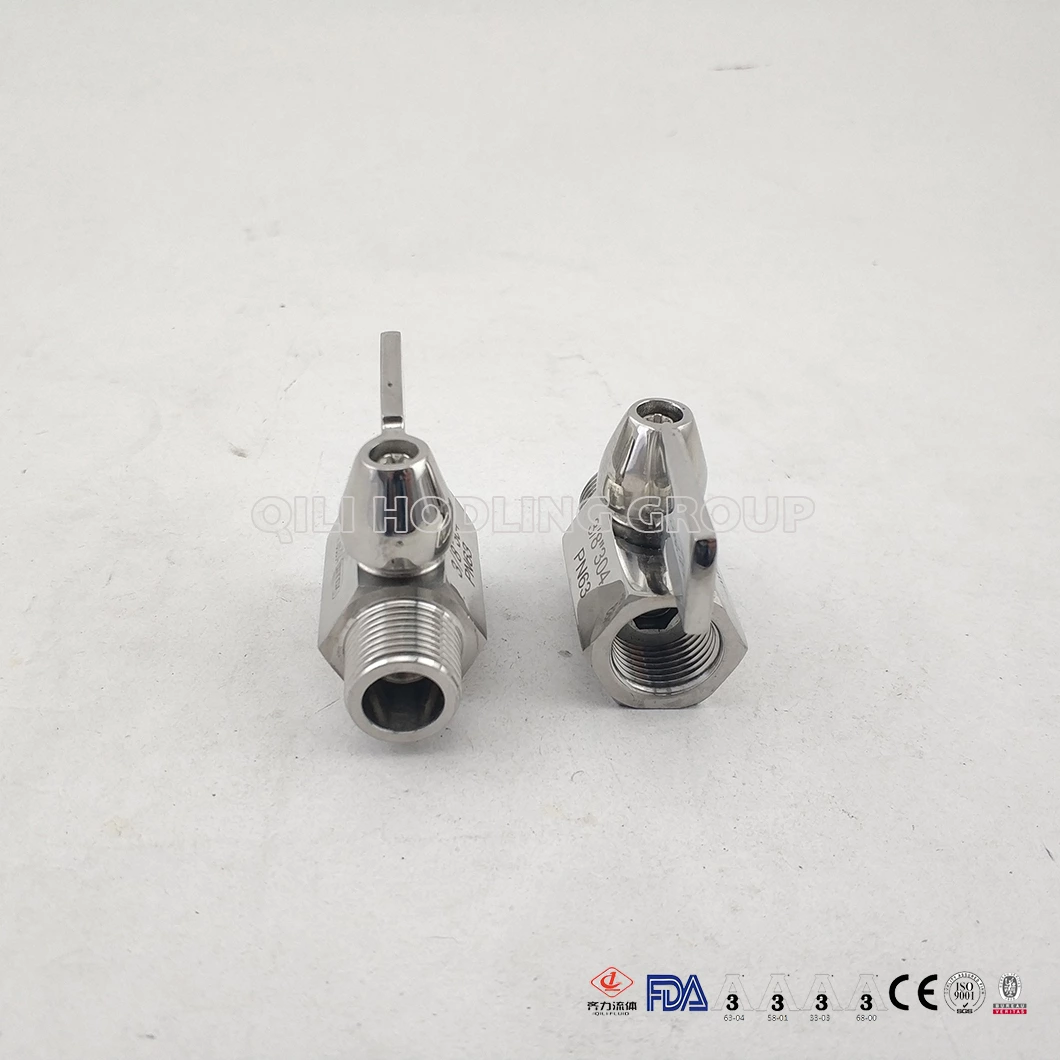

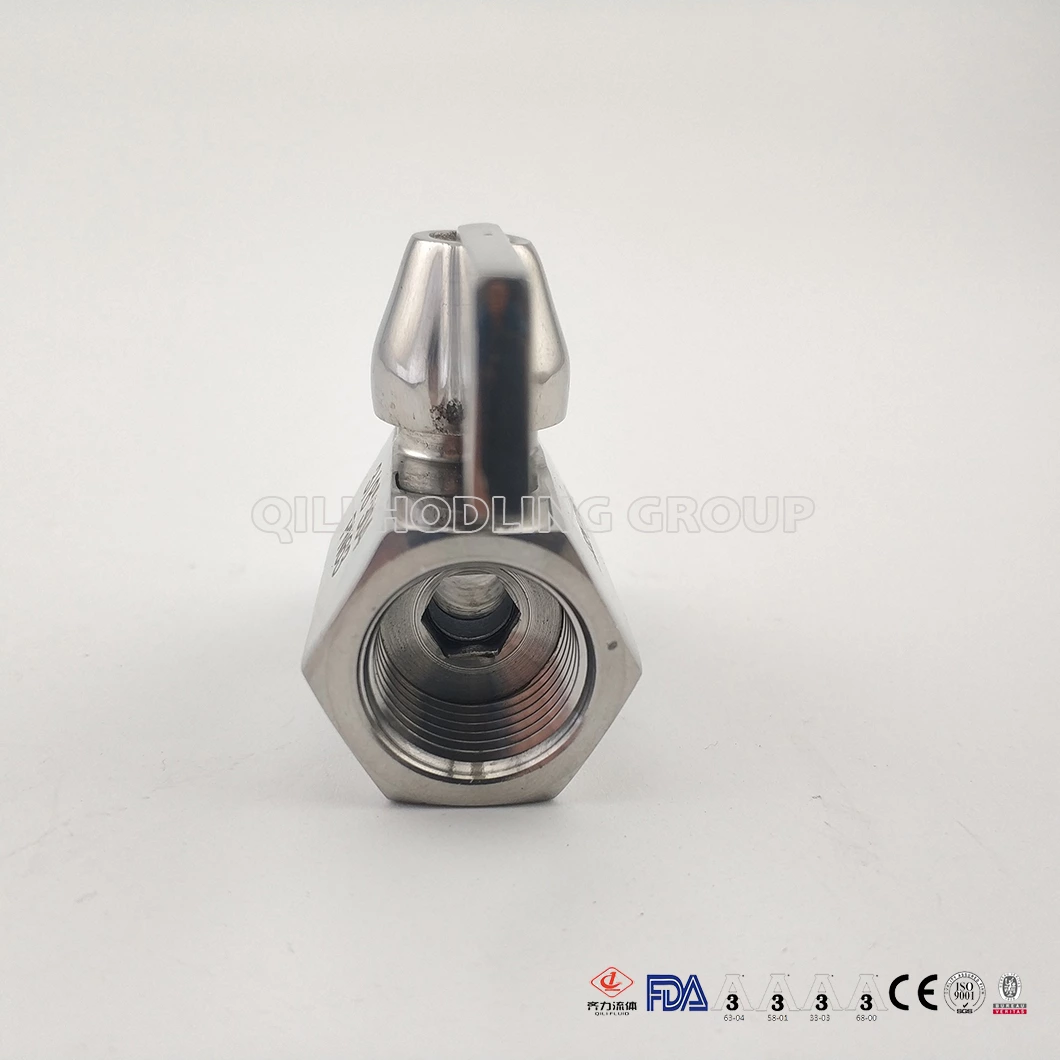

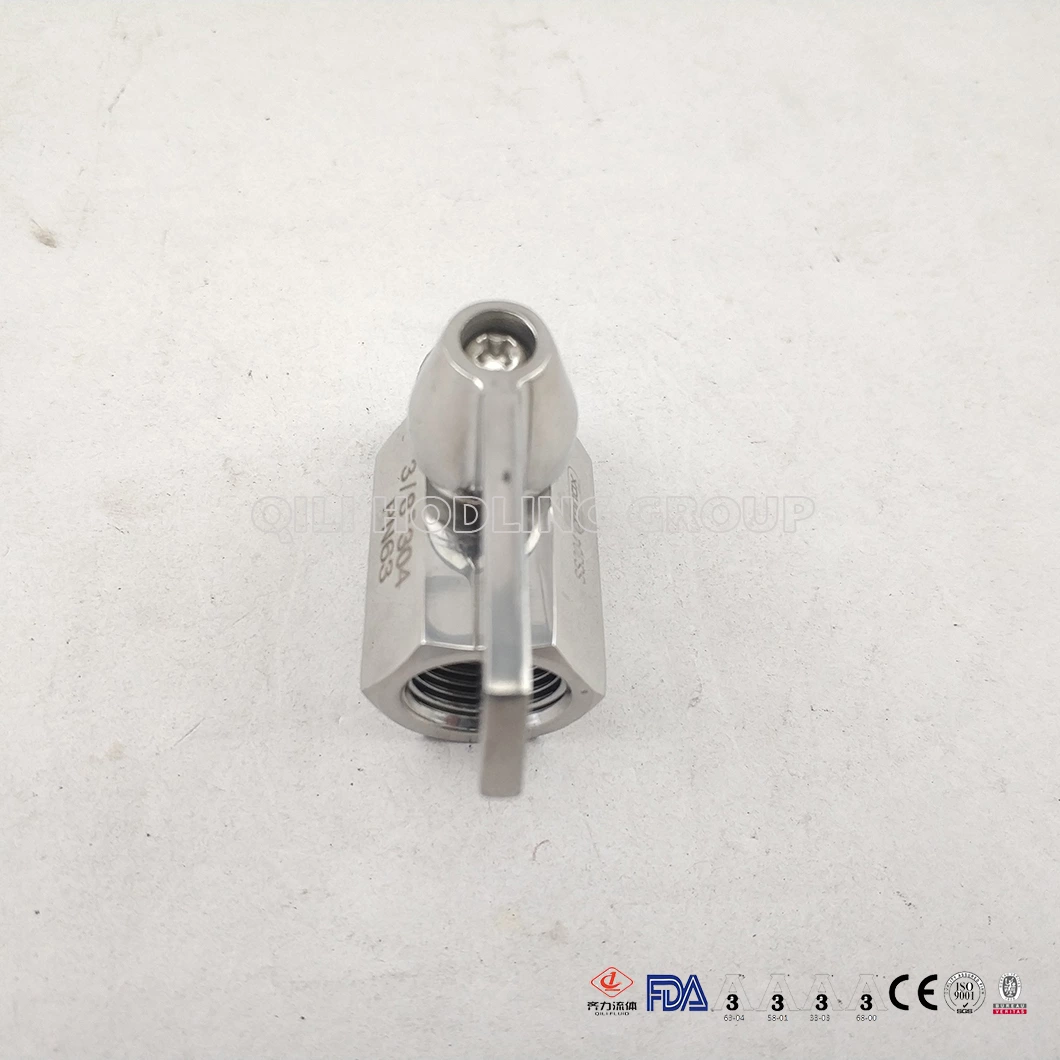

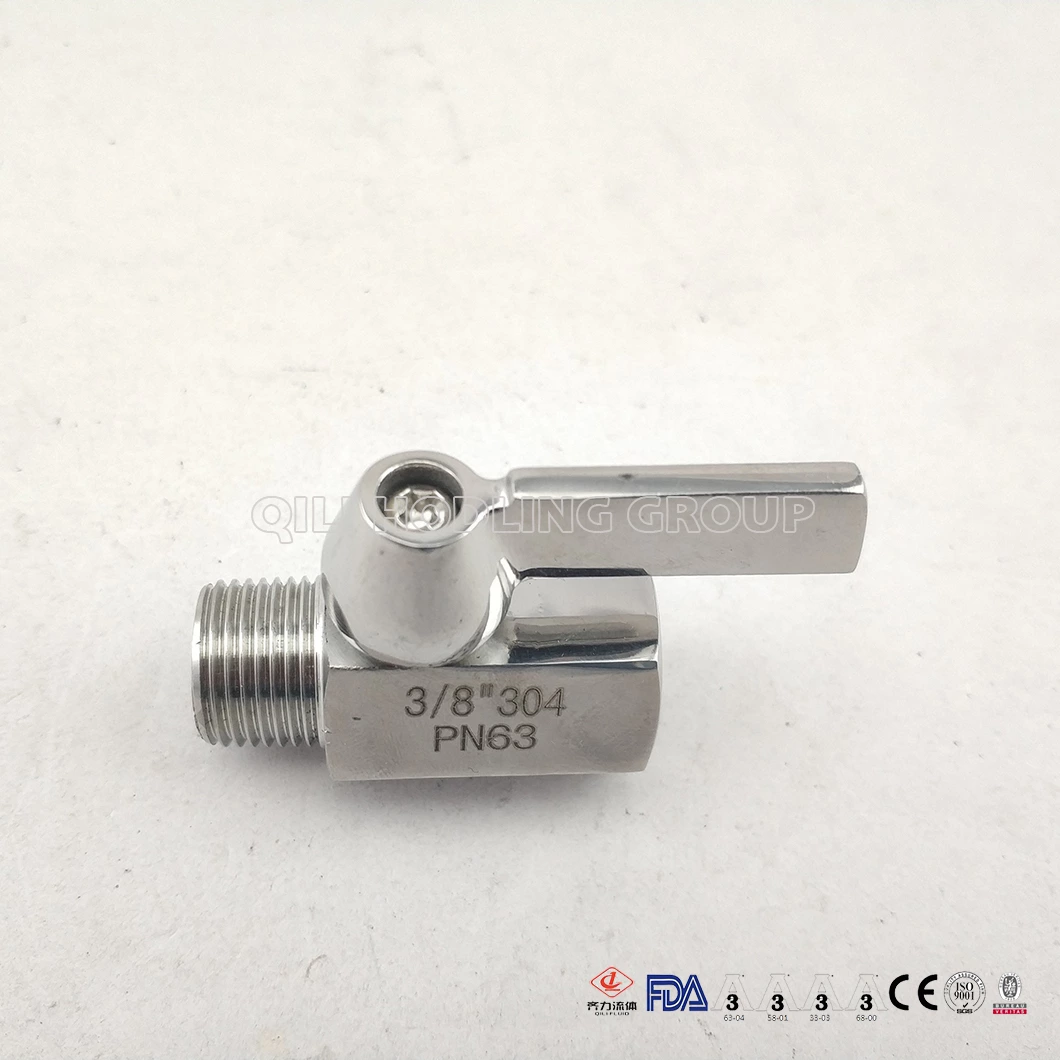

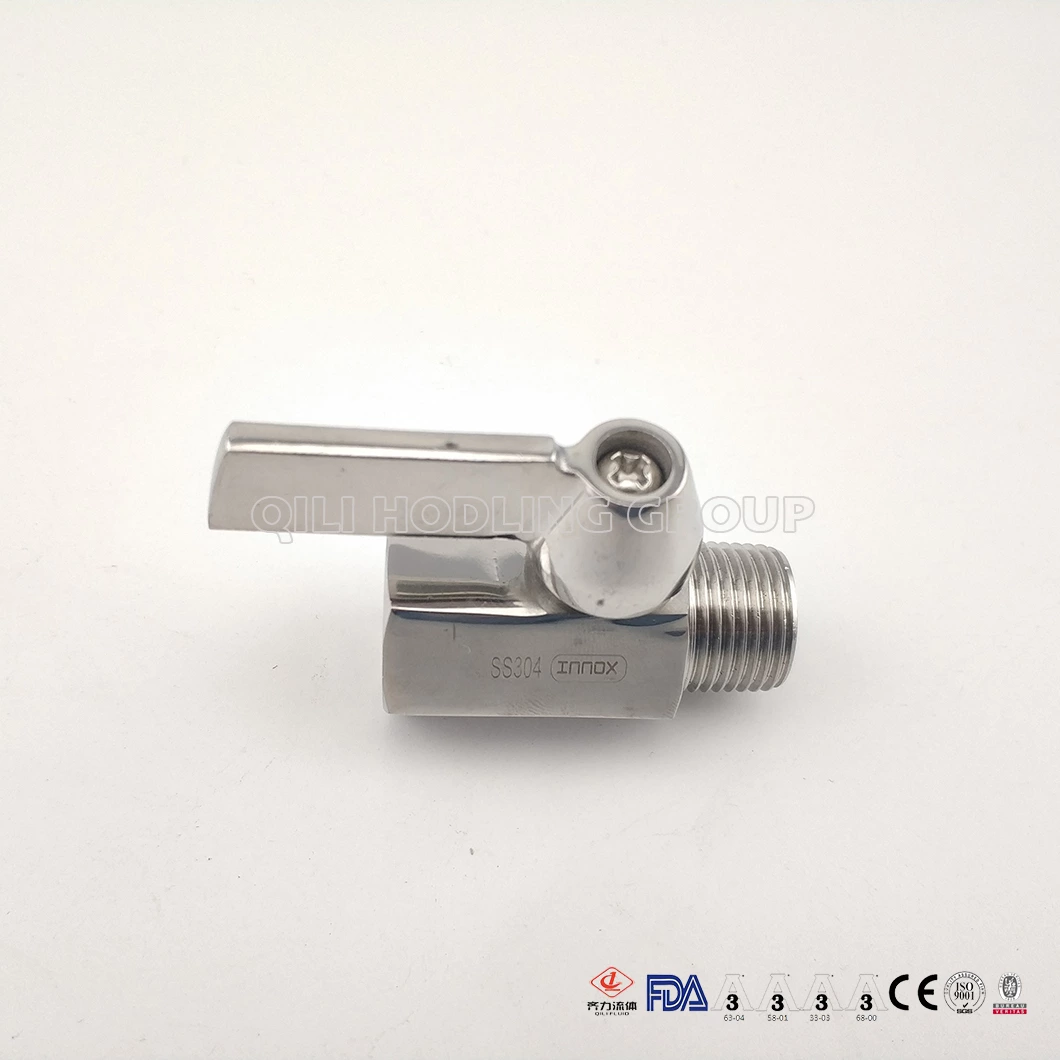

Stainless Steel One-Piece Female Thread Ball Valve
Stainless Steel One-Piece Female Thread Ball Valve is widely applied to pipeline and equipment control. It is widely used in brewing Industry.
Features
1. Blow-out Proof Stem
2. Investment Casting Body
3. Pressure Balance Hole in Ball Slot
4. Anti-Static Device Upon Request
5. Various Connection End Standard Available
- Model:
- One-Piece Female Thread Ball Valve
- Material:
- 304/316/304L/316L/WCB/CF8/CF8M/CF3/CF3M
- Standard:
- CE, ISO9001, FDA, API, DNV
- Working Temperature:
- - 20° C to 180° C
- Application:
- Water, Oil, Air and Some Corrosive Liquid
- Size:
- 1/4" To 8"
- Connection Type:
- threaded
- Sales Models:
- wholesale or retail
- Pressure Value:
- 1000WOG/1000PSI, 1.6-6.4Mpa
- Seal Material:
- PTFE, RPTFE (15% Glass Fiber), RPTFE (25% Carbon Fiber), PPL etc
- Transport Package:
- cartons
Details
- Blow-out Proof Stem
- Investment Casting Body
- Pressure Balance Hole in Ball Slot
- Anti-Static Device Upon Request
- Various Connection End Standard Available
Specifications
- Size: 1/2"-6",larger size can be customized
- Material: 304/316/304L/316L/WCB/CF8/CF8M/CF3/CF3M
- Seat Material: PTFE, RPTFE (15% Glass Fiber), RPTFE (25% Carbon Fiber), PPL etc
- Pressure: 1000WOG/1000PSI, 1.6-6.4Mpa
- Medium Temp.: -20° C~+180° C
- Ambient Temp.: -20° C~+60° C
- Availably Connection: NPT, BSP, BSPT, DIN259/2999
- Port: Full Port
- Handle: Lever Handle
- Operation: Manual
- Suitable Medium: Water, Oil, Air and Some Corrosive Liquid
- Design Standard: ASME B16.34
- Inspection and Testing: API 598
