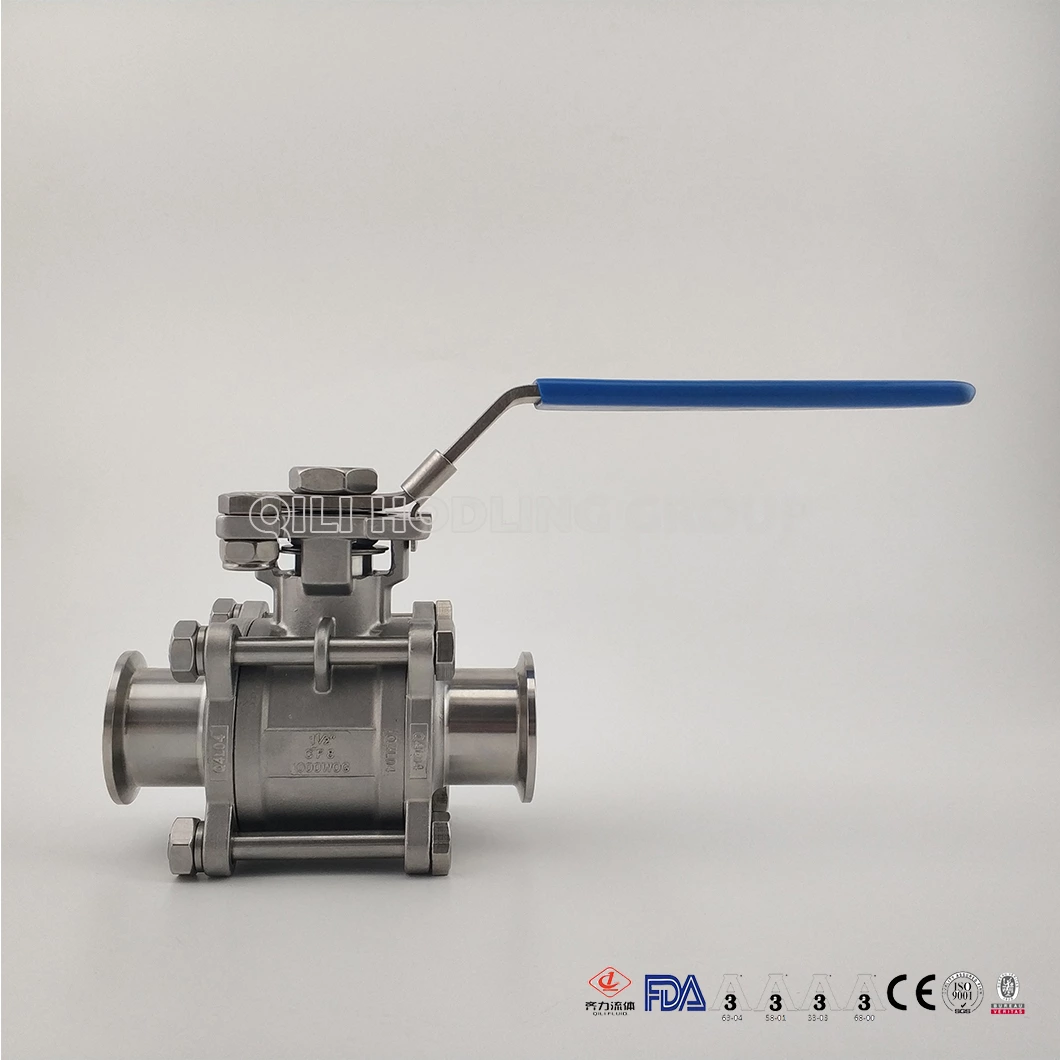

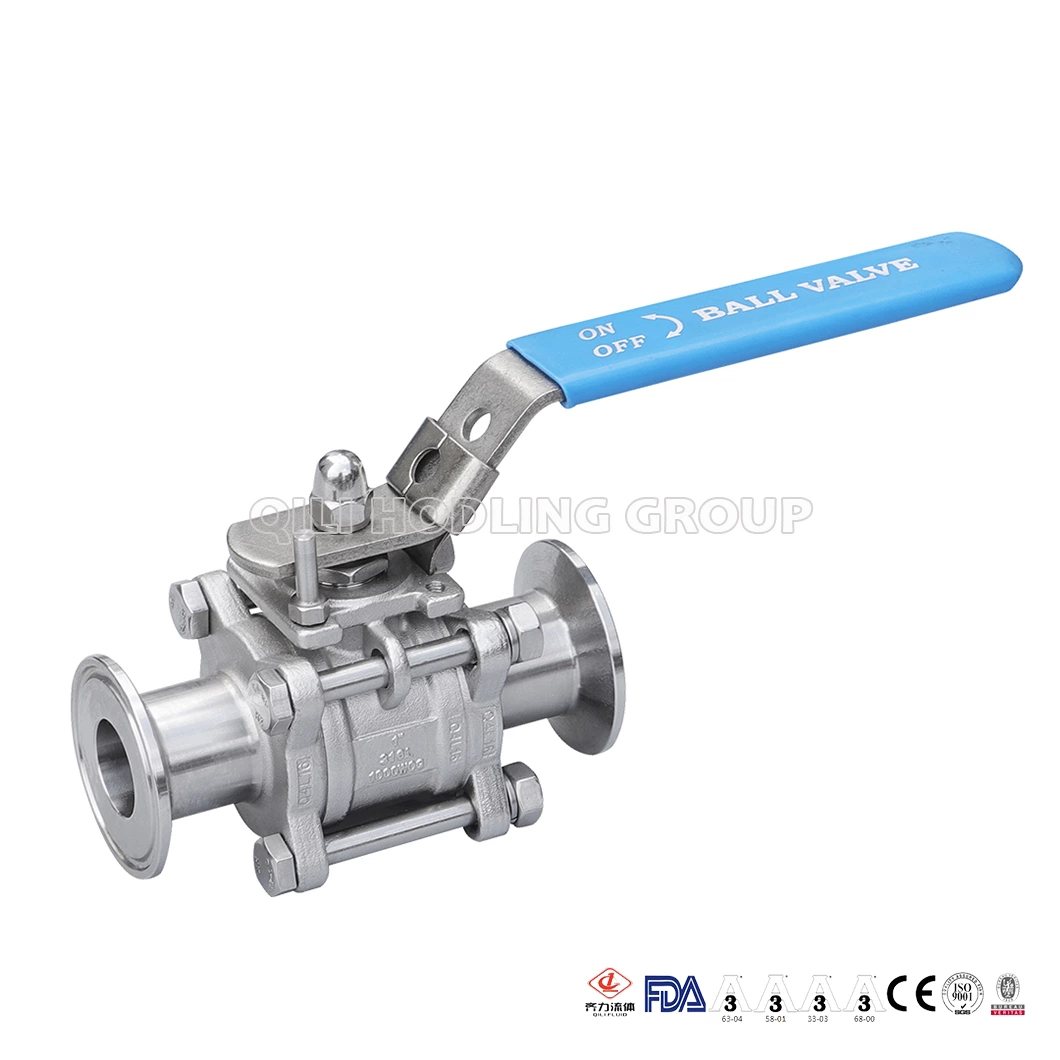

Sanitary Stainless Steel Ball Valves
The 3 Piece Sanitary Tube Bore Ball Valve Full Port is our strong product. We produce it many years, and export them to many countries with high praises and repurchasing. - Wenzhou Qili Fluid Equipment Co.,ltd.
- Material:
- SS304 /SS316L
- Standard:
- 3A,SMS,ISO,RJT,DIN,IDF
- Working Temperature:
- -20 to 150℃
- Connection ways:
- welde,clamp, thread
- Size:
- 1/2" -6", DN15-DN100
- Sales Models:
- wholesale or retail
- Valve Seal:
- encapsulated
- Surface Treatment:
- Ra 16~32µin (0.4 ~ 0.8µm) electropolish available
- Pressure Value:
- 10 bar(140psi) DN25~100; 8 bar(120psi)DN125~150
- MOQ:
- 1PC
- Seal Material:
- EPDM,VMQ(Silicone),NBR(Nitrile),VITON,all meet FDA standard
- Transport Package:
- cartons

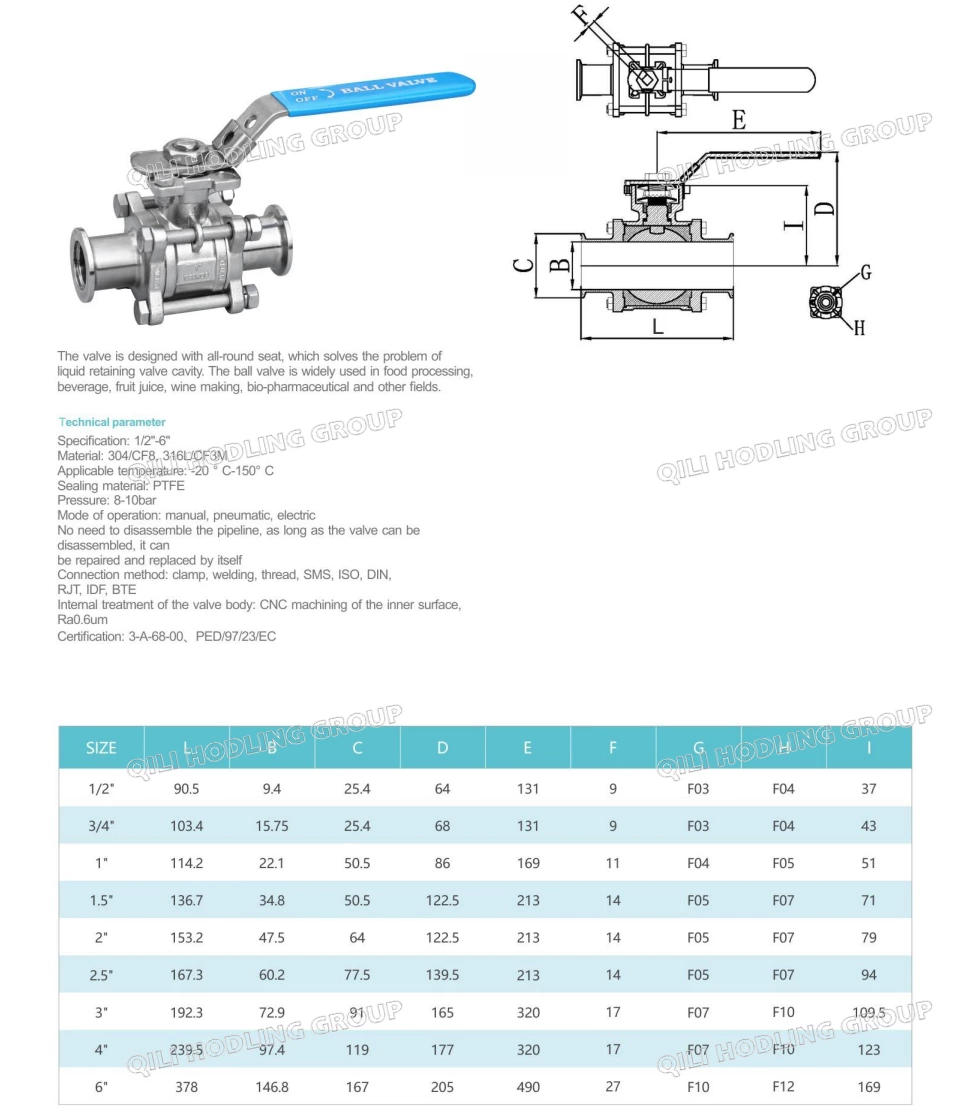

Drawings
Details
| Description | Sanitary Stainless Steel Ball Valves |
| Body Material | SS304; SS316L(Forged, 1.4301/1.4404) Customer’s requests available |
| Actuator Material | SS304 |
| Seal Material | EPDM,VMQ(Silicone),NBR(Nitrile),VITON,all meet FDA standard |
| Temperature Range | 15°F to 200°F(-9.4°C to 93°C) EPDM |
| Max. Pressure | 10 bar(140psi) DN25~100; 8 bar(120psi)DN125~150 |
| Finishing | Ra 16~32µin (0.4 ~ 0.8µm) electropolish available |
| Port Size | 1/2”-12”, large size can be customize |
| Connection | Tri-clamp ferrule; Threaded; Welded |
| Connection Standard | 3A, SMS, ASME BPE, ISO, DIN, BS |
| Features | 100%hydraulic tested/100% inspected |
| Specifications | Can see our products catalogues |
| Application | Food process, Milk process, Beer brewage, Bio-pharmacy, etc. |
| Packaging | Carton packaging. Wooden case packaging. |
