hot sale Item High Quality Sanitary encapsulated Ball Valve Manufacturer 304/316L with ISO Standard
- Material:
- SS304 /SS316L
- Standard:
- 3A,SMS,ISO,RJT,DIN,IDF
- Working Temperature:
- -20 to 150℃
- Connection ways:
- welde,clamp, thread
- Size:
- 1/2" -6", DN15-DN100
- Color:
- Blue , black
- Sales Models:
- Wholesale and Retail
- Valve Seal:
- encapsulated
- Surface Treatment:
- Ra 16~32µin (0.4 ~ 0.8µm) electropolish available
- Pressure Value:
- 10 bar(140psi) DN25~100; 8 bar(120psi)DN125~150
- MOQ:
- 1pcs
- Seal Material:
- EPDM,VMQ(Silicone),NBR(Nitrile),VITON,all meet FDA standard
- Transport Package:
- cartons
Details
- Three piece ball valve with lock(3PC ball valve)
- Technology: Casting
- Connection type: Female threaded
- Size: From 1/4" to 4"
- Main material: CF8\CF8M \CF3, CF3M, WCB
- Working pressure: 1000 PSI WOG
- Temperature Range: -40º C~180º C~280º C
- Suitable medium: Water, oil, steam, nitric, acid, acetate acid and some corrosive liquids
- Thread standard: G. NPT, BSPT. BSP. DIN259/2999

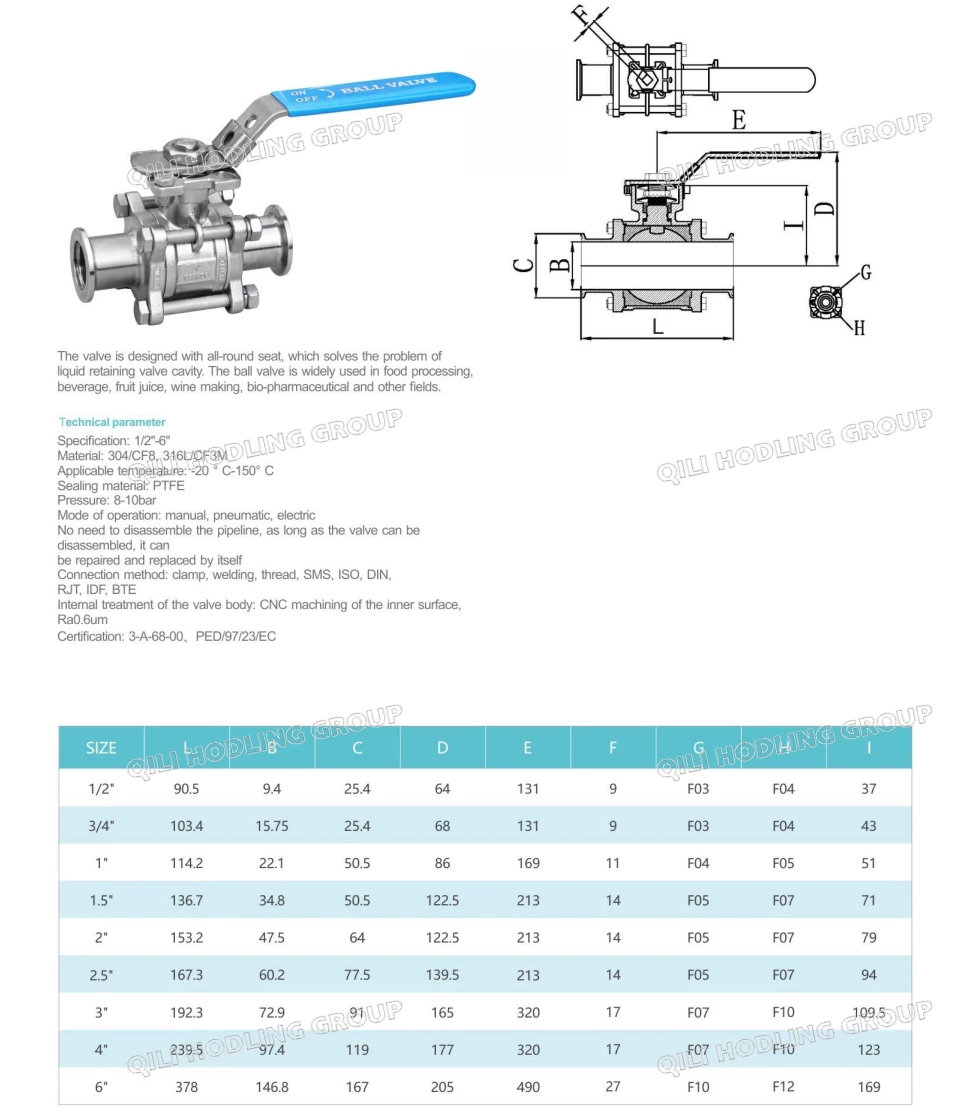

Drawings
Application
Dairy products, beer, food, beverage, pharmacy, and bioengineering industry, etc.
Our products adopt production craft and technology from EU, and meanwhile import foreign advanced numerically controlled machine tools and other process/inspection units. Our company specializes in producing sanitary stainless steel fluid equipment, valves and pipeline connection units. All the products are strictly manufactured according to different smoothness, material and sector's standards (such as ISO, DIN, IDF, SMS and 3A) etc. Under the efforts of all scientific research personnel. We are keeping on developing new products. Our products are widely used in the fields of food, pharmaceuticals, dairy, beer, beverage and chemical industry, all the technical aspects have reached the international leading levels and are in conformance with GMP requirements. Large quantities of the products are exported to USA, Europe, Middle East, Southeast of Asian and other countries all over the world.
