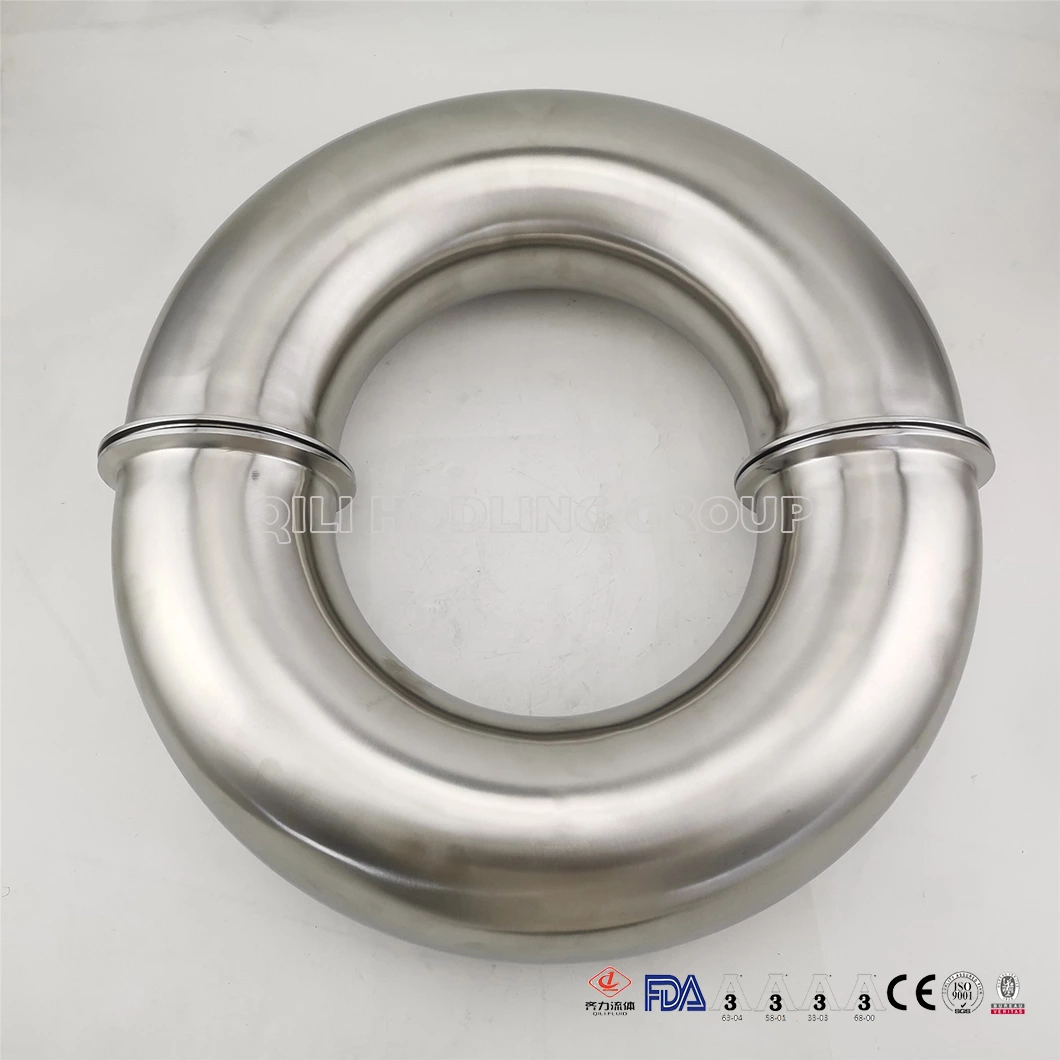

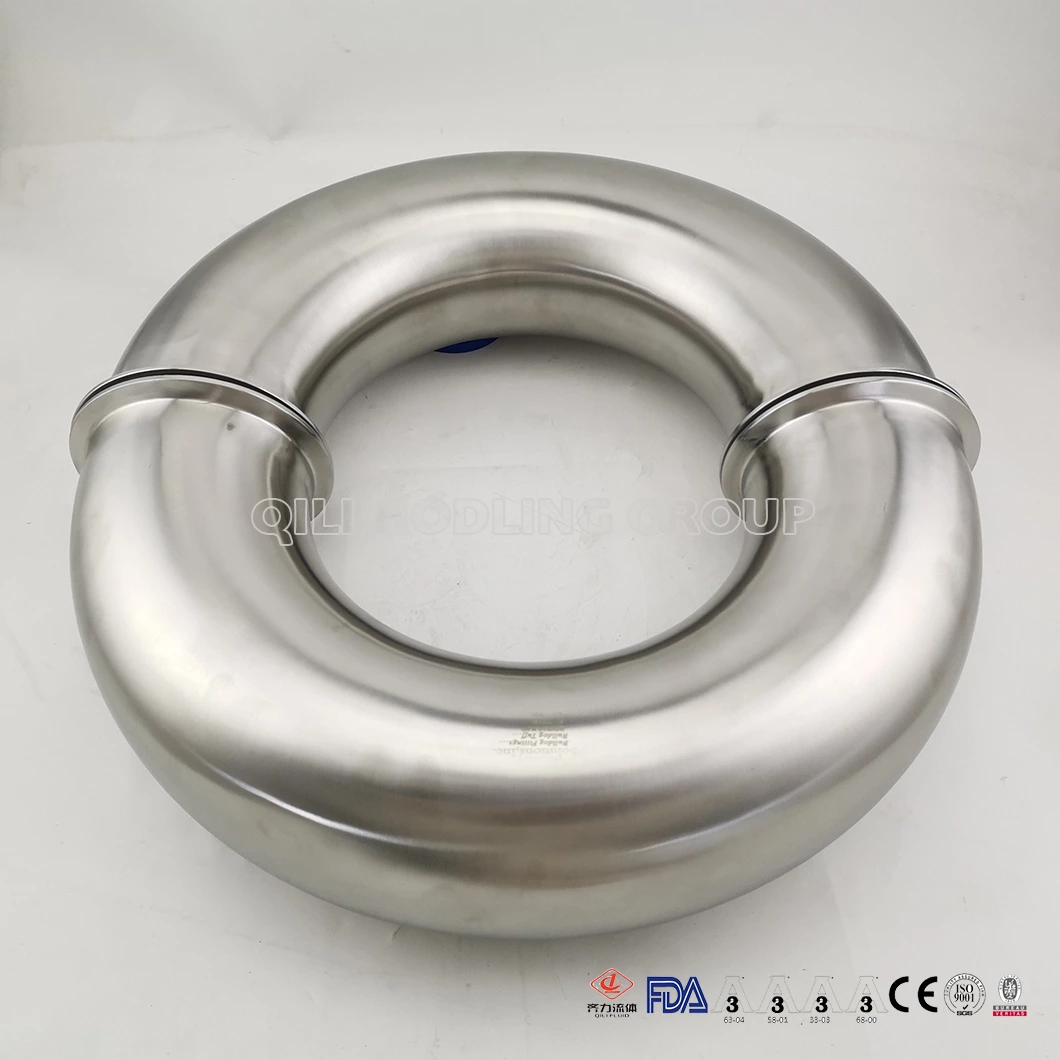

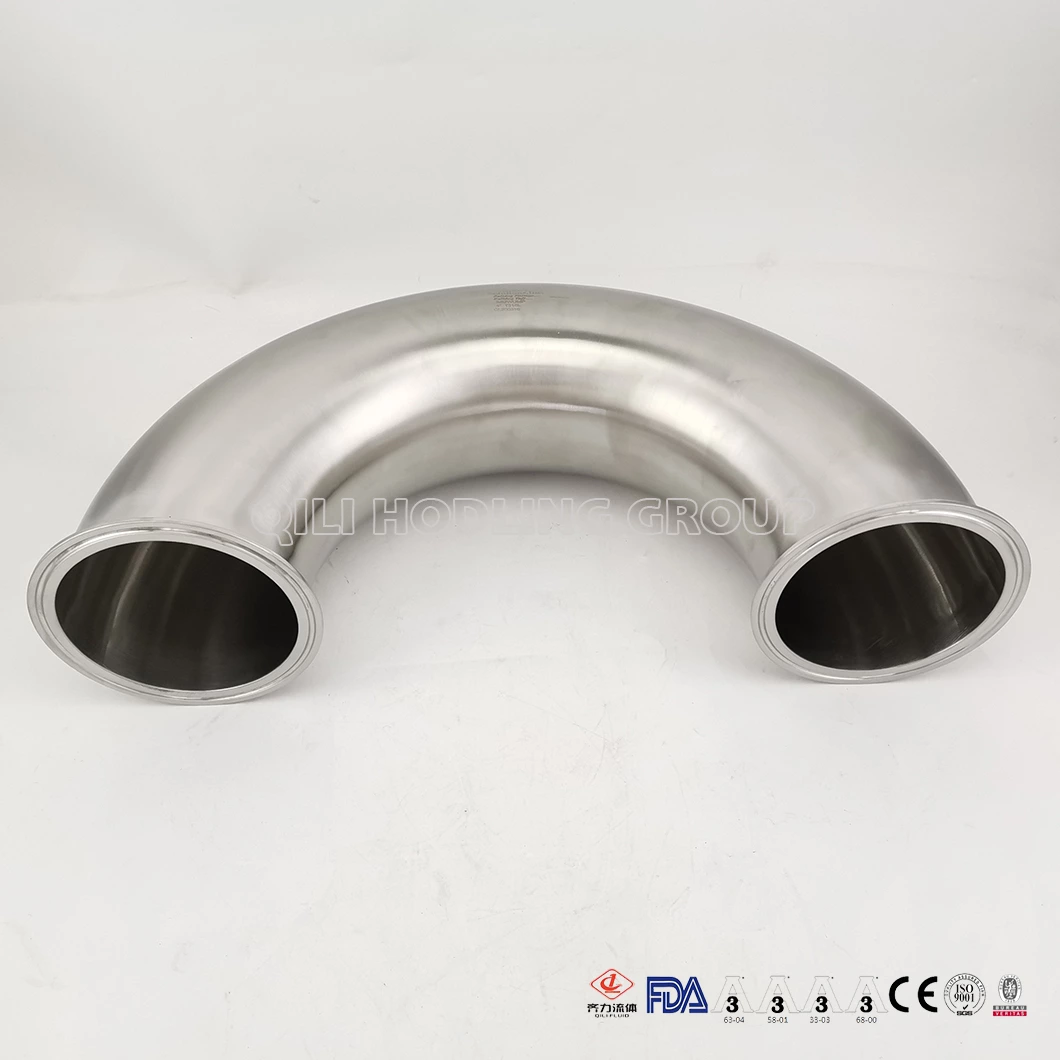

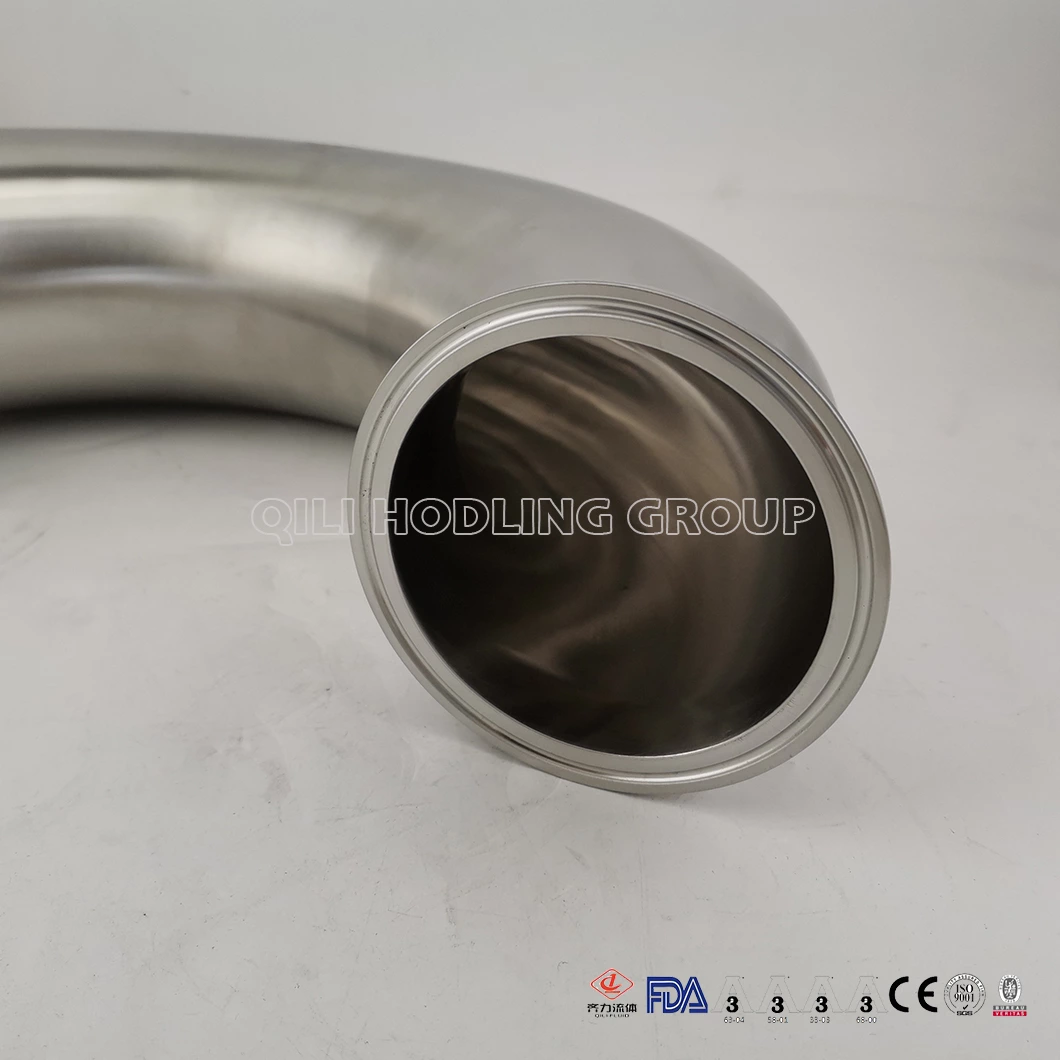

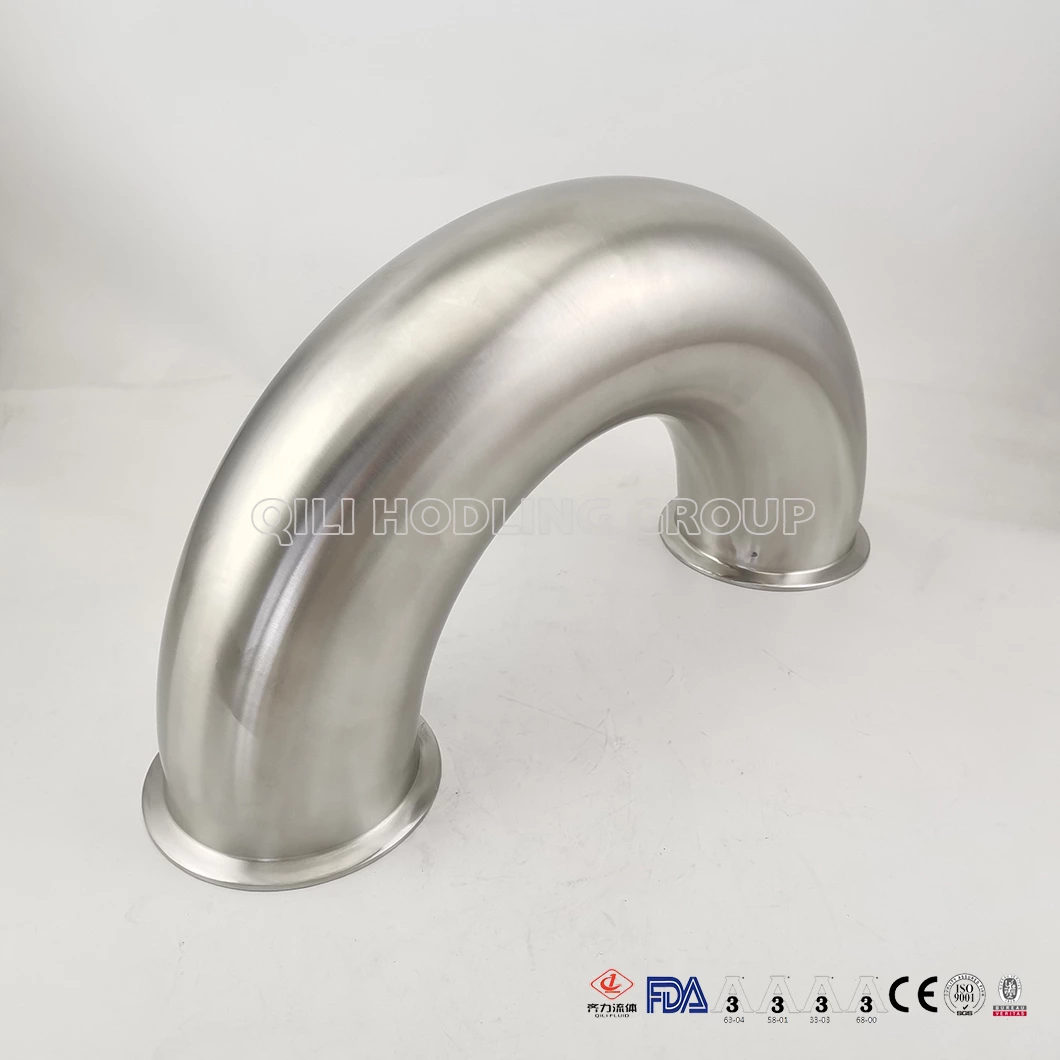

Ss304 Ss316 Food Grade 180° Elbow Clamp End
Sanitary elbow is made by ourselves workshop, from raw materials, pressing shape, polishing, repair shape and annealing process, you can get DIN,ISO,3A,BPE,SMS etc meet international quality standards, choose clamp, weld, etc.connection ways. we can match you with mirror polishing, matte or electrolysis.
- Material:
- BPE SS304 SS316L
- Standard:
- 3A, ISO, SMS, DIN etc all meet FDA test
- Working Temperature:
- -30~200° C
- Application:
- Beverage, dairy, pharmaceutical, biological and other industries
- Delivery Time:
- We have inventory support, usually delivery goods before 10days
- Connection ways:
- Tri clamp, clover, thread, flanged, quick coupling
- Size:
- 1/2'' to 12''
- Sales Models:
- wholesale or retail
- Surface Treatment:
- 0.35Ra or we can according to your request
- Pressure Value:
- 10 bar
- MOQ:
- 1PCS
- Transport Package:
- Standard export woodencase
Details
- Size:Dn15-300 and 1"-12"
- Connection way:Tri clamp,weld,male, flange
- Connection way:Tri clamp,weld,male, flange
- Work Pressure:Mid-Pressure (2.5mpa< Pn <6.4mpa)
- Working Temperature:-20 ~ 135° C
- Medium:Beer, Dairy, Beverage, Pharmacy, Cosmetics
- Polishing :Mirror, matte, Electricity Polishing
- All pipe fittings are made by ourself and certified to ISO9001:2008 standards.

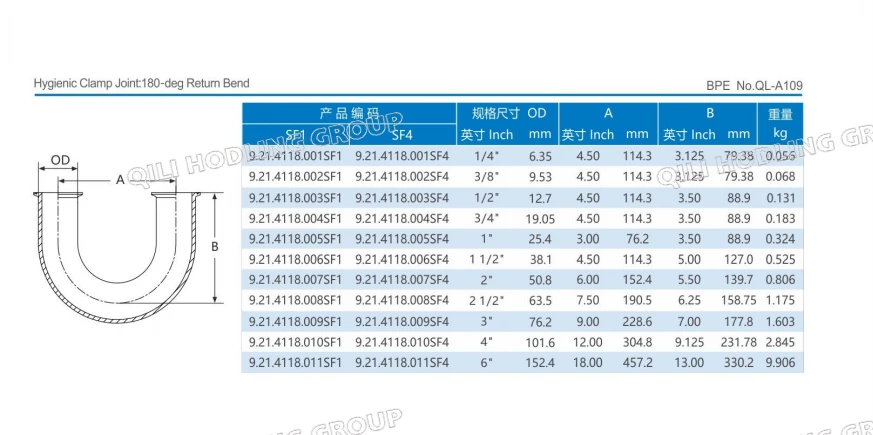

Drawings
Advantage
- Sanitary fittings are manufactured by ourselves, from raw materials, pressing shape, polishing, repair shape and annealing process, We can keep the quality of your satisfacted
- Factory price advantage, you do not haveYou can put your logo on the product
- We can use your company logo
