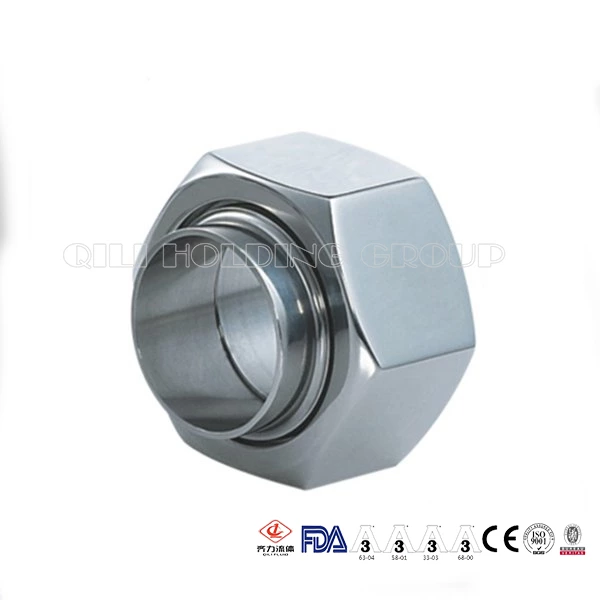

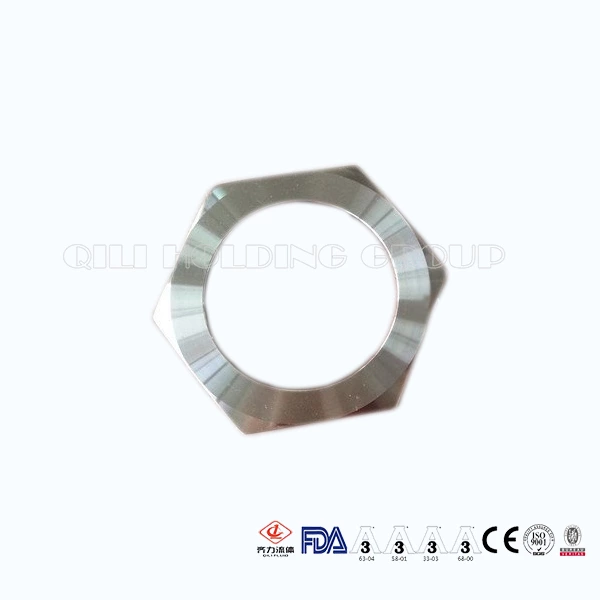

Sanitary Stainless Steel Fitting Hex Union Nut
CONSTRUCTION SPECIFICATIONS:
Standardised accessories with the metal parts manufactured in AISI-304 or AISI-316L stainless steel and the sealing gaskets in NBR, Silicone, Viton, EPDM
- Material:
- Stainless Steel
- Standard:
- 3A, DIN, SMS, ISO, BS
- Working Temperature:
- 20-150℃
- Application:
- Beer, Dairy, Beverage, Pharmacy, Cosmetics
- Delivery Time:
- within15 days
- Connection ways:
- weld
- Size:
- 1/2"-6"
- Type:
- Hex Union Nut
- Surface Treatment:
- 0.4-0.6μm
- Pressure Value:
- 10bar
- Transport Package:
- wooden case
Drawings
Details
- Standardised accessories with the metal parts manufactured in AISI-304 or AISI-316L stainless steel and the sealing gaskets in NBR, Silicone, Viton, EPDM
- Standard dimensions:
- From ND-10 to ND-150 in mm.
- From ND-1/2" to ND-4" in inches.
- Operating temperature:
- -20 centigrade degree( to + 230 centigrade degree( depending on the gasket used )
We provide complete standard of sanitary unions in different standard.Including SMS sanitary unions, RJT sanitary unions, IDF sanitary unions, DIN sanitary unions, DIN 11864 aseptic unions, 3A sanitary unions, DS sanitary unions.
