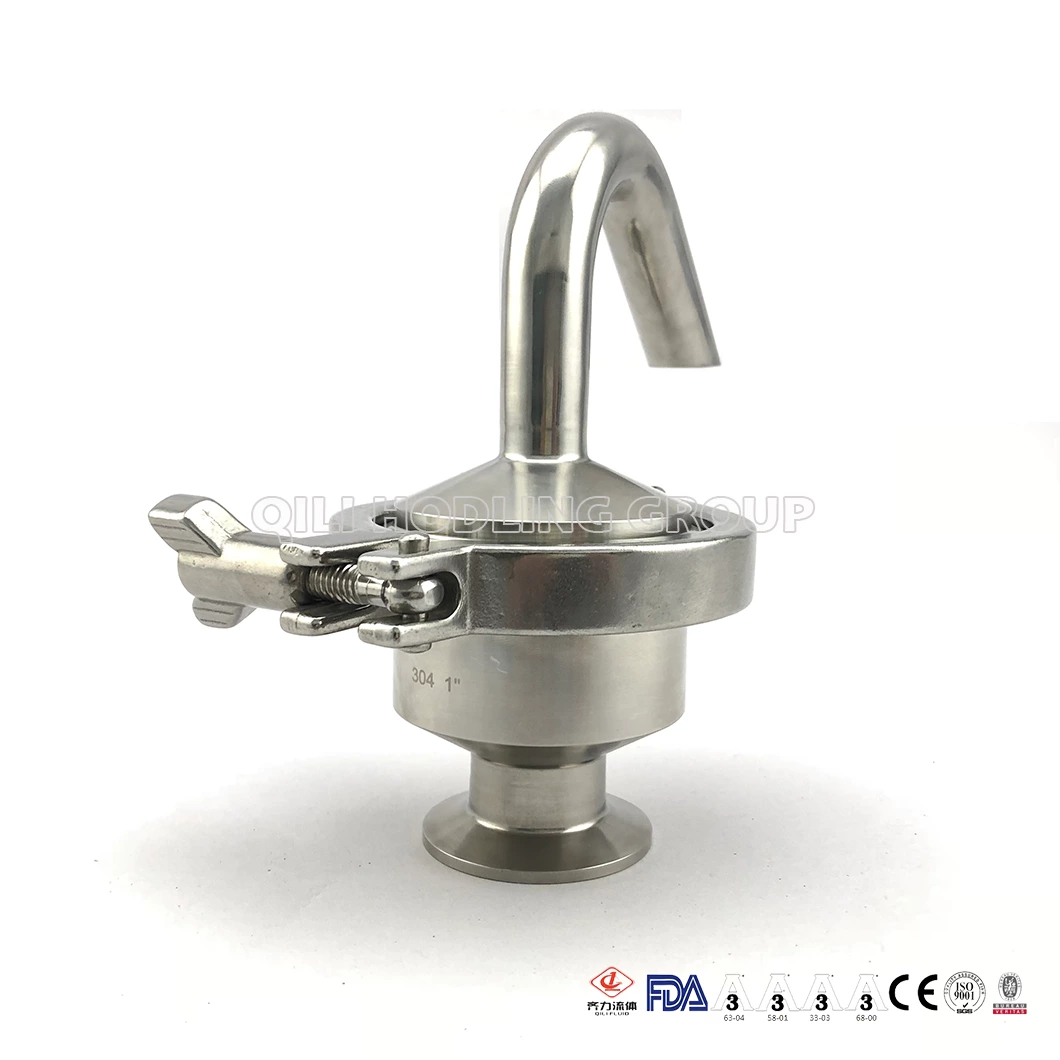

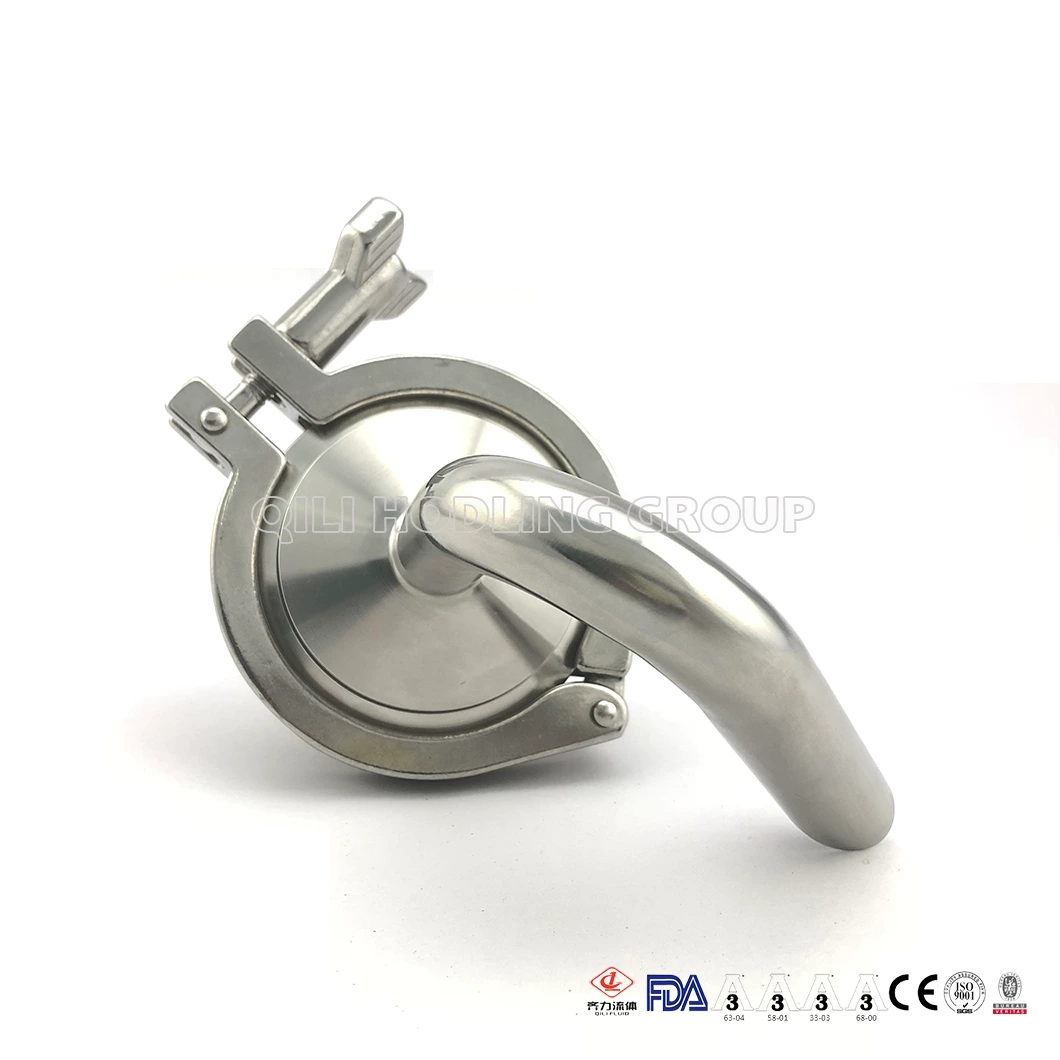

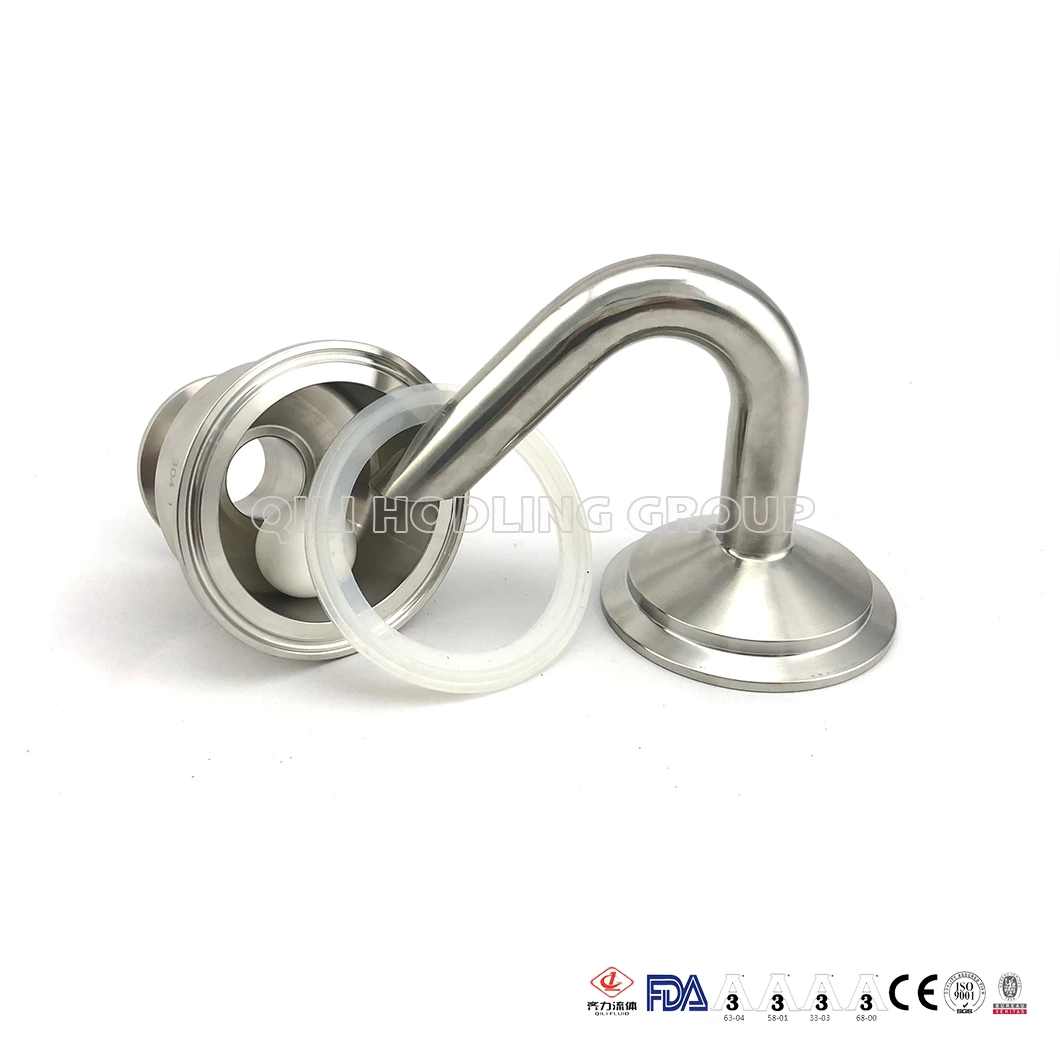

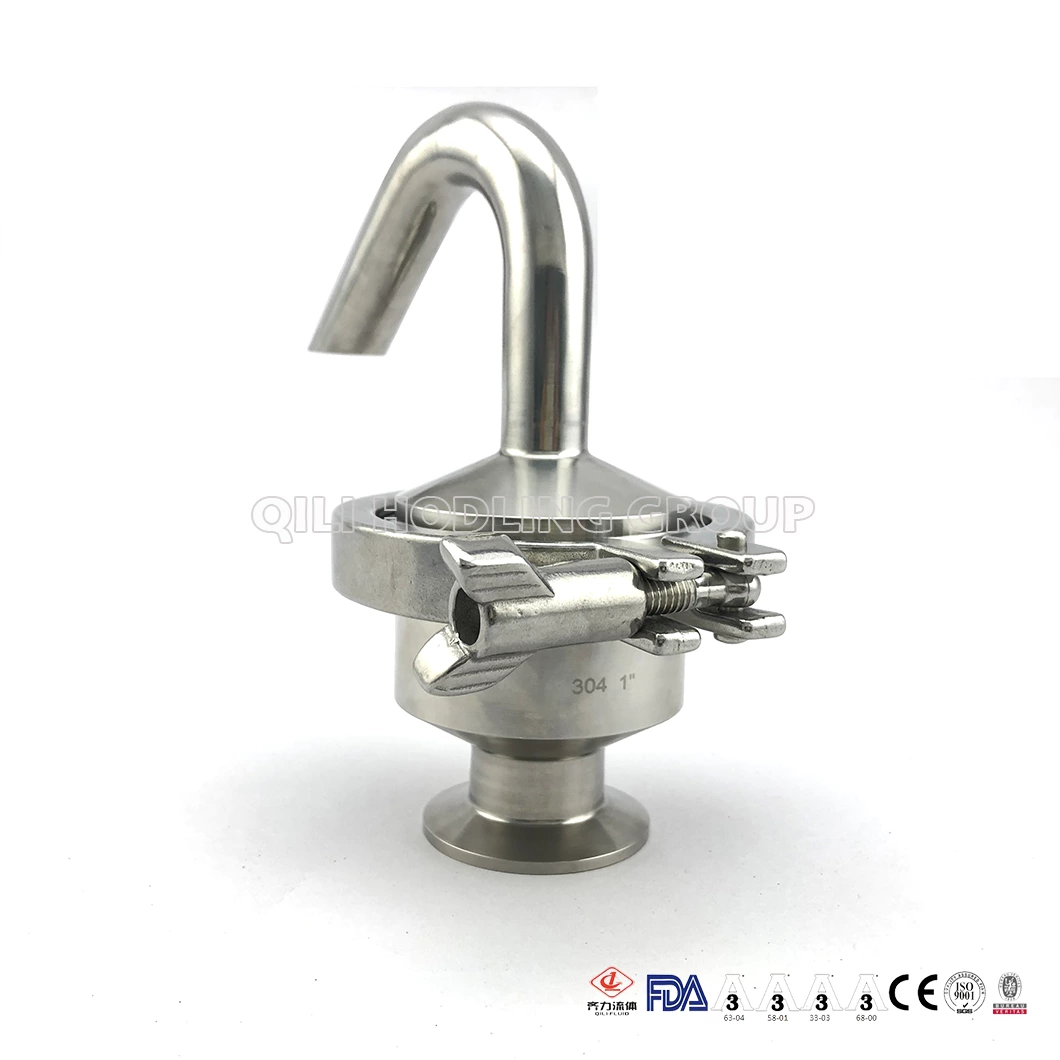

High Grade Sanitary Air Release Valve
Sanitary Stainless Steel Air Release Valve are safety devices required for storage tanks/containers/gas or vapor pipe lines/ reactors etc. having chemicals or any other fluid to be handled carefully.
- Material:
- SS304/316L
- Standard:
- DIN,3A,SMS,ISO
- Application:
- diary ,food, beverage, pharmacy and fine chemical industries.
- Connection ways:
- clamp
- Size:
- 1"-6"
- Type:
- Air Release Valve
- Sales Models:
- wholesale or retail
- Pressure Value:
- 1000kPa/ 145psi (10 bar)
- MOQ:
- 1pc
- Seal Material:
- 90 ºC(because of the plastic ball
- Transport Package:
- cartons
Applications
- Safety valve is used to protecting pipe,pump from over pressure
- Sanitary and safe design is to prevent operation danger and equipments break down due to pressure
- With sanitary design stainless steel, the valvei s best choicefor pretection equipments in diary ,food, beverage, pharmacy and fine chemical industries.
Operating Principle
- Through the spring to adjustable the pressure.
- When the pressure in the pipe exceeds to the specify pressure, the valve open automatically to make the liquid flow in order to reduce pressure.
Details
- Max product pressure 1000kPa/ 145psi (10 bar)
- Max temperture 90 ºC(because of the plastic ball
- Density of ball 0.906kg/dm3
